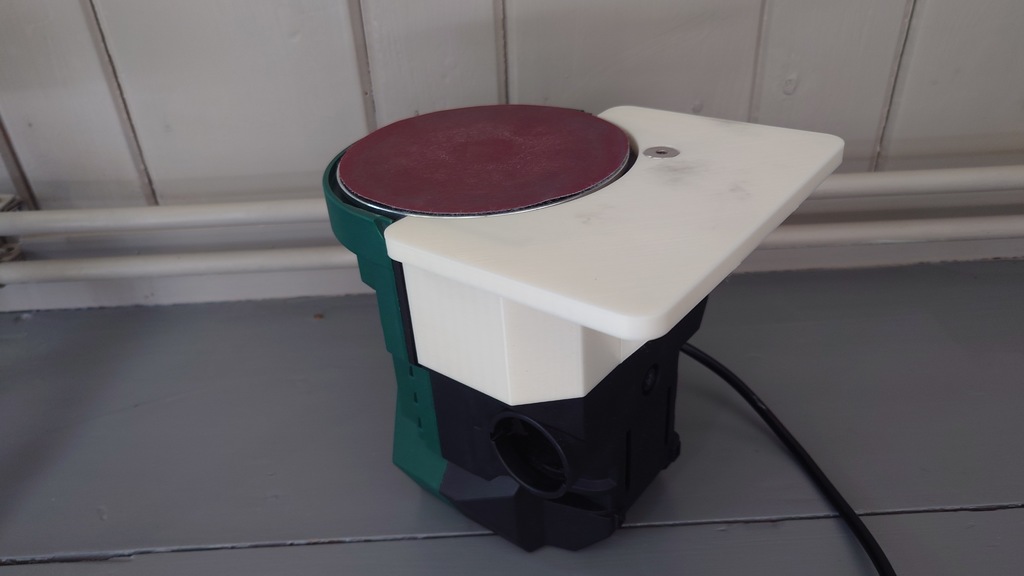

Extension platform for Parkside 125mm disc sander. I use it primarily for re-grinding of 25-degree bevels on chisels and plane irons. The platform serves as a surface on which a honing guide can rest. The material removal is less aggressive as compared to a bench grinder, thus the tool remains cooler.
The platform is mounted using the existing m6 nut in the sander. I used some wide head bolt I had laying around. Design could be easily modified to accommodate a DIN 7984 M6, for example.
Onshape document: https://cad.onshape.com/documents/c02ad7ce6ed2d000fc65920d/w/d42399aacf888d988f03231c/e/29d3b72d647525562a3f0d70?renderMode=0&uiState=653e643a23c17c476eba453d
