Enduro/MX grips
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Automotive
- Licencja
- Creative Commons — Attribution — Noncommercial

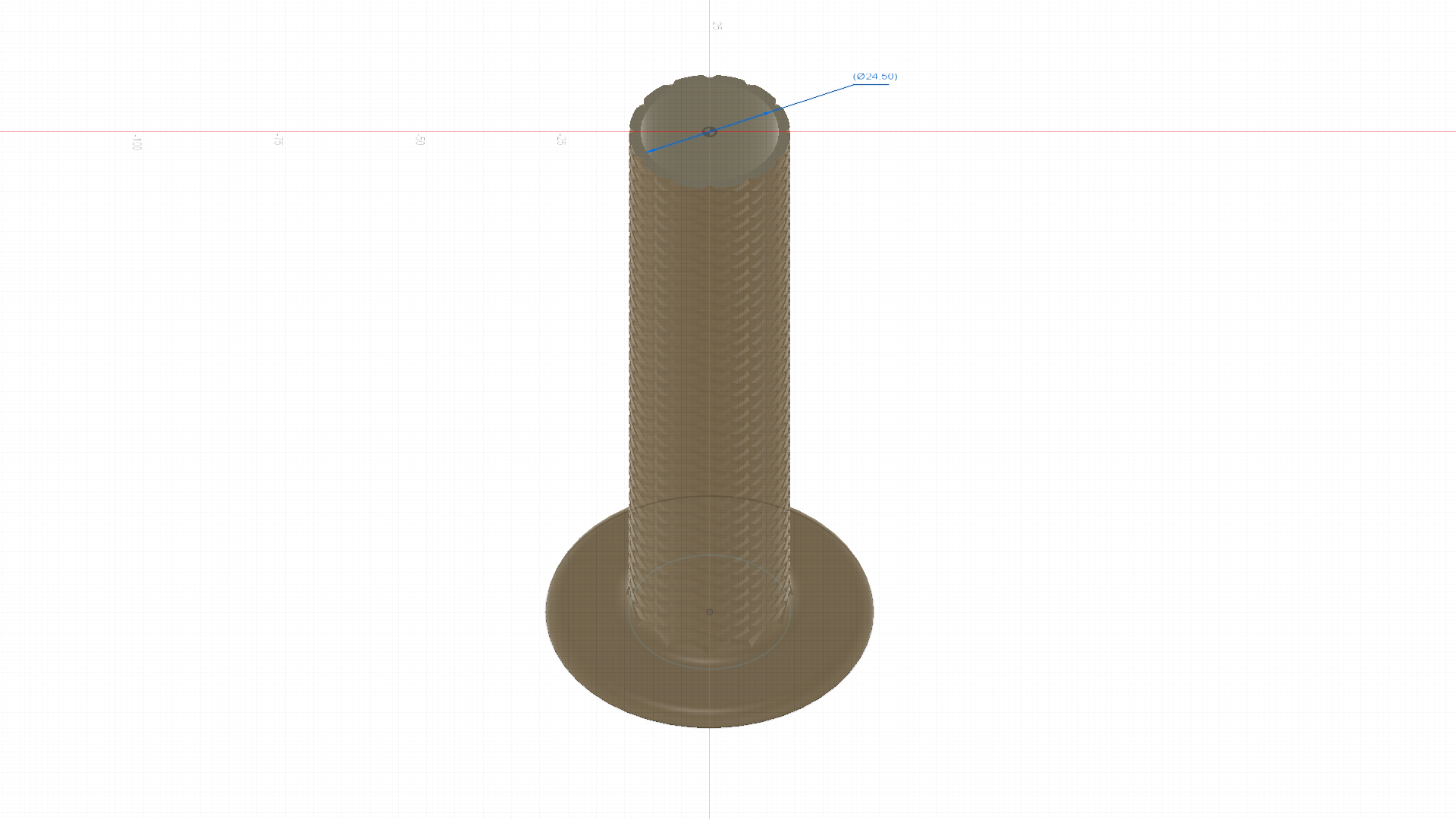

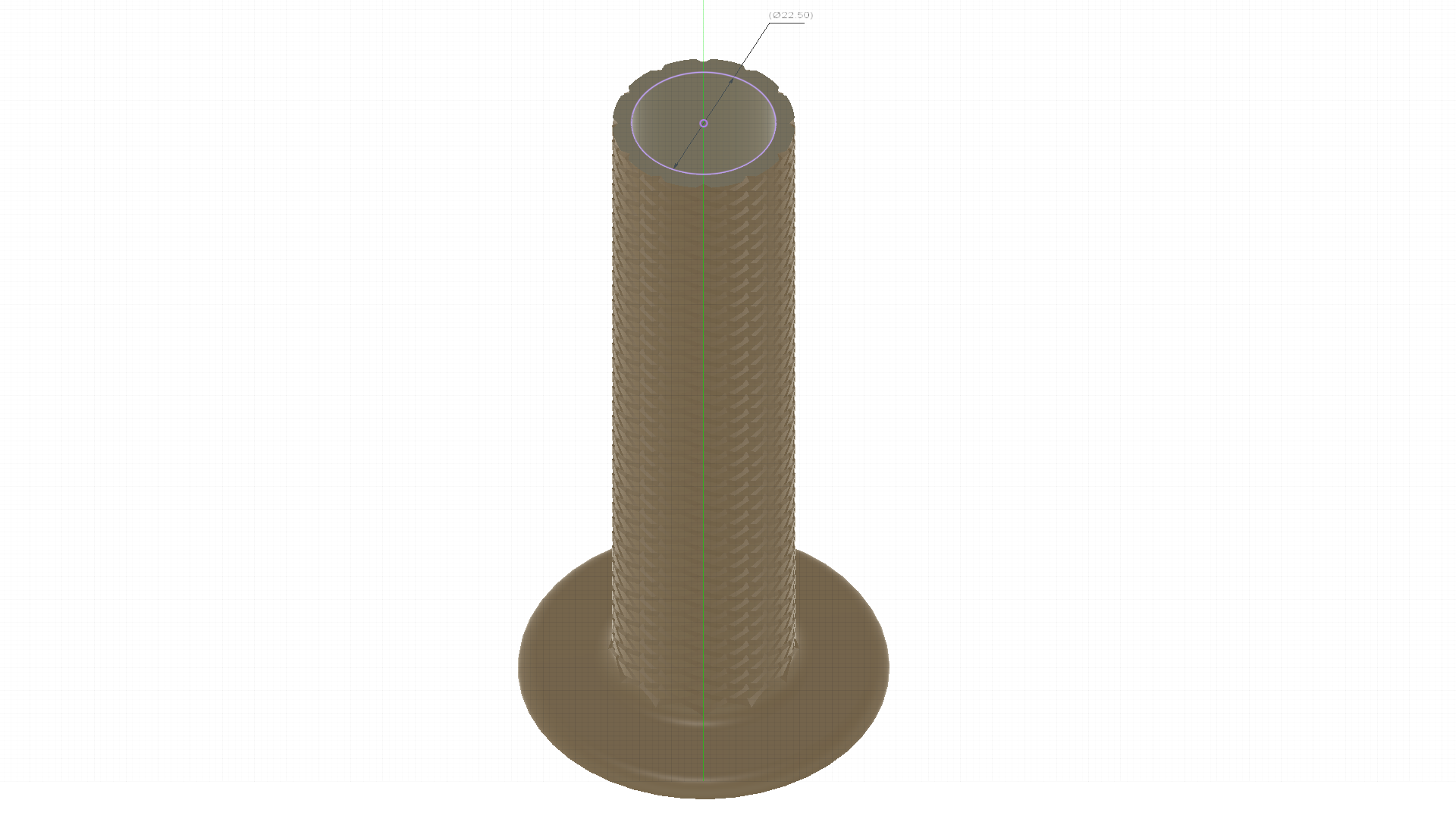

22mm (left) and 24mm (right) grips for enduro and MX motorcycles. There is a 0.5mm tolerance (22.5 and 24.5mm) for easier fit. If you need a different tolerance value just scale the file in slicer. Scaling the 22mm file by 97.8% will produce a 22.0mm hole while scaling the 24mm file by 98.0% will produce a 24.0mm hole.
There are two types of grips, a closed and an open. The open one is to be used with handguards that mount in the handlebar's hole.
The length is 120mm and 122mm for the open and closed type respectively.
Print with TPU with 100% infill (concentric) or >4 perimeters.
