Magnetic terminal
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial

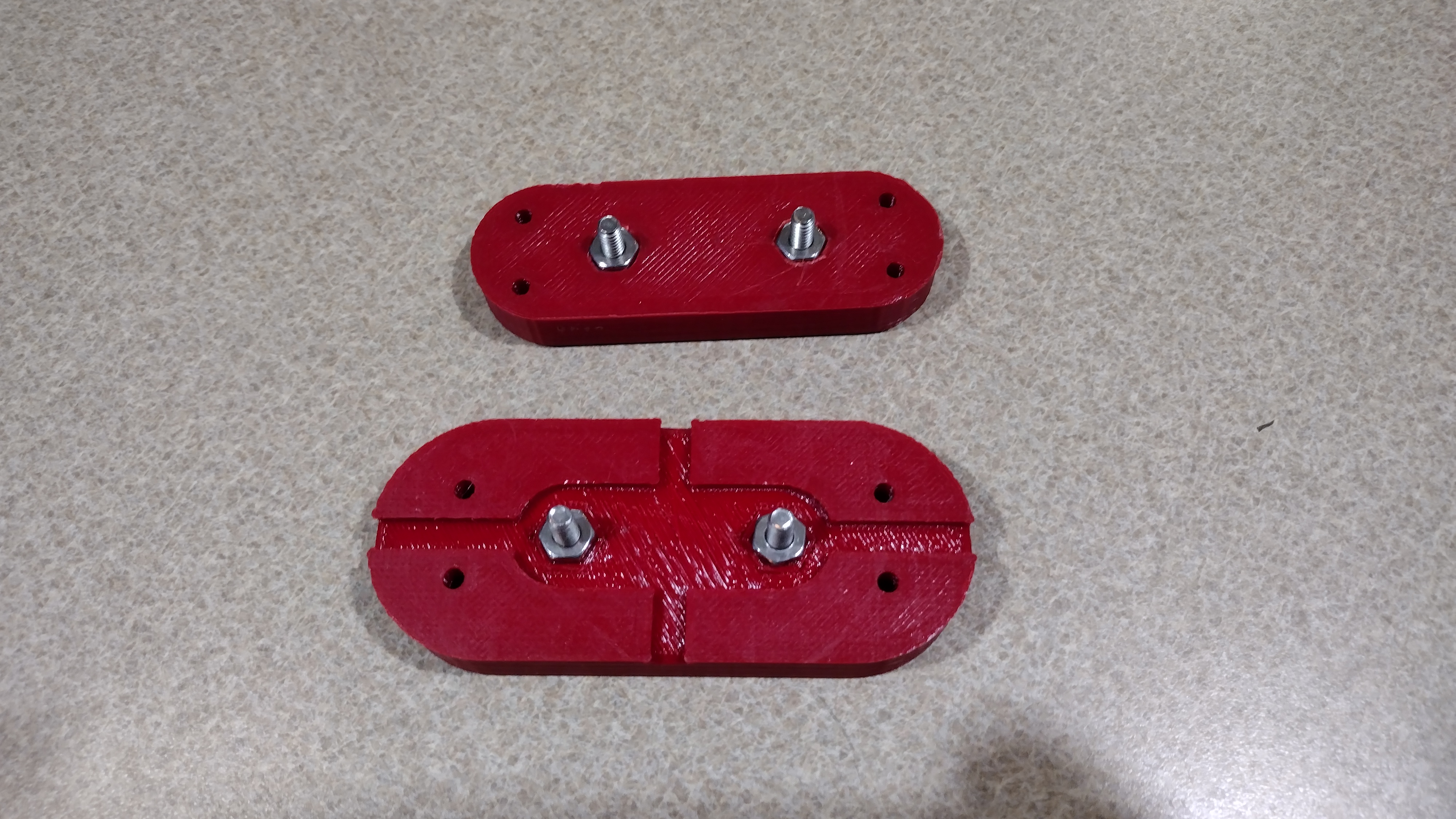

This is a low power magnetic terminal designed to be used as the power connection for some LED strip lights. By using the magnets this allows the terminal to be disconnected, isolating the power.
When installed the total line resistance was increased by only .1ohms.
Additional items needed to complete terminal assembly.
4 - #10-24 or32tpi x 3/4inch bolts
8 - #10-24 or 32tpi nuts
8 - #10 mounting screws (depends on your mounting needs pockets are for flat head #10 screws)
2 - Magnet Source 07573 latch kit.
Total holding force around 40lbs when assembled with magnet kits listed.
Printed with my standard PLA settings, 25% infill and supports on build plate only.
