Marvel Zombies Insert Tray

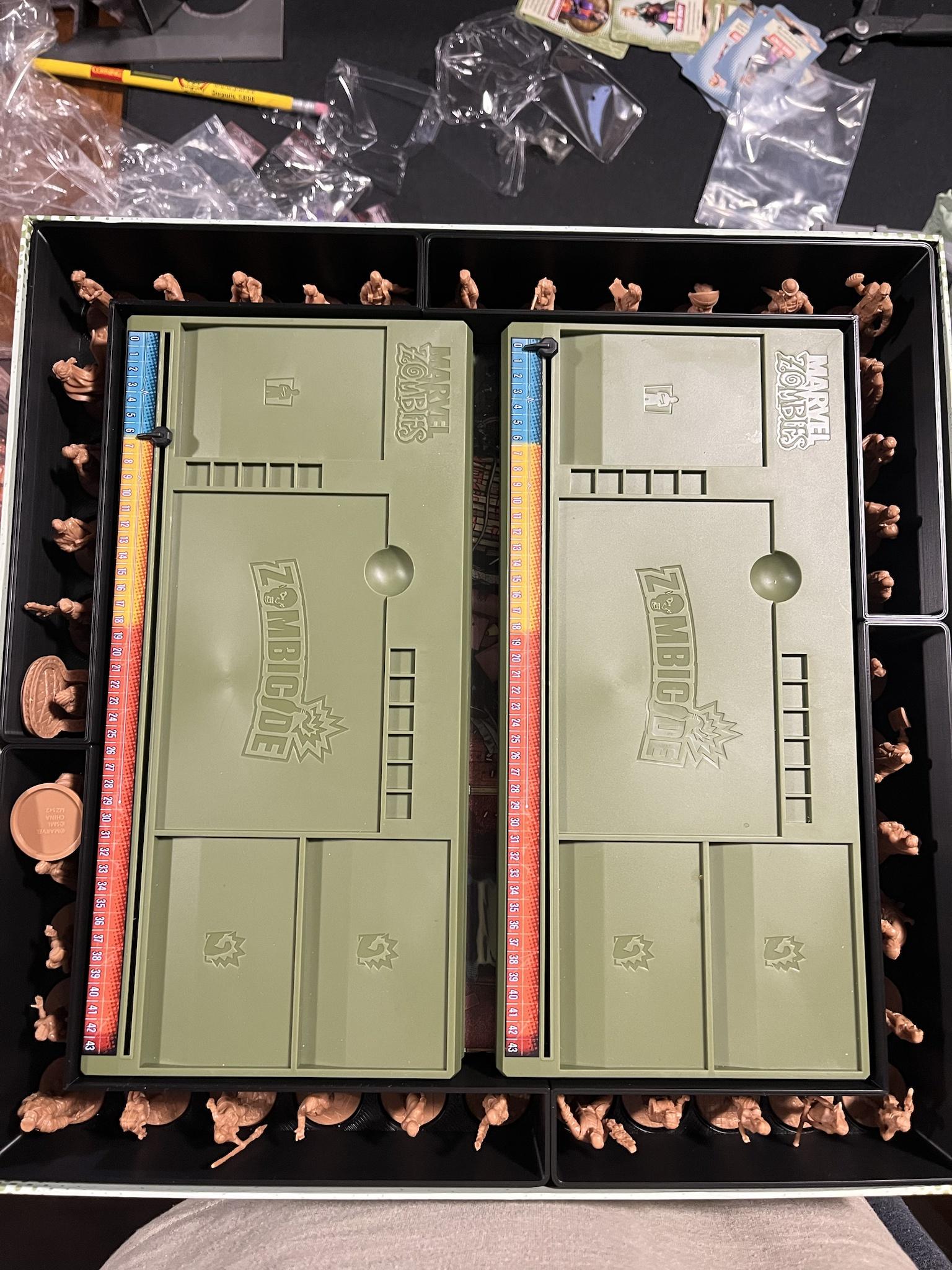

This is an insert for Marvel Zombies board game using the gridfinity system.  It will store the core box and stretch goals. I use the same for X-Men. It doesn't support any other extensions. I am currently working on a War-Ganizer Leviathan to store the minis. I might modify this after to support all extensions if the leviathan is big enough to store all minis.

Print Notes:

• No support required
• Plastic Hungry!
• Print 1 or each
  • Token Tray
  • Walker Tray
  • Bucket

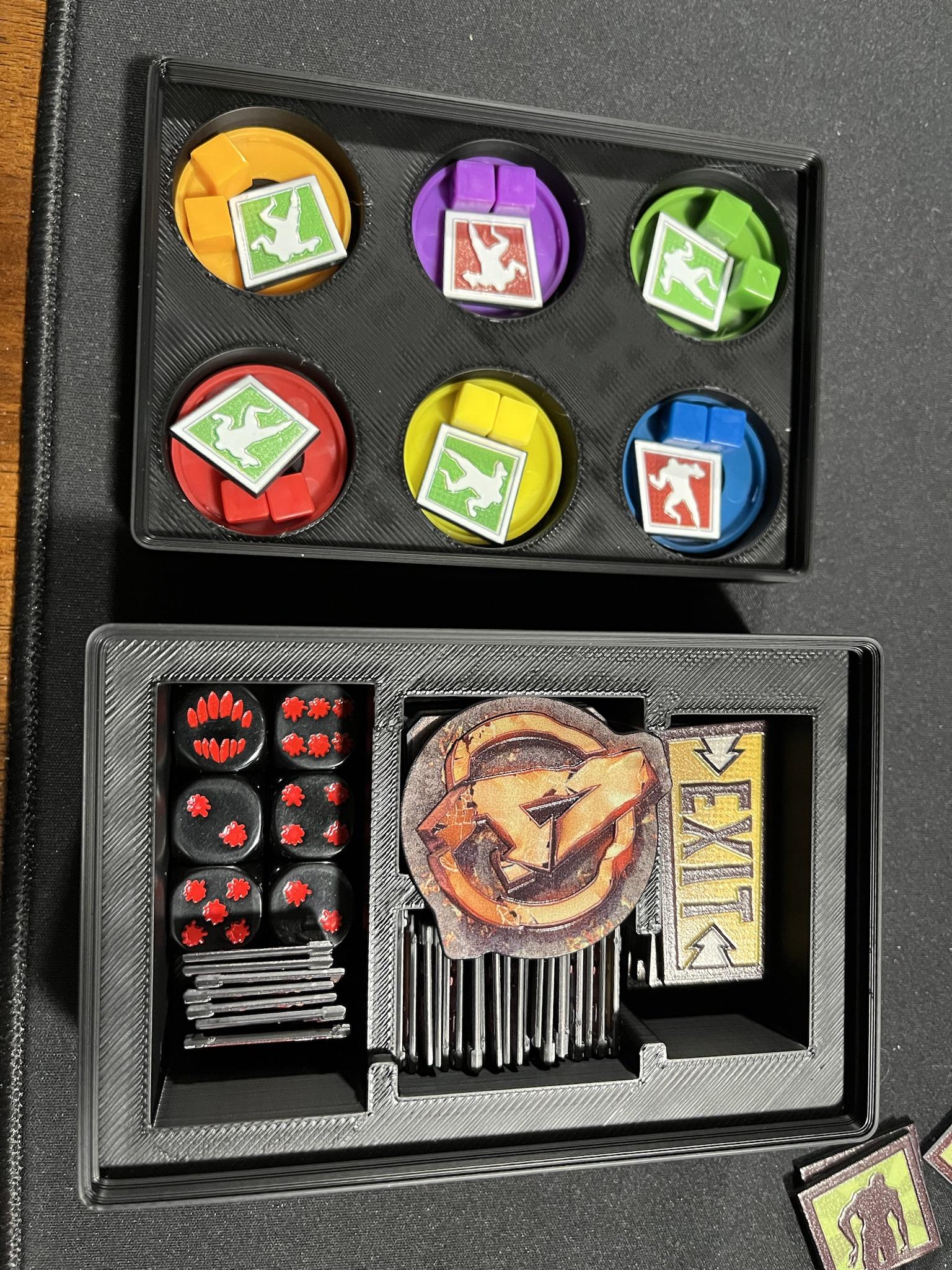

  • Player Bits
  • Hero Cards Tray
• Print 2 of each
  • Runner and Brute Tray
  • Mini Card Tray
• Print 4 of each
  • Tile Support Bystanders (or tile support without the hole for bystanders). You can also  only print 2
  • Mini Rack (This is for the stretch goal box to contain 96 heroes)
• Print 8 of each. This will store heroes in the racks.
  • Hero Tray

Optional is the grid at the bottom, you would need 1 3x3, 2 3x4 and 1 4x4

Notes:

• The base slotDimension is changed from 42mm to 44.57 mm to fit the box size.
• Modified the excellent fusion 360 frame template from Zack Freeman to correct some bugs (when changing slotDimension size) and also implemented parameters slotUHeight and slotNumberOfU.

Gridfinity Spec : https://gridfinity.xyz/specification/
