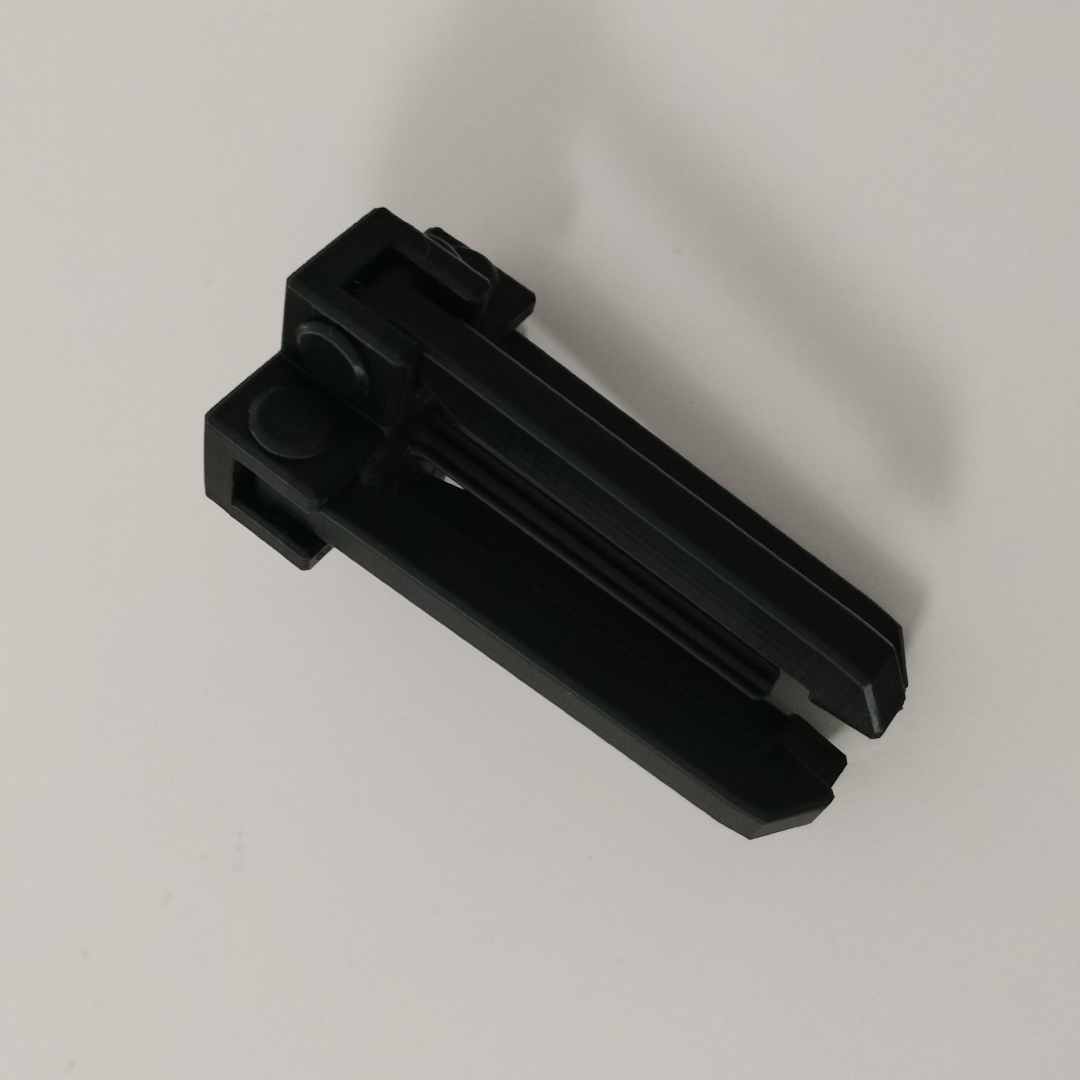

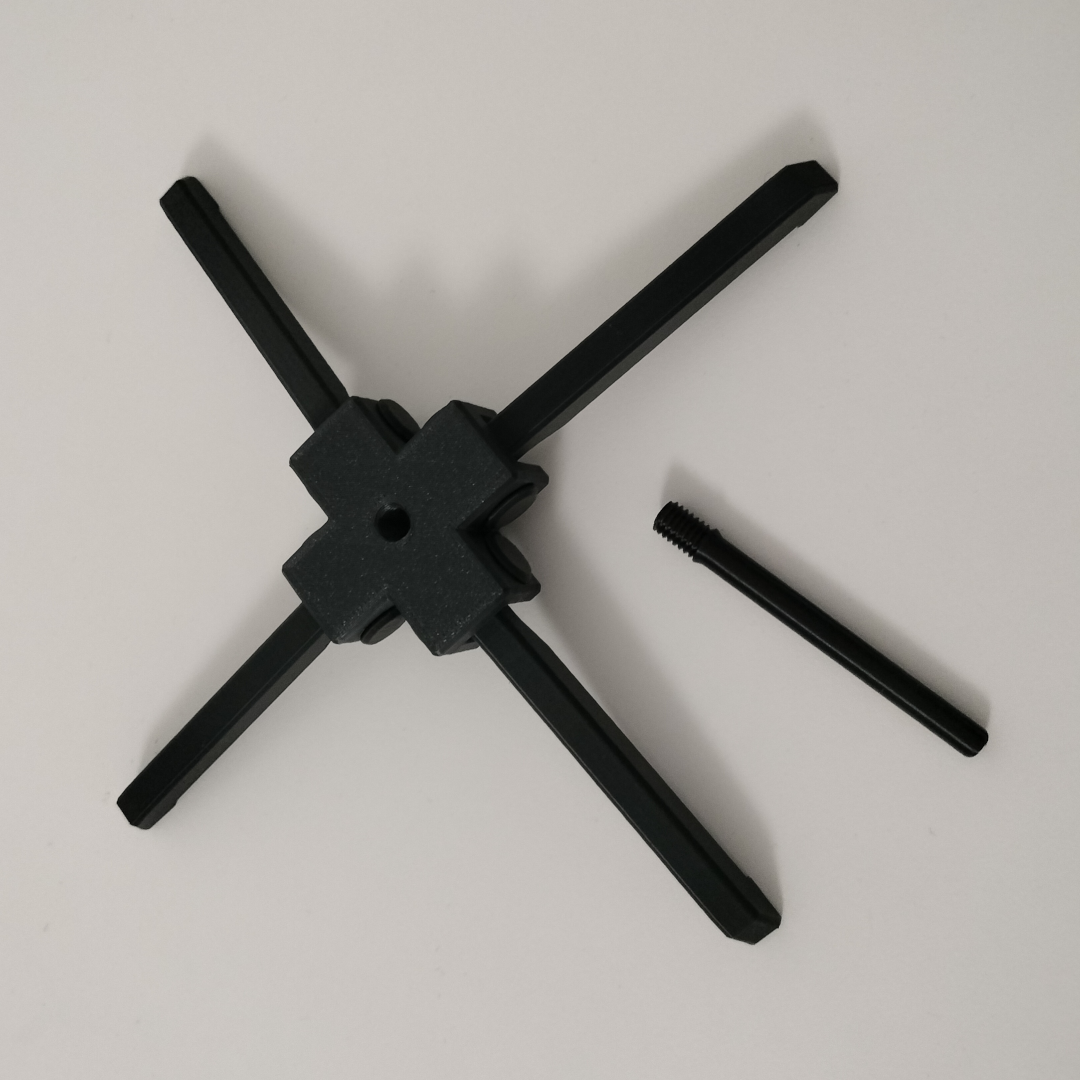

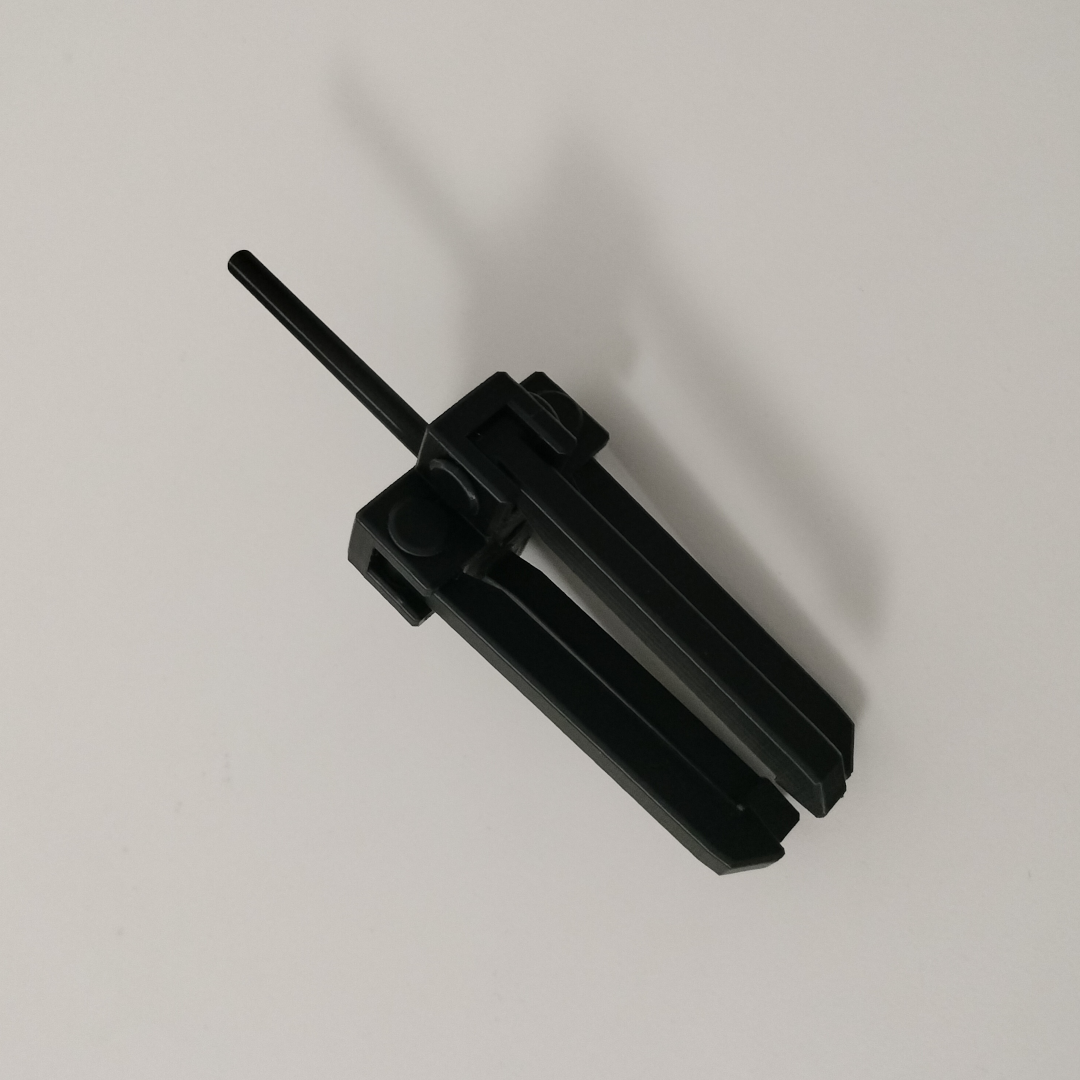

A simple foldable stand for a Piccolo. The holder screws into the base on either side for compacity when transporting it. The holder is between 6mm and 6.5mm. It fits my Piccolo but maybe not yours so please check before printing. The base prints in place in around 3h, the holder takes around 30min to print.

Printing tips

I printed my model on a modified Ender 5 S1 with the following settings:

0.2mm layers, 0.4 nozzle
20% gyroid infill (although 40 might be better for durability)
Ender PLA
Slow bridges for the base, as it is printed in place
Some supports on base, see picture below, no support for the holder

I have toleranced the model so that everything fits nicely but moves freely.
