Freeline Skates

I have been skating for several years now and decided I want to have a lighter version for traveling besides my JMKs. So this is what I came up with.

These Skates worked very well for me if it comes to skating around even with higher speeds.

However, if you start flip- and stomptricks please use metalskates for your own safety!

Additional to the prints you need the following parts to build the skates:

-4x wheels with bearings. (I used JMK-wheels 73mmx43mm and BonesRed-bearings, but smaller wheels should also do)

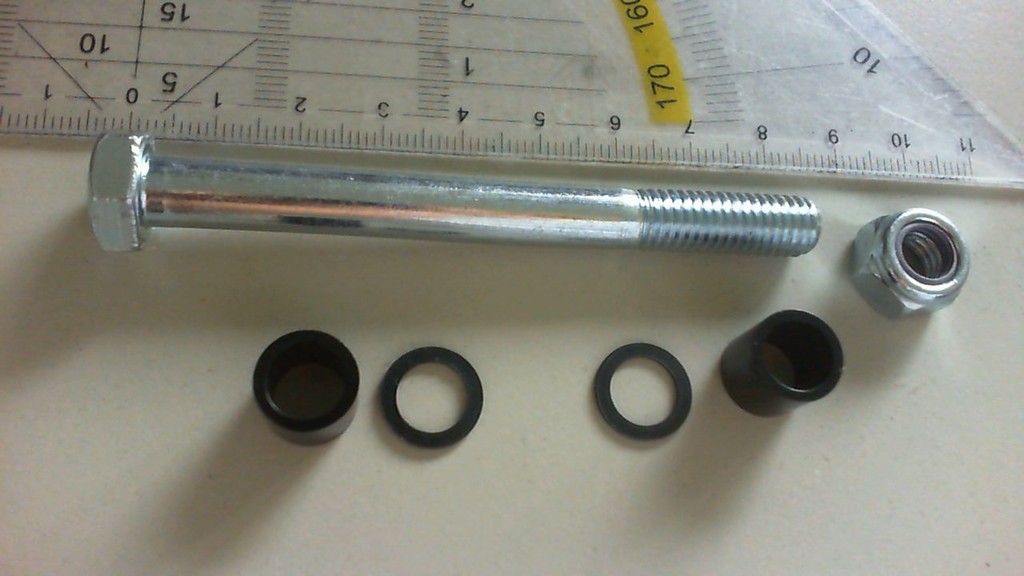

-4x M8 85mm screws with a short thread as axles (see picture)

-8x speedwasher (see picture)

-8x spacer (see picture)

-4x screw-nut self-locking (see picture)

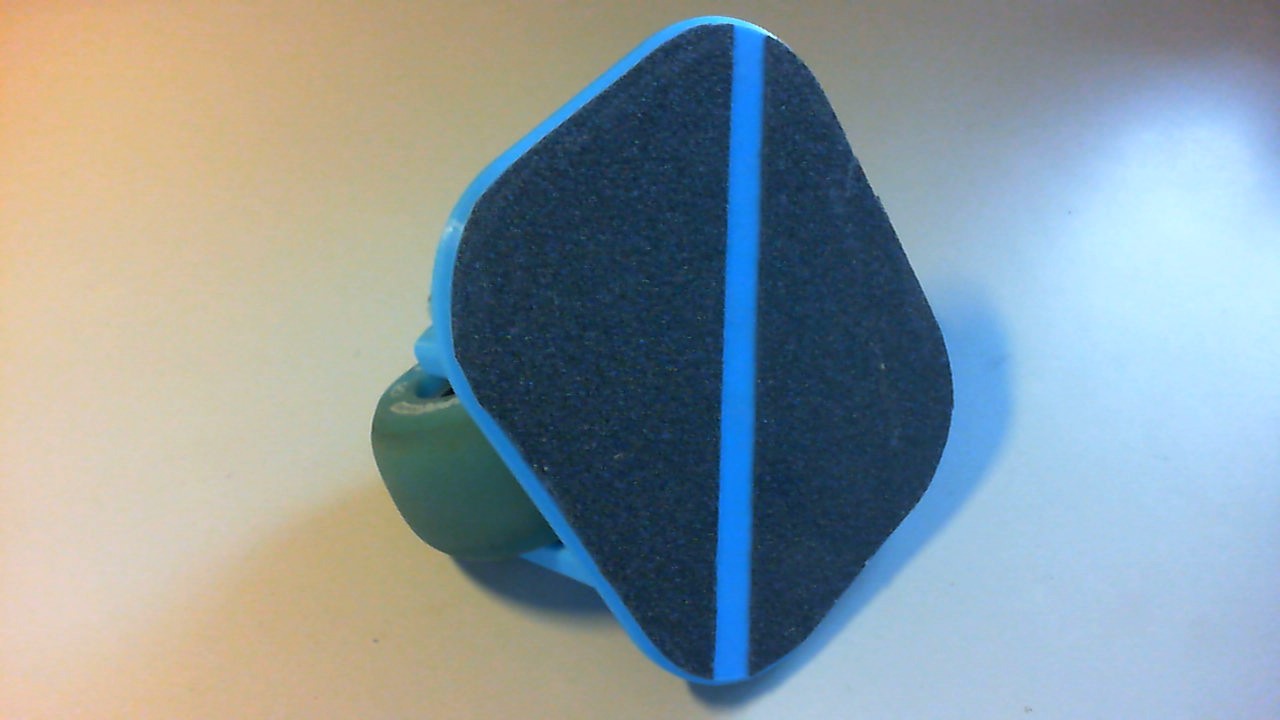

-griptape (I cut pieces out of a regular skateboardtape)

Hint: If you use JMK-bearings you dont need the speedwasher

I hope you have a great time living the Freeline-Live! ^^

Print Settings

Printer:

Geeetech A10

Rafts:

No

Supports:

No

Resolution:

0.4

Infill:

35%

Filament:

Das Filament PLA

Notes:

I even tried versions with 25% Infill. The skate still supported me and my 75kg over several km. But I recommend a little more to be safe.
PETG or nylon might be a better choice than PLA for more durability.

Post-Printing

The holes for the screw might be a tight fit, but it adds to stability. Just slide the screw through them a couple of times until it fits smoothly.
