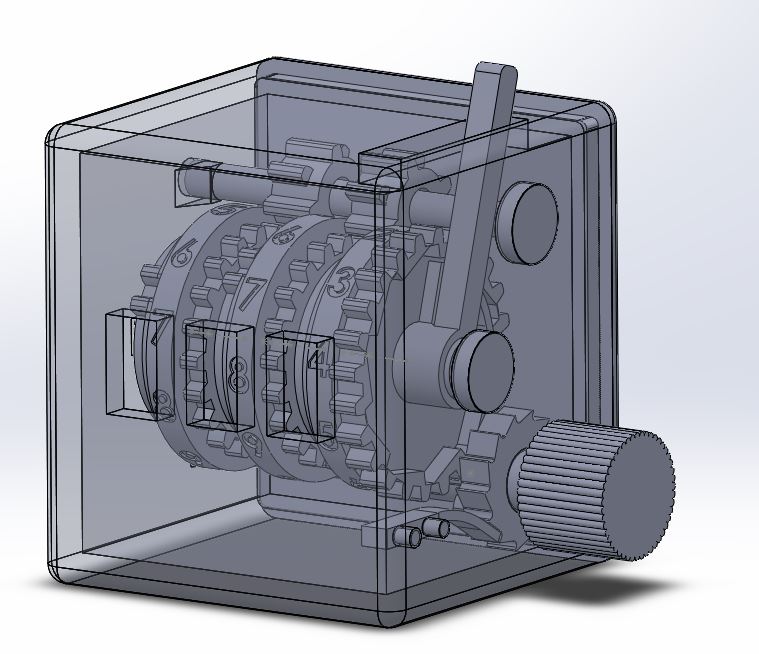

Mechanical Counter Version 1.0

A self designet prototype of a mechanical counter with 3 digits, you can reset.

For printing I used PLA on my Anycubic Kobra with a 0.2 Nozzle.

Note the orientation at “Counter_3” and “Counter_06” to prevent breaking

Assembly:

1: Mount “Counter_03” to the housing (“Counter_01”)

2: After connecting “Counter_05”,  "Counter_06" and “Counter_12”

3. Connect “Counter_10" and ”Counter_12"

4. Use “Counter_08” to assemble the Gears.

5. Now assemble the smal gears ("Counter_09") with the second “Counter_08”

6. Assemble now “Counter_04”, “Counter_07” and “Counter_11”

7. Now close the cover ("Counter_02")

Done
