Allit EuroPlus Basic Inserts - Half Size
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Organizers
- Licencja
- Creative Commons — Attribution
Half size inserts for Allit EuroPlus Basic 18/1 sorting boxes, these come with a folding lid but without internal dividers.
Insert main dimensions: 83.5 x 124.0 x 34.0 mm
Half sized insert layouts - so print two of them per Allit box:
- 2x2 boxes
- 3x3 boxes
- 3x4 boxes
- 4x4 boxes
The design is optimized for printing with a 0.4 mm nozzle, 0.42mm outer wall width and 0.25mm layer height. Seam position should be set to random for better stability. Printing works very well with basic materials like PLA and PETG on a Bambu Lab P1S.

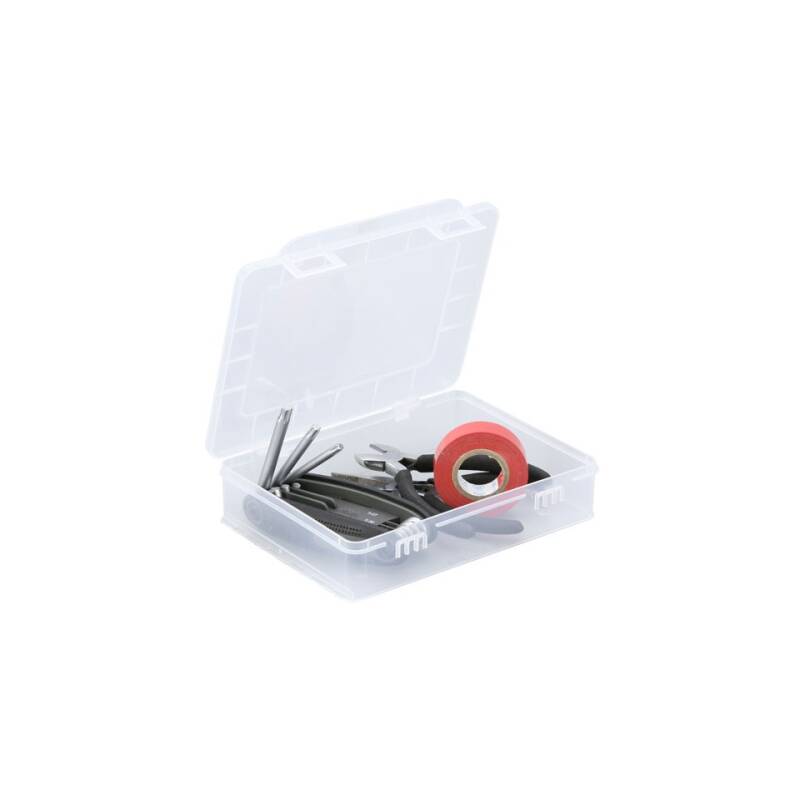

The Allit boxes with part no. 457170 are made from semi-transparent polypropylene and can be bought for cheap in many hardware stores.
Box outer dimensions: 180 x 150 x 40 mm
More variations to come!
