Hypercube Revolution (from original tech2c)

Hypercube Iteration: Modern Design, New Hotend, Filament Cutter, and More

Here is the link the files tree on thigiverse, I'll upload all the content here when I'd finish this conversion

https://www.thingiverse.com/thing:6435445

My Hypercube Setup:

• Retains original Tech2C printer frame dimensions
• Upgraded Z rods to 12mm
• Upgraded Y rods to 10mm
• Upgraded X rods to 10mm

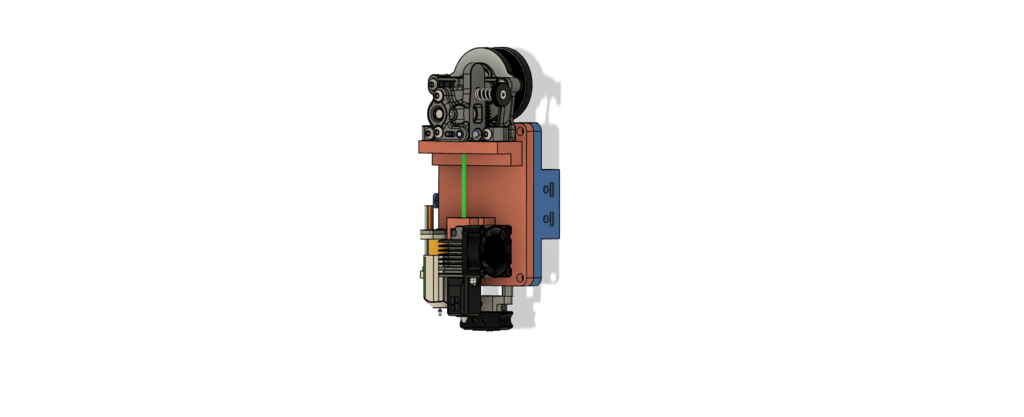

Features:

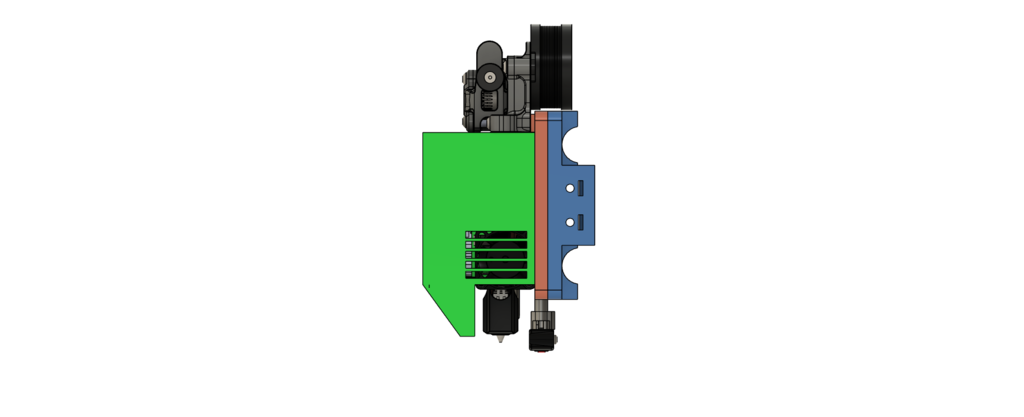

• Bambu Lab hotend
• Voron Z endstop positioned at the side for consistent z-offset
• Quickdraw detachable probe
• 5015 cooling fan mounted on the front mounted with magnets like bambu
• Sherpa mini extruder with filament sensor (verifies if filament is loaded onto the extruder)
• TO DO: Implement a filament cutter in the style of Bambu, using a Bambu blade

Change Log:

• Voron Z endstop for hypercube tech2c orginal bed supports
• Umbilical support for sherpa mini, with nema 14 w/ cable detachable
• Idler for gt2 20T with 5mm shaft
• Quickdraw sliding docker and arm adapted to the hypercube from VZBot drawings
• Quickdraw support attached to the Bambu hotend face with a heat insert

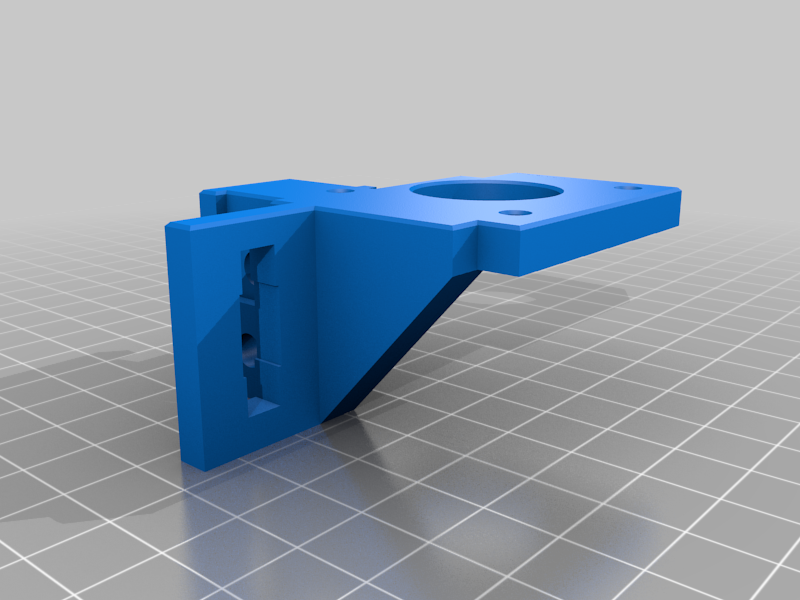

• Left-side motor holder lowered to accommodate a 10mm-long bearing without sacrificing Y print area
• Left-side joiner edited to allow parking closest to the motor, increasing print area by 9mm when using 10mm rods on the Y

I'll provide links to all the original designs that I've used or been inspired by for this project.

Print Settings

Printer Brand:

VoronDesign

Printer:

Voron2 350

Notes:

I've use ASA with 4 walls, 5 top and bottom shells
