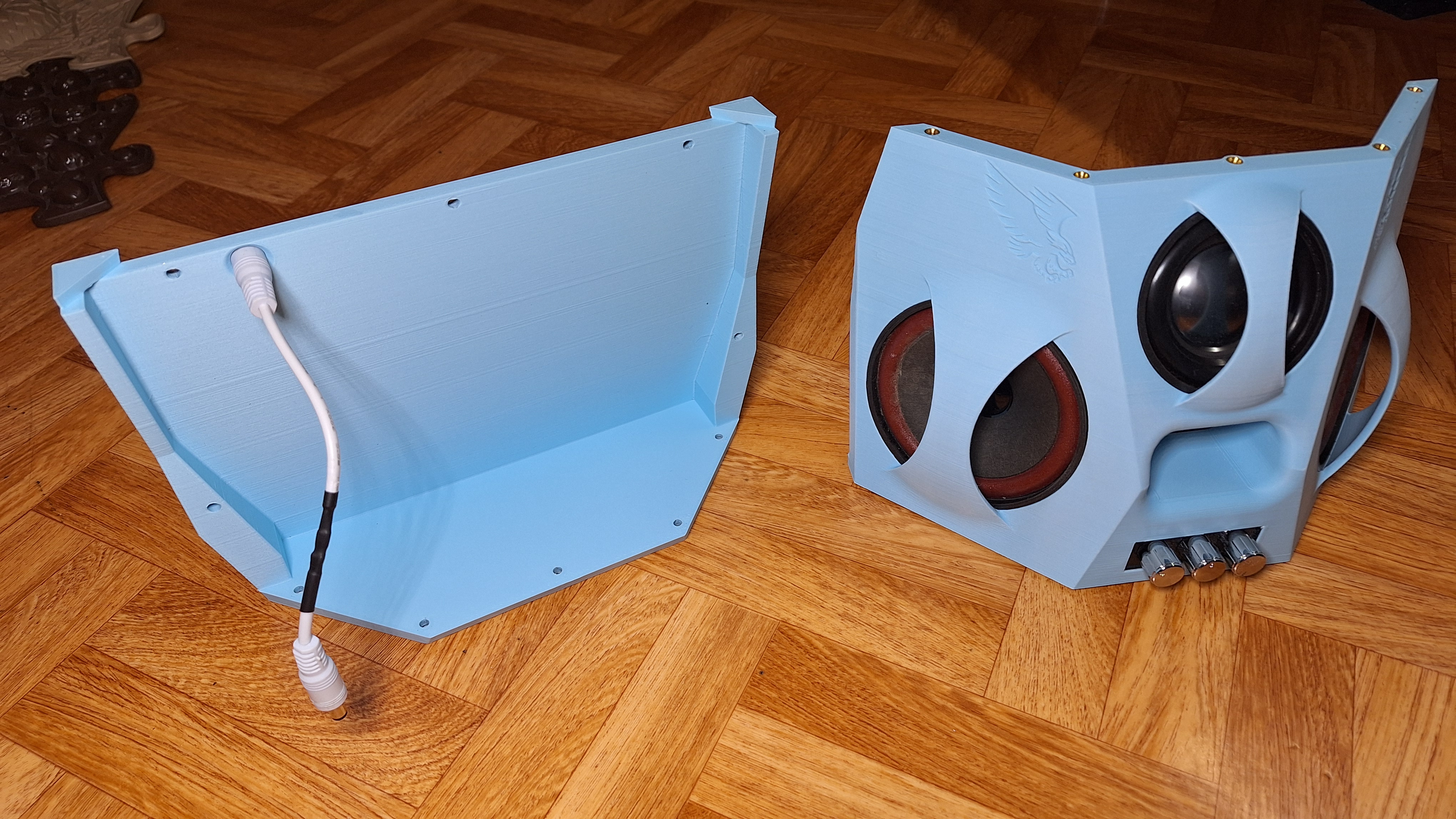

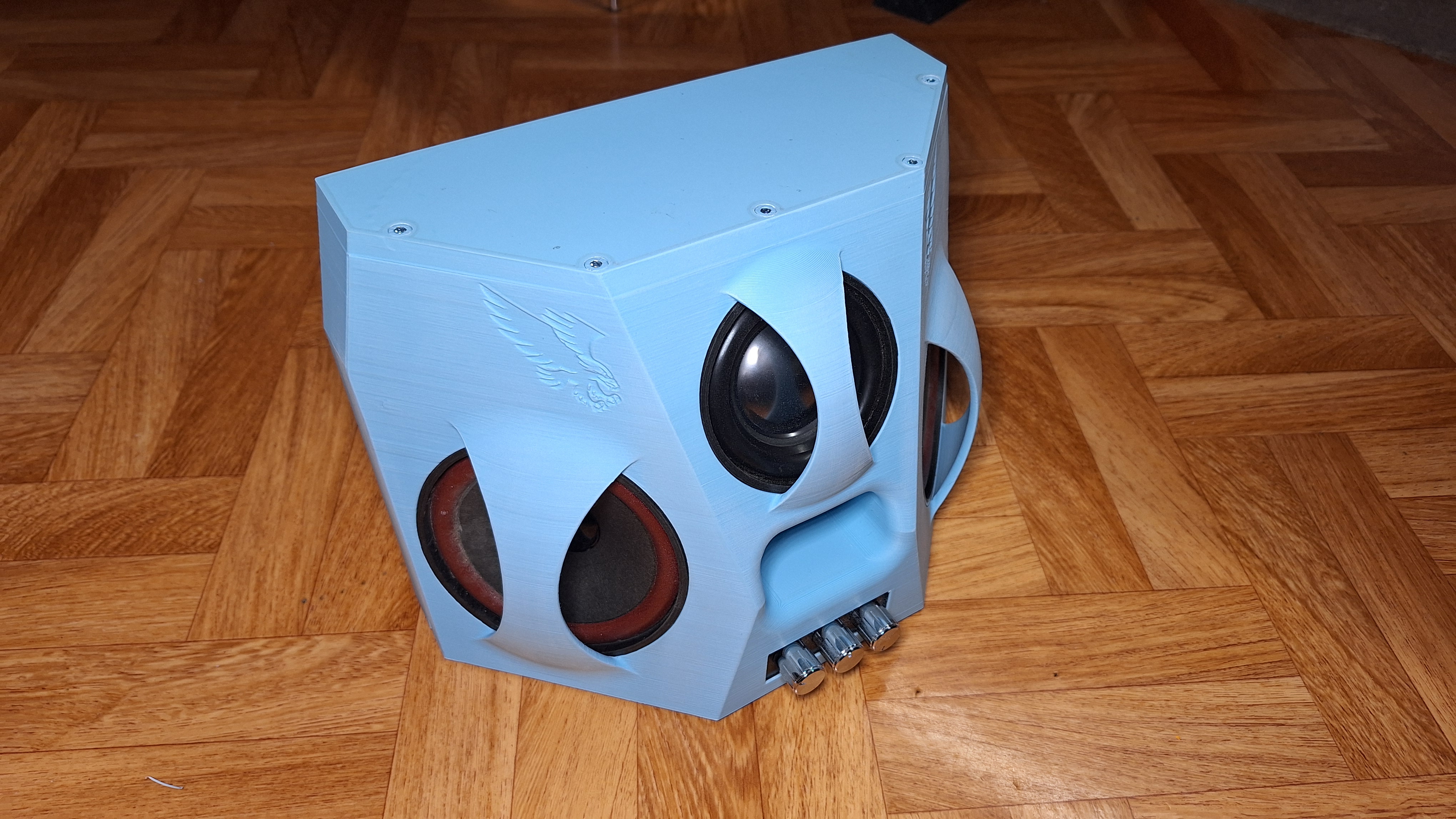

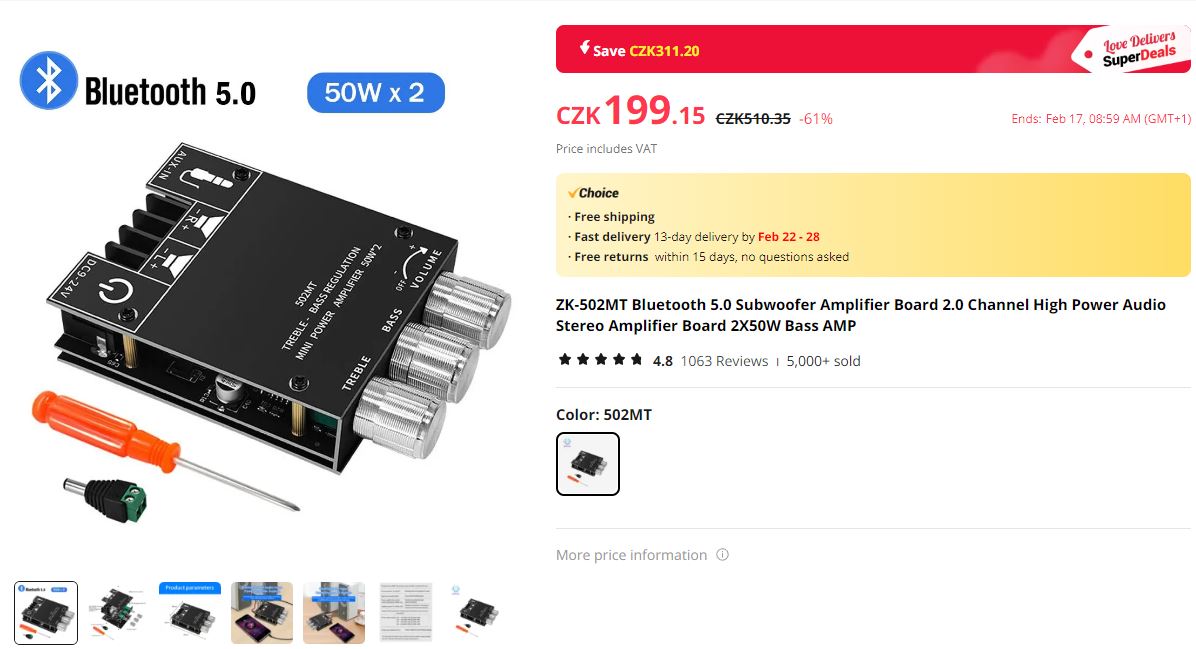

I found on AliExpress amplifier for 100CZK and realise that i had some speakers from old sony radio. And new project was started…

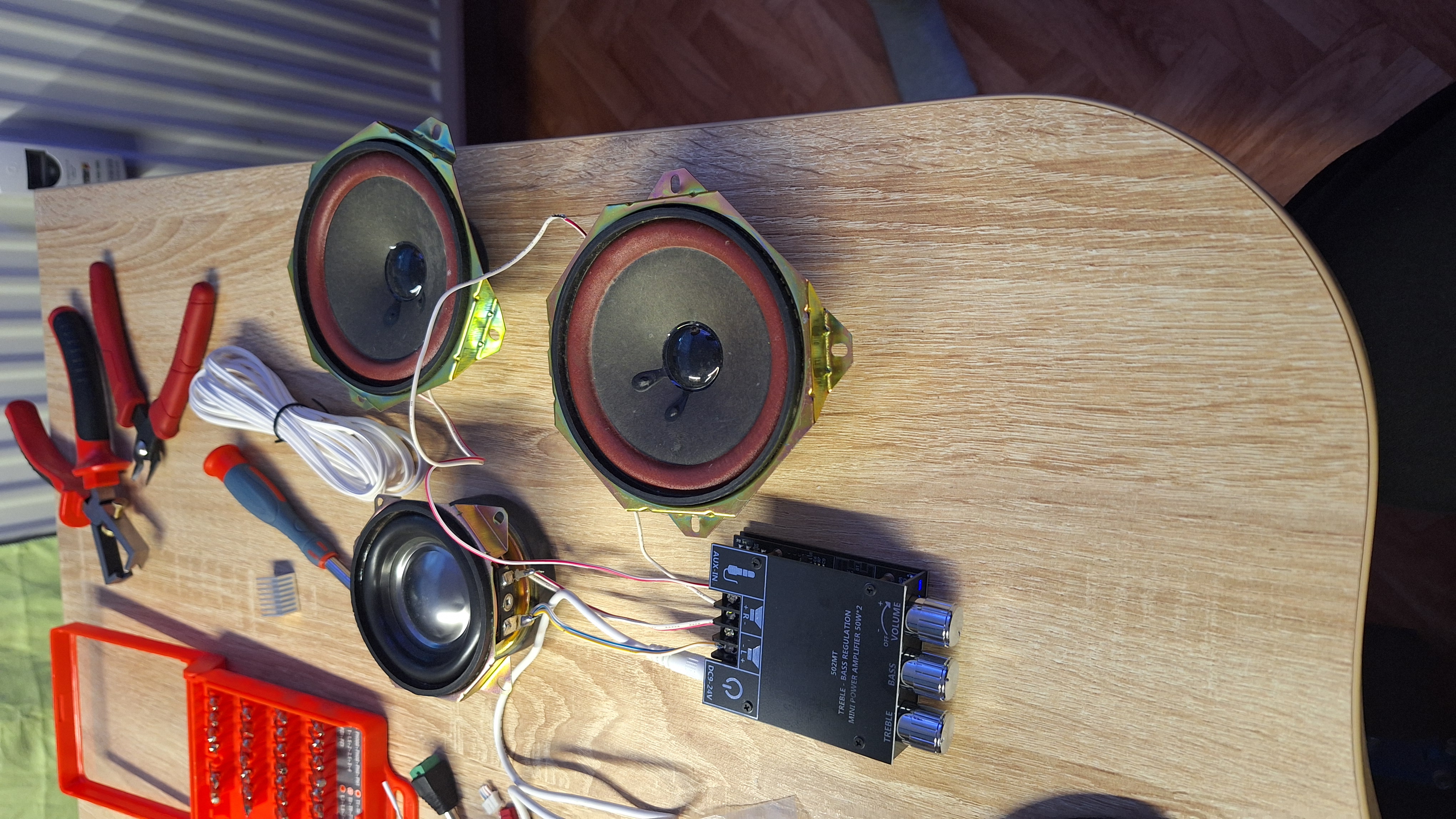

Speakers are 1x 78mm and 2x 100mm
Amplifier is from Ali there are more of them but just to check ohms my is runnning 4-8

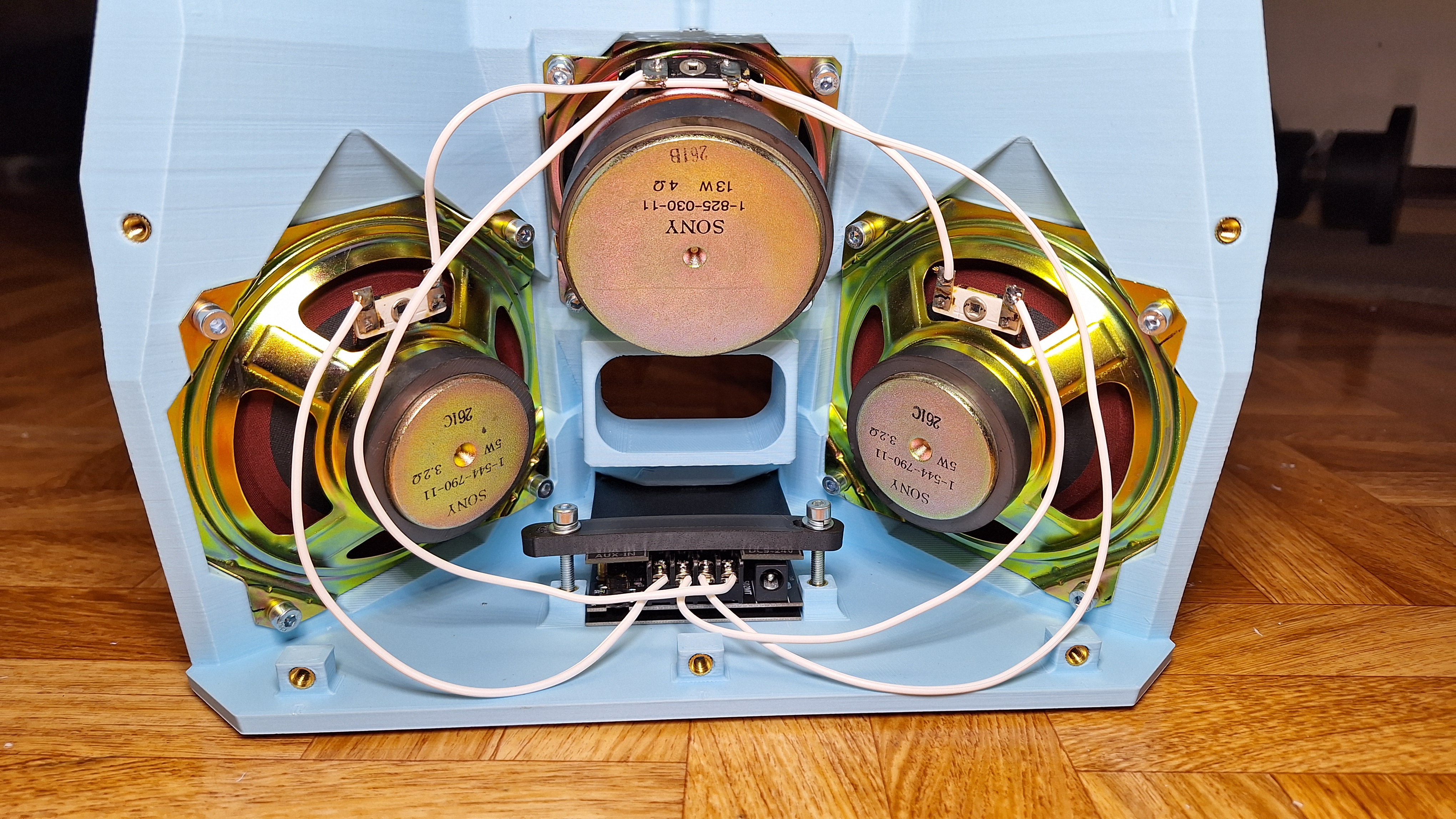

Side speakers are in serie on one channel and the small one is on second channel.
It sounds suprisingly good… :)

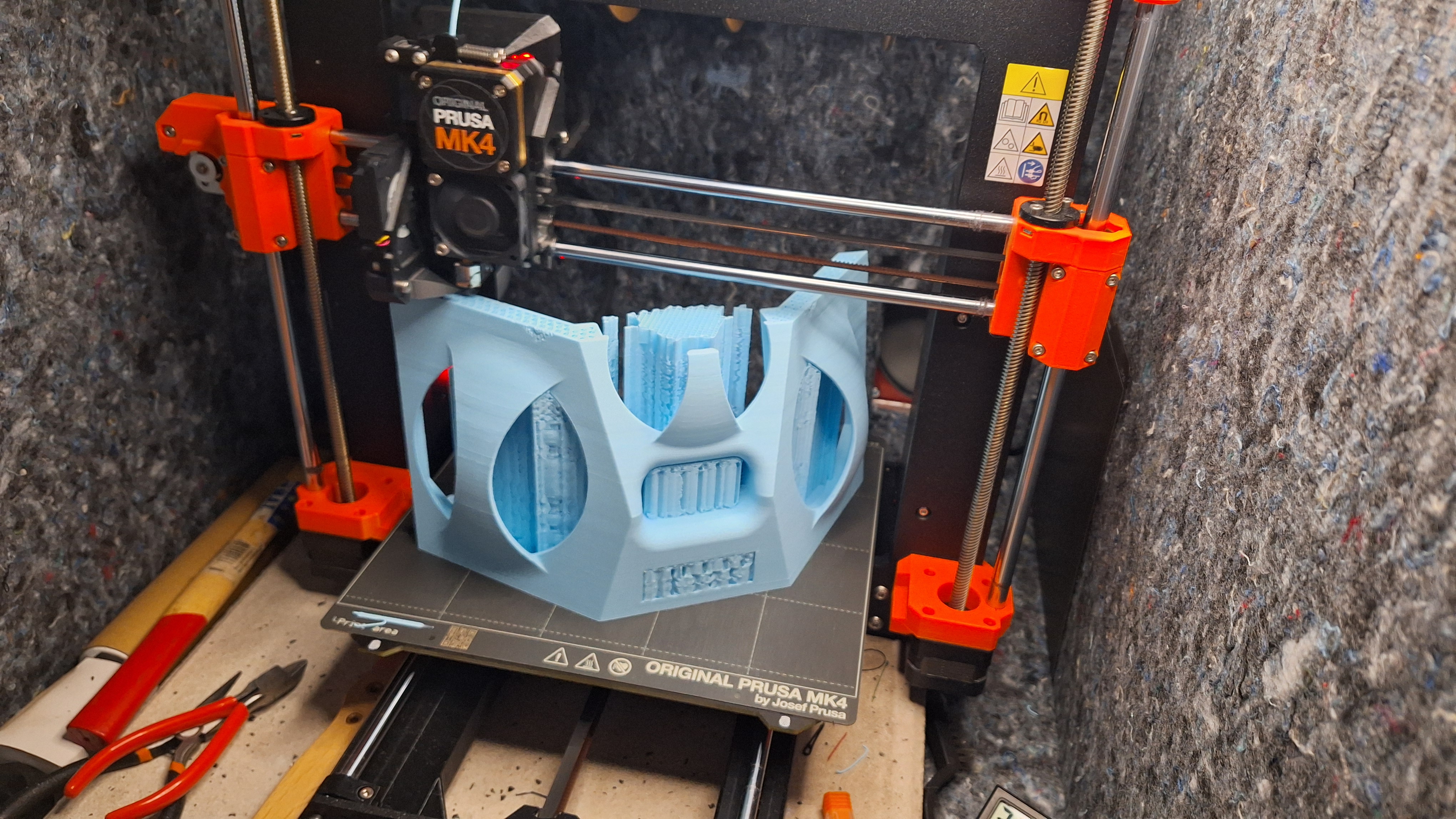

Printed in PLA ice blu together 30h cca

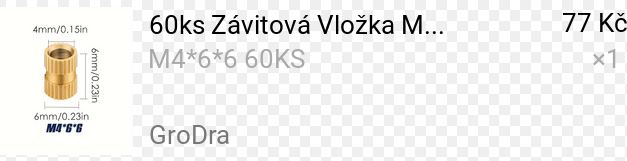

And i used thread inserts from china M4.
You need just few screws from shop… all M4
In case of help needed let me know.
