Aquarium circulation pump
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Pets
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

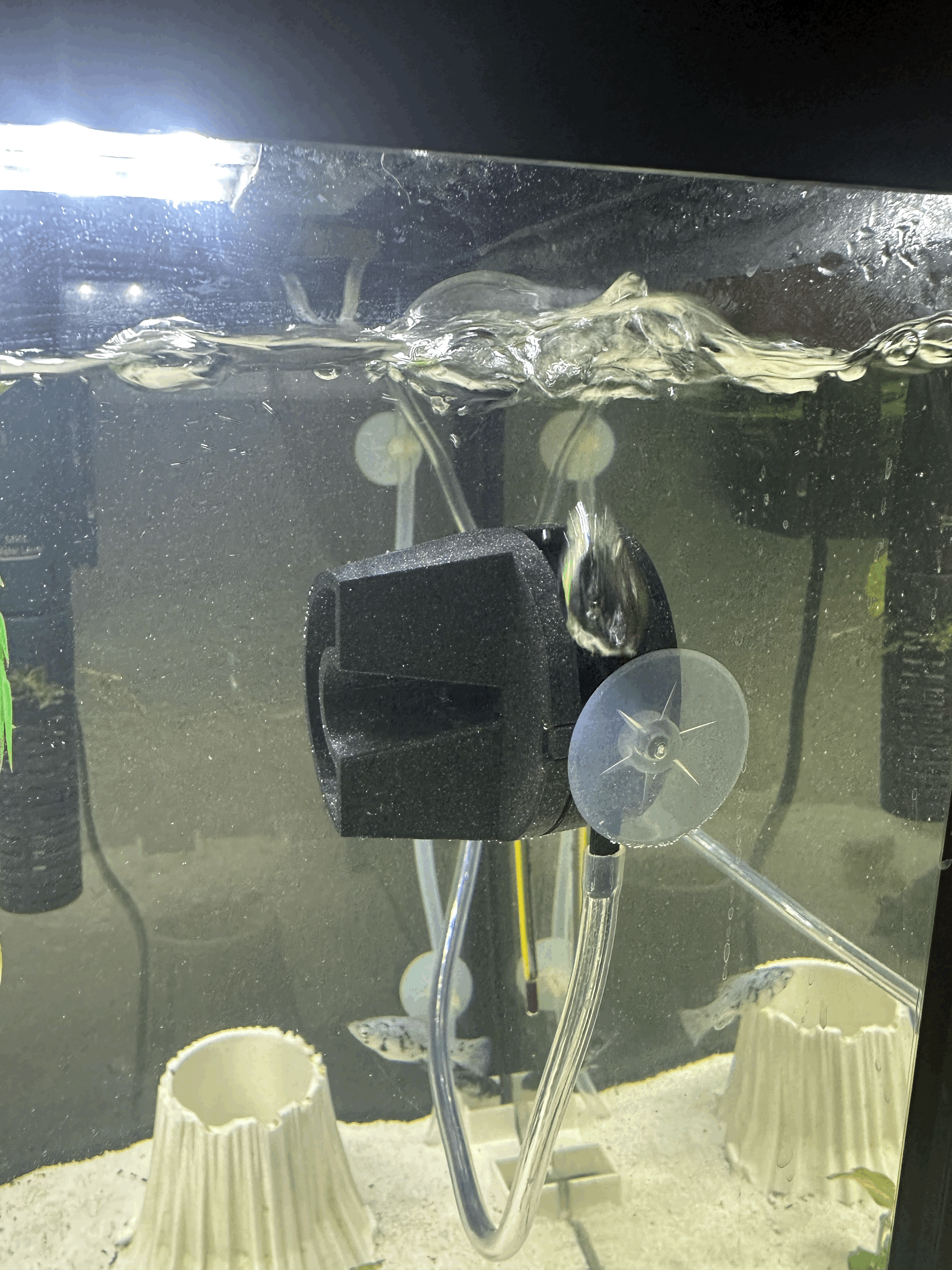

I wanted to create a circulation pump out of an air pump. The propeller spins and creates a small amount of horizontal force.
Unfortunately due to limitations with air bubbles it does not spin fast enough to replace a true circulation pump. But if you need a small to moderate amount of water flow this can do the trick.
It is designed to be inserted into some spare airline holder suction cups. I got it for 2.99 at petsmart. Top fin brand.
https://www.petsmart.com/fish/filters-and-pumps/air-and-water-pumps/top-fin-aquarium-airline-holders-55053.html?fmethod=Search
Two options
- You can print it to not have a nozzle and if so print the cap.
- otherwise don't print the cap as the nozzle file will go on there. Nozzle seems to rotate better as it limits the bubbles escape.

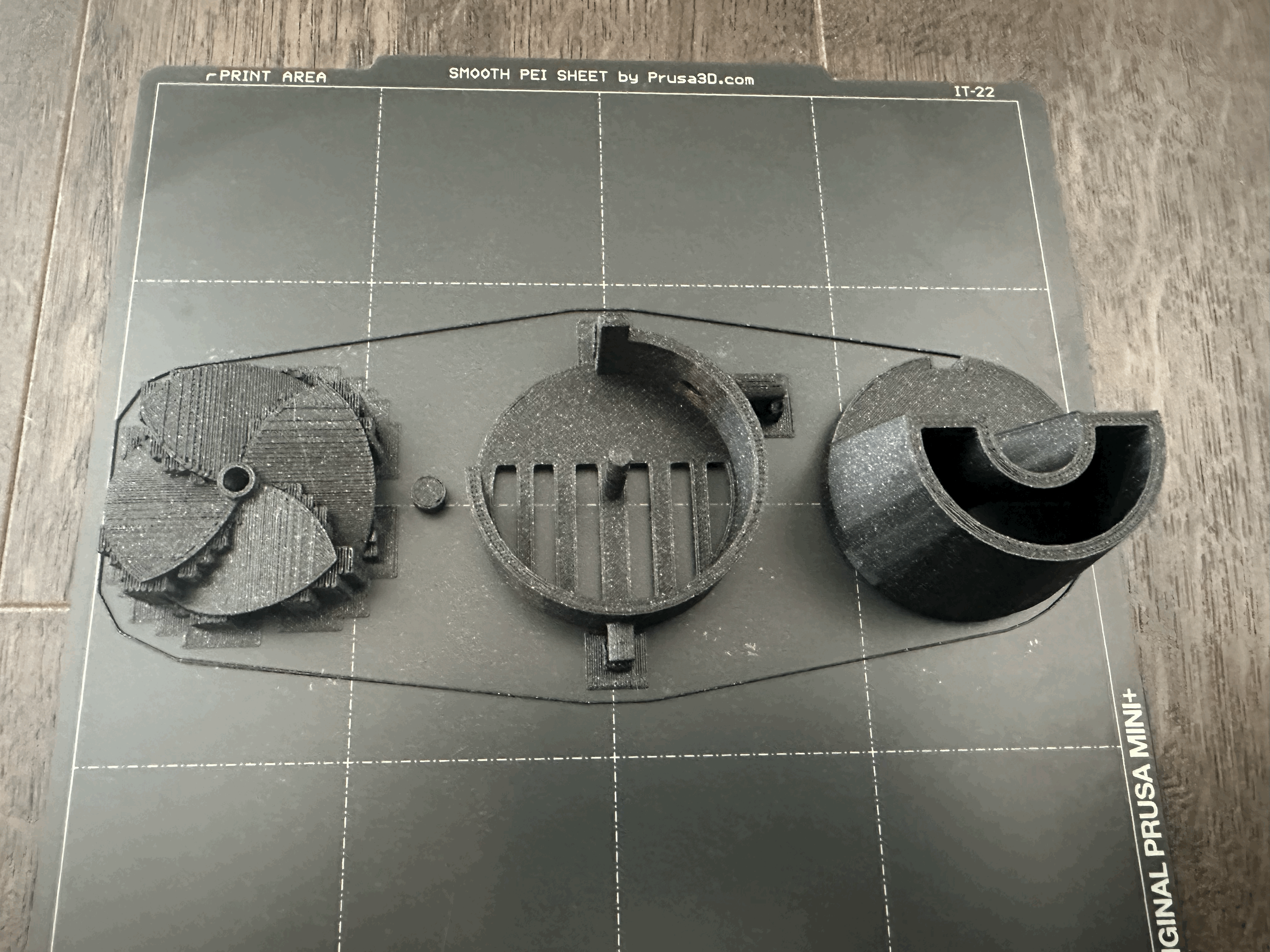

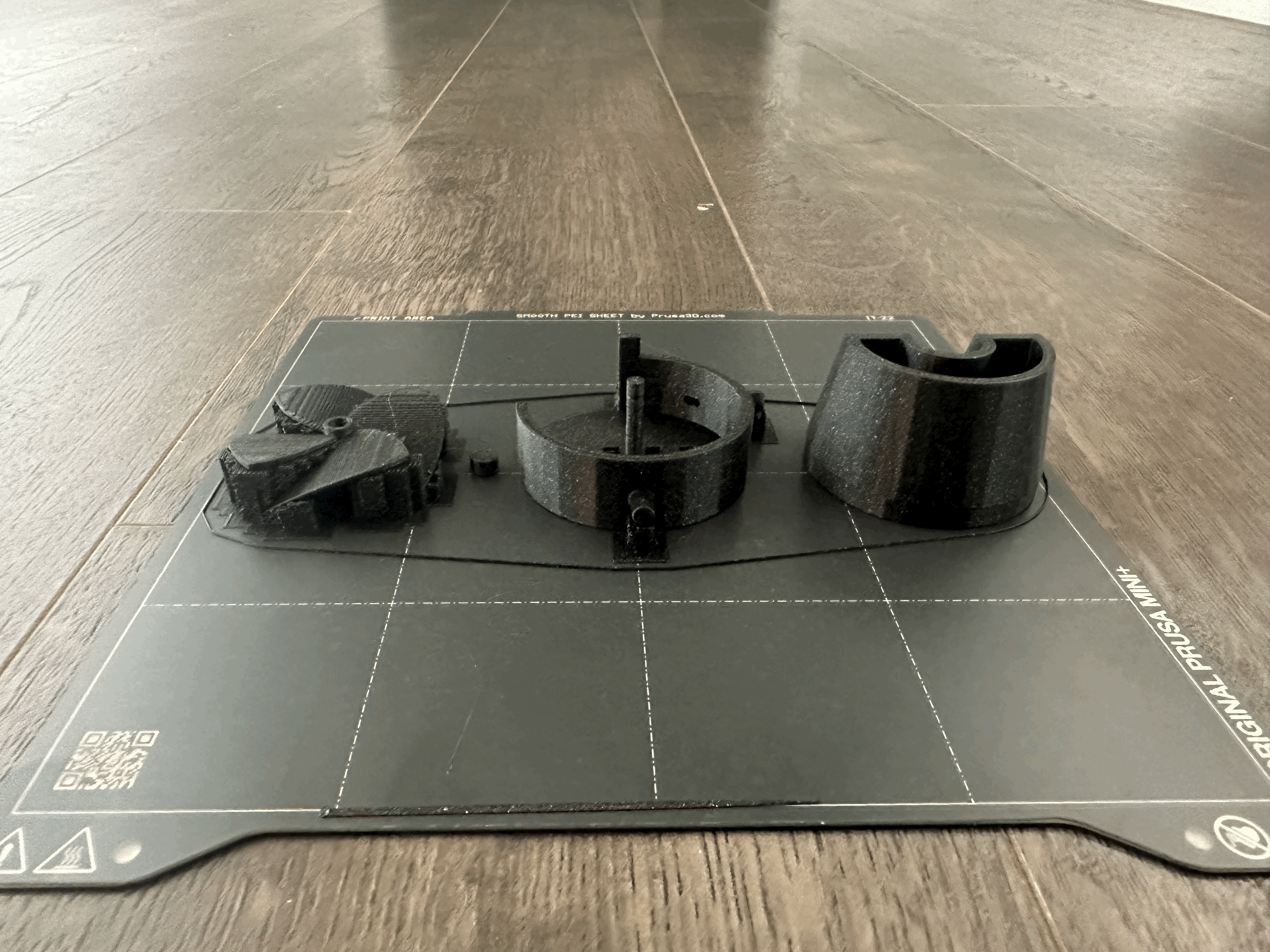

Printing tips
- I have included the bgcode files that already have the supports.
- Supports are only really needed for the propeller and the base, and that is just for the cylinders coming out of it
- Be careful removing supports from the propeller as it is quite fragile.
