this requires a handful of m2.3 or 2.6 screws of varying length and 4 608 bearings (that's the size that most fidget spinners have) I also recommend using 4 49.5x14 lego tires but if you use the 20 mm rims you can print the tires from this instead https://www.printables.com/model/571888-lego-technic-42035-mining-truck/files or use lego's 49.5x20 tires

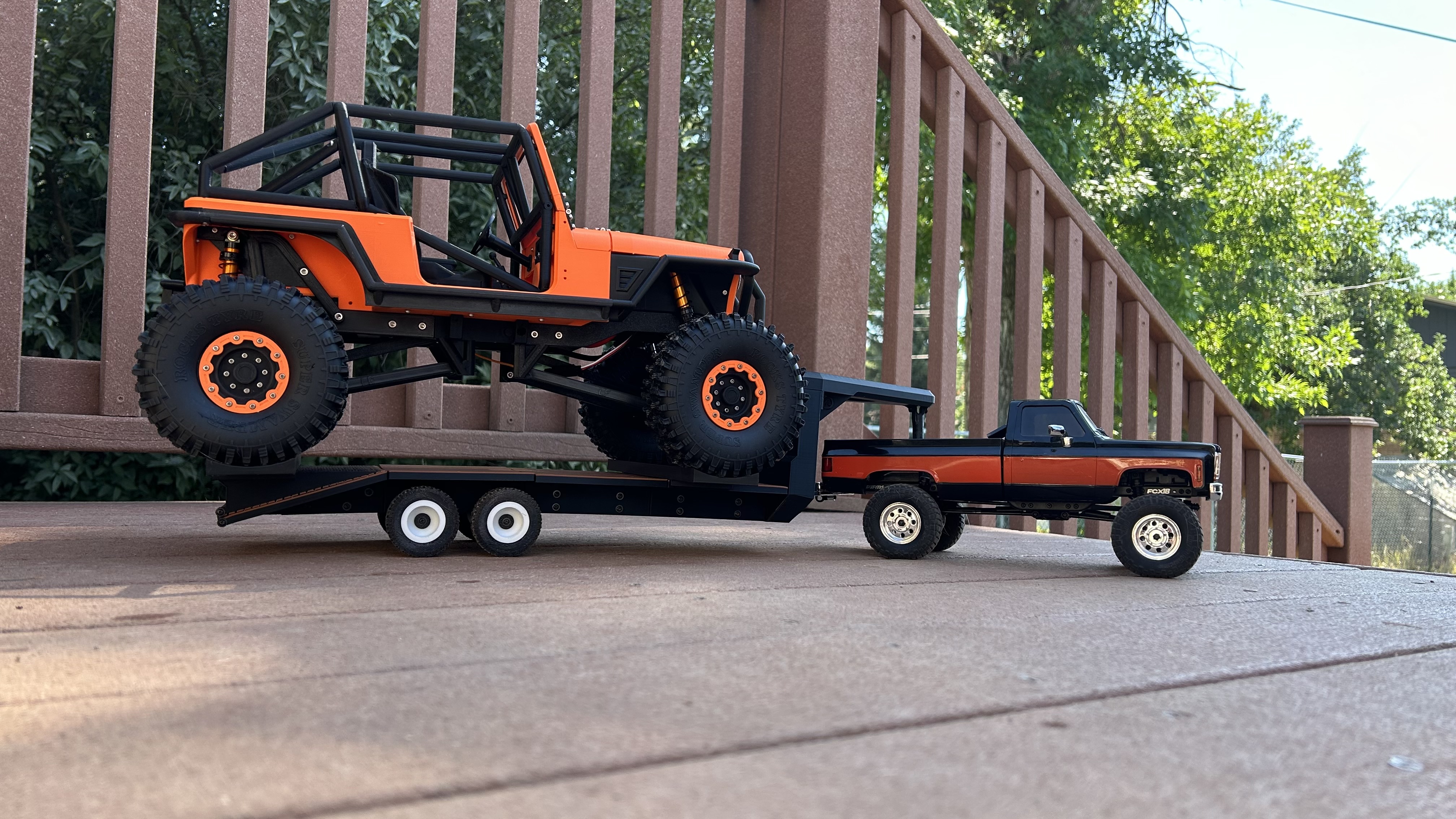

Gooseneck up now the hitch will need an m6 bolt. This was designed for the fms fcx k10

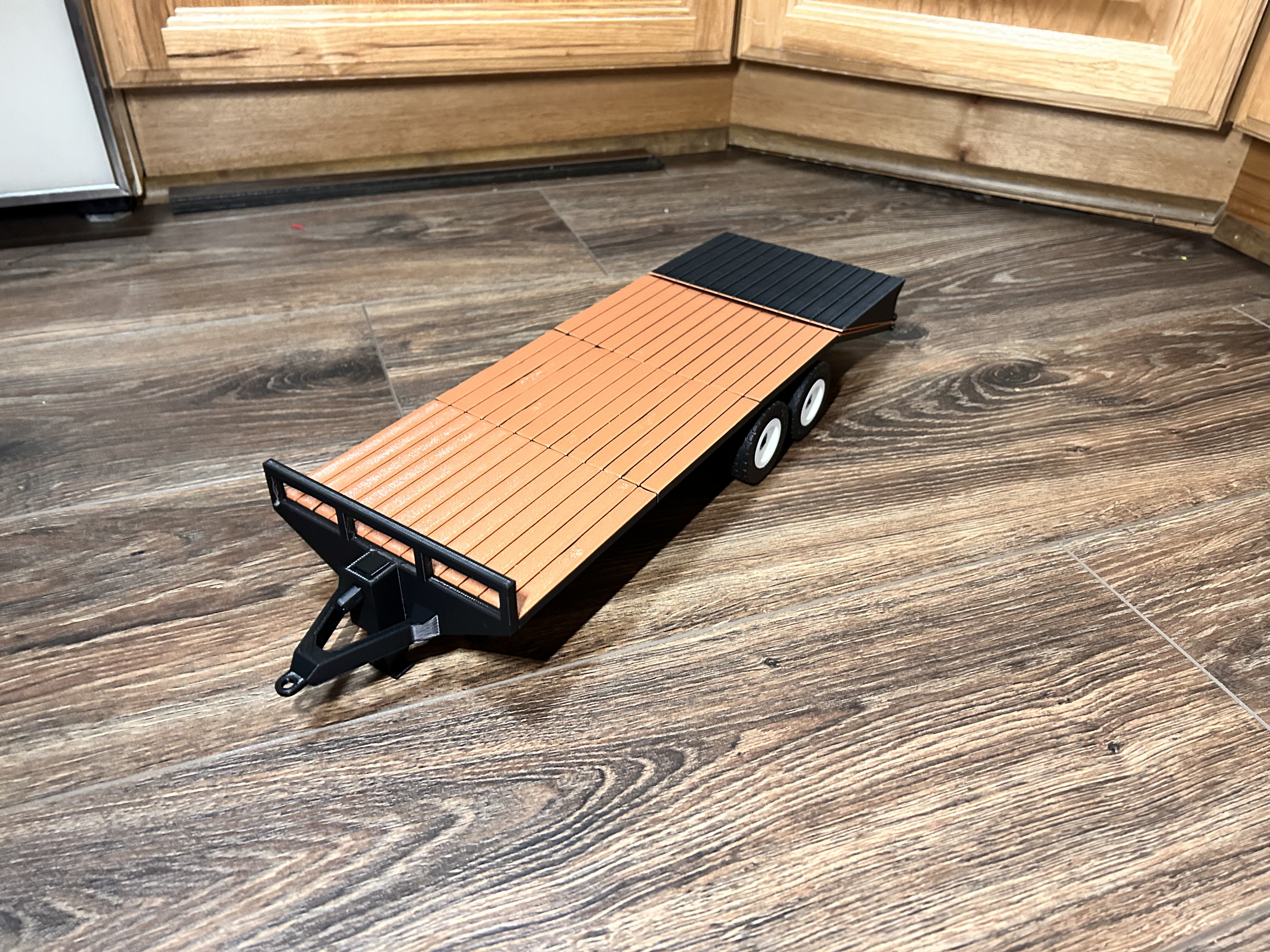

The deck is about 12 inches long without the 4 inch tail and 5.5 inches wide. I was able to print this entirely on my Bambu Labs a1 mini. The largest single part is 140x115x51mm.
If you like my work and want to help support and fund future projects buymeacoffee.com/MuddyFarmer
update 1.1 frame bar 2 has been modified to allow the creation of a triple axle
