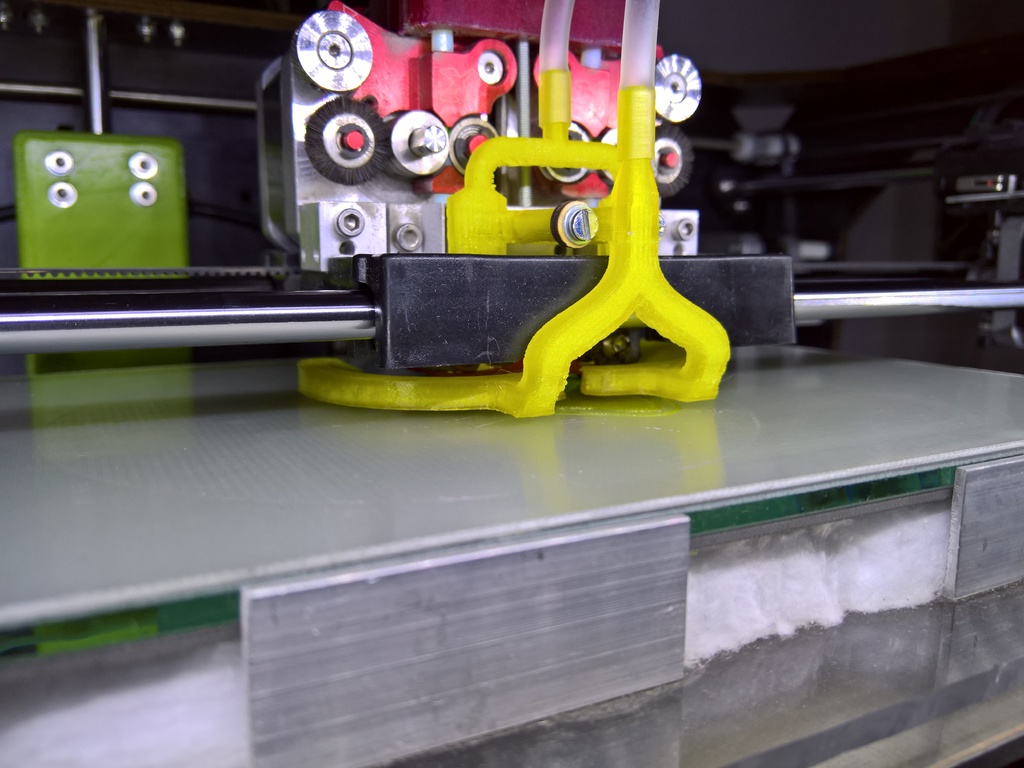

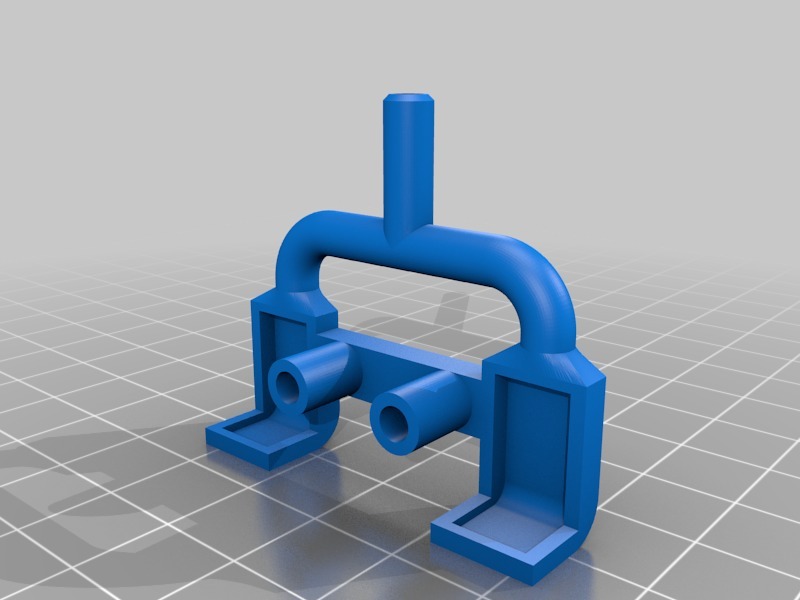

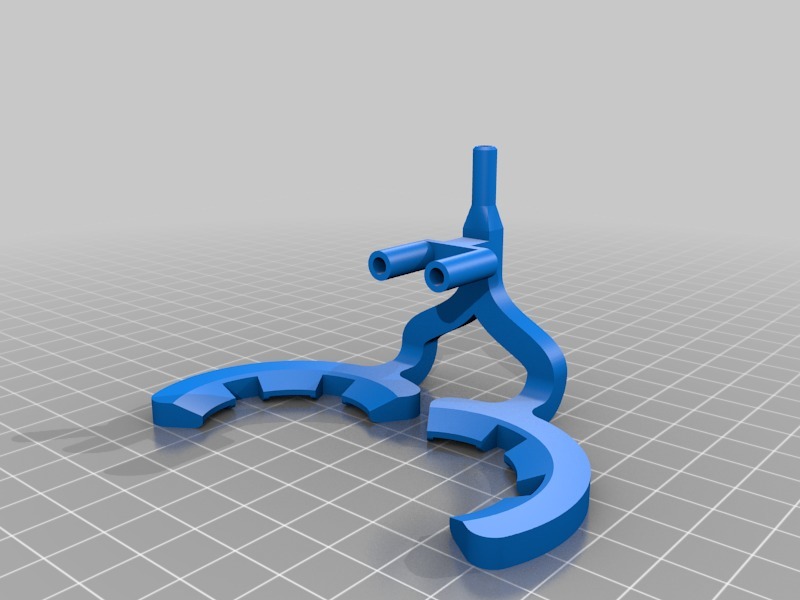

I was interested if it would be possible and useful to do the cooling tasks on a 3D printer extruder with compressed air instead of fans - and I must say: yes - it definitely works very well, way better than expected. I'm currently printing/cooling with 0.2 to 1.0 bar pressure.
The print results are very nice and it's less noisy as 2 to 4 40mm fans (if your compressor is far away or soundproofed of course).

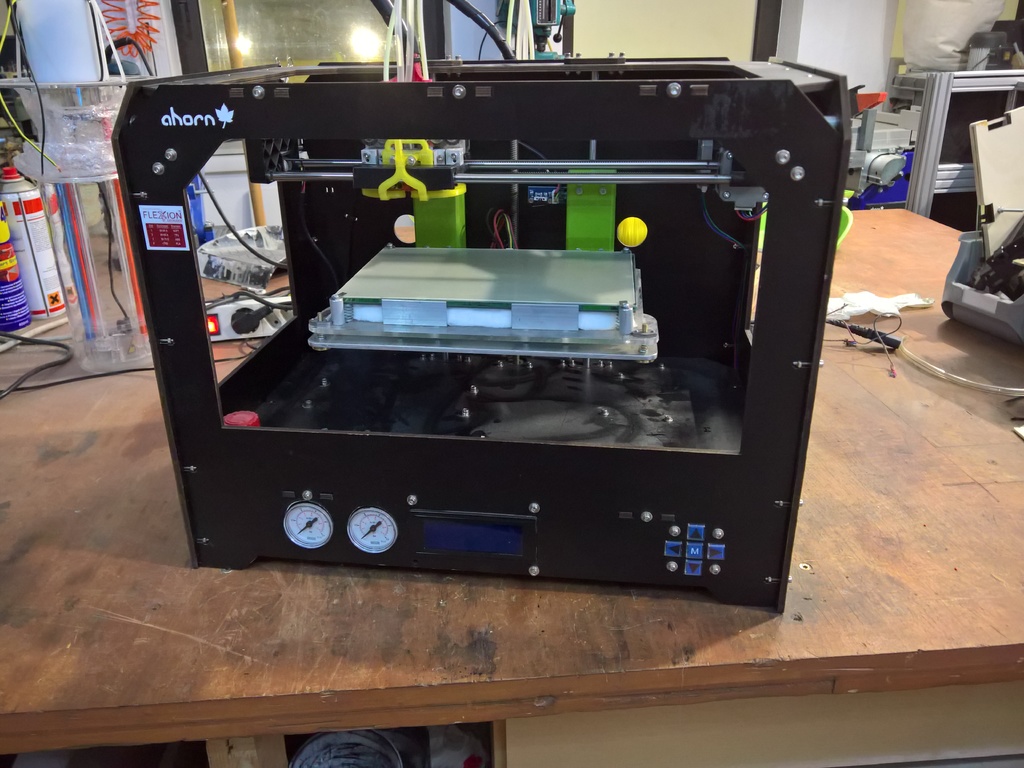

The idea was born as I upgraded my CTC with two Flexion extruders and my old cooling duct did not fit anymore due to the thermal isolators around the heaters. And most other designs doesn't make it easy to watch your printer printing because of lots of fans around the print head. Furthermore the compressed air upgrade made the printhead lighter, what should influence jittering in a positive manner.
The last photo shows how the printhead looked before the improvement.
Print Settings
Printer:
CTC
Rafts:
No
Supports:
Yes
Resolution:
0.1mm
Infill:
100%
Notes:
Material: PET-G from Material4Print
Slicer: Cura 3.x

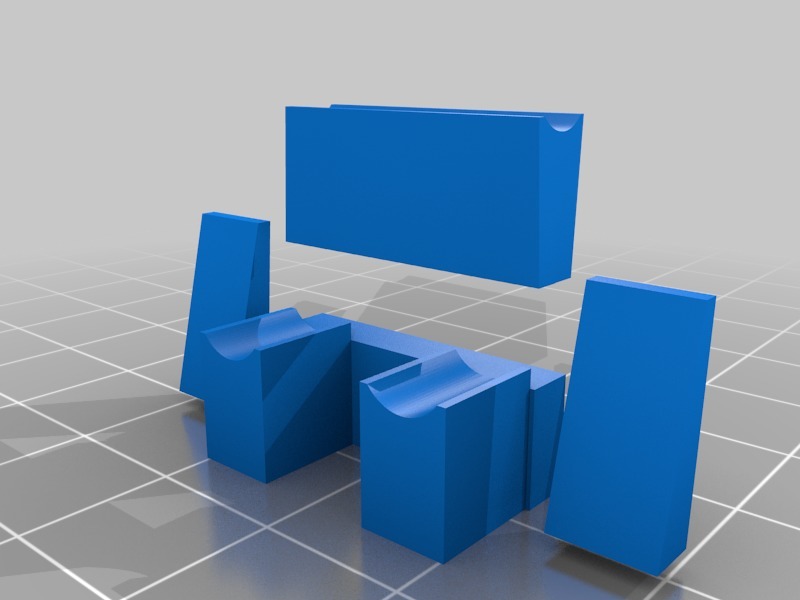

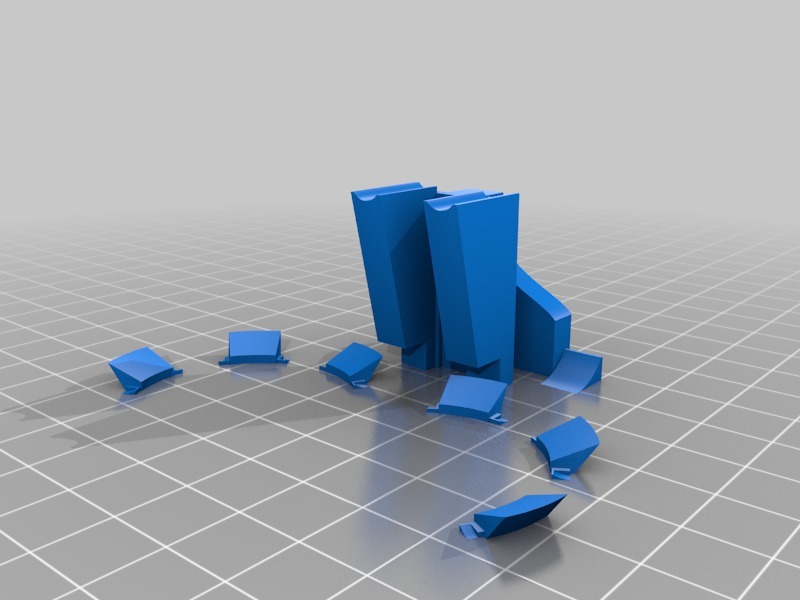

The models ending with "disolvable" are a manually modeled support structur for printing the support with PVA. Unfortunately printing with PVA and PET-G in my case results in many holes, what's not nice for an air duct ;)
Custom Settings:
brim_width = 2 material_final_print_temperature = 245 material_flow = 98 material_initial_print_temperature = 245 speed_print = 55 bridge_skin_material_flow = 150 bridge_skin_material_flow_2 = 120 bridge_skin_material_flow_3 = 100 bridge_wall_material_flow = 150 bridge_wall_min_length = 2.5 brim_width = 4.0 cool_lift_head = True material_final_print_temperature = 190 material_flow = 100 material_initial_print_temperature = 190 speed_print = 30 adhesion_extruder_nr = 0 bridge_settings_enabled = True prime_tower_enable = True prime_tower_position_x = 175 prime_tower_position_y = 115.0 prime_tower_wall_thickness = 2.5 support_enable = True support_tree_enable = True
