Headphonestand (large)
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Portable Devices
- Licencja
- Creative Commons — Attribution — Noncommercial
printing:

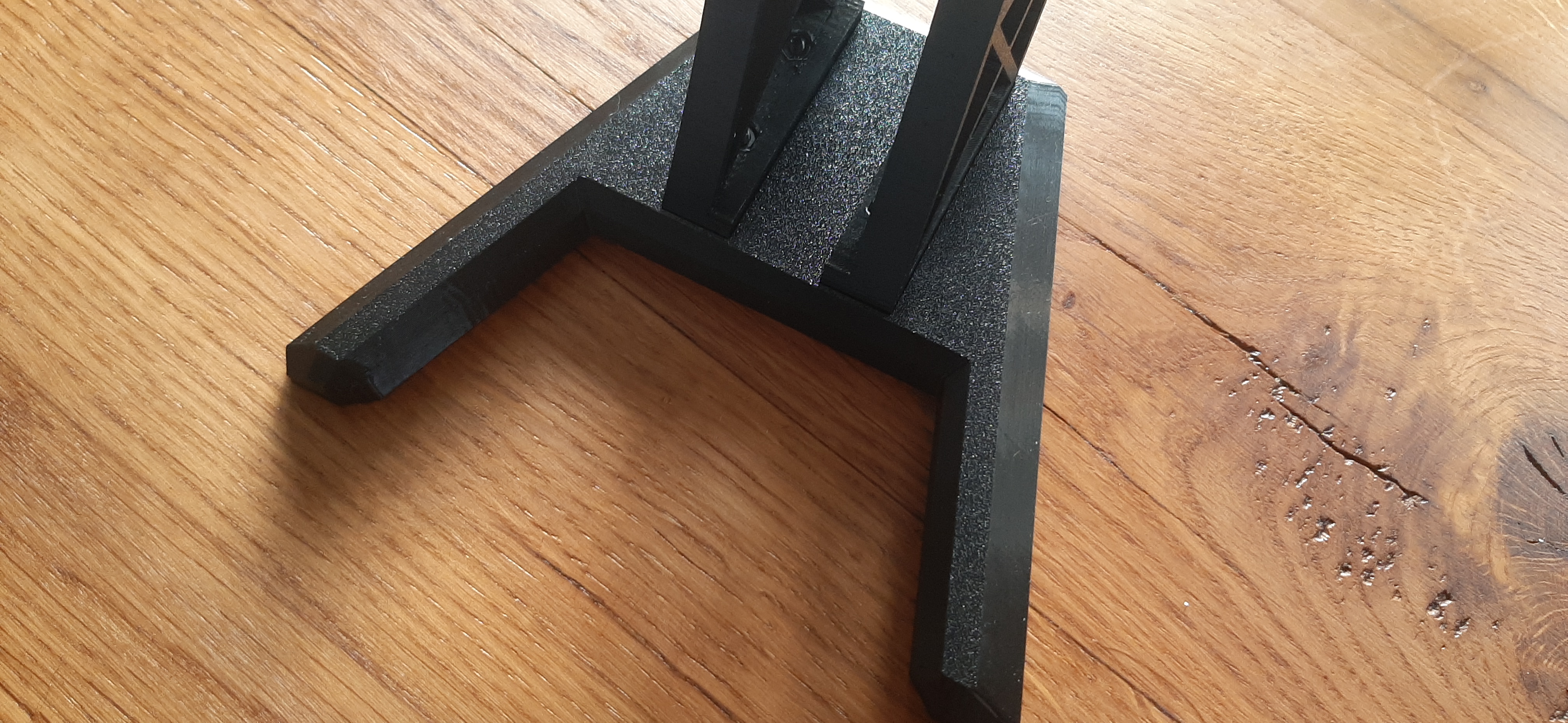

for a nice finish print the base upside down on a textured sheet.

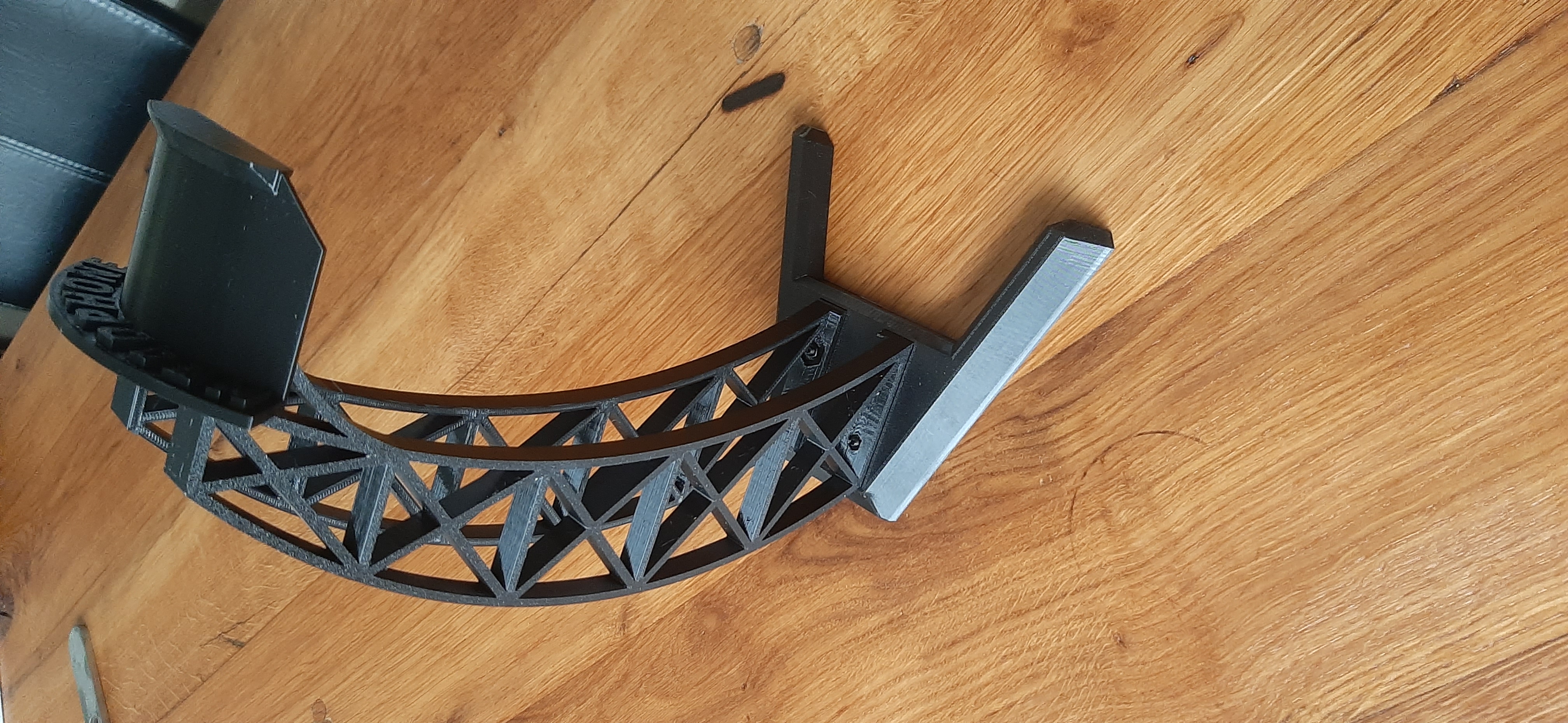

the stands with the outsides facing down for this i also used the textured sheet.

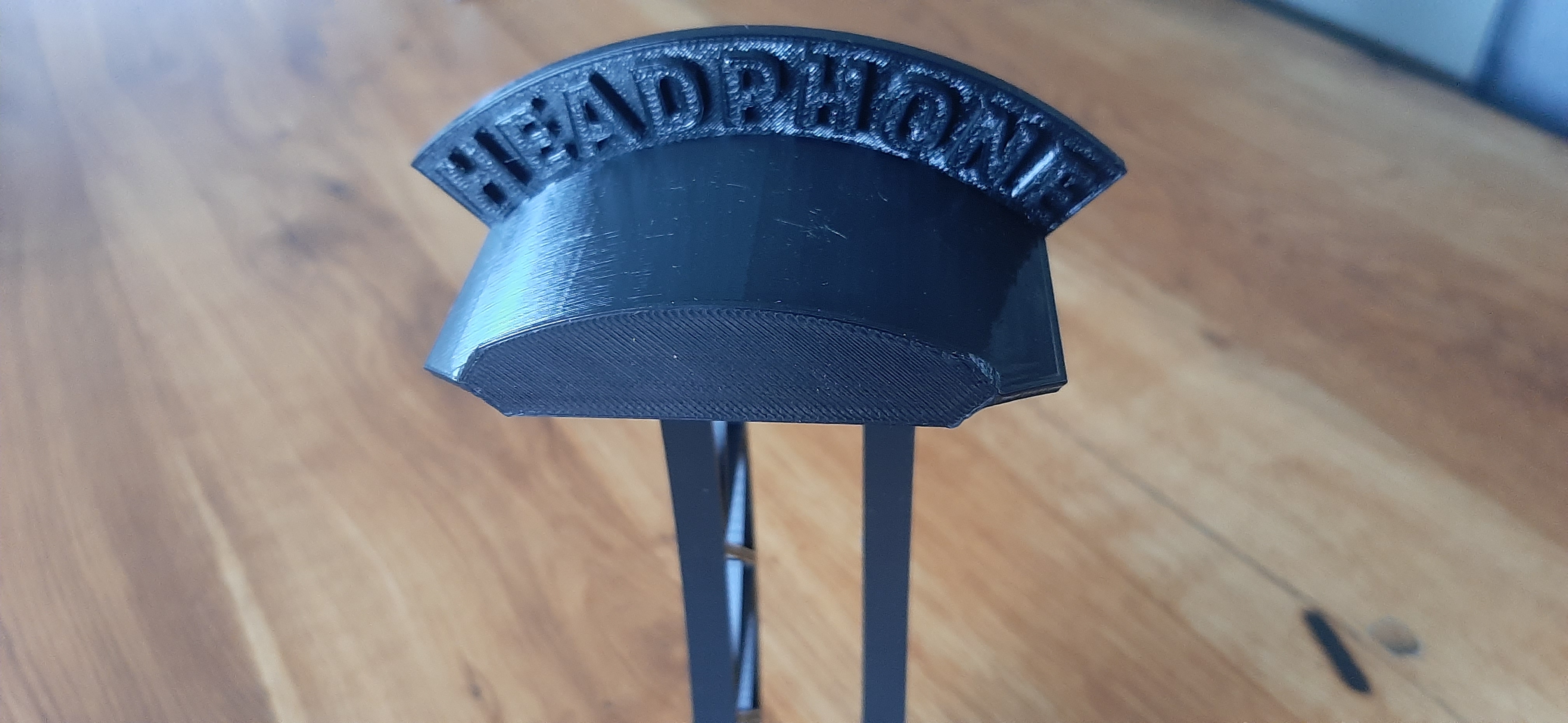

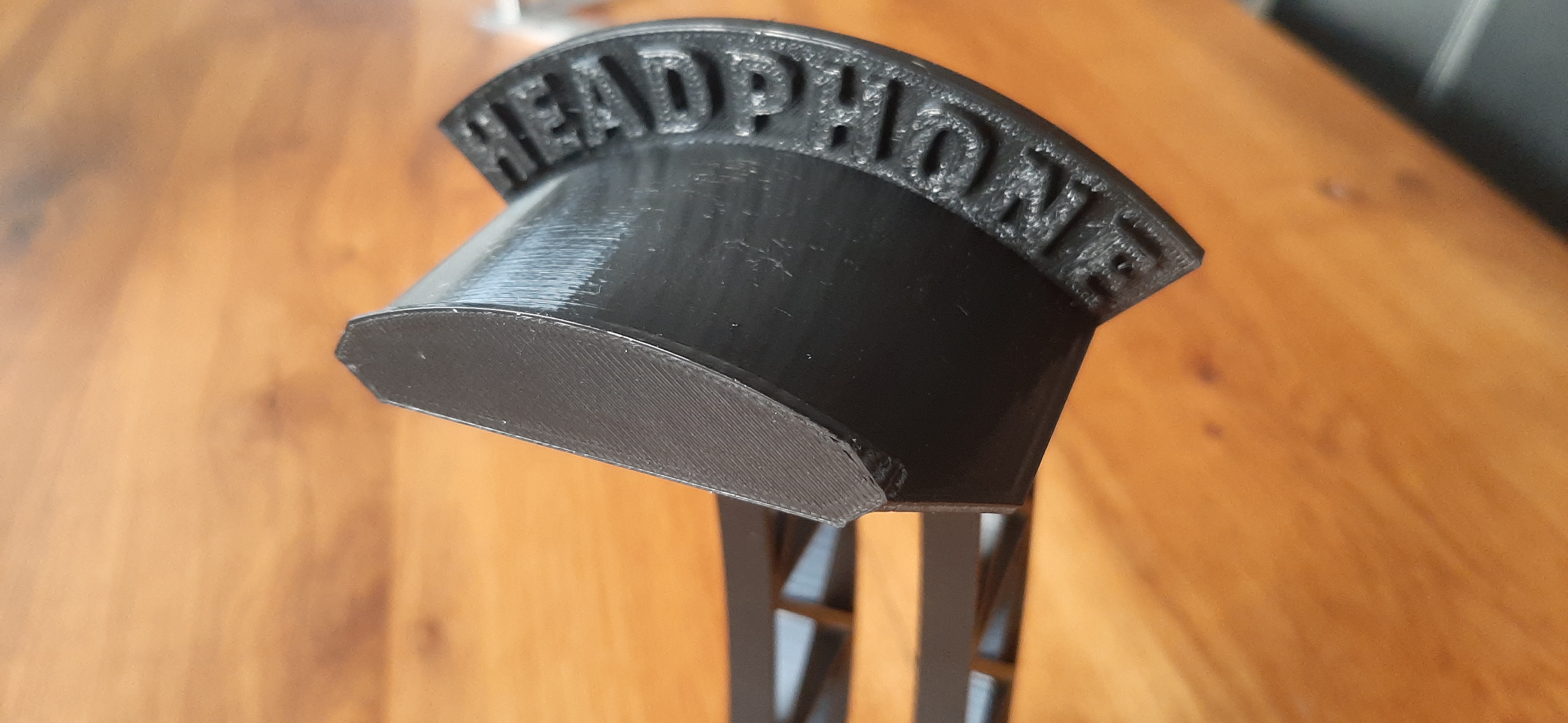

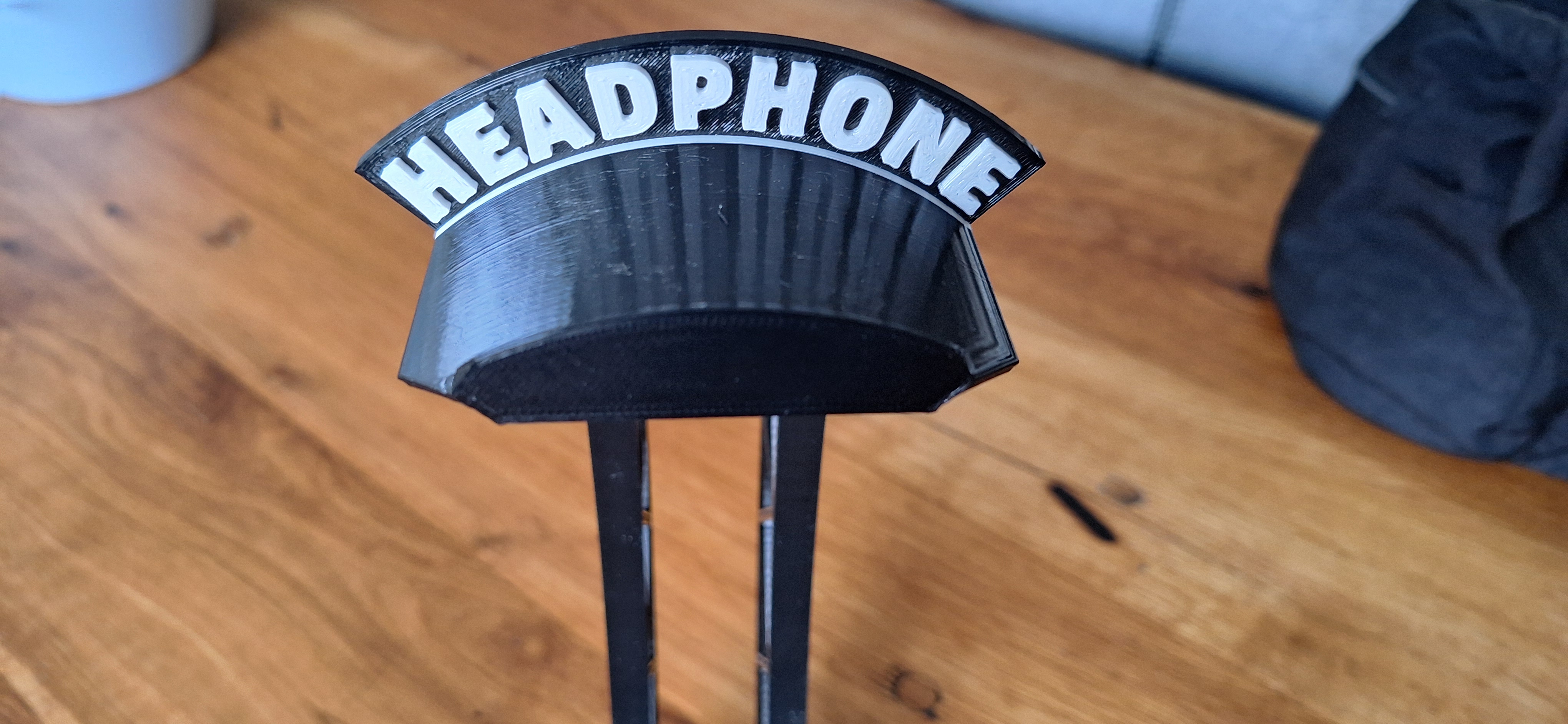

the top i have printed with the back facing down to improve the text quality.
for the prints i have used supports on the base and the top.
assembly:

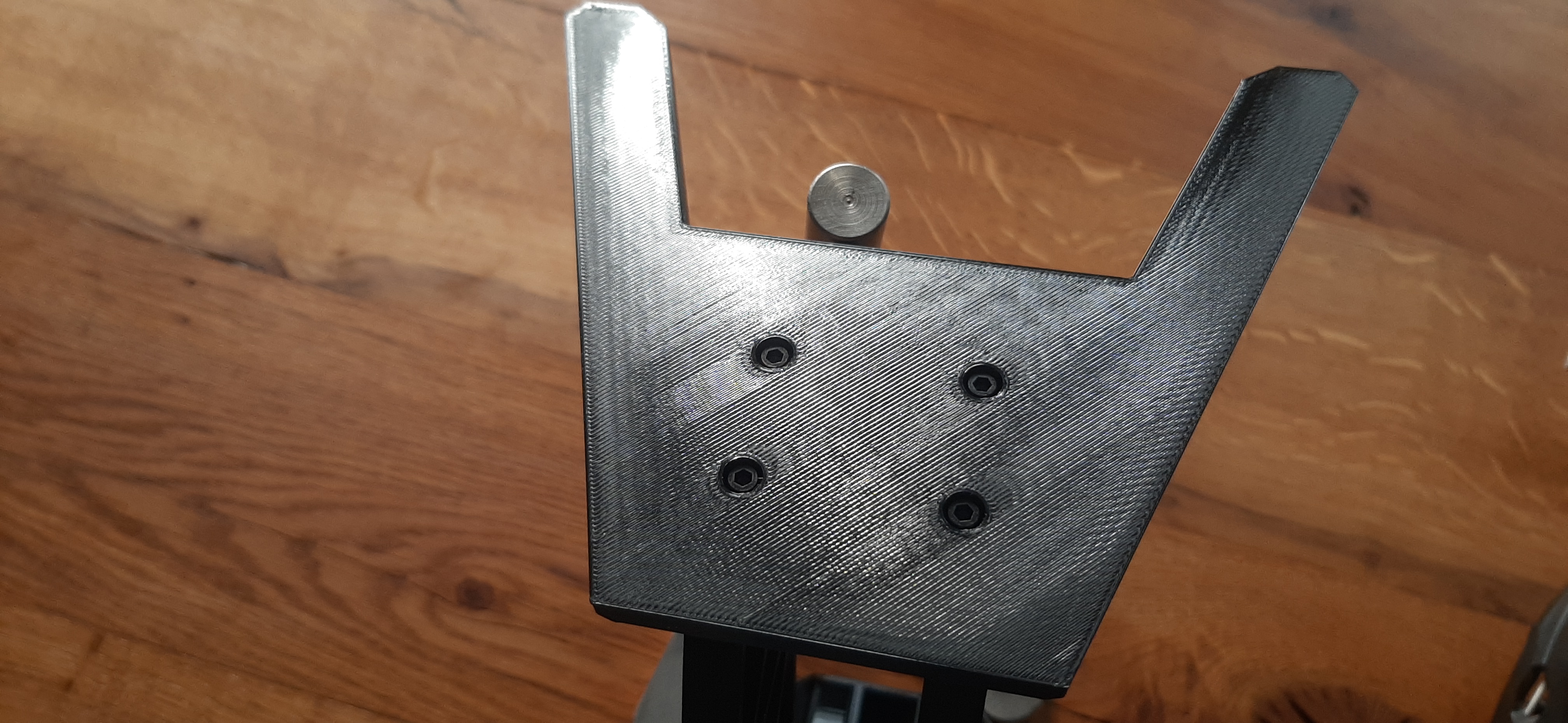

the stands bolt to the base using 4pc m3x16 sockethead bolt and 4pc m3 nut.
the top part simply slides on, this one has a tight tolerance and should fit snug.
design:

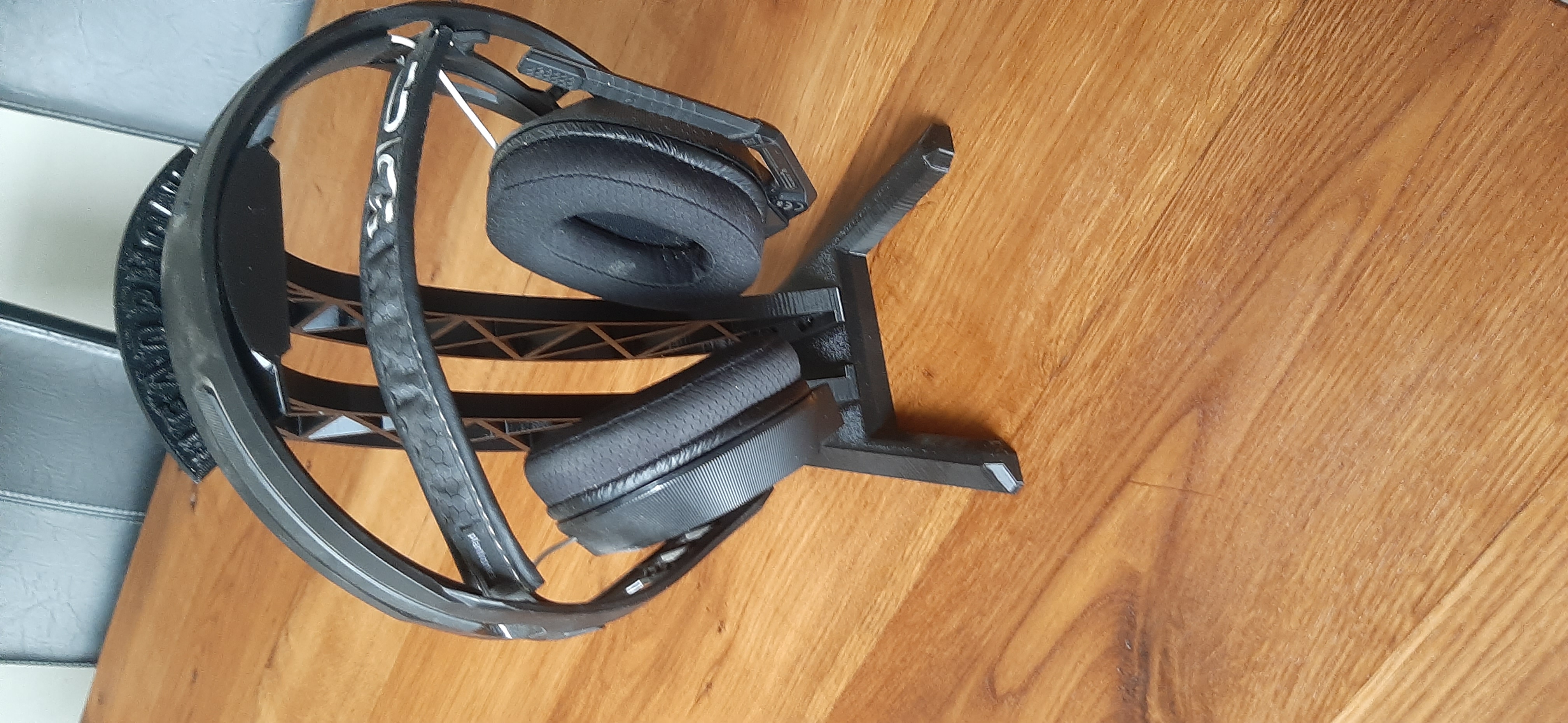

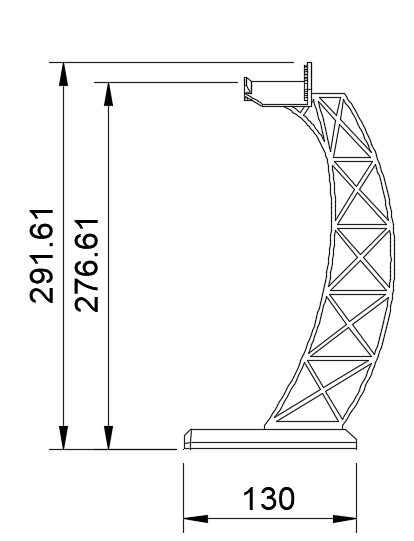

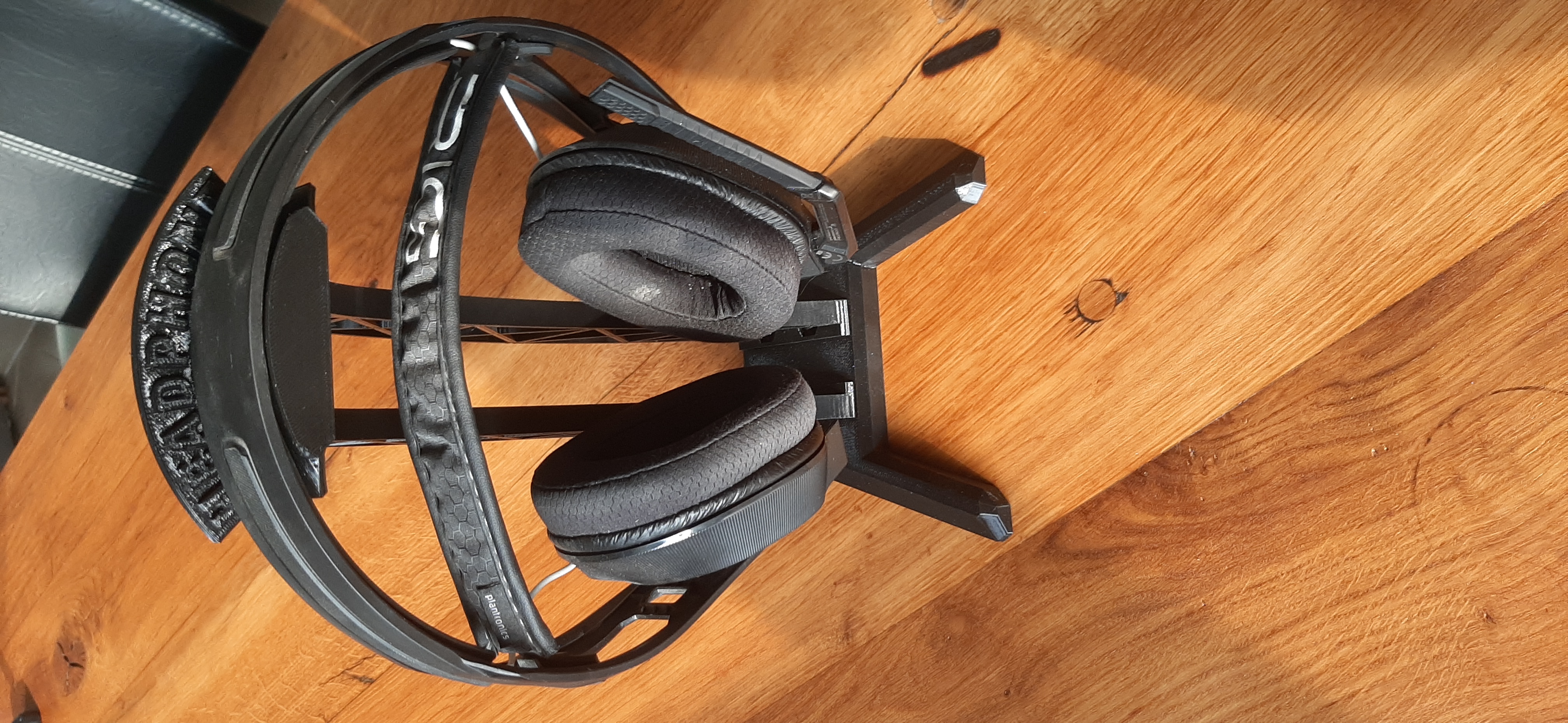

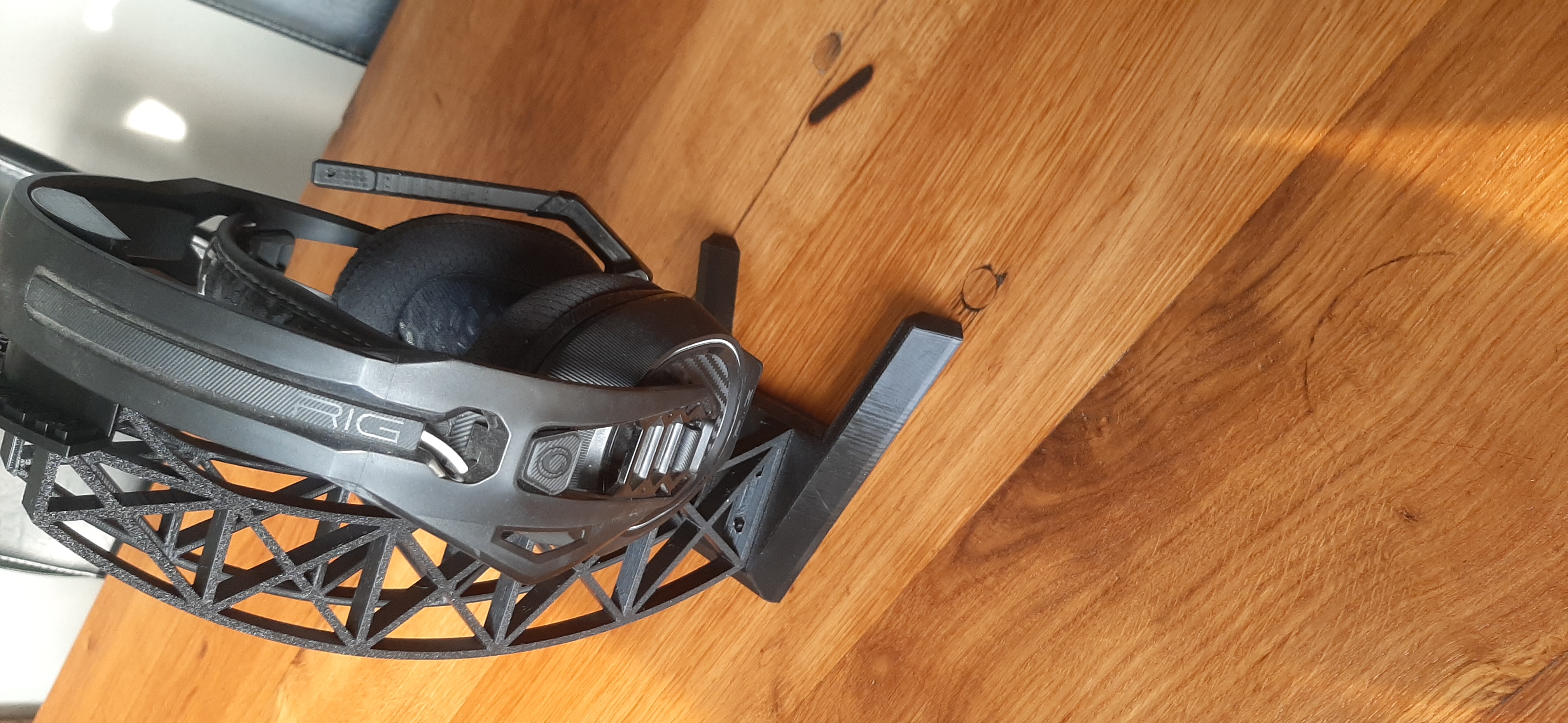

the design (seize) is based in my rig headset this makes the stand quite big.
if the stand is to high there is still an option to design a different lowered head.
i hope you like this design and would love to see some makes.
