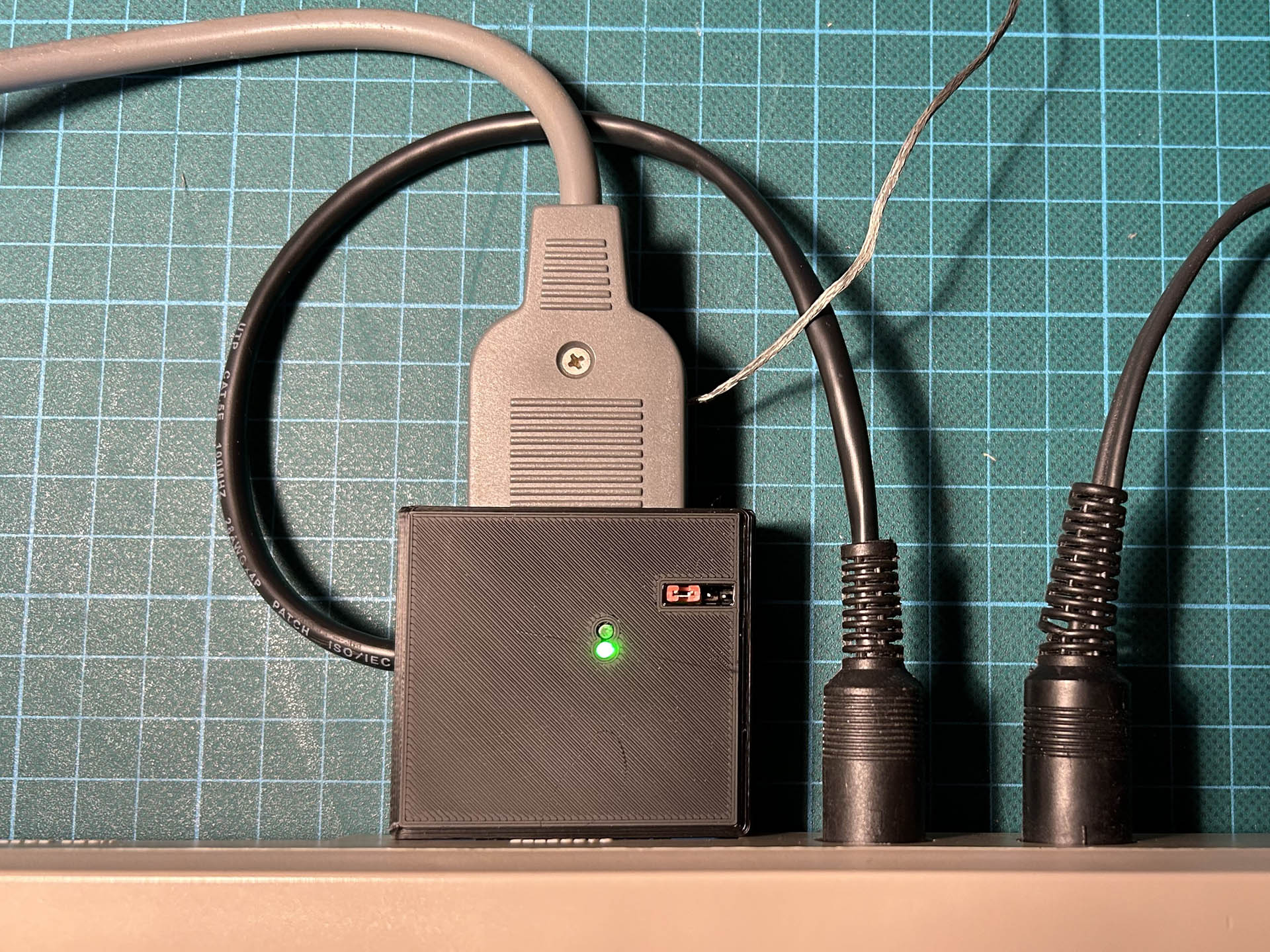

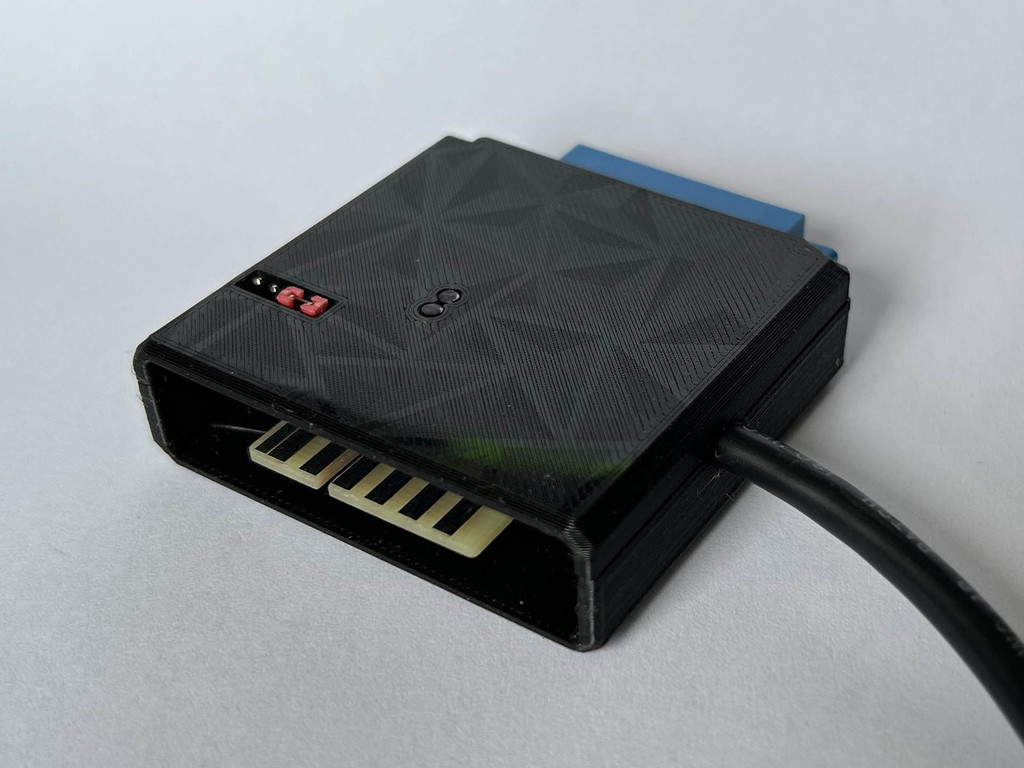

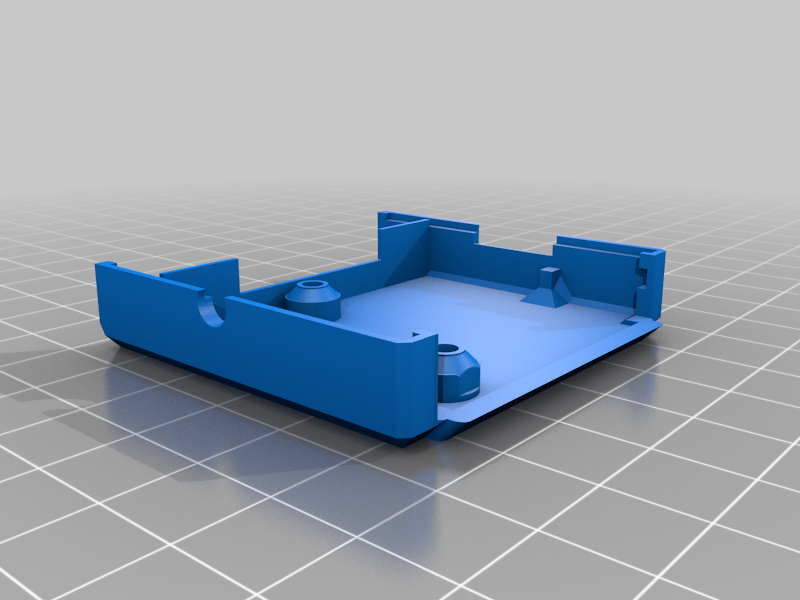

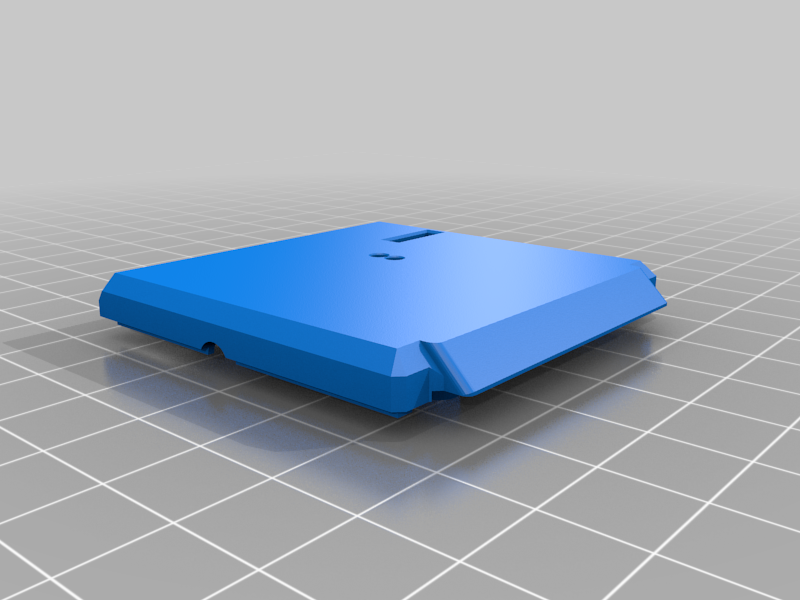

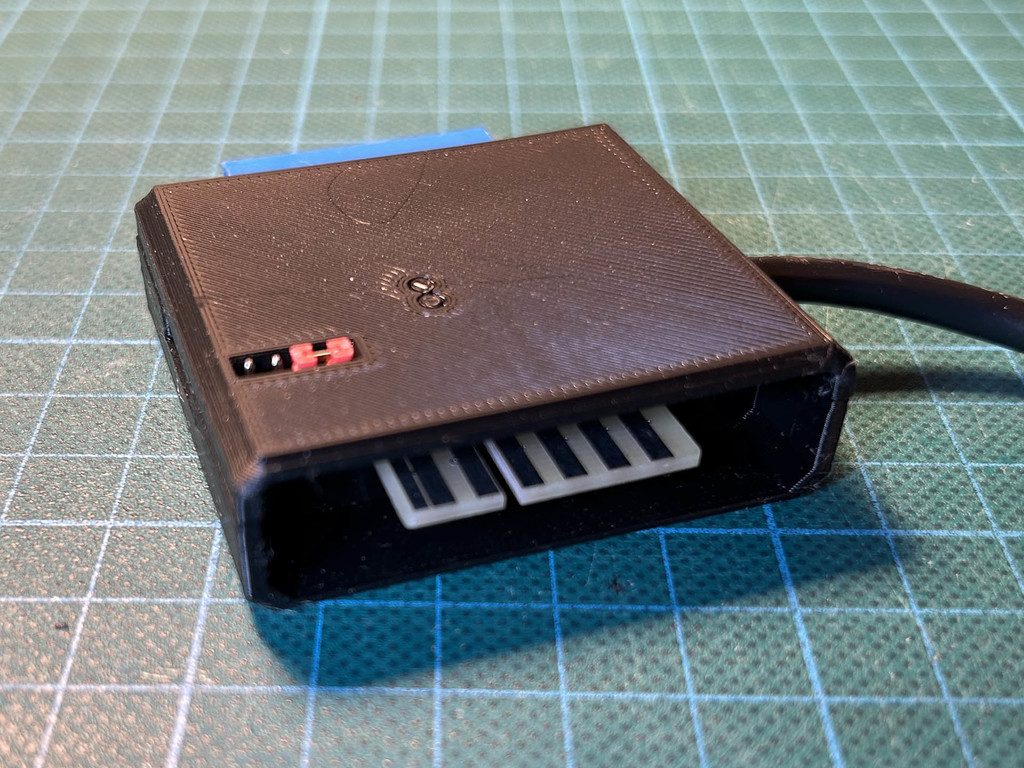

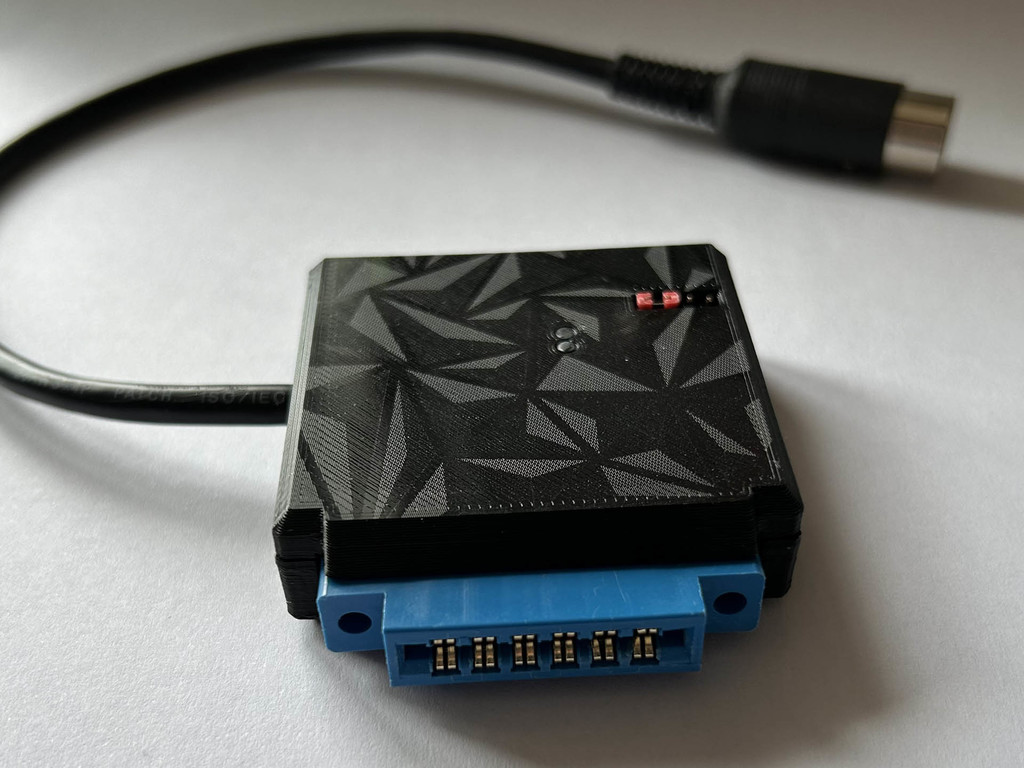

This is a case for the SD2IECplug project, which is my layout for the SD2IEC floppy drive replacement for 8 bit Commodore computers.
The SD2IECplug v2 was never specifically designed to fit into an enclosure, so this case makes a few compromises. Not all connectors and functions are accessible.

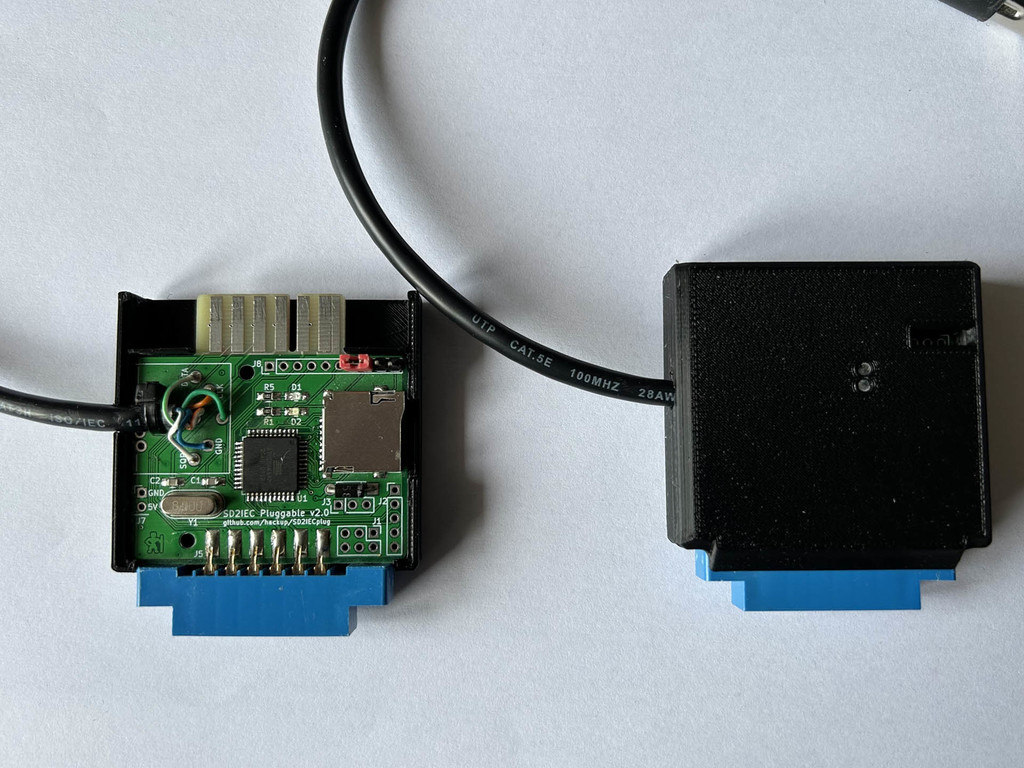

Currently, this case will only fit version 2.0 of the SD2IECplug, and the IEC cable must be soldered directly to the PCB.

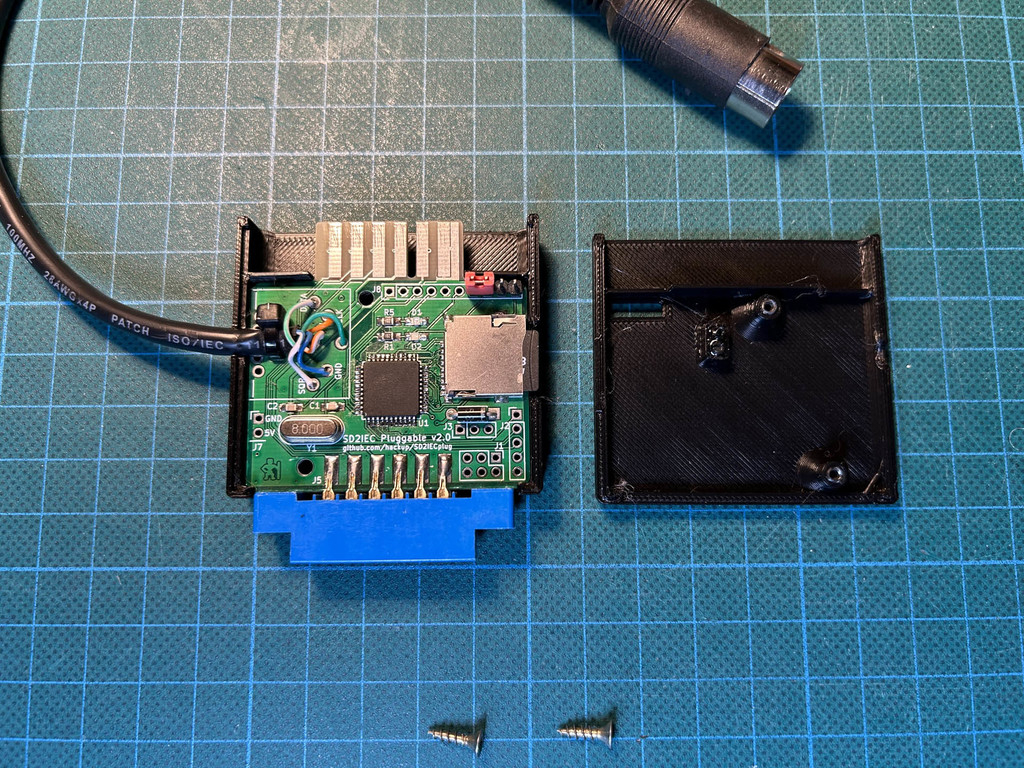

Additional materials required:
- 2 countersunk, self-tapping screws 2.5x10mm
- 2 cylindrical pieces of acrylic optical fiber, 2x7mm
