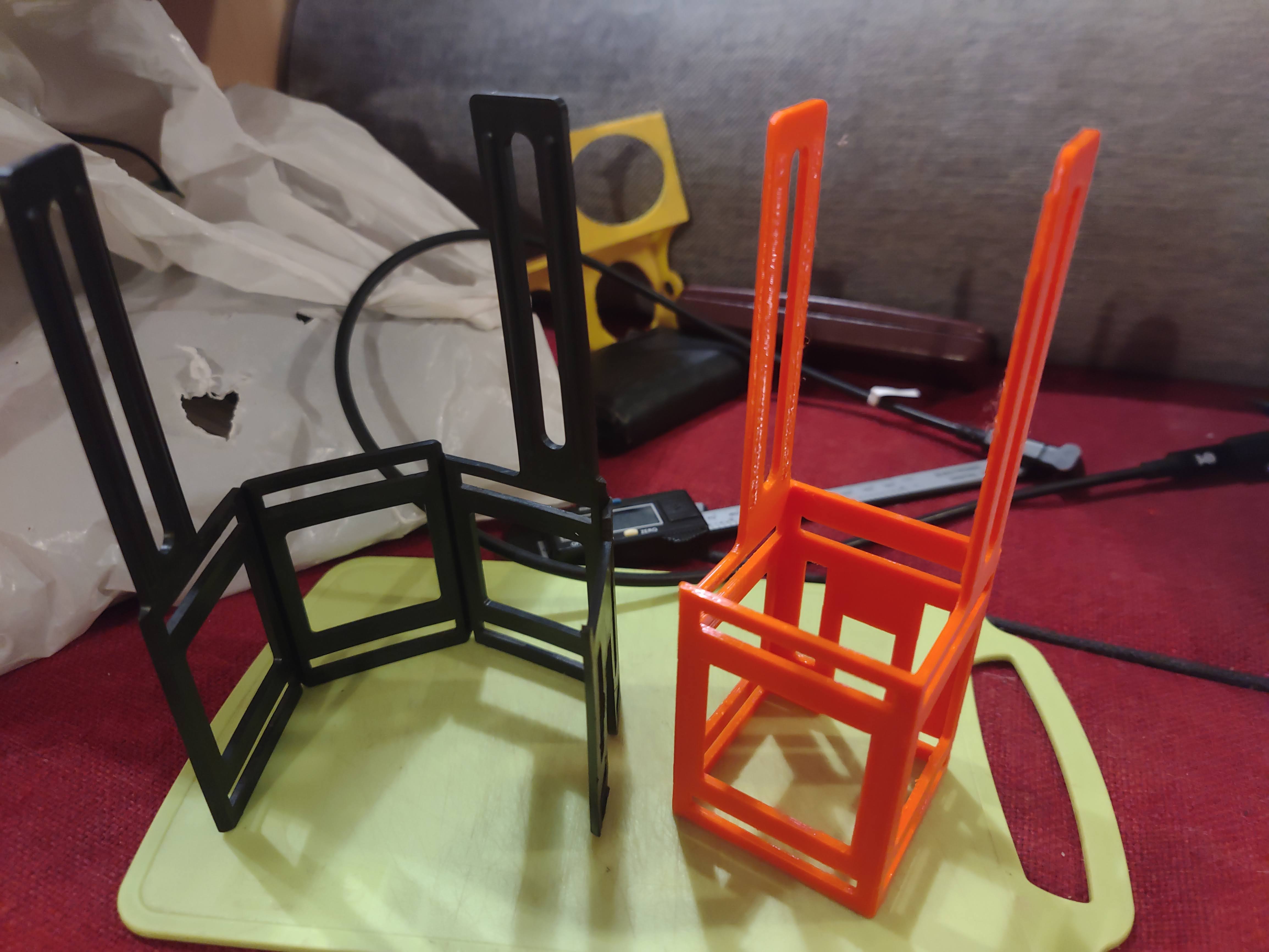

Replacement for the plastic bar in the table mechanism of certain Dethleffs motorhomes.
The need for this replacement becomes evident when the table exhibits a significant tilt.

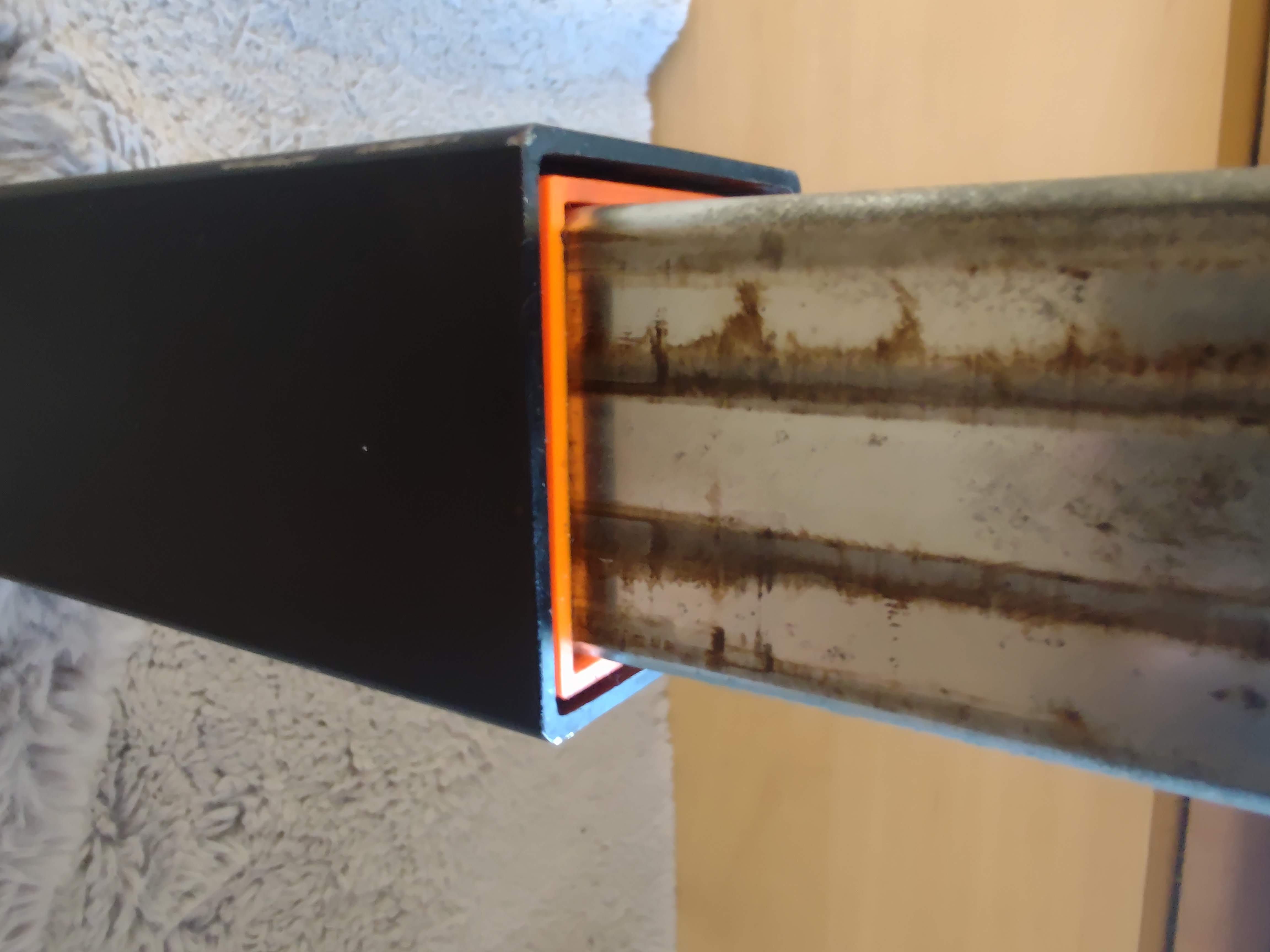

The current wall thickness is 2.5mm², but I would increase it to 3mm² to snugly fill the gap in the table's bar mechanism.
To unmount the bar, you can extract the upper part from the bottom by separating the long 1 cm wide bar with a button, that enters the hole in the bar. When you extract it, it will release the cylinders that touch the walls. Be careful for those cylinders to not fall into the tube.
I choose to print it with a 0.6 nozzle and full supports.
