Dune thumper (functional)

This addition only contains the parts to make it move! 3D Model files can be found HERE for free!

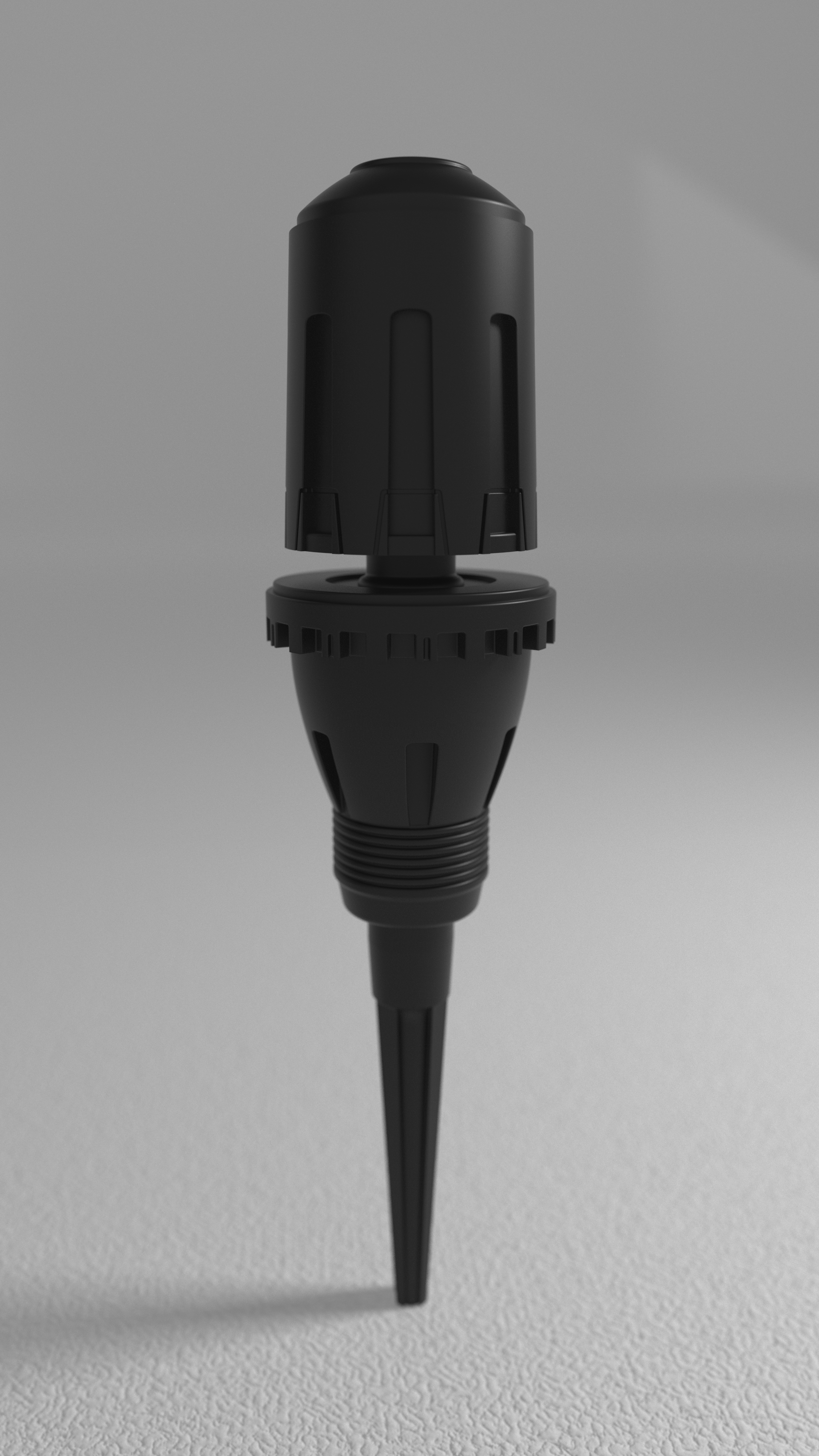

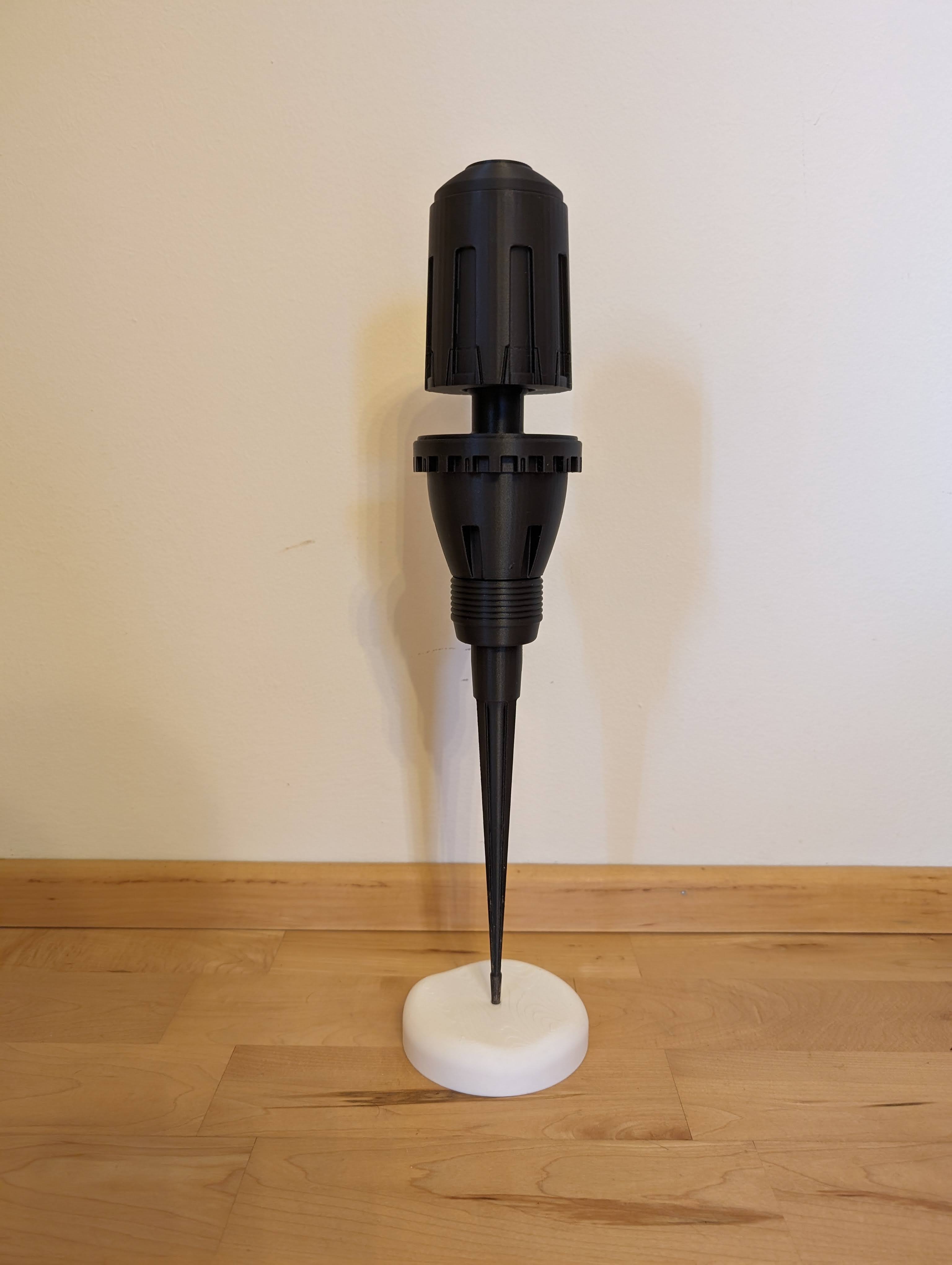

With the release of Dune Part 2, I challenged myself to model a functional 3D printable model of the thumper as seen in the film. Perfect for cosplay or just as decoration! Or maybe as a mole repellent ;)

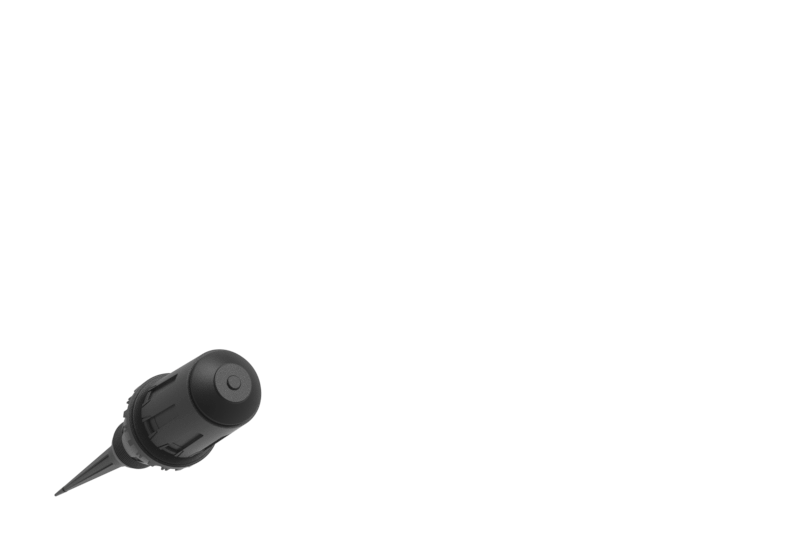

By twisting the lower part you turn it on. (as seen in the gif)

Minimum build volume 100x100x185mm

[Update 1.02] added sketch.ino file for easier upload to ESP32

[Update 1.10] Updated Assembly_Thumper.pdf. Up to date links and a new ESP32 script which should work for all ESP32 versions.

[Update 1.11]  Edited piston so it is easier to wire it up

[Update 1.2] All files now in high resolution!

[Update 1.3] Added optional hieroglyphs!  0.1 layerheight necessary for readability!

Tools you need to build this:

• Electronics:
     ESP32 Microcontroller
     SG90 Servo Motor (360°)
     Copper Wire (24AWG or thinner)
     3x AAA Batteries

• Tools:
     Soldering Iron & Solder
     Wire Strippers
     Cutting Pliers
     (Optional) Multimeter

• Other Materials:
     Glue
     Aluminum Foil
     Heat Shrink Tubing

• Knowledge:
     Uploading Code to ESP32
     Basic Electronics

Links to components are included in the Assembly_Thumper.pdf

Also a link to a guide how to upload to an ESP32 is included.

These parts are clearly labeled with 'nosupport' and 'support' at the end of their filenames.
