An attachment to the chest mount for action cams to make the invisible selfie stick handsfree for 360 cameras.

Ocena
0 / 5
Polubienia
13
Pobrania
72
Wydruki
1
Wyświetlenia
766
Oceny
0

Aktualizacja u źródła:

Informacje o modelu

Źródło
Printables
Kategoria
Photo & Video
Licencja
Creative Commons — Attribution — Noncommercial — Share Alike

Material : PETG
Walls : 6
Infill : 100%

Parts to Buy :
Bolts : M5 x 0.8 (10-32 screw) x 4 or Action Cam Screws with handles
Nuts : M5 x . 8 25mm x 3
Foam / Rubber sheet : 104mm x 10mm (2mm thick) x 2 + double sided tape


Parts to Print :
Invisible Selfie Stick Holder x 2
Chest Mount Clip x 1
Adjustable Arm 3in x 1 or 2
Adjustable Arm 2in x 1 or 2

Note - This attachment will work only with a specific / generic model of the chest mount or chest mount having a length of 86mm as shown below.
You may have to change the elastic strap of the chest mount to a non elastic band to have a stable setup.
Once the camera is mounted and the invisible selfie stick is extended, the camera may sway because of the elastic strap of the chest mount.

Insert the foam / rubber strip inside the invisible selfie stick holder and stick it using the double sided tape. This will act as a grip to hold on to the invisible selfie stick.

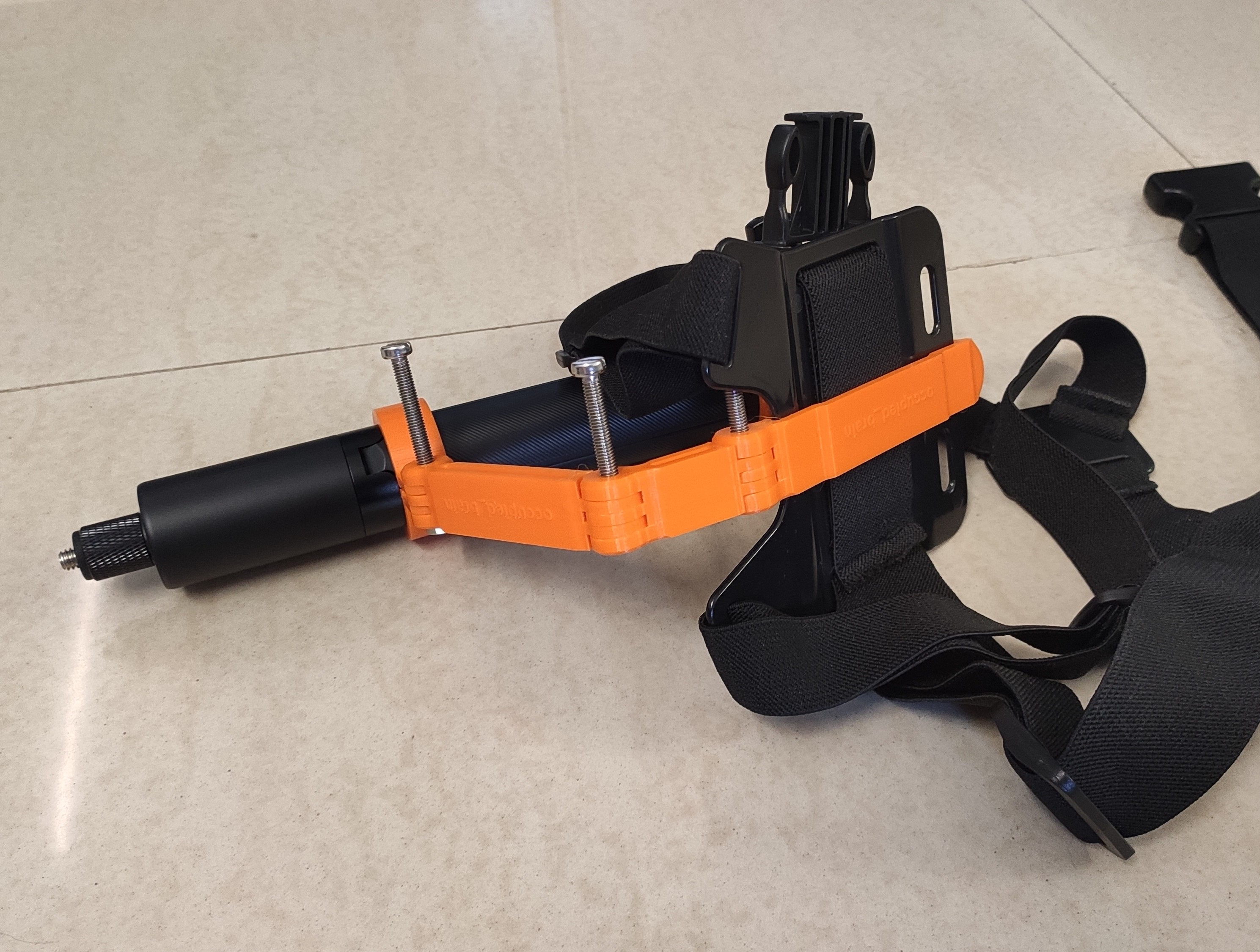

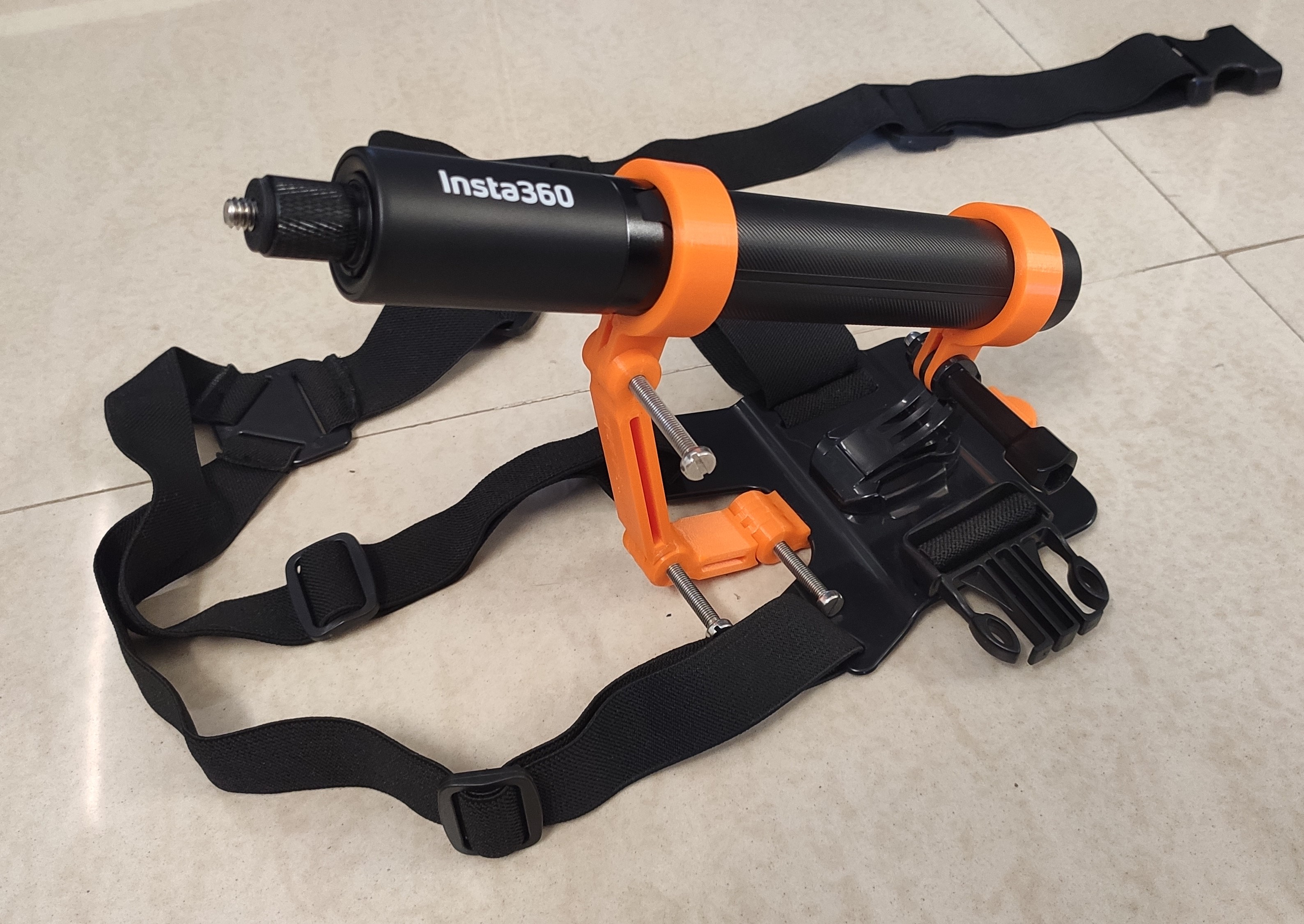

The assembly is intuitive and is as follows :

1 . The 'Chest Mount Clip' goes on to the chest mount, it's a snap fit and requires no screw or glue and is removable.
2. The 'Adjustable Arms' of 2in or 3in or both are attached.
3. The ‘Invisible Selfie Stick Holder’ is then attached.
4. Use any existing chest mount ‘buckle’ clip on the chest mount and attach the second ‘Invisible Selfie Stick Holder’.

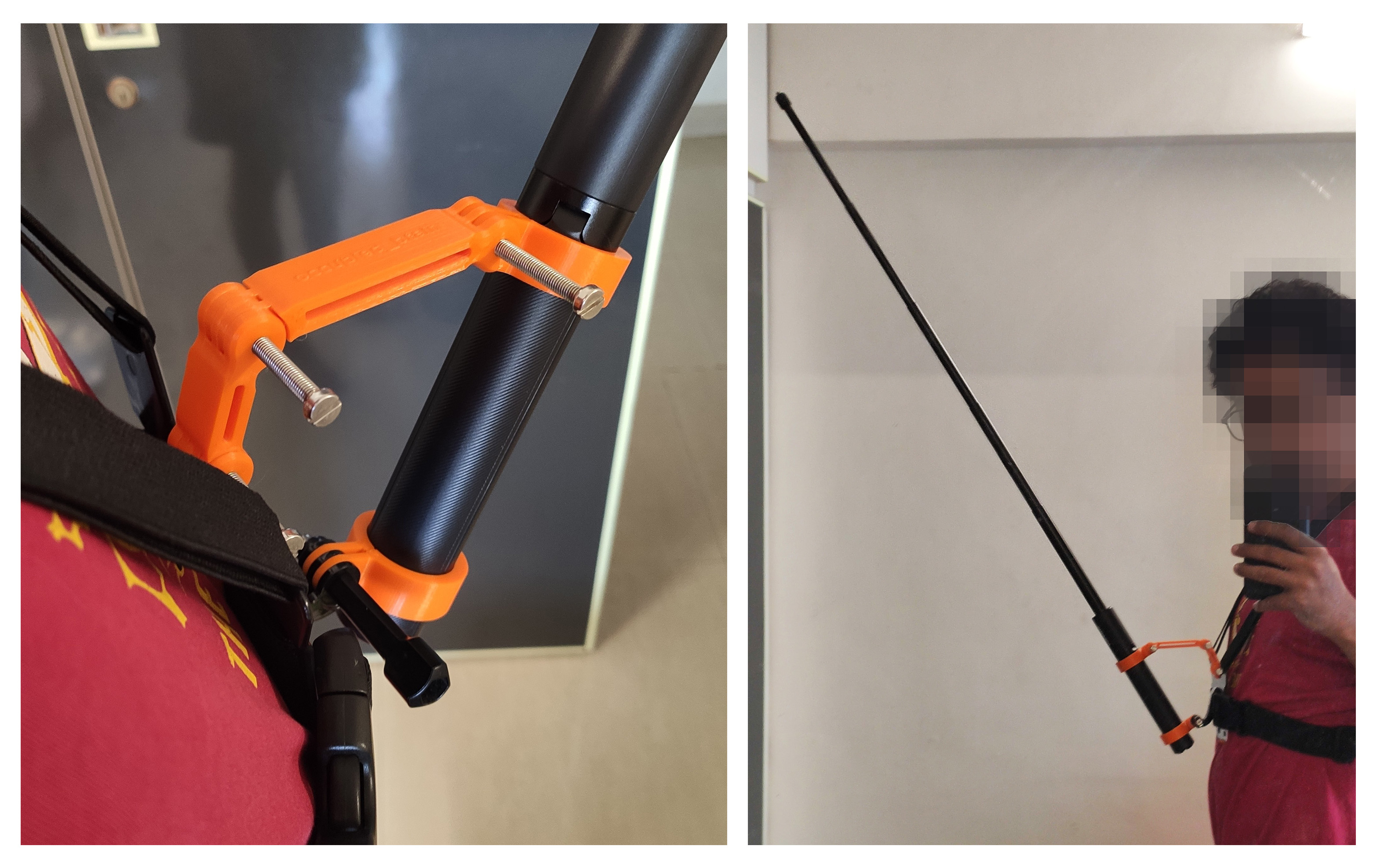

Once the camera is mounted and the invisible selfie stick is extended, the camera may sway if the chest mount strap has not been replaced with the non elastic one.
During the kayak event, the life jacket helped the chest mount with elastic strap stay in one place.

All these photos have been clicked on the Insta360 One X2 using this HandsFree360 mount!

Enjoy!
