Stream Deck Mk2 Mount SimRig (Remix)

Here are my changes to the original models:

• Streamdeck_Mk2_Top: was remixed that a Stream Deck Mk2 fits in there

• Streamdeck_Base_Open_Bottom: was remixed that holes for USB-cable are at the bottom closer to the mounting holes

• Streamdeck_Mount_V2: I needed a longer mount. So I designed it completely new with the same mounting holes. M3 inserts for mounting the Base and hole for M8 screw to fit to alu-profile. File for Fusion 360 also included, so you can adjust the parameters (length, angle_vertical, angle_horizontal).

You can also use Mount and Base of original model and just use the new Top for the Streamdeck Mk2 to make it fit.

For assembly you will need:

• 7x M3 brass inserts (optimal 3mm length for frame-part, 4mm possible (4.6mm holes))

• 4x M3x16

• 3x M3x8 (same as original)

2026-03-07:

• fixed issues in Fusion360 file for my mount

  • Version for mounting on left and right side

  • fixed angles in F360 file that, horizontal was not parametric

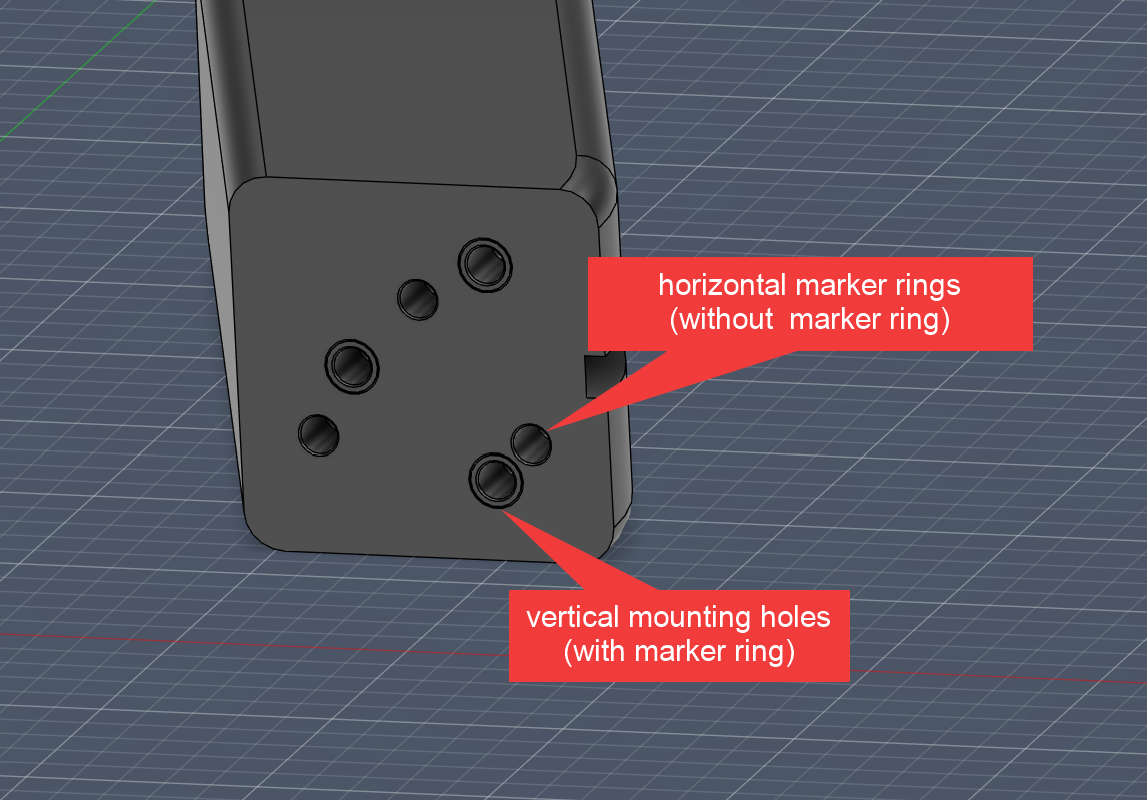

  • also for horizontal or vertical Steamdeck (see included screenshot which holes you need to put your inserts)

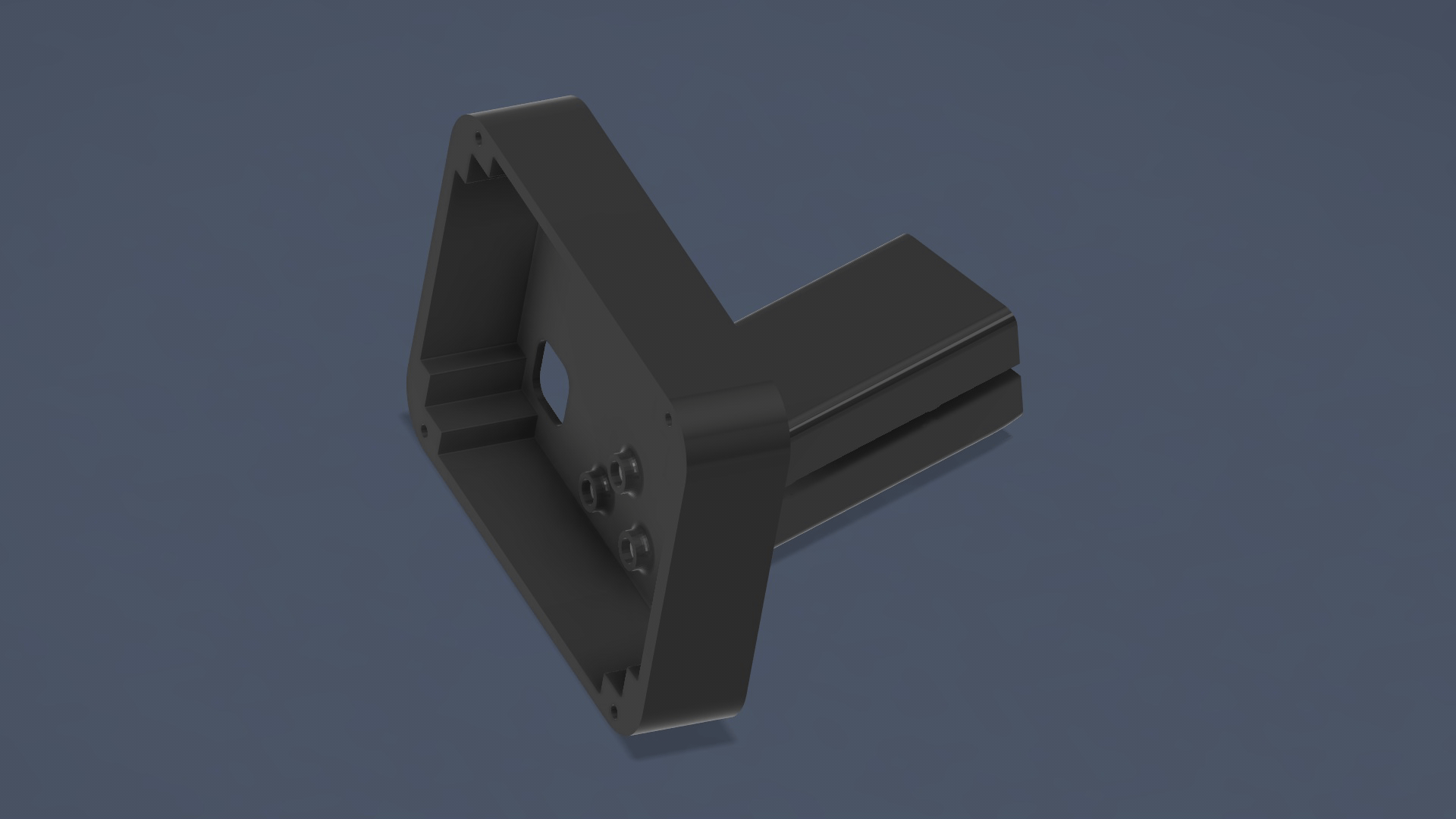

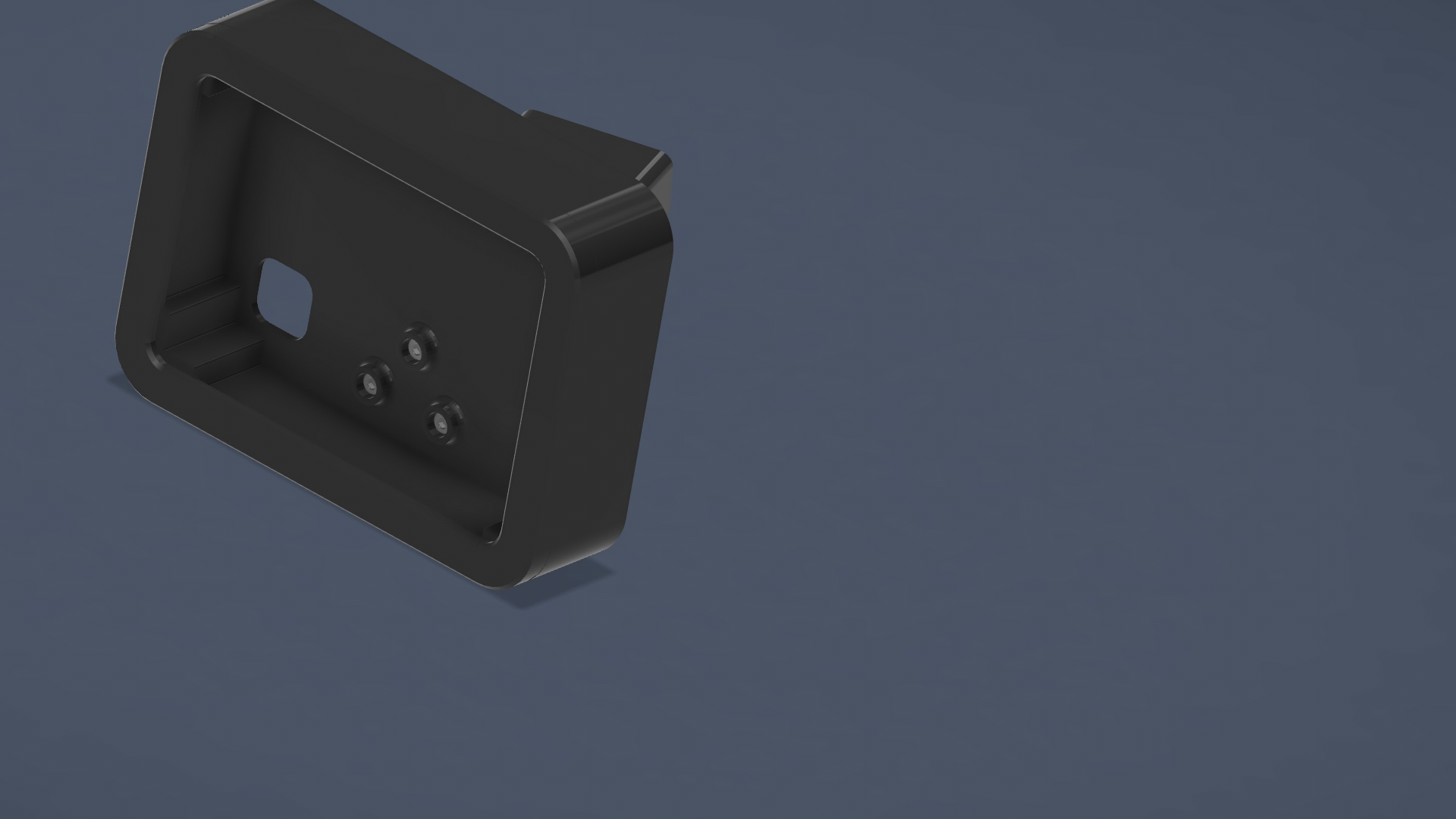

• assembly view to see how it is meant to be mounted
