ESP32 Devkit V1 "Chunky" Case USBC

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło: Printables
Kategoria: Electronics
Licencja: Creative Commons — Public Domain

Szczegóły Wydruki i komentarze Remiksy Kolekcje

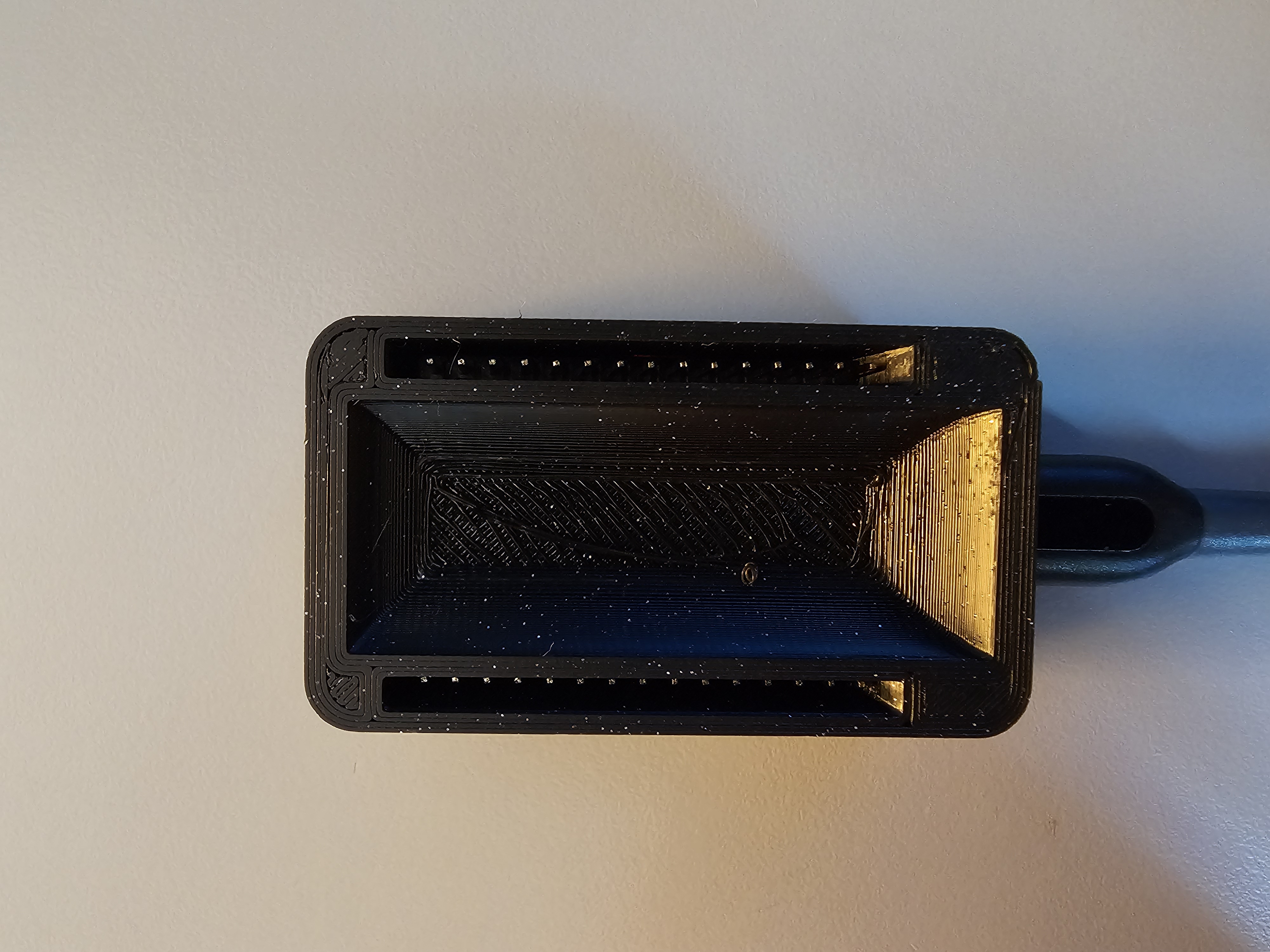

I ordered some ESP32's and printed the Chonky case without measuring. It seems the boards I received with USBC were about a milimimeter longer than the boards from the original chonky case.

51.75mm long boards

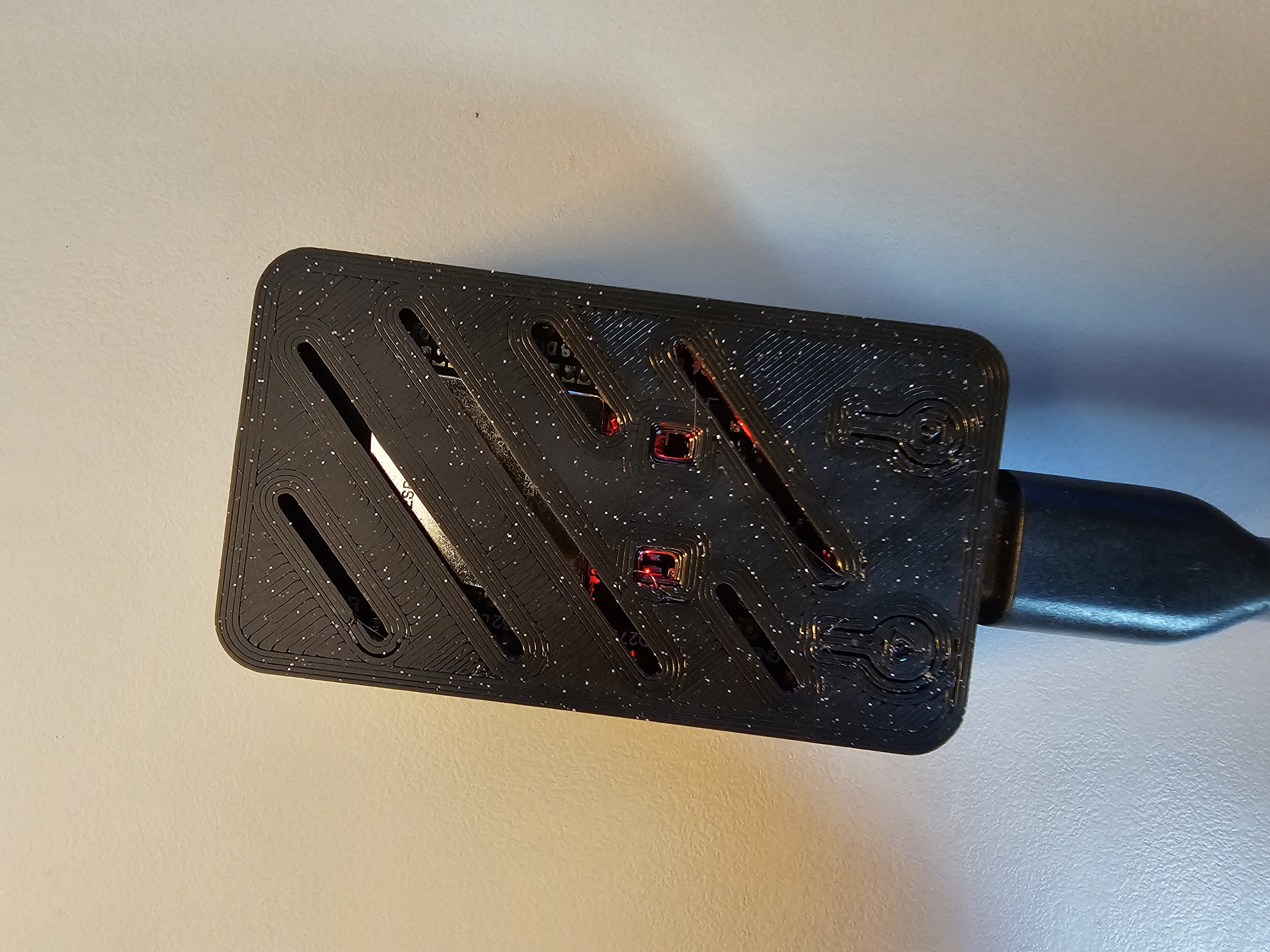

Of note it seems the status LED's are slightly off from where the holes are but you can still see the light from the LED.

Also note check the slicer preview for the compliant buttons as i had to enable “print thin walls” in cura otherwise the circular cutout/gap was being filled in.

I printed in ASA as that's what I had in my printer at the time. Could likely print in PLA/PETG/ABS etc.
