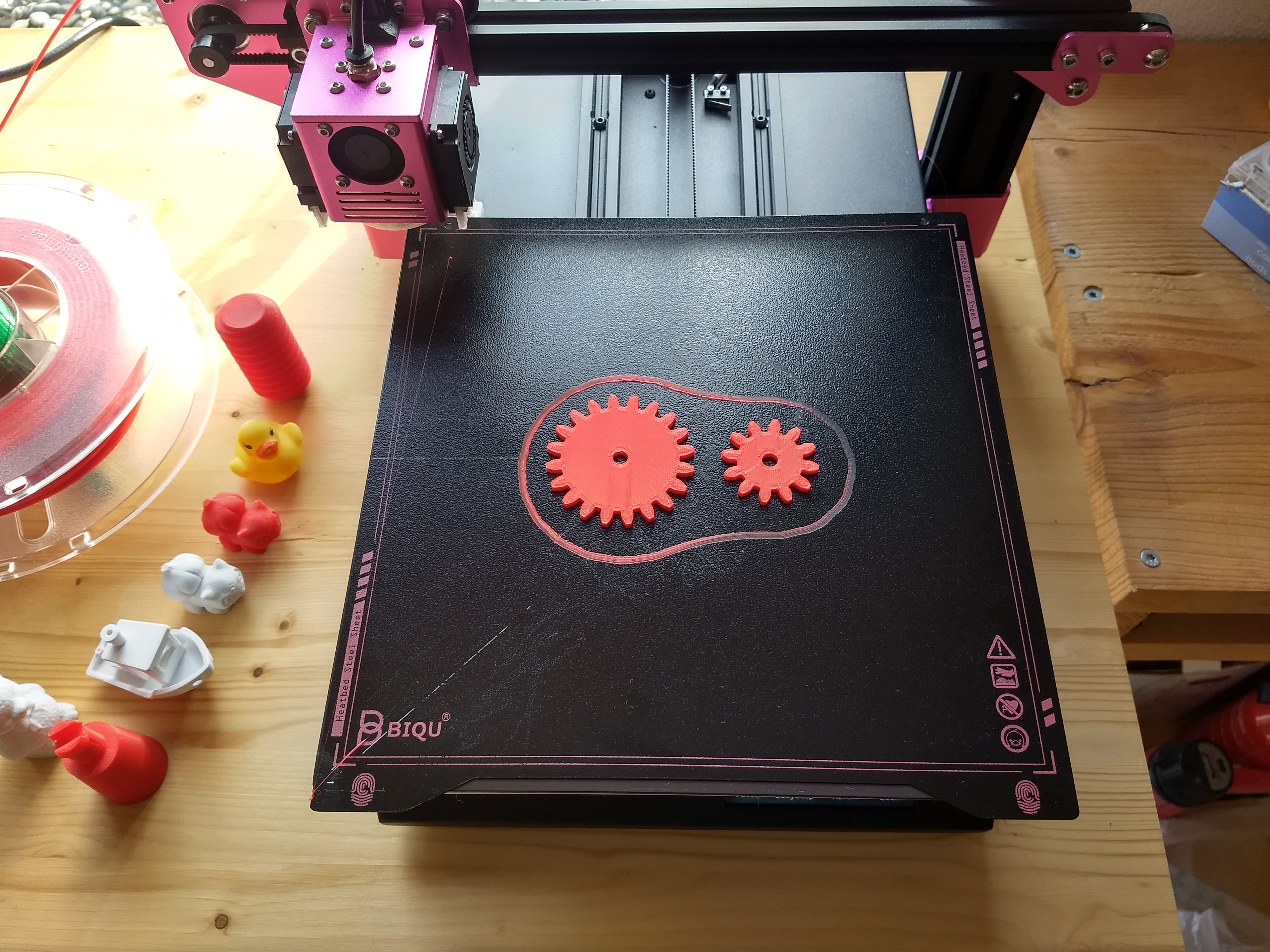

Involute Gear designed in Solvespace
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Involute Gear in Solvespace. Learn how to design an involute gear. Solvespace is a free and open source 3d cad program.
- Ocena
- 0 / 5
- Polubienia
- 1
- Pobrania
- 87
- Wydruki
- 0
- Wyświetlenia
- 485
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Mechanical Parts
- Licencja
- Creative Commons — Attribution
To create an involute gear we only need three parameters, the module which determines the length of the teeth, the number of teeth and the pressure angle. With these parameters we can determine the Pitch Circle, Addendum Circle or Top Circle, Dedendum Circle or Root Circle and the Base Circle. With these circles and the pressure angle the shape of the teeth can easily be created in Solvespace.
If we want to change one of these three we don't have to start from scratch. We can take an existing gear and change one of the three parameters above. This will save us a lot of time. However this change must be done following a procedure that I'll demonstrate. Other wise Solvespace will give us the error message 'unsolved constraint'.
If you need help to design or adjust an involute gear I've made a series of video tutorials how to do it. Here is a link to the playlist on PeerTube: https://peertube.linuxrocks.online/w/p/fSkf3ej4FGmsqyqxQDA5FA
