Badgeholder
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Badgeholder in two pieces, you need to join them together using superglue.
- Ocena
- 0 / 5
- Polubienia
- 2
- Pobrania
- 17
- Wydruki
- 0
- Wyświetlenia
- 180
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Fashion Accessories
- Licencja
- GNU General Public License v3.0
This badgeholder is as simple as it gets, just two pieces that you glue together.
It has a 4 mm hole for a keyring.
Supports cards in the most common dimension, ID-1 (85.6 × 53.98 mm or 3.370 × 2.125 inches)
The hexagonal pattern was created in slicing, using Prusa Slicer. I have used 30% infill with hexagonal pattern, 0 top layers and 0 bottom layers. I suggest using enough perimeters to join the keyring hole with the perimeter of the badge holder, this will make it stronger.

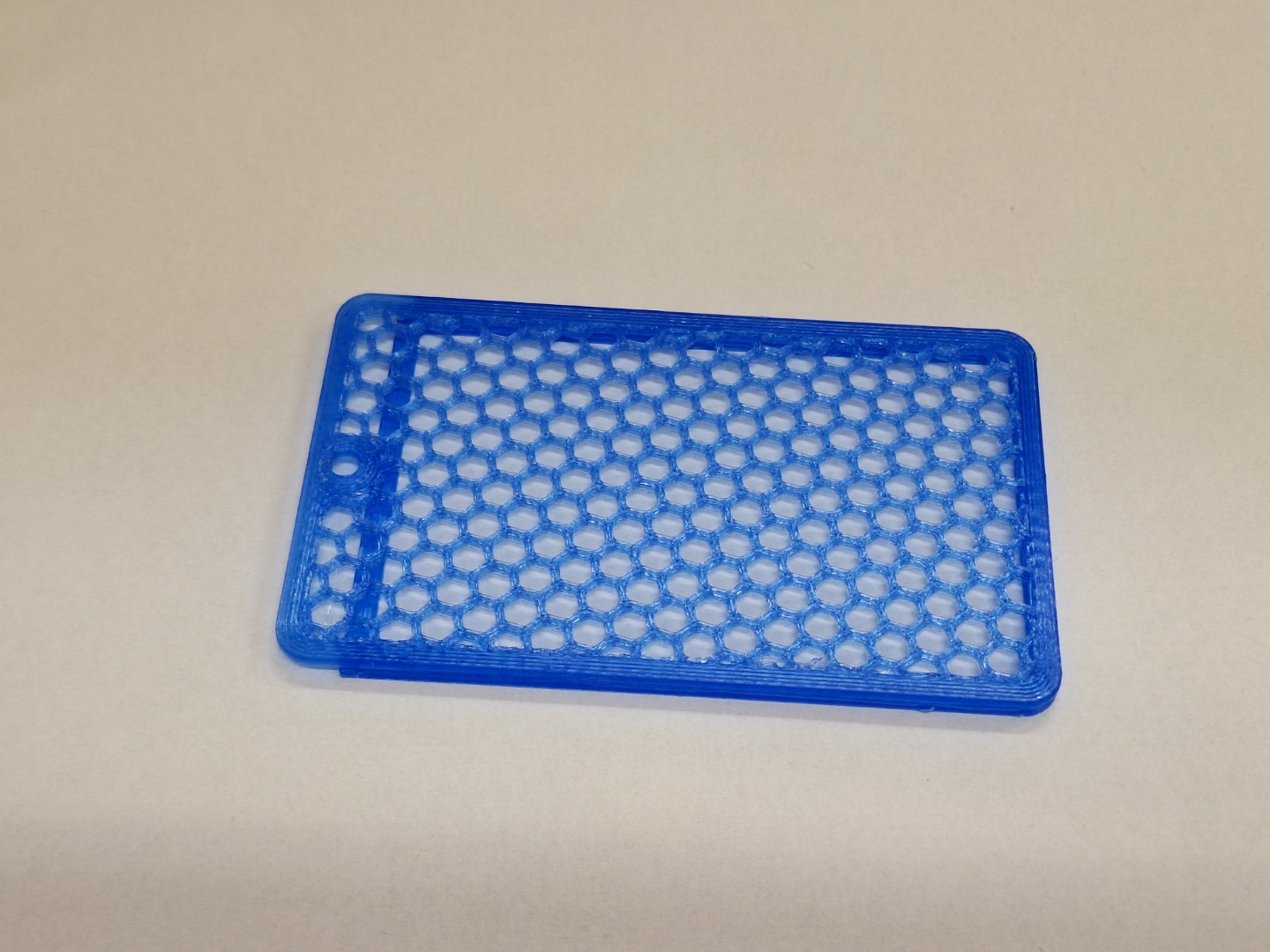

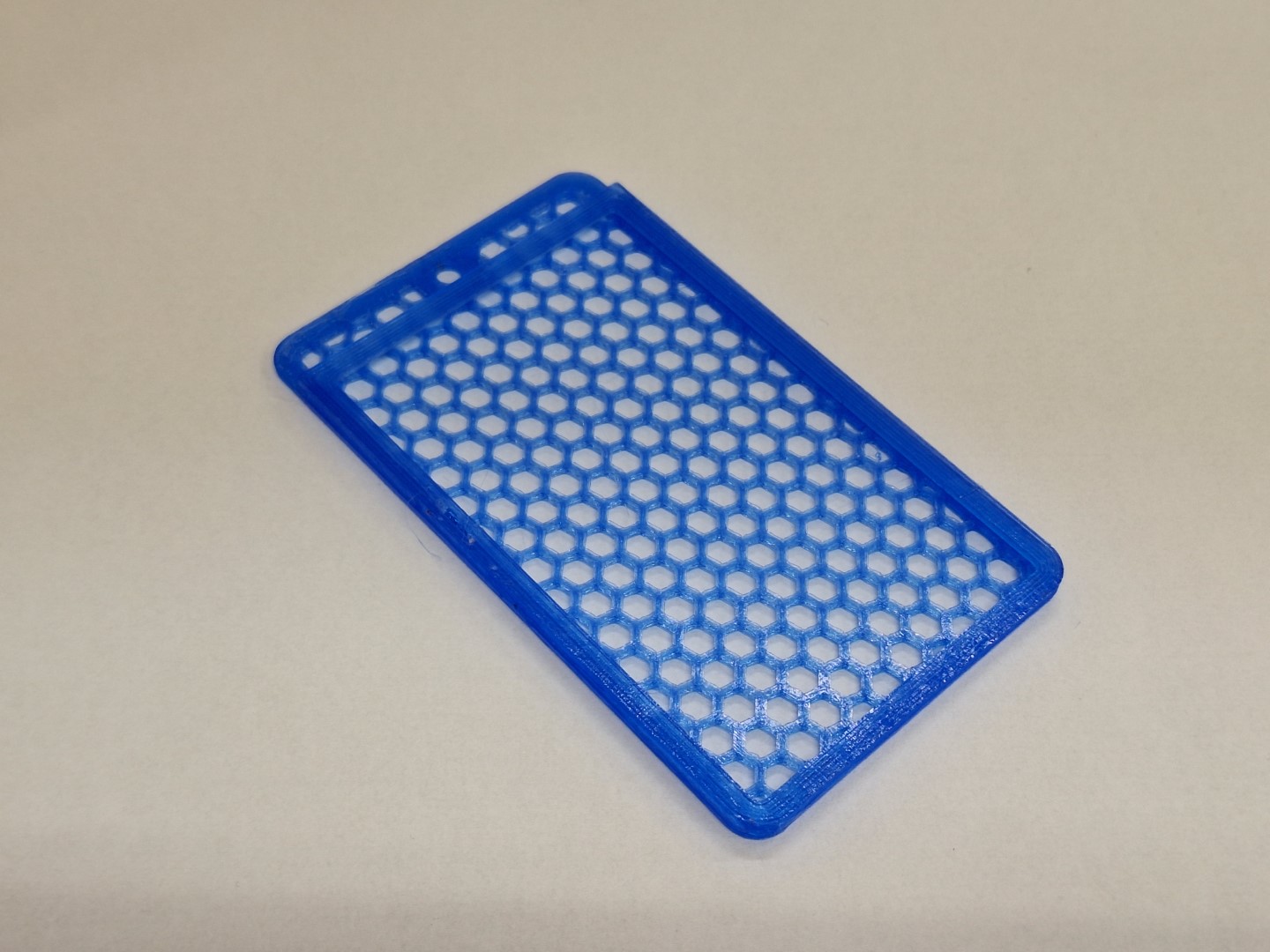

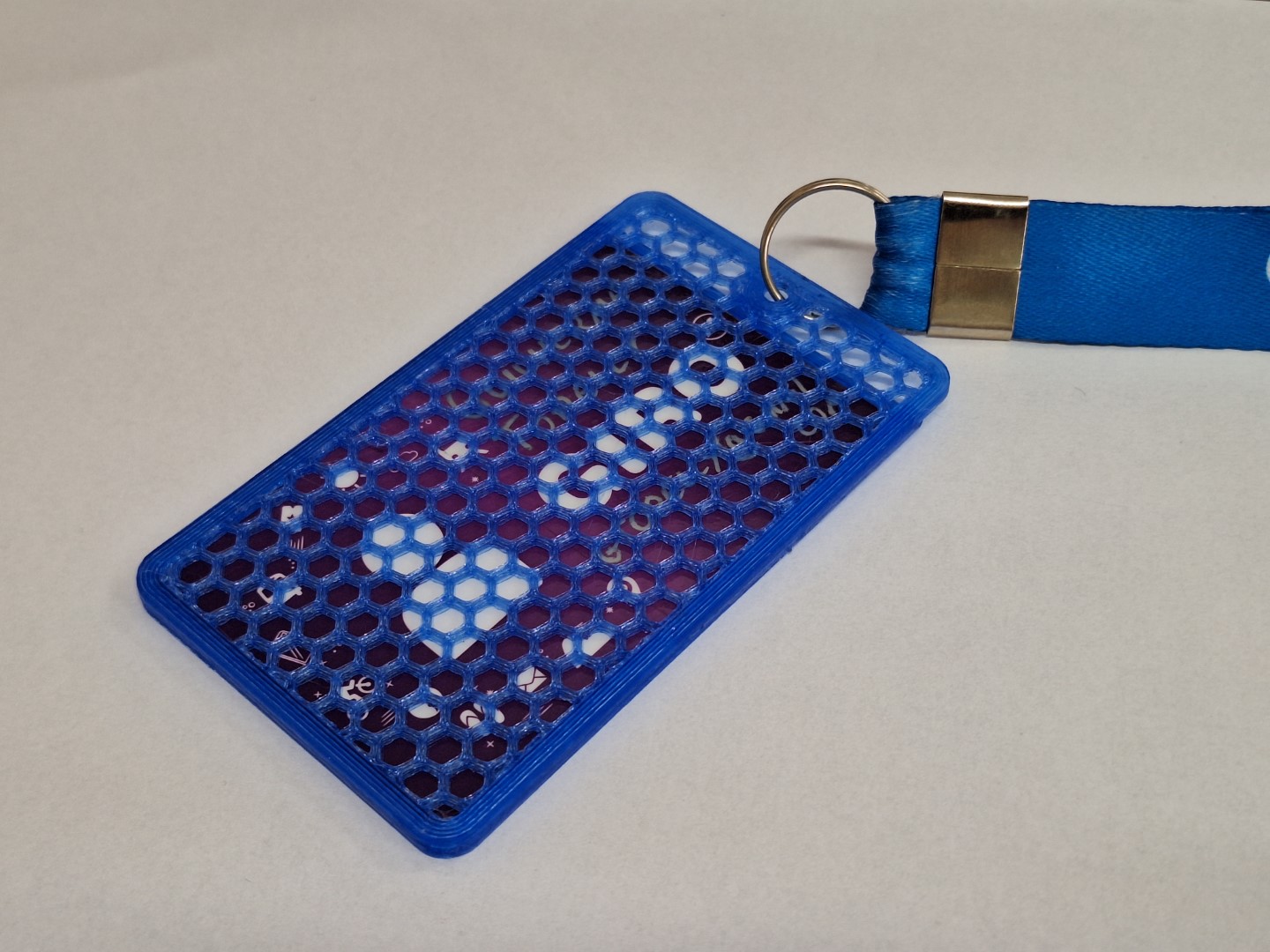

The example shown in the pictures was printed in translucent blue PLA (filamentos 3DBR), with a 0.6 mm nozzle and 0.15 mm layers.
