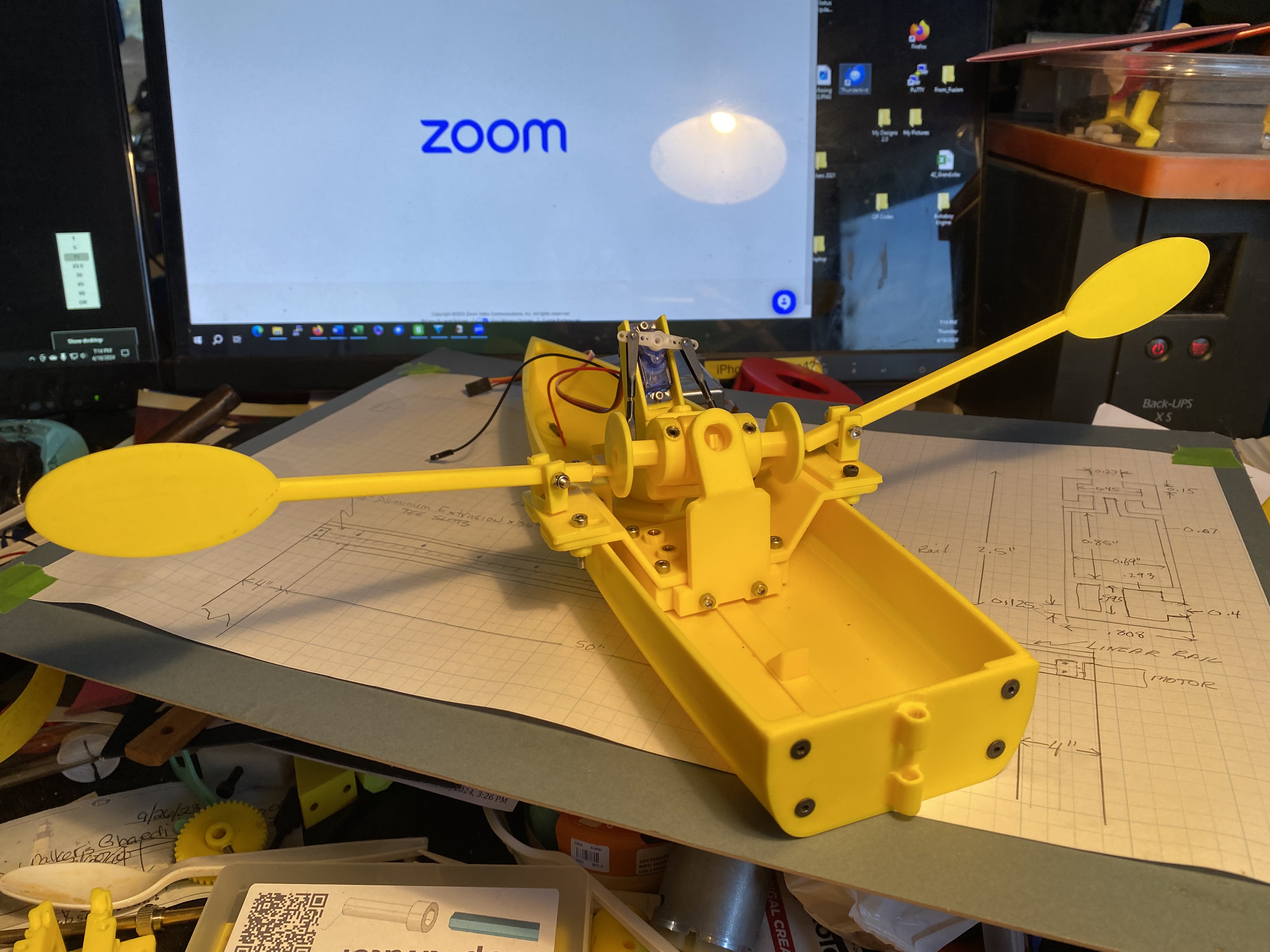

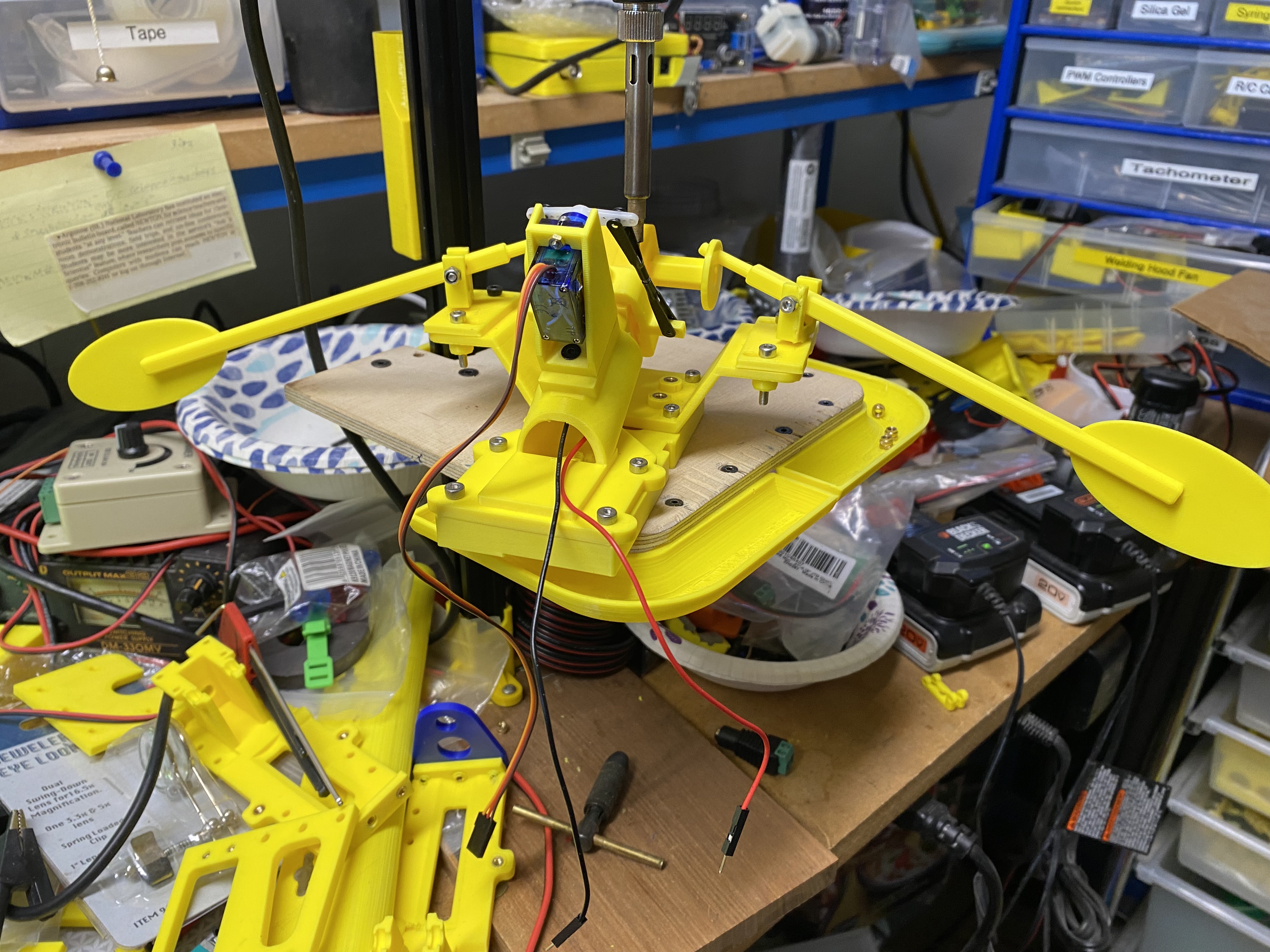

Rowboat Steering Mechanism

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Other Gadgets
Licencja
Creative Commons — Attribution — Noncommercial — Share Alike

  Printing Instructions:
All printed parts are made from  PLA and should be printed in the  orientation in which they appear.

Part

Strength

Support

Bed

15%

No

Motor Retainer

100%

Touching Buildplate

Oar

100%

No

Oar_Short

100%

No

Oarlock

100%

No

Oarlock_Mount

100%

No

Rowing_Frame

100%

Touching Buildplate

Rudder

50%

No

Small Motor Mount

100%

Touching Buildplate

Servo_Mount

100%

Touching Buildplate

Small_Motor_Crank_Disk

100%

No

Small_Motor_Retainer

100%

No

Small Motor Yoke

100%

No



















In addition to the printed parts you will need the following tools and parts:

       Heatset Insert tool

       Small set of Metric hex keys

       Small wrench

       2.3mm drill bit

       Hand Drill or Drill Press

       Coarse sandpaper

       M3 tap

       M2 tap

Fasteners and other stuff to buy:

 1: Toy Car Motor:

https://www.amazon.com/dp/B099RNNTPJ?ref=ppx_yo2ov_dt_b_product_details&th=1

Qty

Part

Source

Location

8

M3 Nylock nuts

Amazon

Bed

4

M3x10 FHMS

Amazon

Rowing Frame

2

M3 x 10 FHMS

Amazon

Servo Mount

24

M3 Heat Set inserts

Amazon

Everywhere

2

M3 x 20 SHCS

Amazon

Oarlocks

6

M3 x 16 SHCS

Amazon

Oarlock Mounts

8

M3 Nylock Nuts

Amazon

Oarlock Mounts

2

M3 x 10 grub screws

Amazon

Crank Disk Retainers

4

Clevis Pins

Hobby shop

Servo

2

M2 x 10 SHCS and nuts

Amazon

Servo Mount

2

#2-56 x 20mm allthread

Hobby shop

Servo

4

Kwik-Link connectors

Hobby shop

Servo output

1

Servo

Hobby shop

Servo

2

M2 x 10 SHCS

Amazon

Servo Mounting

1

2-channel R/C rig

Hobby Shop











Assembly:

-Turn the Bed right side up and install 8: M3x5mm heatset inserts

-Install  2: M3x5mm inserts into the Bed’s stern end

-Install 2: M3 x 5mm inserts into the Small Motor Mount

-Install 4: M3 x 5mm inserts into the Rowing Frame

-Install 1: M3 x 5mm insert into each of the two Crank Disk Retainers

-Install 1: M3 x 5mm insert into each of the two Oarlock Mounts

-Sand the tops of parts smooth when the inserts cool down

-If necessary, drill out any plastic that blocks the holes, then re-tap the inserts M3; make sure bolts thread in easily.

-Using 4: M3 x 10mm SHCS fasten the Small Motor Mount to the long end of the Bed

-Using 4: M3 x 10MM SHCS fasten the Rowing Frame to the short end  of the Bed

-Fasten the Servo Mount to the top of the Small Motor Mount with 2: M3 x 10mm FHMS

-Install the Servo to the Servo Mount with 2: M2 x 10mm SHCS and nuts; tap the two  mounting holes M2 if necessary. Make sure that the output shaft is on top.

-Start the M3 x 10mm Grub Screws into the Crank Disk Retainers

-Slide the Crank Disk Retainers onto the shanks of the Crank Disks, making sure that the GrubScrews  line up with the holes on the Crank Disks.

-Thread the Grub Screws in just enough to keep them from falling off the Crank Disk shanks

-Press one assembly onto  each of the motor’s output shafts, making sure that the oar drive holes line up with each other.

-Tighten down the grub screws.

-Slide the motor, wires first, through the Small Motor Yoke, making sure that the output arms are facing away from the gearbox end. Snug the Yoke up on the back of the gearbox.

-Slide the motor assembly, wires first, into the Motor Mount

-Attach the Motor Retainer to the front of the Bed with 2: M3 x 10mm SHCS. The circular hole on top should just clear the rectangular knob on the end of the gearbox

-Assemble two sets of Kwik-Links back to back using short lengths of #2-56 allthread to join them together. Separate each pair of Kwik-Links by about two threads.

-Attach the bottom of each pair of Kwik-Links to the holes in the Yoke

-Attach the top of each pair to the holes  in the Servo Output Arm

-Attach oarlocks to the Oarlock Mounts using M3 x 16mm SHCS and Nylock nuts, making sure that all play is removed but that they still swivel freely.

-Attach Oars to the Oarlocks using M3 x 16mm SHCS and Nylock nuts

-Slide each Oar Handle through the holes in the Crank Disk and fasten the Oarlock Mounts to the Rowing Frame, making sure that the Oarlock Heatset bosses are lined up with the slots in the Rowing Frame.

-Slide the Oarlock Mounts inward as much as the slots will allow and bolt them in place with M3 x 10mm SHCS.

-That completes assembly. Motor should run with 3 to 6v and it’s a good idea to use a speed control to make sure it doesn’t go too fast until you get a feel for it.

-Let me know how it goes and if you have any problems.

-I’m working on another version of this that uses a larger motor for larger boats; stay tuned!

2026_03_25 Update:

-I've modified bed_08 so that it fits into the Ontario 16 rowboat (designed by @Michael2028345) that can be found here: https://www.printables.com/model/1620246-ontario-16-rowboat

-And remember gang if you back me on Patreon I’ll send you .stp files so you can hack the design all you like: https://www.patreon.com/Steamboat_Ed?view_as=patron
