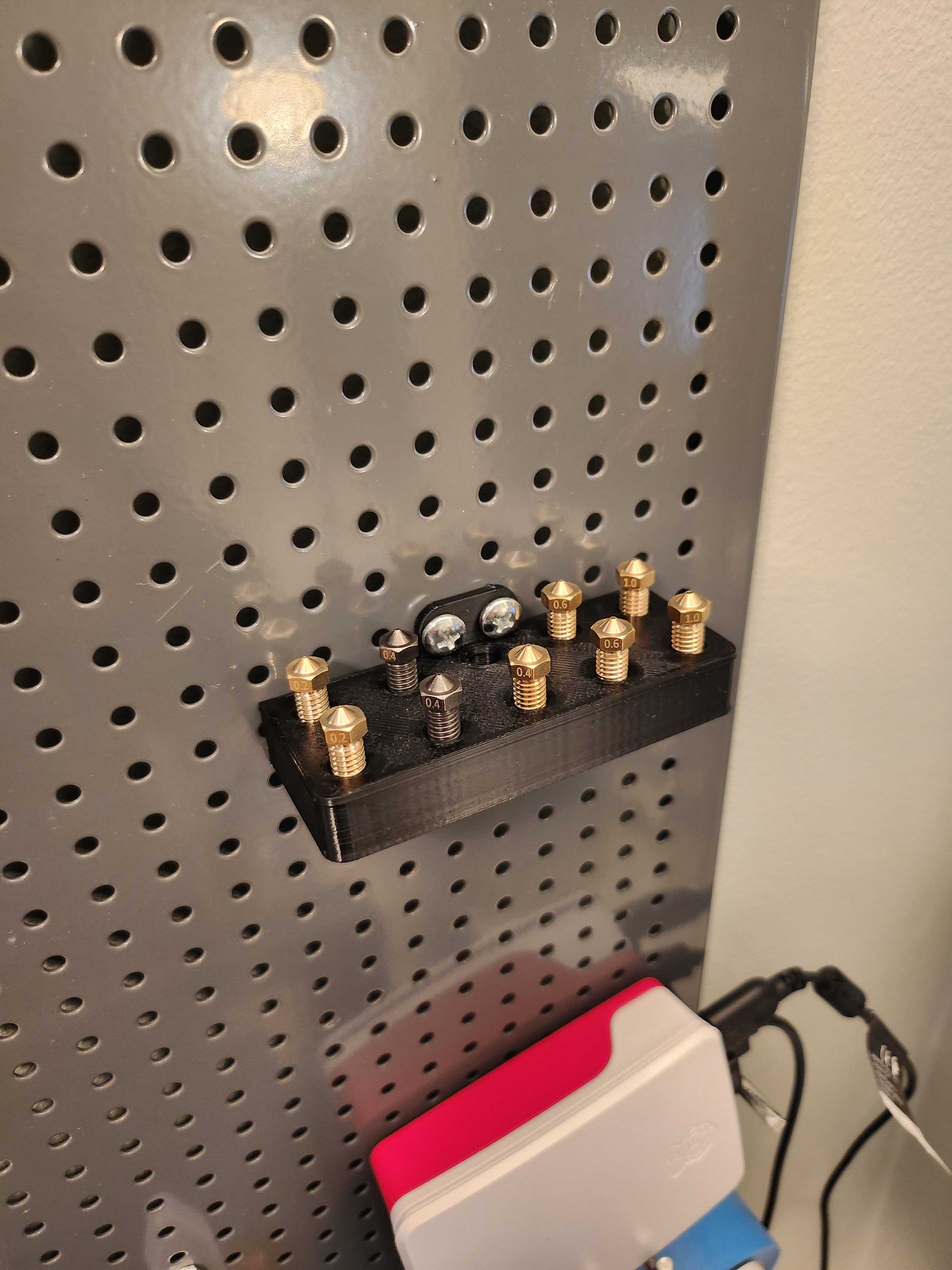

Holds nozzles on a Clas Ohlson pegboard (12mm spaced holes, https://www.clasohlson.com/no/Verktoytavle-med-kroker/p/40-7251 ).
The FreeCad file is parametric, so you can alter the number of holes (and thus holder width), the size and tolerance of holes, the spacing between holes, and more. Note that the filets and chamfers may have to be redone by removing and selecting the correct edges.
Prefer the step file. Orient the shape on its bottom, the step file is rotated 90 degrees.
For printing, use 0 supports, and 5-10% infill. Make sure the hole bottoms don't print mid-air.
A modifier shape can be used to get 100 top layers or 100% solid infil for the top screwhole part.
I used ironing on all top surfaces.
