**INCOMPATIBLE WITH ENDER 3**
COMPATIBLE WITH ENDER 3 PRO / V2
I wanted a new electronics box for my Ender 3 Pro/V2 so i don't have to FLIP the printer over to make changes so here it is. This is also my first project in Fusion 360!
Use the Tree (auto) Support Mode in Orca Slicer with my Print files
Print 2 Lids (Print both Variations)
Print in PTEG as it will heat up
Use a 4010 fan for cooling
Lid has M4 Screws
# Update 5-28-2024

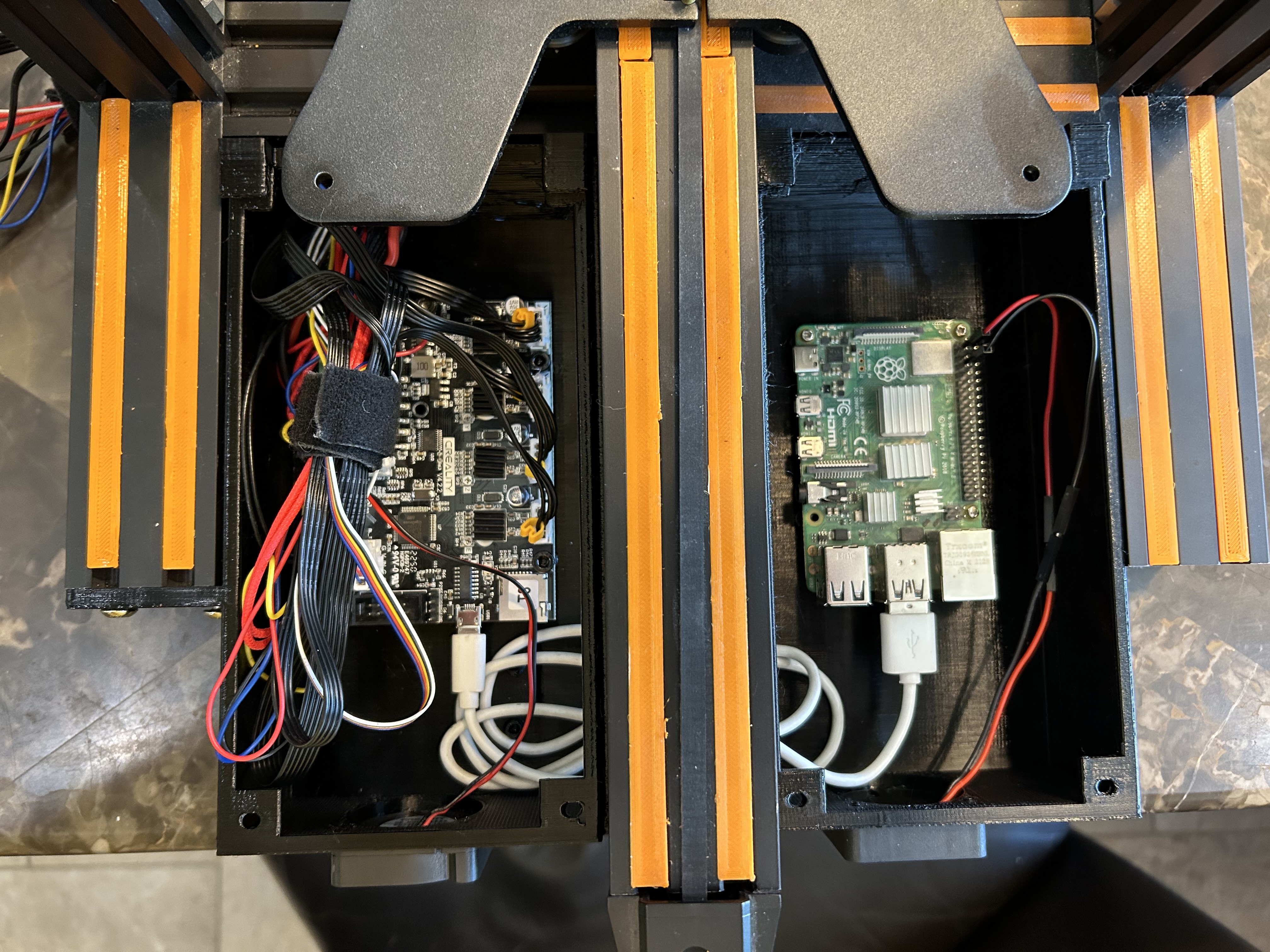

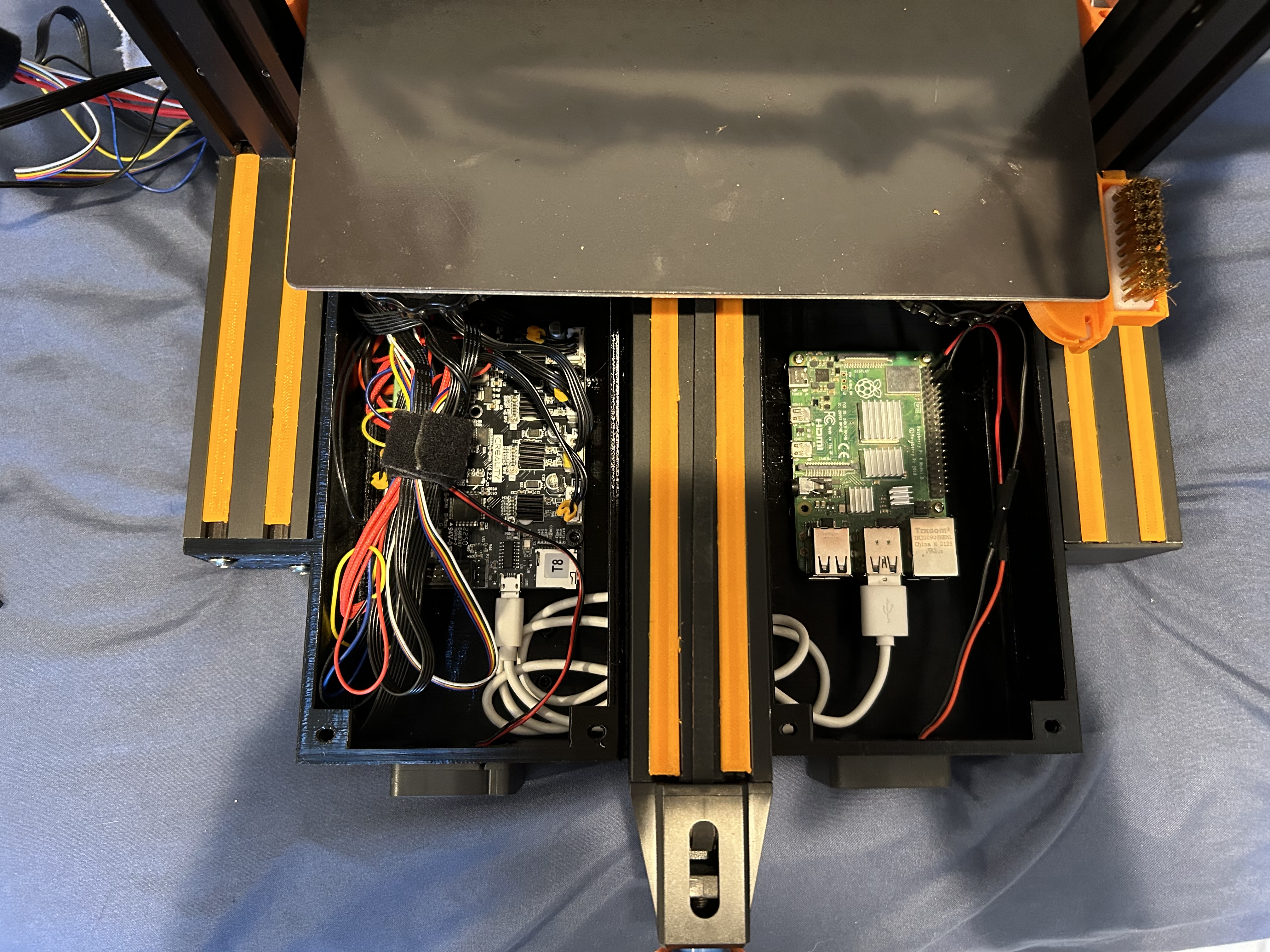

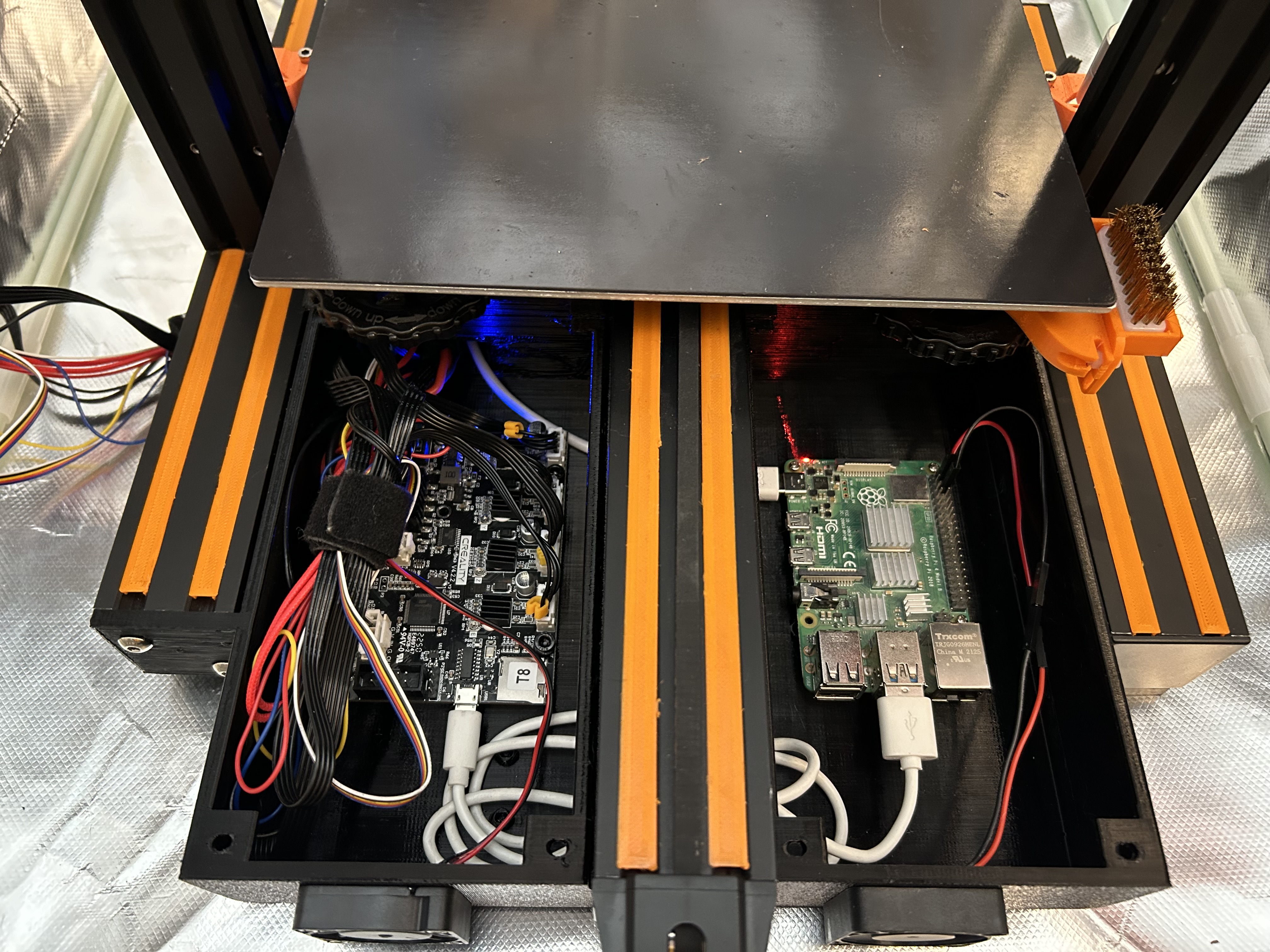

Switched RPI and Mainboard positions due to Dumb design choices with wiring
Added Cutout on Right lid for Raspberry Pi Camera
#Update 5-16-24
Added Extrusion Inserts to the Left part to support the loose Middle part of the Mount
Changed STEP file
Added 2 variations of lid to prevent issues
Made in Fusion 360
