Stackable versatile gridfinity bins for drill bits of many sizes
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
To store wood, metal and other drill bits. It makes no assumptions about your drill bit set up.
- Ocena
- 5 / 5
- Polubienia
- 74
- Pobrania
- 422
- Wydruki
- 3
- Wyświetlenia
- 2354
- Oceny
- 2
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

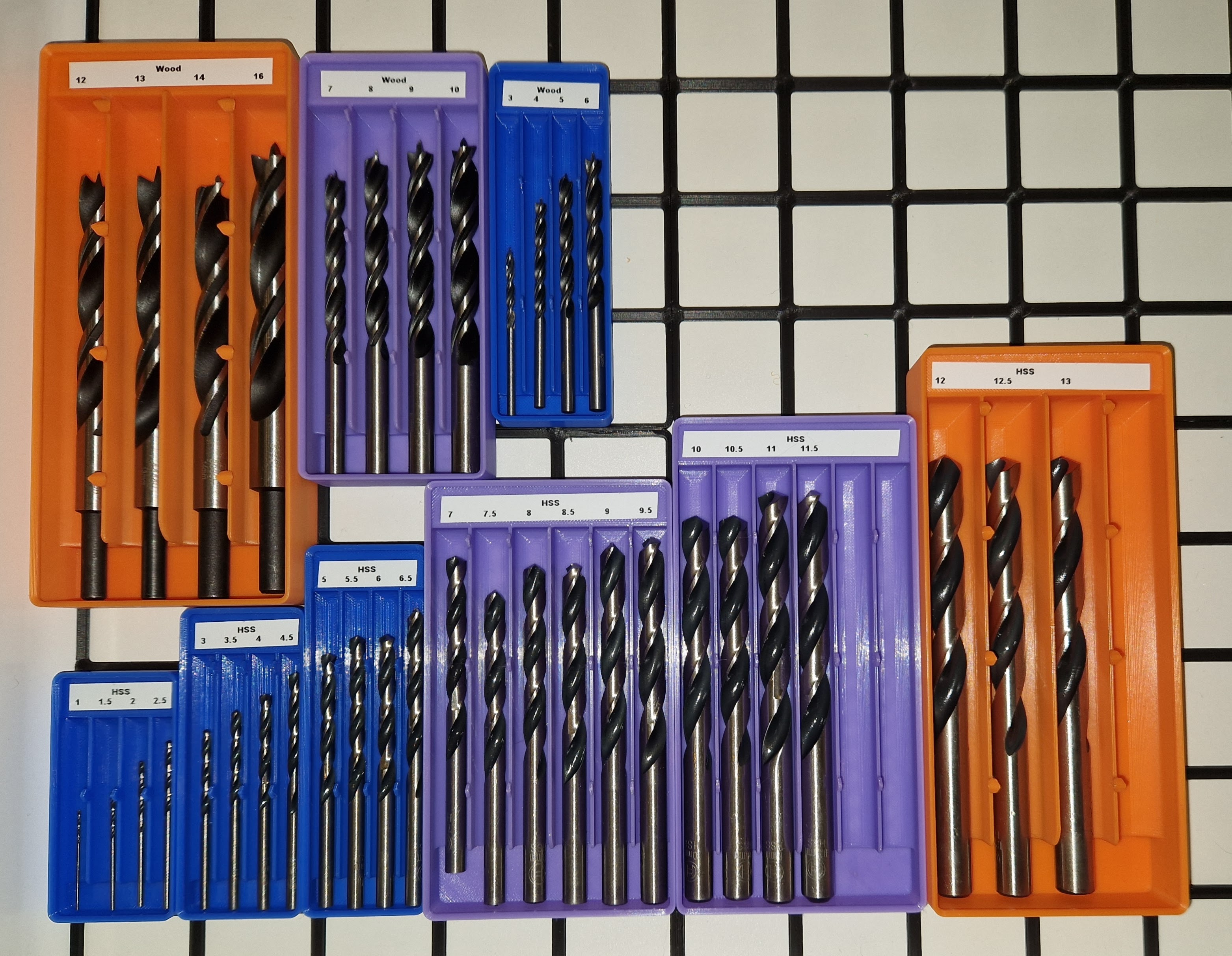

Gridfinity bins for drill bits. There are several heights and lengths so you can print what you need based on the drill bits that you have. It makes no assumptions whether you have drill bits every mm, or every quarter mm, or in imperial units. Most units store 4 drill bits, although some store 6. They are designed so that when you stack them, as much as possible, the one on top can't slide (there is one exception). There's a cavity at the bottom of each bin so you can push the drill bit down and it swivels up at the other end so it's easy to take the one you want.
The files follow the pattern of showing the height first, in 7mm units, then the width and depth, in gridfinity 42mm units and lastly how many drill bits they fit. There are decimal fractions of gridfinity because this set uses the half-pitch base. It's fully compatible with standard gridfinity, you just get more versatility in moving it around.
The files included are:
- Gridfinity Bin for Drill Bits - h2xw1.0xd2.0 - 4 drill bits
- Max diameter: 8mm
- Max length: 60mm
- Gridfinity Bin for Drill Bits - h2xw1.0xd2.5 - 4 drill bits
- Max diameter: 8mm
- Max length: 80mm
- Gridfinity Bin for Drill Bits - h2xw1.0xd3.0 - 4 drill bits
- Max diameter: 8mm
- Max length: 105mm
- Gridfinity Bin for Drill Bits - h3xw1.5xd3.5 - 4 drill bits
- Max diameter: 13mm
- Max length: 120mm
- Gridfinity Bin for Drill Bits - h3xw2.0xd3.5 - 6 drill bits
- Max diameter: 12mm
- Max length: 120mm
- Gridfinity Bin for Drill Bits - h3xw2.0xd4.0 - 6 drill bits
- Max diameter: 12mm
- Max length: 140mm
- Gridfinity Bin for Drill Bits - h3xw2.0xd4.5 - 6 drill bits
- Max diameter: 12mm
- Max length: 165mm
- Gridfinity Bin for Drill Bits - h4xw2.0xd3.0 - 4 drill bits
- Max diameter: 19mm
- Max length: 105mm
- Gridfinity Bin for Drill Bits - h4xw2.0xd3.5 - 4 drill bits
- Max diameter: 19mm
- Max length: 120mm
- Gridfinity Bin for Drill Bits - h4xw2.0xd4.0 - 4 drill bits
- Max diameter: 19mm
- Max length: 140mm
- Gridfinity Bin for Drill Bits - h4xw2.0xd4.5 - 4 drill bits
- Max diameter: 19mm
- Max length: 165mm
- Gridfinity Bin for Drill Bits - h4xw2.5xd4.5 - 4 drill bits
- Max diameter: 24mm
- Max length: 165mm
Fusion 360 source files included.
If you need a different size, please let me know and I'll make it.
