MPMD Thick Leg One Button
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- Creative Commons — Attribution — Noncommercial
Found the following button on Amazon for LED strip control and wanted to add it to my mini delta.
https://www.amazon.com/gp/product/B01C4BFH7I/ref=oh\_aui\_detailpage\_o01\_s00?ie=UTF8&psc=1

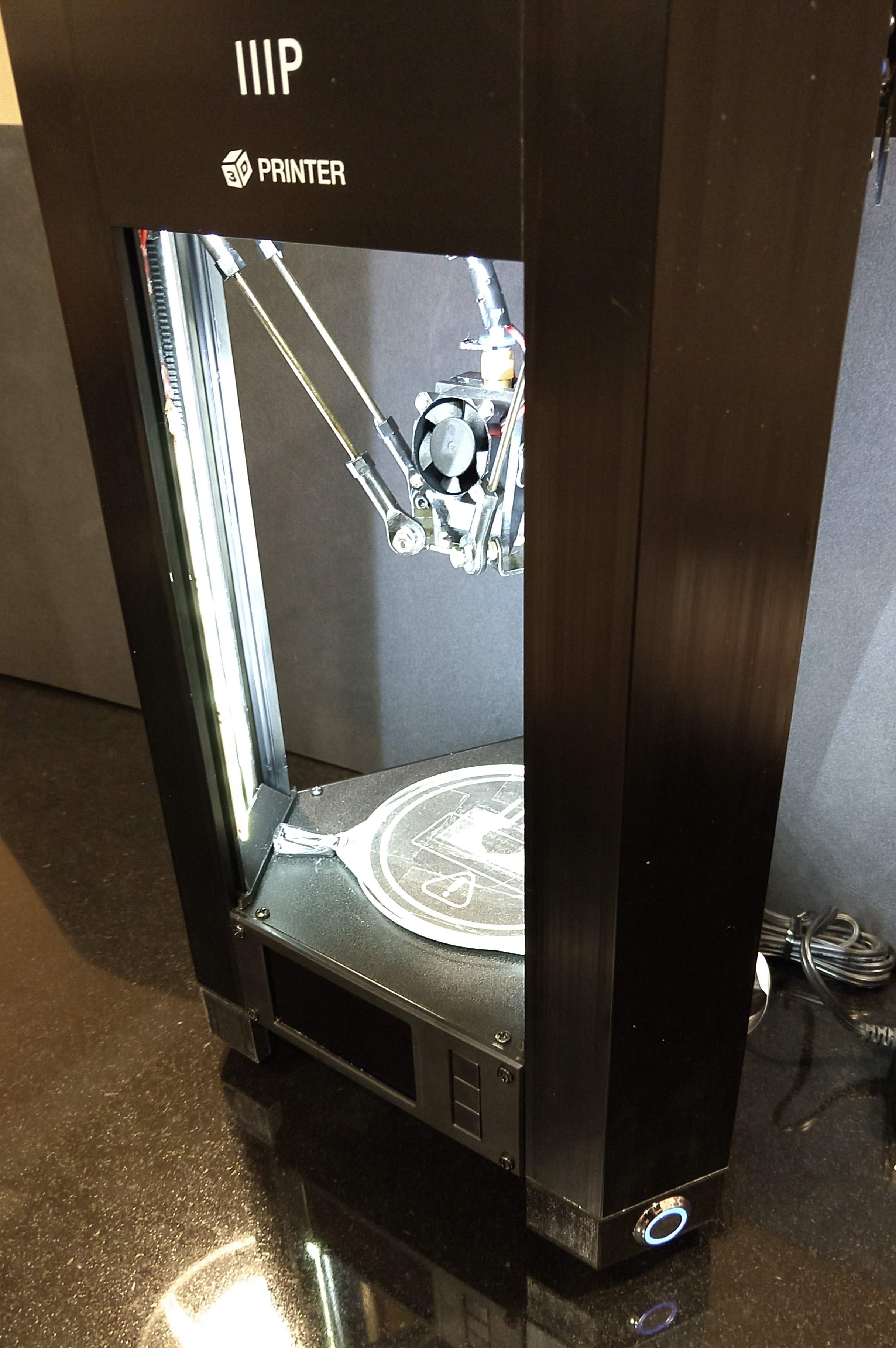

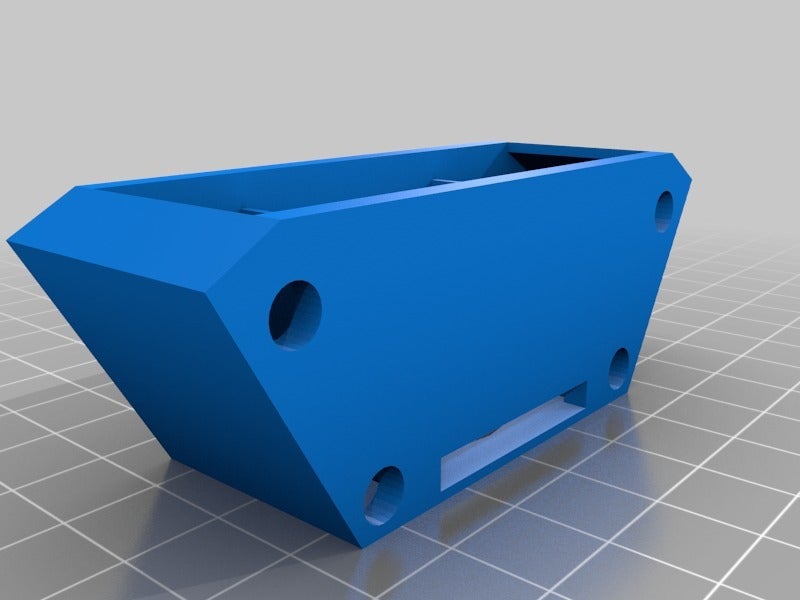

Modified dcpdx's remix to house the button. Wired up the LED strip in 3 segments and used the adhesive backing to glue the light to the inner lip of the front opening.
Print instructions
Category: 3D Printer Parts Print Settings
Printer Brand: Monoprice
Printer: Mini Delta
Rafts: Doesn't Matter
Supports: No
Resolution: 0.14 with 0.21 first layer
Infill: 20% honeycomb
Filament: Maker Geeks Raptor PLA PLA True Black Post-Printing
When installing the nut...
...it needs to be pushed into the part with a vertex point up/down. Once inside the part, rotate so that the nut has it's sides parallel to the part.
