Valve index face tracking camera mount
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Virtual Reality
- Licencja
- Creative Commons — Attribution

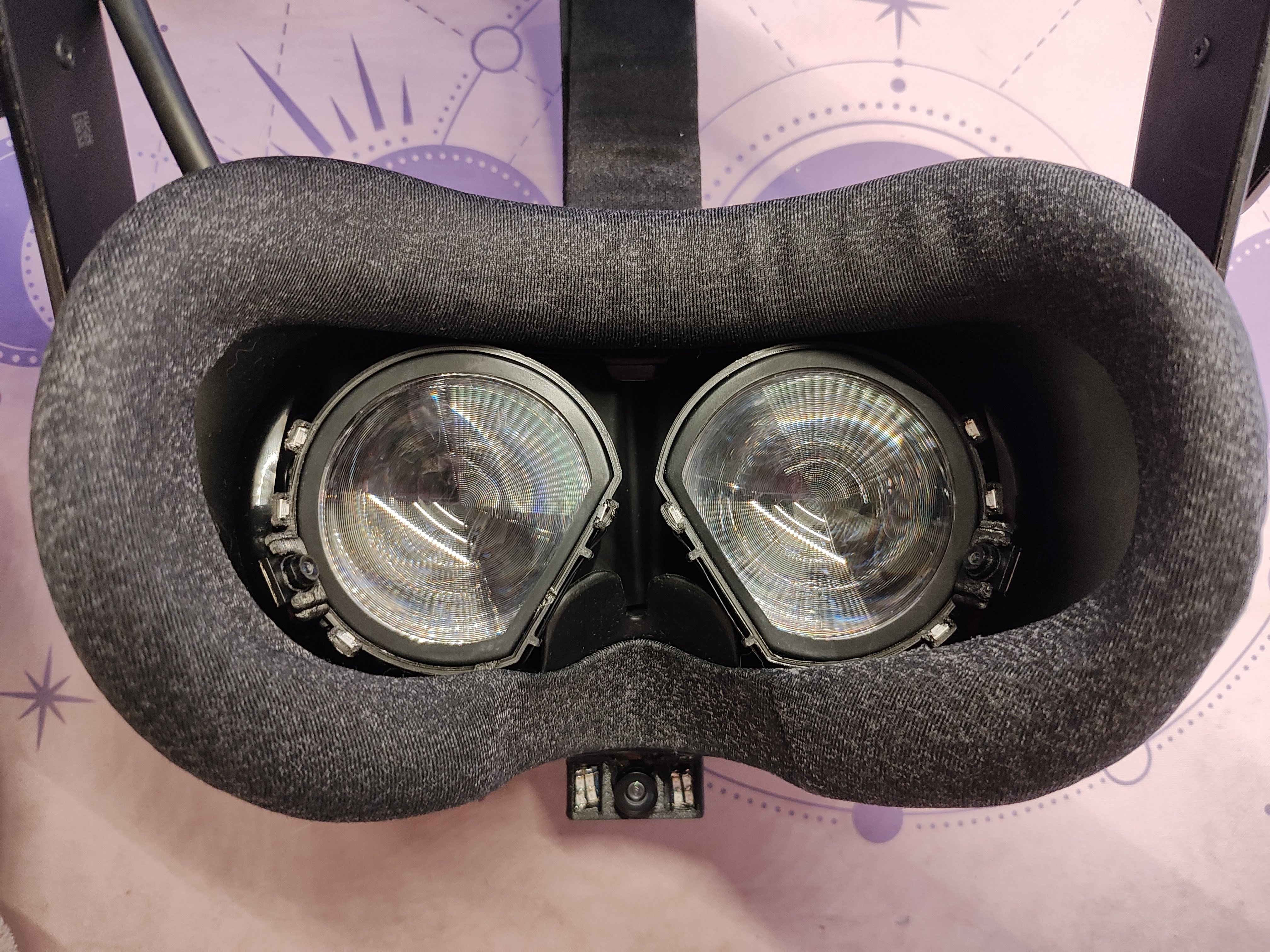

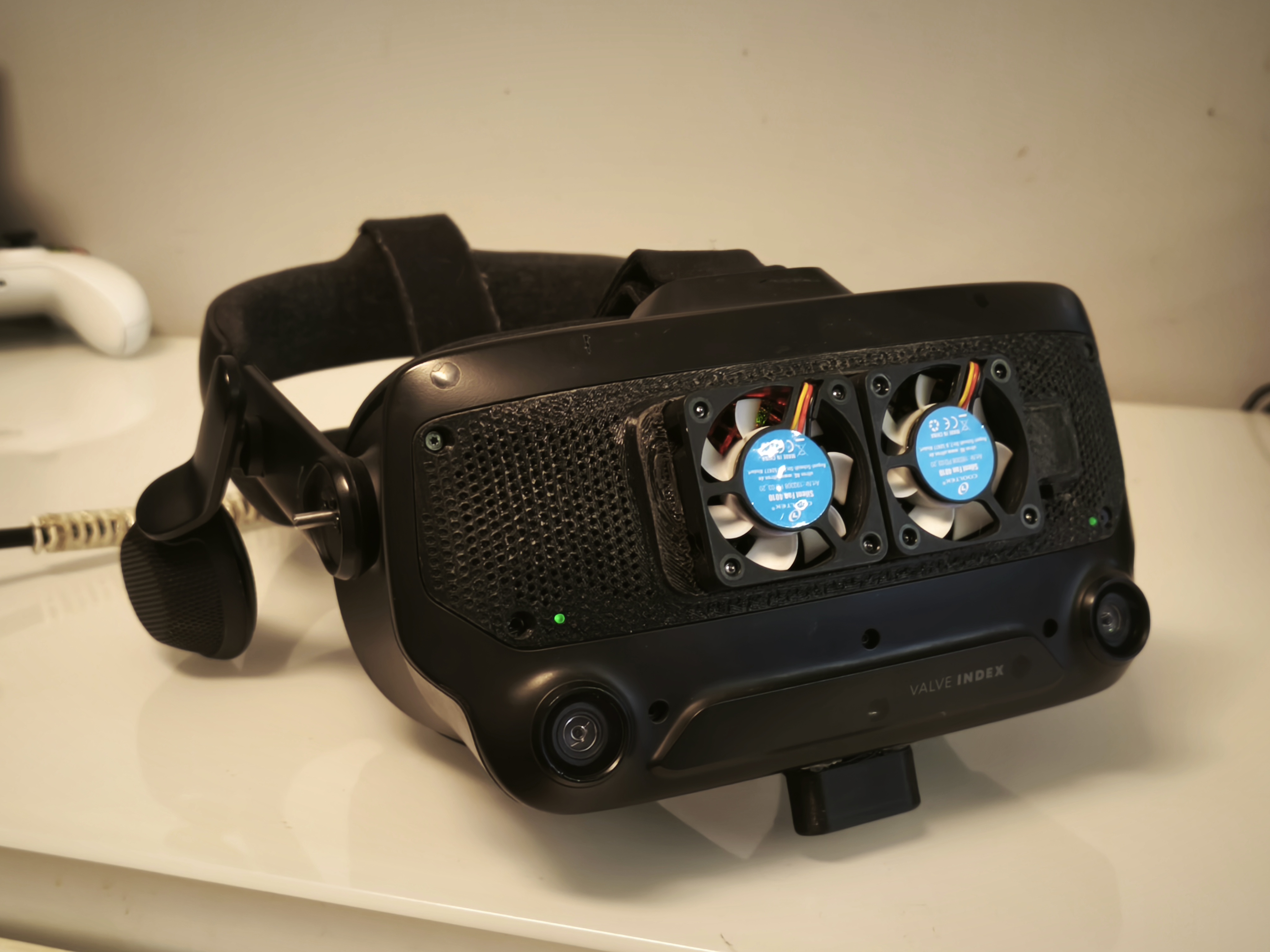

This is a small camera mount for the valve index.
Originally designed for a OV2640 with a XIAO ESP32S3 mounted inside of the headset.
I run this with project babble.
To install this, you need to cut a bit off the plastic on the seam between the covers, enough to let the camera cable and LED wires trough.
Be aware that the mechanism that synchronises your IPD is right behind the cover where the cables come in. There should be space above it, but make sure they don't get tangled in it when you move it. your camera cable will probably lose.
The difference between the versions is that I added a bar on the back wall to keep the camera in place. This is untested, personally I run the original version with some hot glue.
The chambers for the IR diodes are made for a smal cutout of breadboard with the leds mounted on there. but Im sure you could do alternative mounting solutions as well.
