Accessible Dice Box

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Other Toys & Games
Licencja
Creative Commons — Public Domain
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

Applications and Impact:

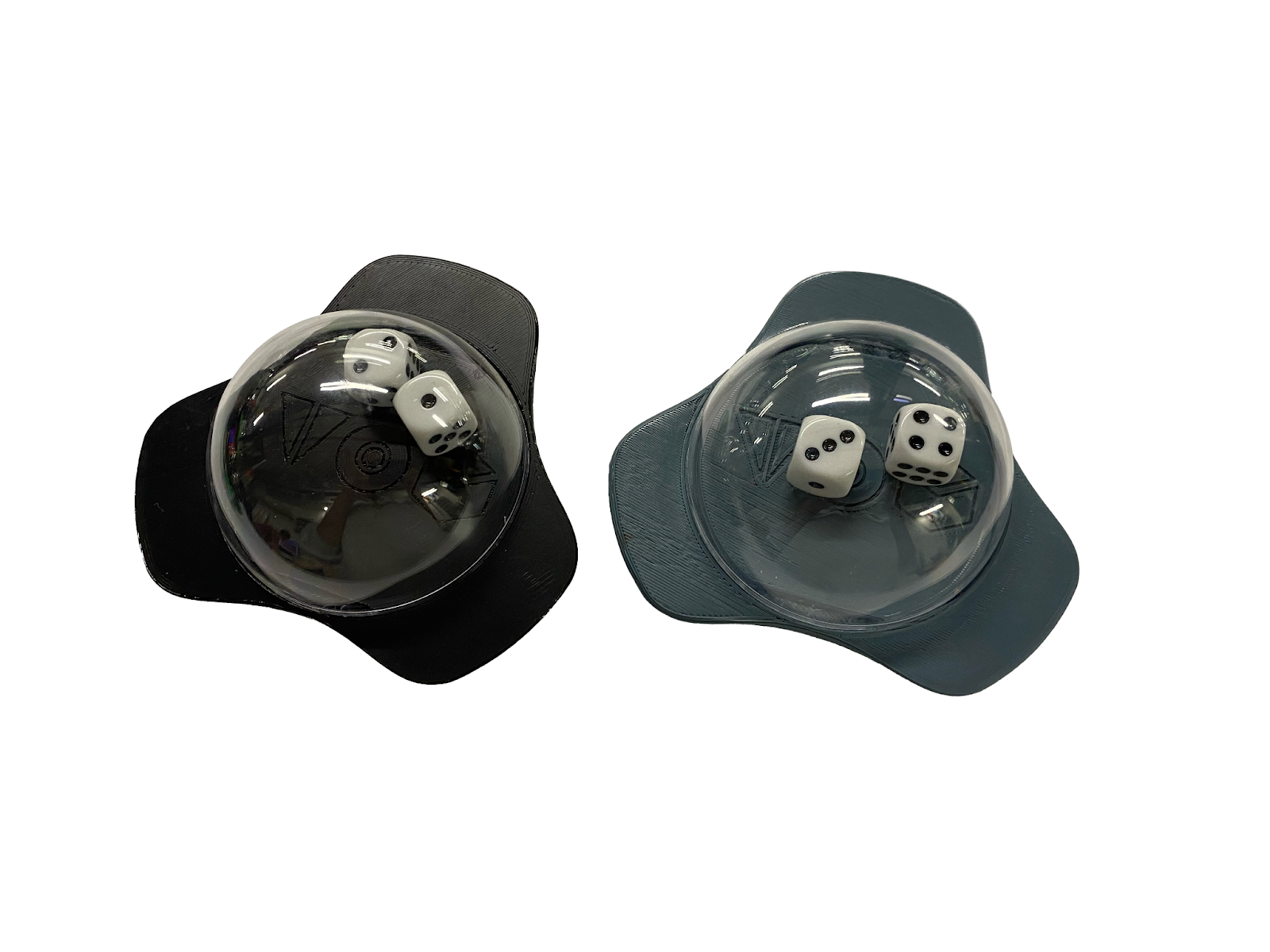

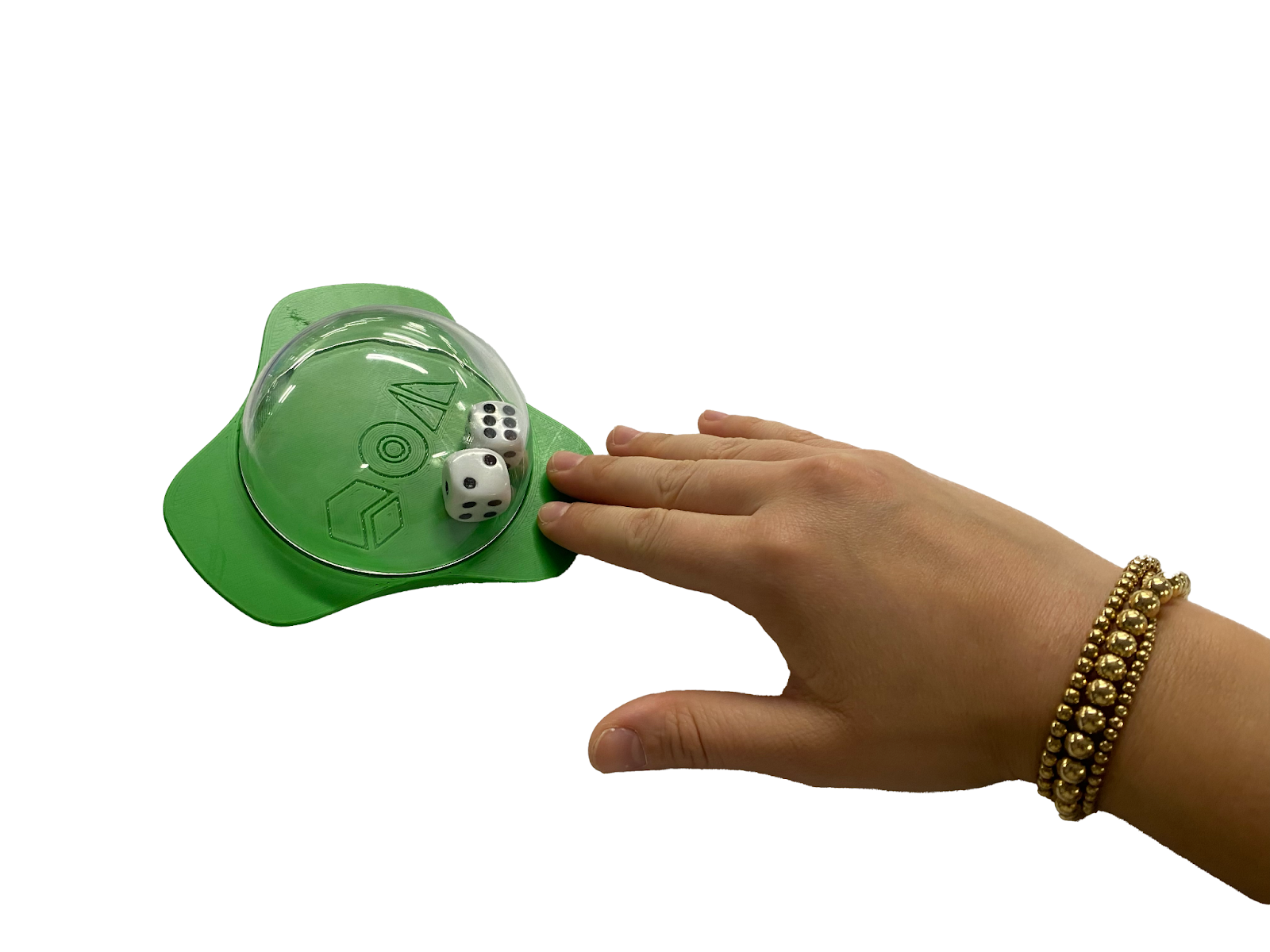

The Dice Box 2.0 is designed to assist individuals who lack fine motor skills in playing dice-based games. This product allows users to play in an independent and different way by eliminating the need to pick up or throw dice.



Project Details:

  • Estimated Manufacturing Time: 1 Hour
  • Materials Needed: PLA filament, Dice, Clear Plastic Dome, Glue
  • Technologies Used: 3D Printing



Print Settings:

  • Printer Model: Original Prusa MK4
  • Layer Height: 0.2mm
  • Infill Density: 15%
  • Perimeters: 2
  • Supports: No



Bill of Materials (BOM):

Item #Item DescriptionMaterialInstructionsQtySupplier Link
1Dice Box BasePLA Filament3D Print at 0.2mm layer height and 10-15% infill38 grams[Link]
2DicePlastic/WoodOff the shelf (12mm dice recommended) 2[Link]
380mm Clear Ornament BallPlasticSnip off the tab 1[Link]
4GlueGlueOff the shelf (Cyanoacrylate glue may cause a fogging effect on the clear dome and is not recommended for this purpose)Small dollop[Link]

Assembly Instructions:

  • Print the Dice Box using the provided STL file
  • Allow the print to cool and remove any excess filament
  • Use Snips to carefully remove the tab from the ornament ball
  • Place as many dice as you need on the center of the 3D printed base
  • Apply a bit of glue in the two glue slots
  • Place the transparent half ball into the slot. Twist back and forth a bit to spread the glue   around the circle.





We encourage you to share your makes and remixes of the Dice Box to inspire others, improve the design, and showcase customizations!





For further documentation and to explore other open source assistive tech solutions you can visit tomglobal.org
