Nozzle fan with snapfit for 50mm blower fan
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- GNU General Public License v2.0

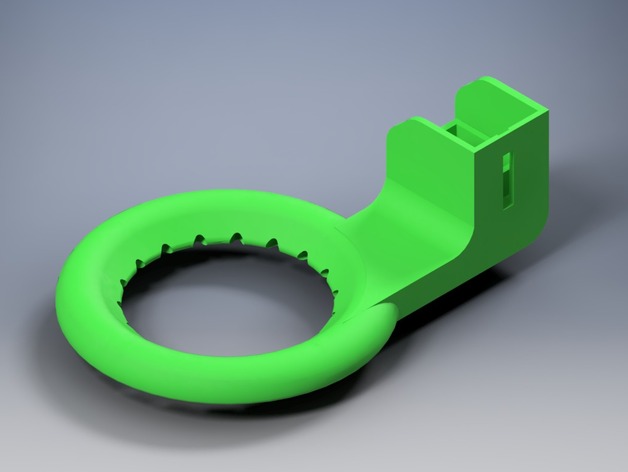

In 2016 I've redrawn plasticWrap's nozzle fan design (http://www.thingiverse.com/thing:1106824) in Autodesk Inventor Pro 2016. Good to learn a bit about Inventor. I also tried as much as I can to make it parametric. This way it was easy to adapt and tweak the design for my own printer.
The 2 most important changes are:

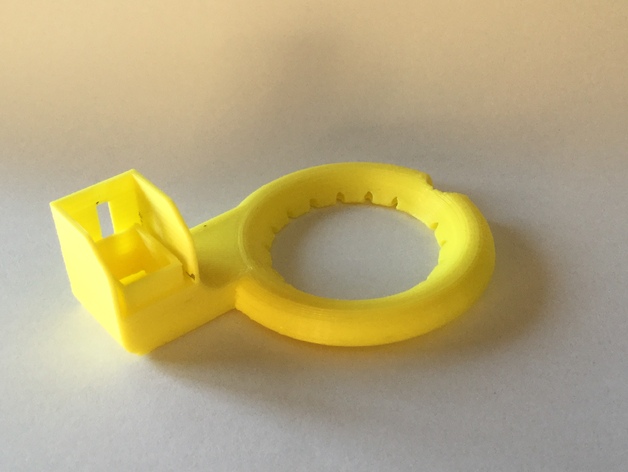

* The round cutout on the outside. It is there because the design collided with my bed leveling sensor.

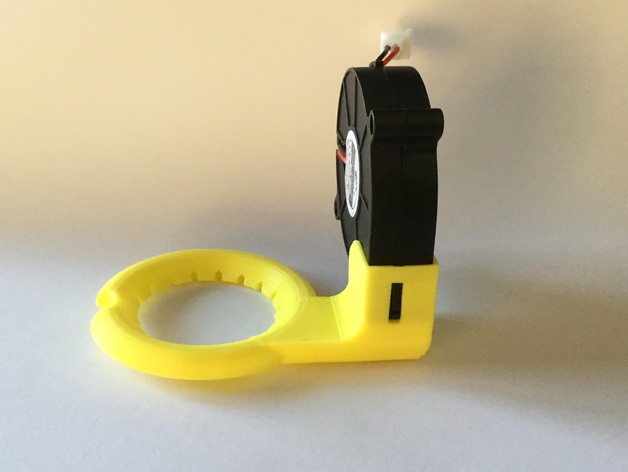

* I included the fan snap-fit idea I got from 3driven (http://www.thingiverse.com/thing:1131110).

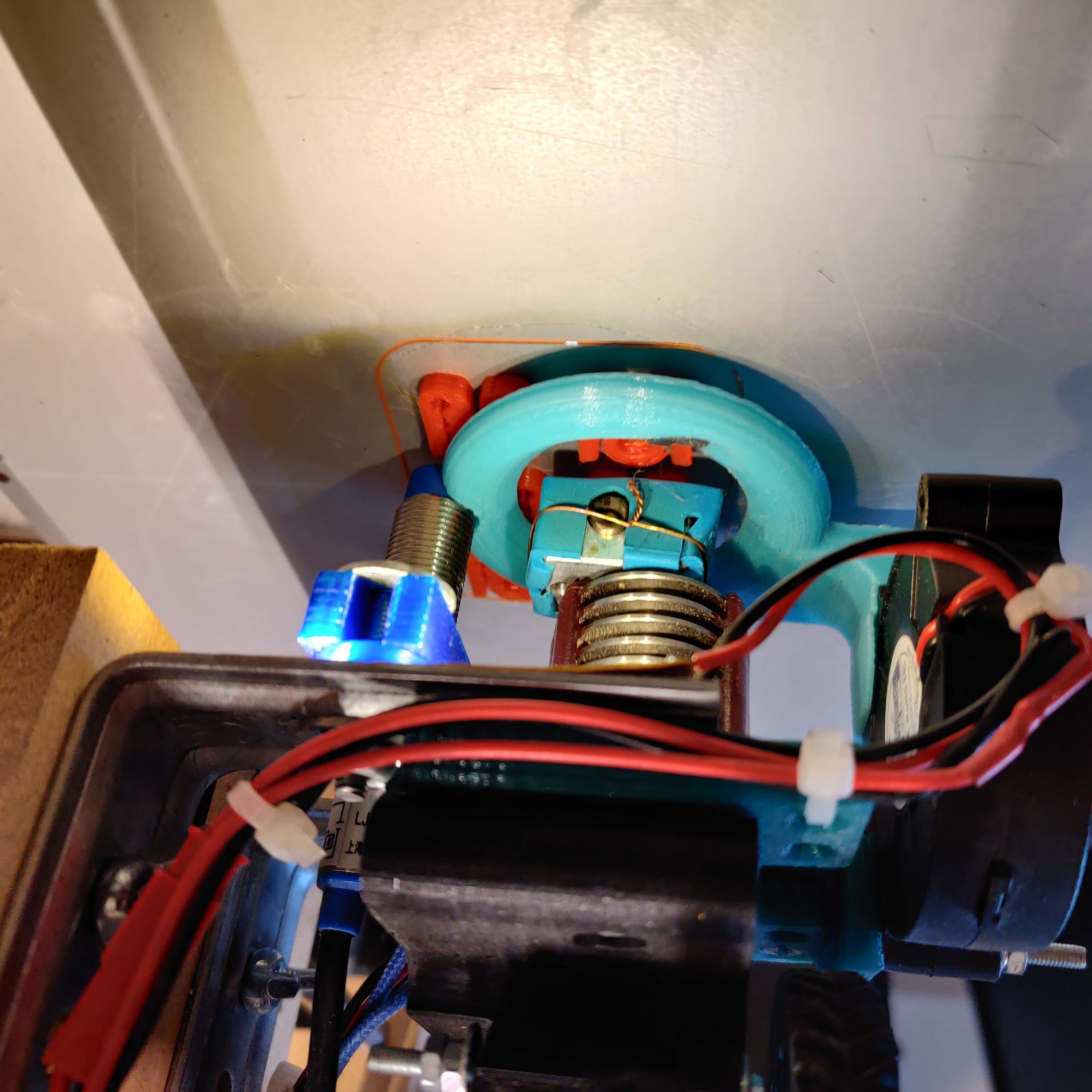

In 2021 this one is still going strong on my printer.
