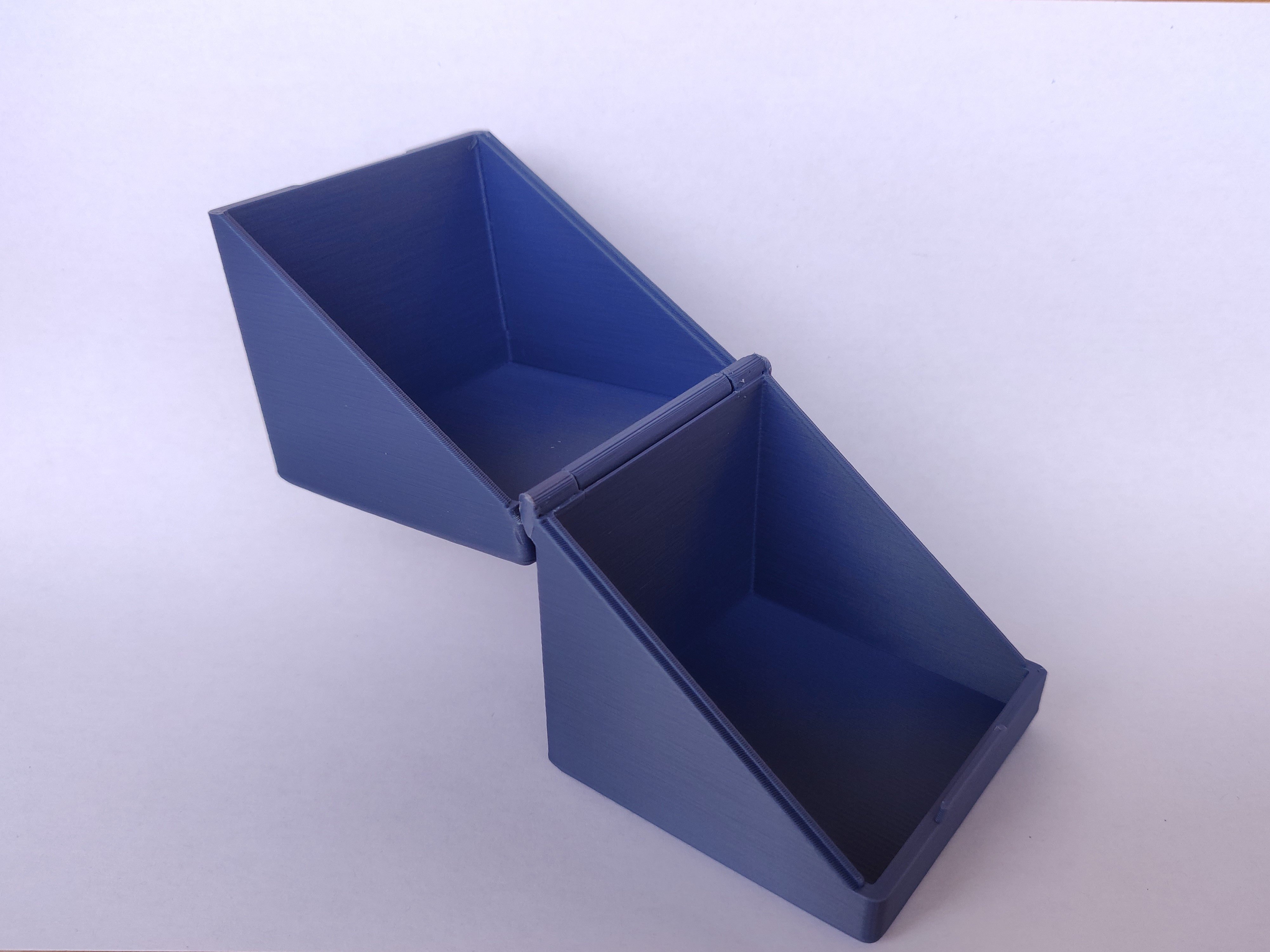

Speedcube Case - Rubiks Cube Case
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Puzzles & Brain-teasers
- Licencja
- Creative Commons — Public Domain
Before you print the Speedcube Case, check if the cube will fit by printing the Test Print first.
Features
- No special hardware needed.
- Available for 0.4mm & 0.6mm nozzle.
Recommended Print Settings
- Nozzle size: 0.4mm or 0.6mm
- Layer Height: ≤ 0.2mm
Variants
| Filename | Nozzle size | Wall thickness |
| SpeedcubeCase_Nozzle0.4mm_CubeSizeXX.Xmm | 0.4mm | 1.6mm |
| SpeedcubeCase_Nozzle0.4mm_CubeSizeXX.Xmm _thickWall | 0.4mm | 2.4mm |
| SpeedcubeCase_Nozzle0.6mm_CubeSizeXX.Xmm | 0.6mm | 2.4mm |
Assembly
Put the two printed parts together.
Slide a piece of 1.75mm filament through the hinges.
Cut the fiament.
Heat up a flat metallic object.
Press the hot metal against the protruding filament.
Additional

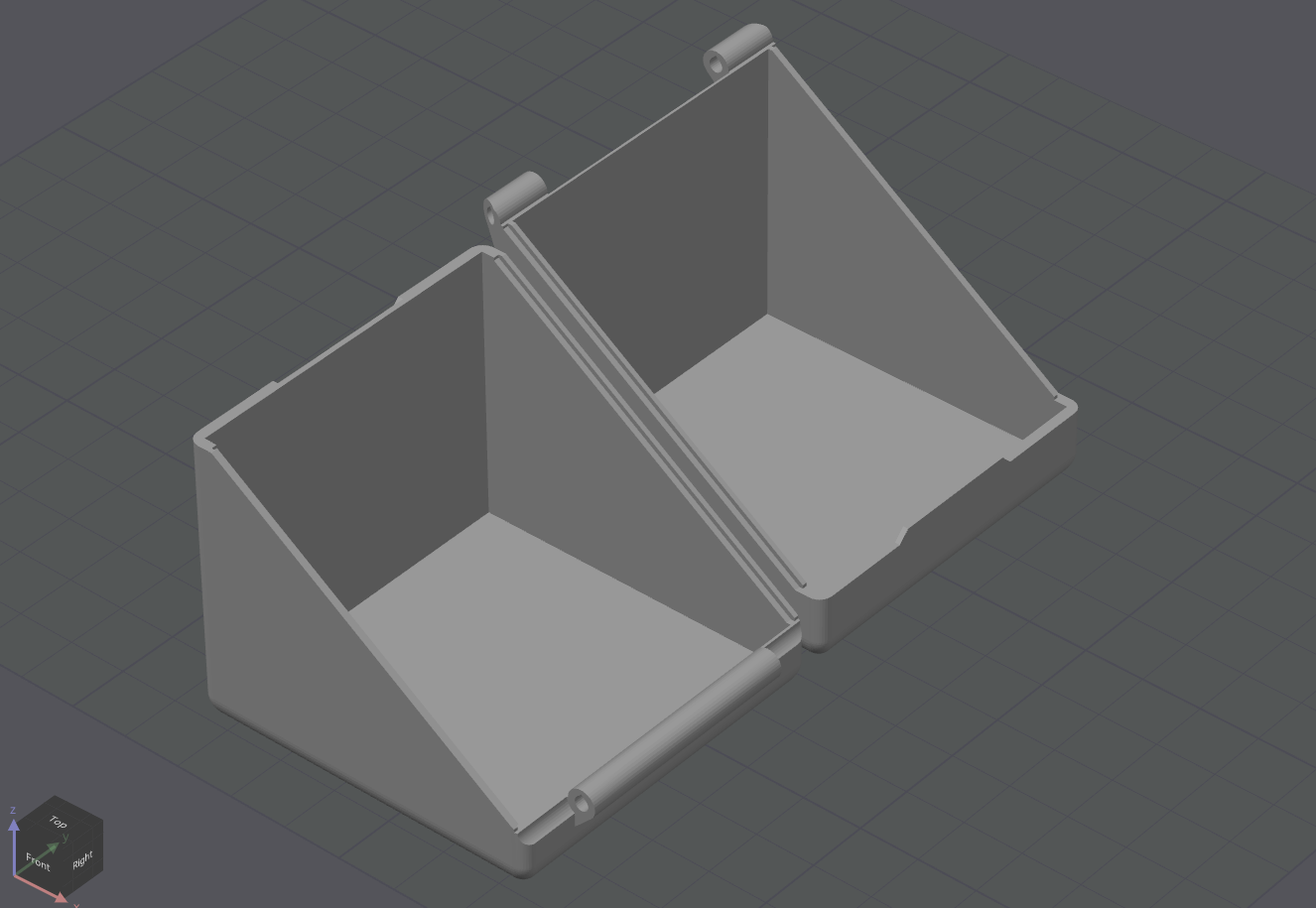

I provided the Fusion 360 file so you can adapt the model however you like.
If you have any feedback, please don't hesitate to contact me.
