Moccamaster Switch Cover Replacement
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Kitchen
- Licencja
- Creative Commons — Attribution — Share Alike

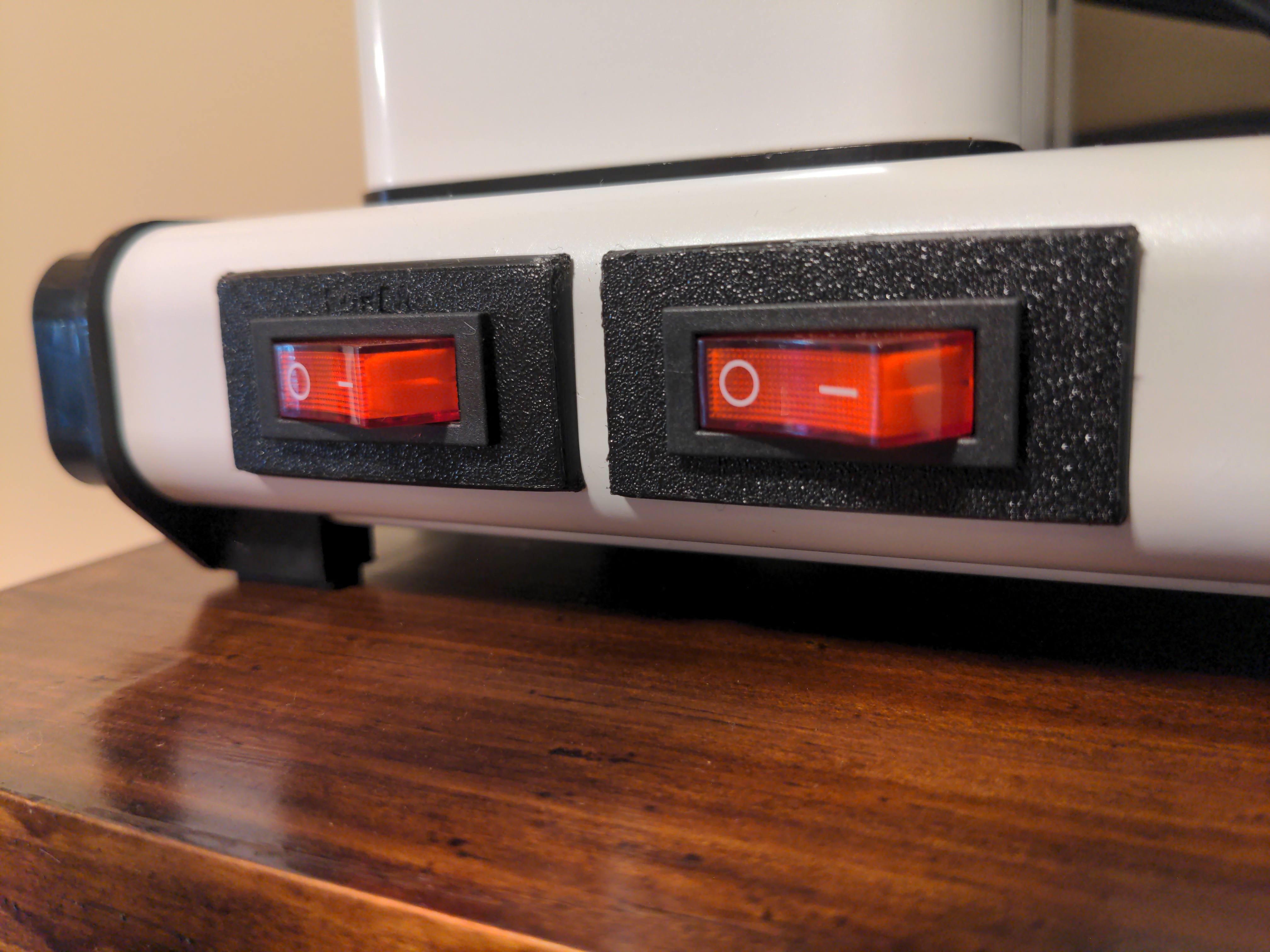

Replacement switch cover for the Technivorm Moccamaster to fit off-the-shelf switches.
Technivorm wanted $60 plus shipping ($85) to fix at their center instead of sending me replacement switches so I made my own fix.
This model should replace both the power and heating plate switch covers and fits mount size M29 x 10.5mm / 1.14in x 0.4in (L*W*) 3 pin 125V/10A switch
SPST Switch (Power)
https://www.amazon.com/gp/product/B07QQ21CZD/
SPDT Switch (Plate)
https://www.amazon.com/gp/product/B07QNY7L6G/
NOTES
- Any attempted repairs are at your own risk. This post is for informational purposes only. No warranty real or implied.
- By replacing the stock switch with a common switch you are also removing the auto-off feature since the switch is always on or always off.
I opted to used a SPST switch for the heating plate as well by splicing it on the hot wire. This way I can turn off the plate all together so the coffee doesn't get acrid.
