Customizable Schedule Board
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Organizers
- Licencja
- Creative Commons — Attribution
I remember when i was a kid, there was a point where my parents want to know my study schedule from school, and they place the note in the fridge so that we will always remember what books to bring, so, that is why there's no time indicator, because it's basically only to know the list of subjects for the day
The list of subjects here is based on Indonesian school, but I can easily add more, and there's also some from western school subject. please let me know if you want to add more
- English
- Mathematics
- Science
- History
- Geography
- Art
- Music
- Physical Education
- Foreign Language
- Religion
- National Education
- Chemistry
- Physics
- Biology
- Art and Culture
- Art and Craft
- Informatics
- Economy
- Sociology
- Psychology
- Computer Science
I design this model with no support and ease of printing in mind, even though there's a bringing, it should not require any support, as the dovetail joint also have vertical clearance for saggy print. the reason i build this way is to cover the joinery when not in use and it is expandable for how many you need.
Font that i use is ROBOTO MEDIUM, good thickness and readability. somehow, if i use other font, it can make a problem during modeling, so i return to the basics

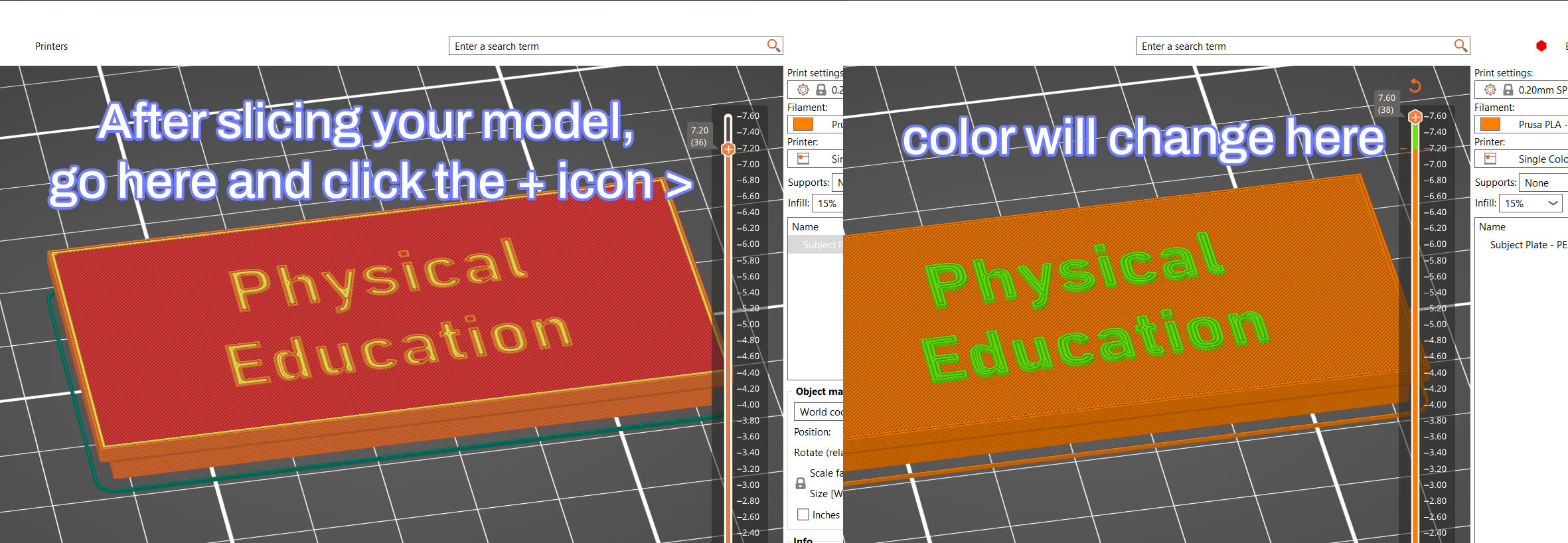

Multicolor print is not required, but you need to set up color change command in the slicer, here is the height spec of the model.
- Base Height: 5 mm
- Board Height: 2mm
- Text Height: 0.6mm (3-layer height @ 0.2mm)

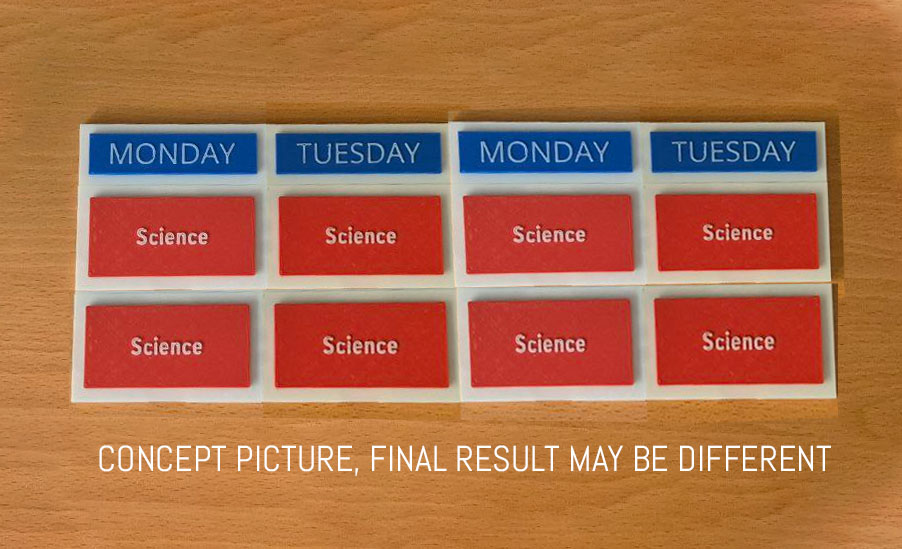

*Please excuse my lack of picture, because i currently don't have time to print all the model, but i make a visual representative or proof of concept so that you can visualize the final results
the final model may be different that the picture shown above but the basic concept remains the same
