I noticed some of my ARC students struggling with placing and drilling Altimeter holes in their rockets. This guide or jig lets them drill holes quickly, evenly, and precisely with a drill and drill bit. Can be printed with any filament…

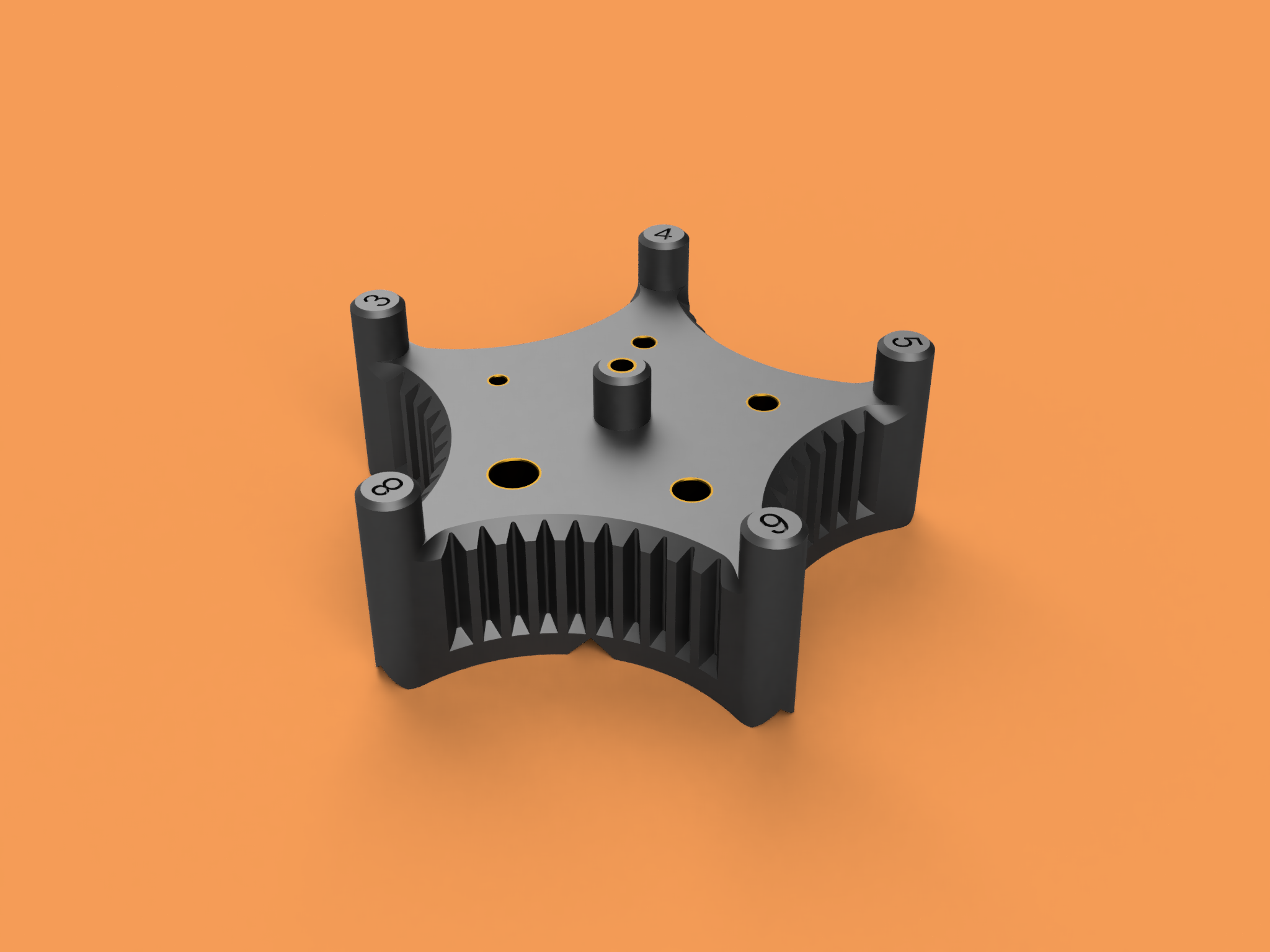

Selfcentering drillguide for different bores 3-8mm. Can be centered on edges by aligning the middle pole and the pole on the corresponding bore on opposite sides of the plate. Can also be used for perpendicular holes on any surface and in…
A drilling-jig for the more experienced woodworker for drilling perpendicular/straight holes. It's a 3D-model of the old trick with two square wooden blocks (which, in my case, are never around). You can slightly customize the jig to your…
A simple to use drilling-jig for drilling perpendicular/straight holes. Even for a tool it's ugly, but it works :). You can customize the jig for 5 different drillsizes. The jig has a big (or small) handle to keep it firm and flat. The 5…
A simple to use drilling-jig for drilling perpendicular/straight holes. You can customize the jig so that it "fold" over the edge of a board (see picture). The jig is only usable for 1 drill-diameter. The easiest way to use it: put the…

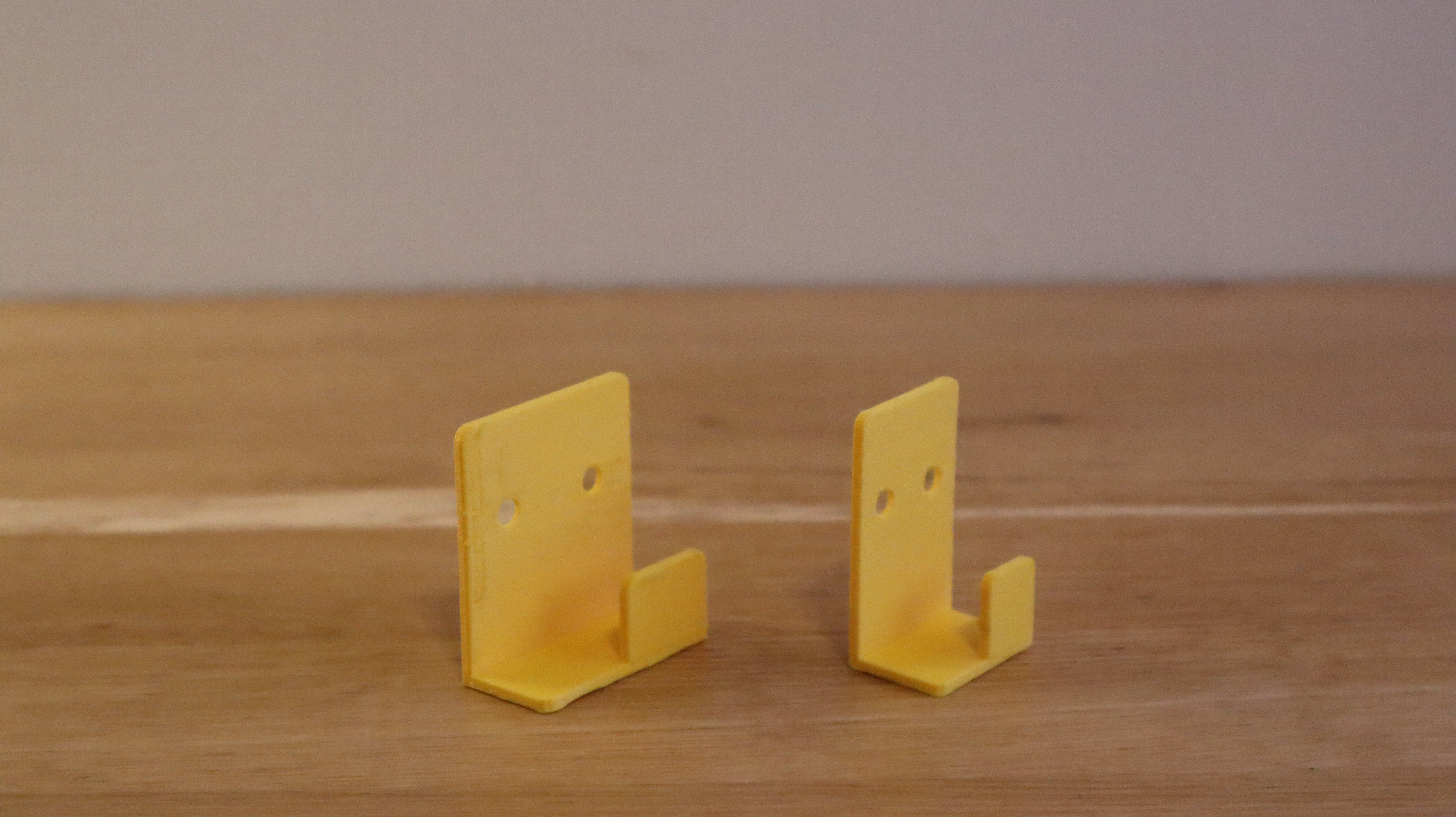

Parametric Drill-guide for panels Design by R_vdk - 7/09/2023 Application / Functions For a personal project, I will be making an open shelf out of MDF. As I will make grooves in the vertical panels, I wanted a guide which enabled me to…
Use it for holes at the end of a 2020 extrusion to accept a 4mm allen key to tighten a ISO 7380 screw, which holds another 2020 extrusion perpendicular right to the end for a nice corner. PETG used, slicer settings are: 50% infill, 4…

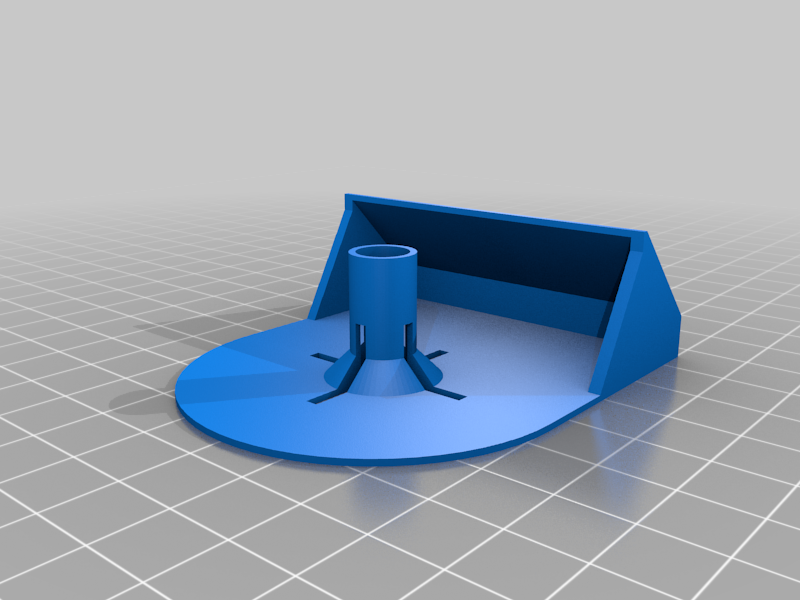

A simple wall drillguide, for straight drilling and catching the dust. Best to print in white. No supports needed. Print Settings Rafts: No Supports: No Resolution: 0,4 Infill: 20% Category: Machine Tools
