Voxelabs aquila x2 BTT SFS V2 Mount

There are two models in the download, one with cutout and one without. This cutout is made for the clearance of the nut for the Z-axis pom wheel.

I have made this for the EZR Extruder, for straight filament paths.

Print it on the side with brims for the best strength.

There is no issue for both of them

Only do this when you have a PROBE and klipper installed, I am reusing the Z-limit port.

Instructions on how to install the SFS BTT in Aquila X2:

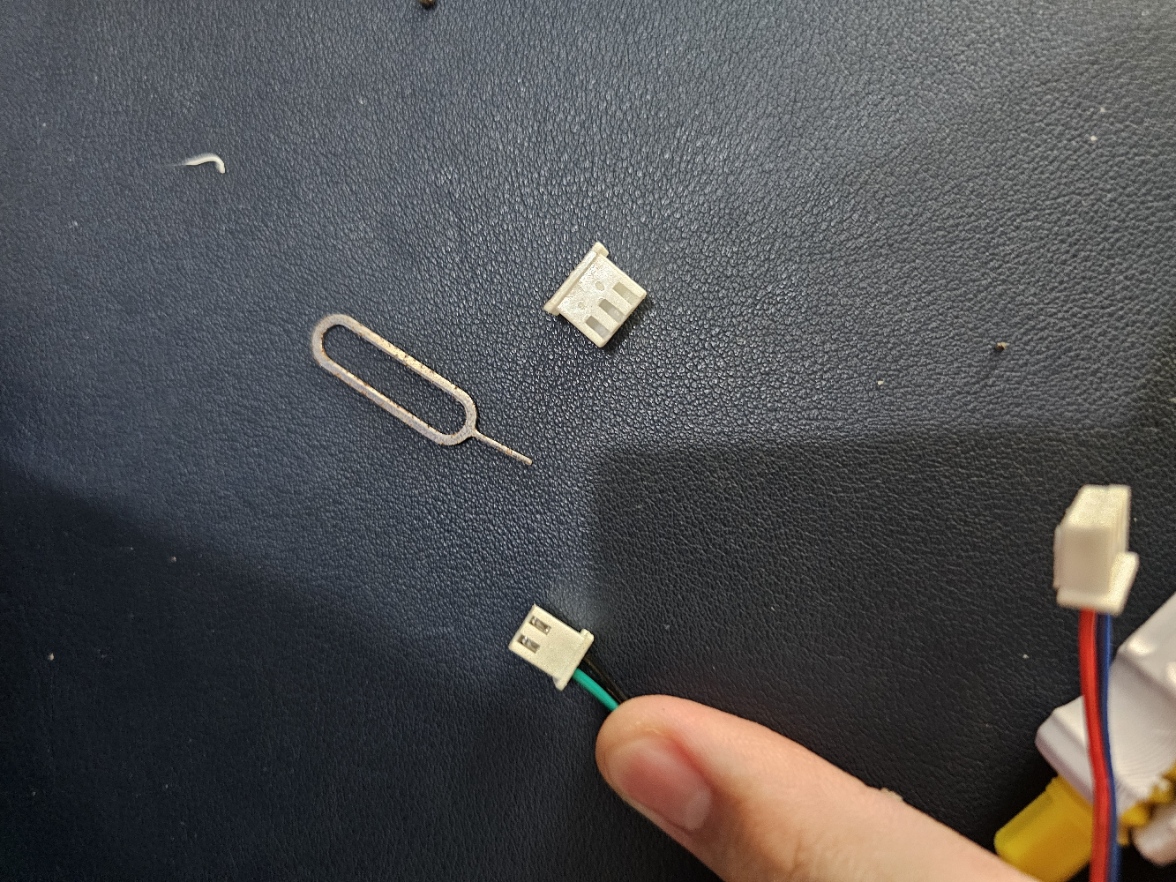

1. Depin the wire accordingly to picture 5
2. Make sure that the colouring of the wire is in the correct in the z-limit switch, wrong usage may cause the sfs to be broken.( BEWARE) not my resposibility, i am here to enlighten those who is trying to install this.

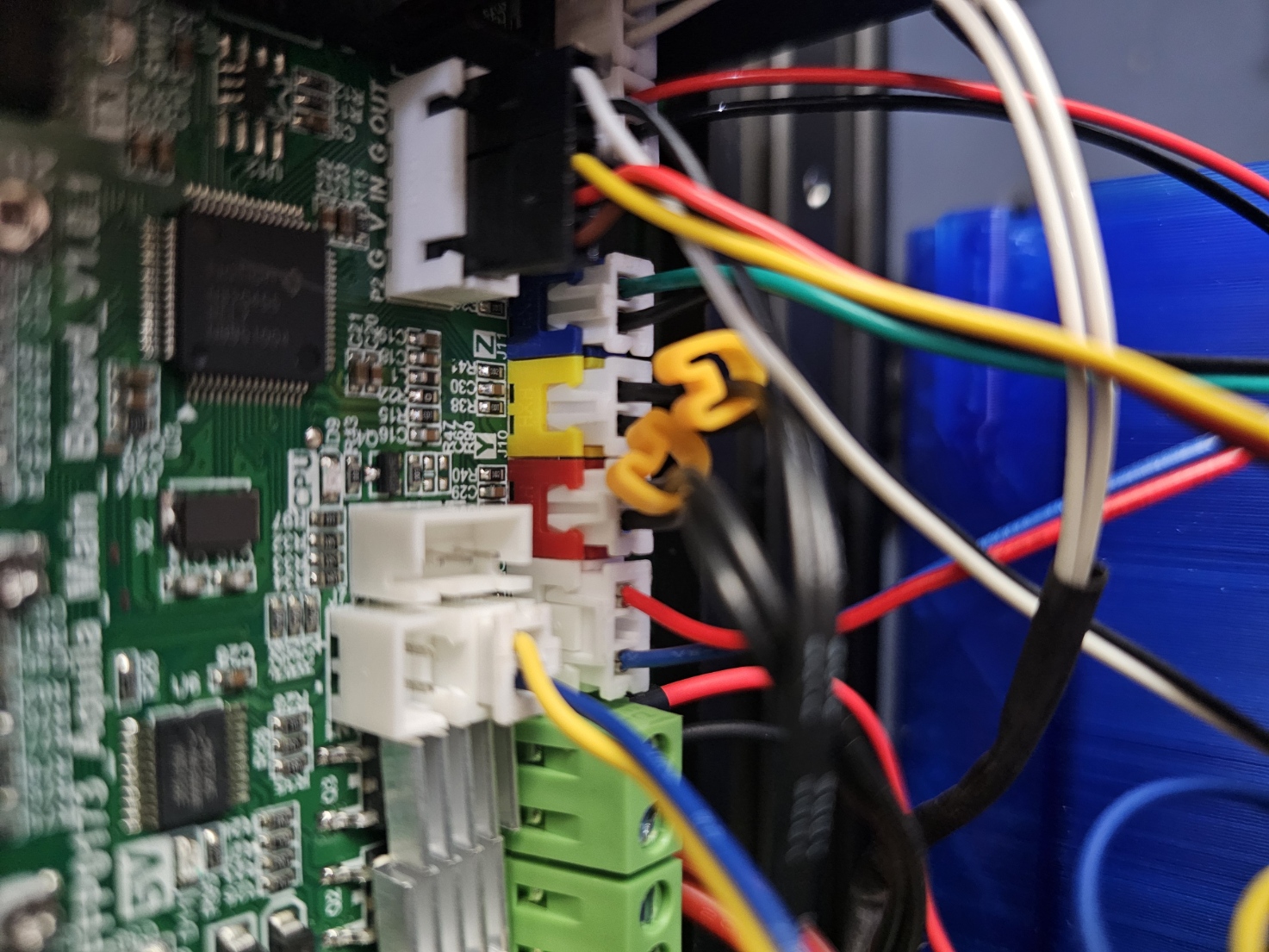

3. Insert the Pins like so in the picture 6, i have outlined in yellow
4.  Go to the sfs 2.0 github to double check the codes mine are at the bottom
5.  Use query_filament_sensor sensor=switch_sensor to check if the sensor is working properly, use it for the sensor=encoder_sensor as well

[filament_switch_sensor switch_sensor]
switch_pin: ^PA4
pause_on_runout: True
runout_gcode:
  # PAUSE # [pause_resume] is required in printer.cfg
  M117 Filament switch runout
insert_gcode:
  M117 Filament switch inserted
event_delay: 5.0
pause_delay: 0.5
[filament_motion_sensor encoder_sensor]
switch_pin: ^PA7
detection_length: 2.88
extruder: extruder
pause_on_runout: True
runout_gcode:
  PAUSE # [pause_resume] is required in printer.cfg
  M117 Filament encoder runout
insert_gcode:
  M117 Filament encoder inserted
event_delay: 5.0
pause_delay: 0.5
