Electronics Parts Sorting Trays for Assembling Projects
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Organizers
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

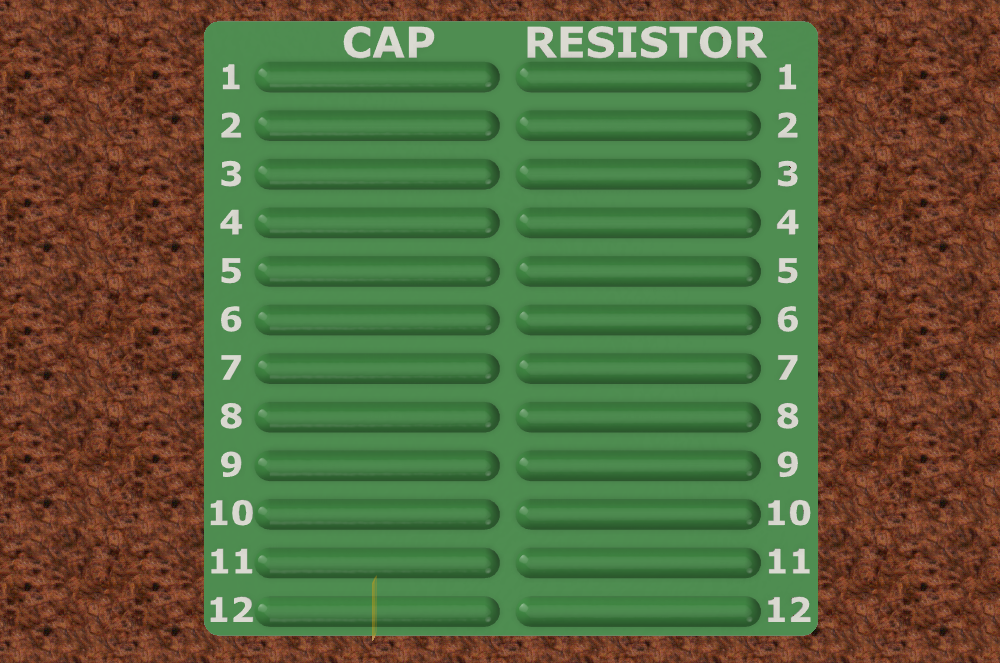

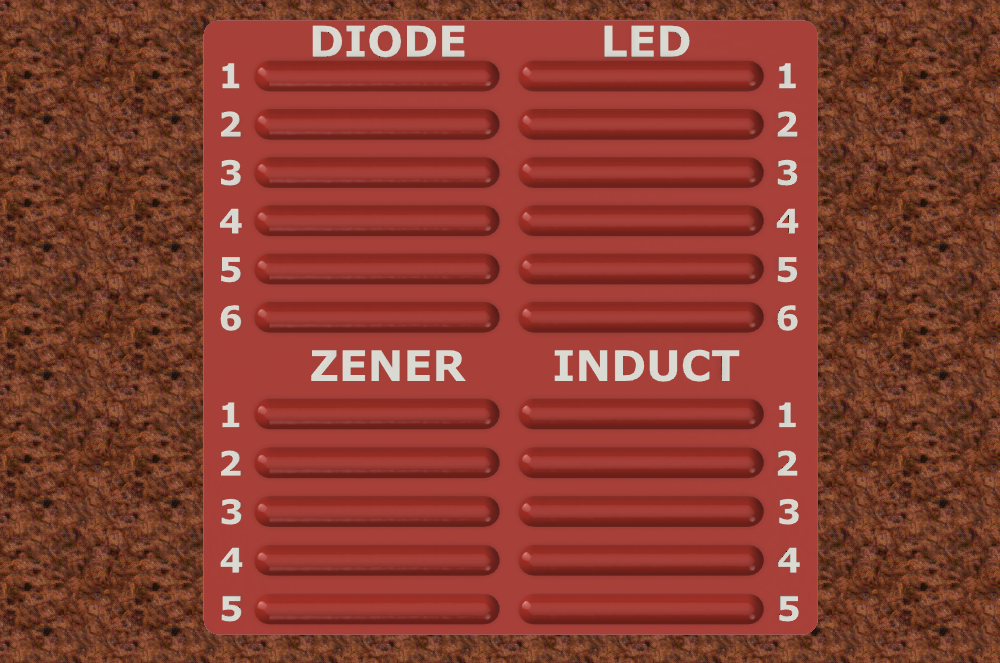

Intended for the hobby electronics builder, these trays organize the parts used in most electronics projects so that when soldering, you can just grab the part and solder it rather than searching through a pile of parts.

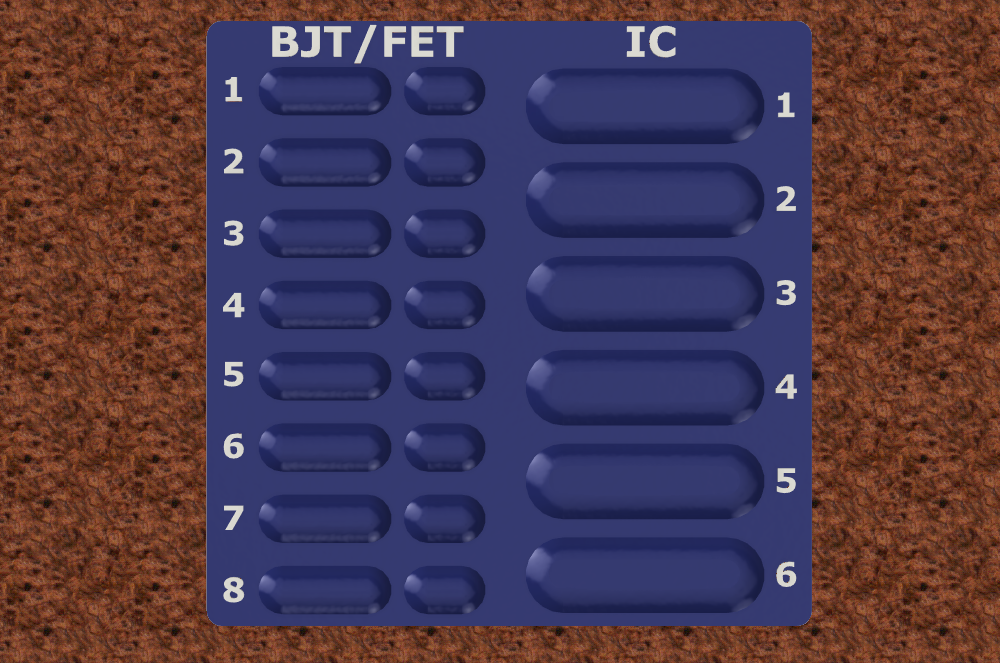

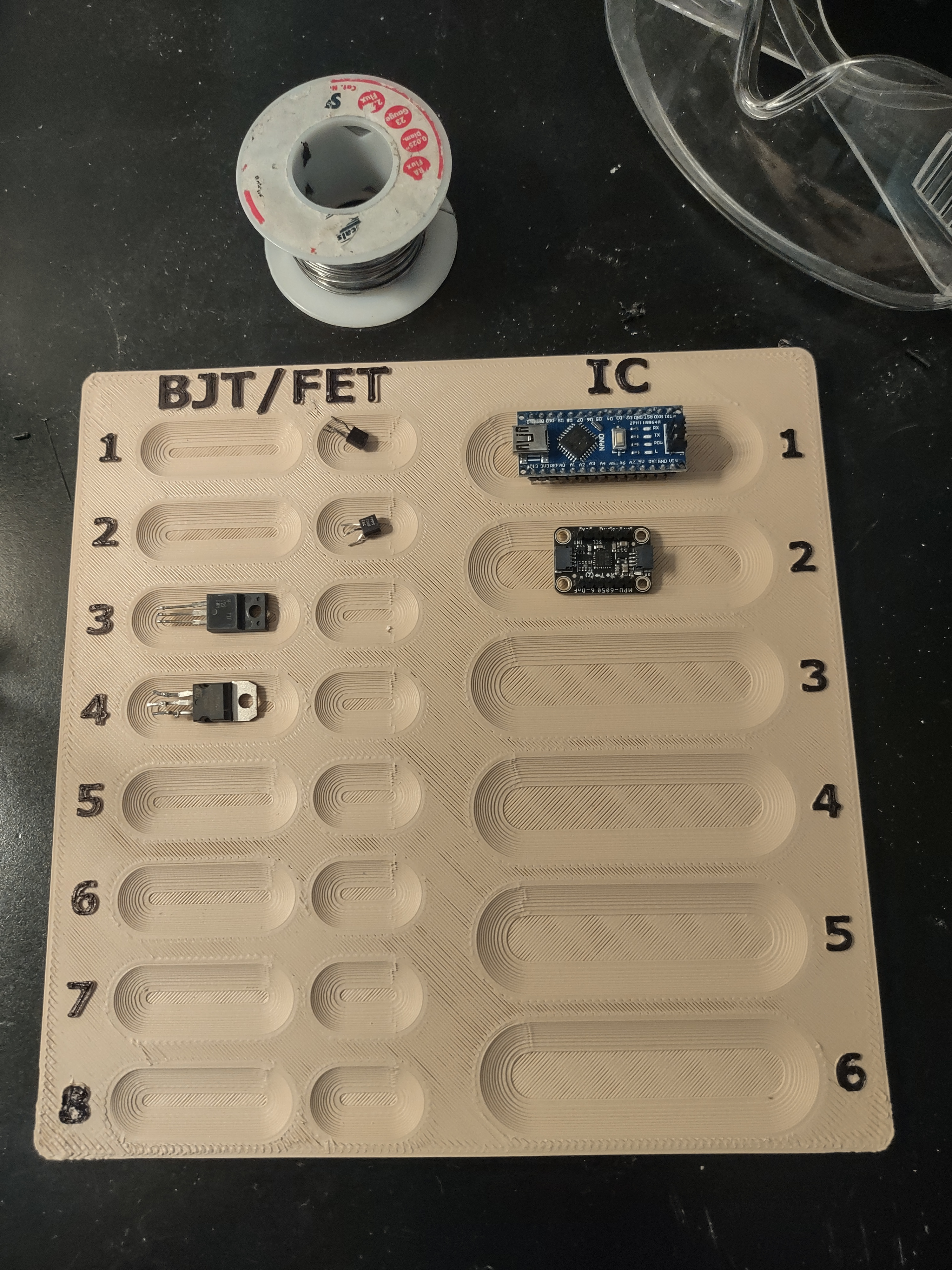

Each slot type is designed to hold parts within the typical size often used by electronics hobbyist such as a TO-220 MOSFET, TO-92 transistors, or IC modules such as Arduino and BASIC modules. I created the slots based on parts in my electronics parts bins.
Slicer Settings
- Layer height - 0.28
- Wall line count - 2
- Top layers - 4
- Bottom layers - 3 (less of these reduces print time)
- Infill density - 5%
- Infill pattern - lines
- Support - None
- Build Plate Adhesion Type - None
