Small Winch Stop
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Automotive
- License
- Creative Commons — Attribution

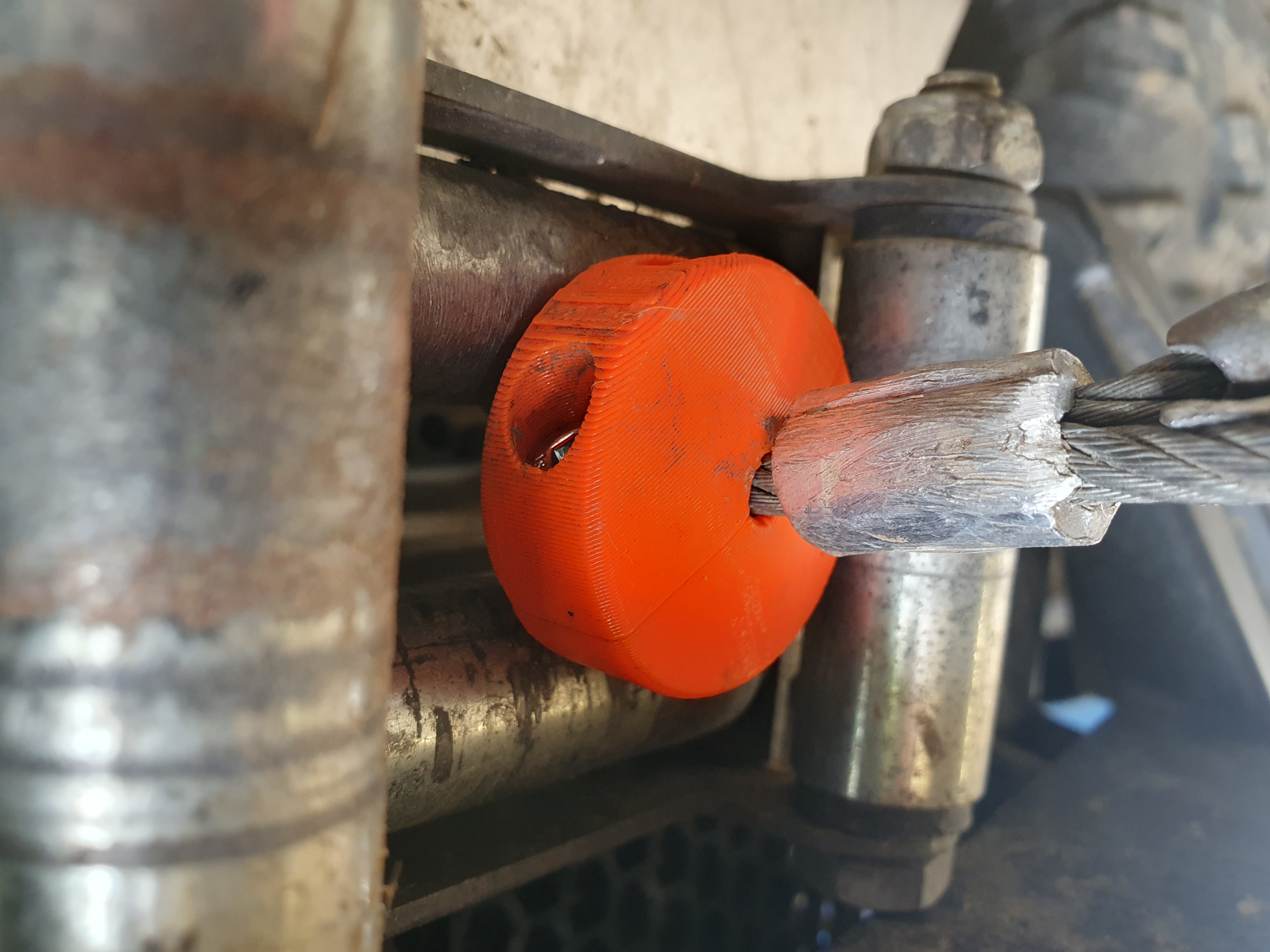

The winch stop serves mainly as a protection against the hook being pulled into the winch, which often causes the winch to jam. Designed for ATVs with wire rope winches.
This remix is a flatter version of the original held together by only two bolts and made for a 5 mm wire rope. The stop has a hole of 6 mm in diameter to leave space for a piece of rubber to prevent the stop from sliding. I cut a small piece of rubber from an old bicycle tube.
Dimensions
- diameter: 40 mm
- depth: 20 mm
- rope hole: 6 mm
Printing
- Print 2 pieces.
- layer height: 0.3 mm
- supports: none
- material: PETG
- infill: at least 50 % for better durability
Assembly
Rotate one piece 180⁰ and assemble using:
- 2 x M5x20 socket head cap screws
- 2 x M5 nuts with nylon lockers
- small piece of rubber around the wire rope to prevent sliding
