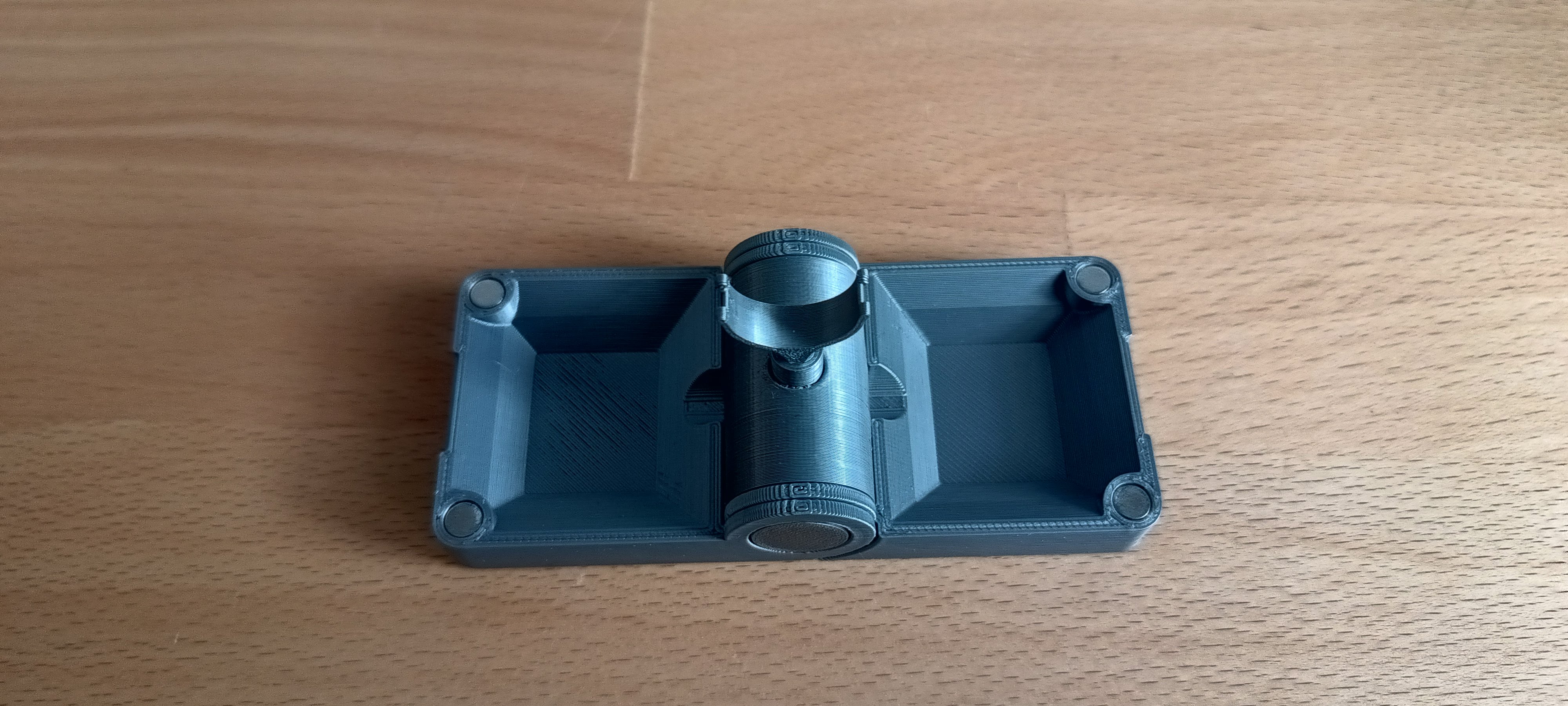

Box for engagement ring with gearbox.

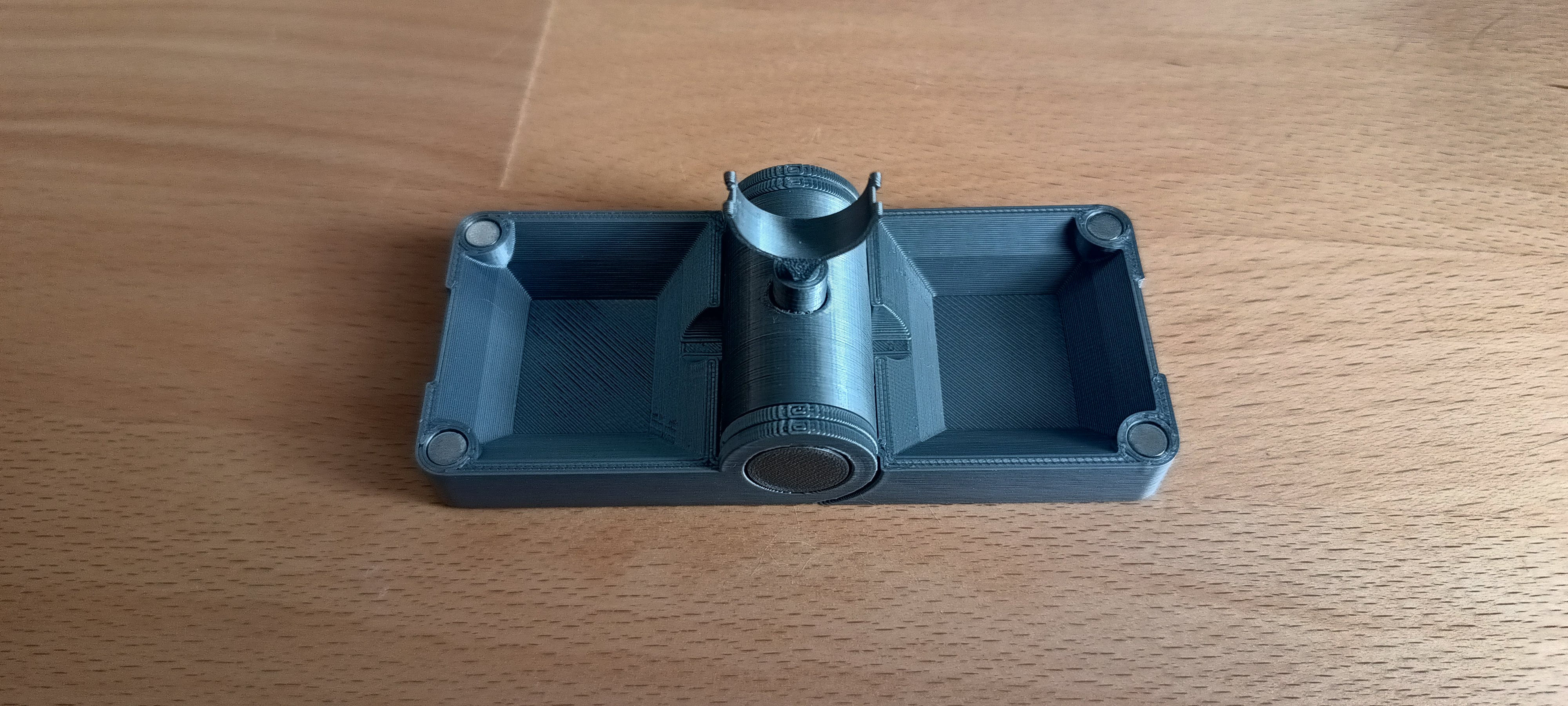

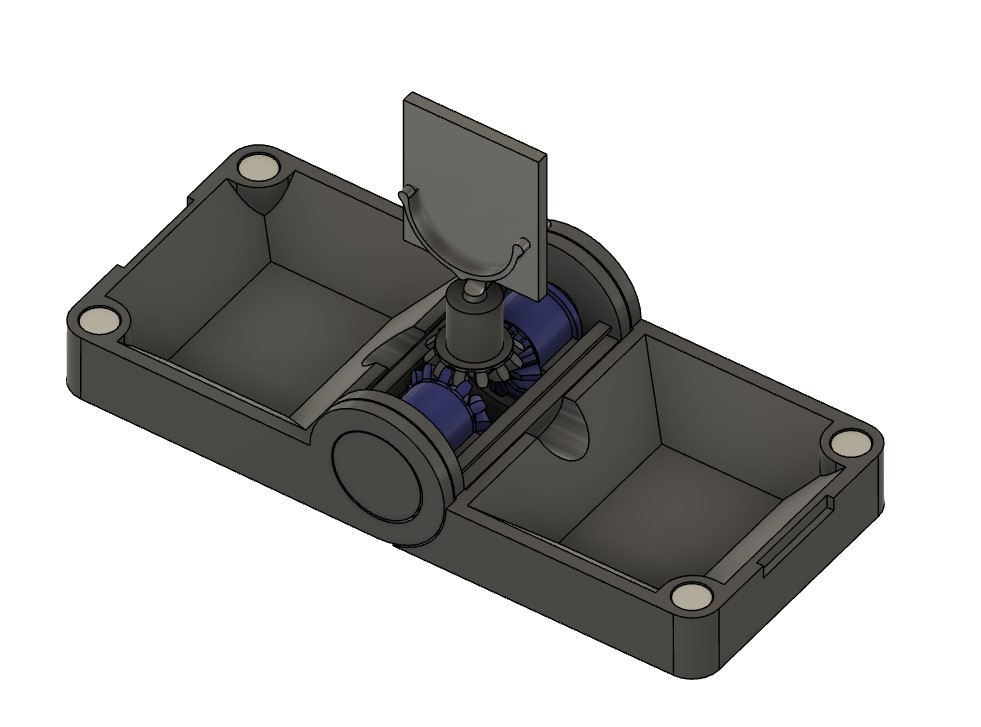

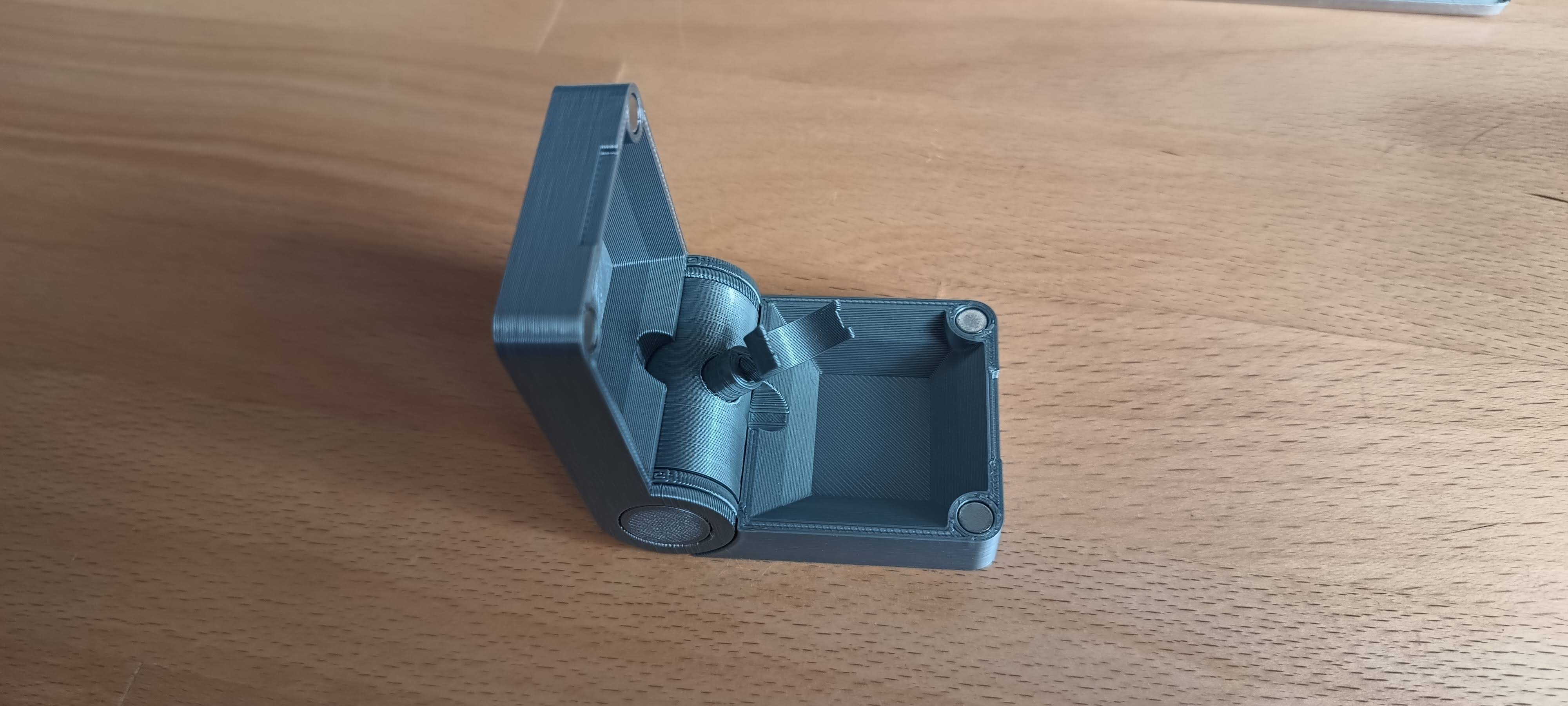

The box has a ring stored inside, which turns 90 degrees after opening the box. Here is video https://youtube.com/shorts/xTxo3VGdrIg
Information:

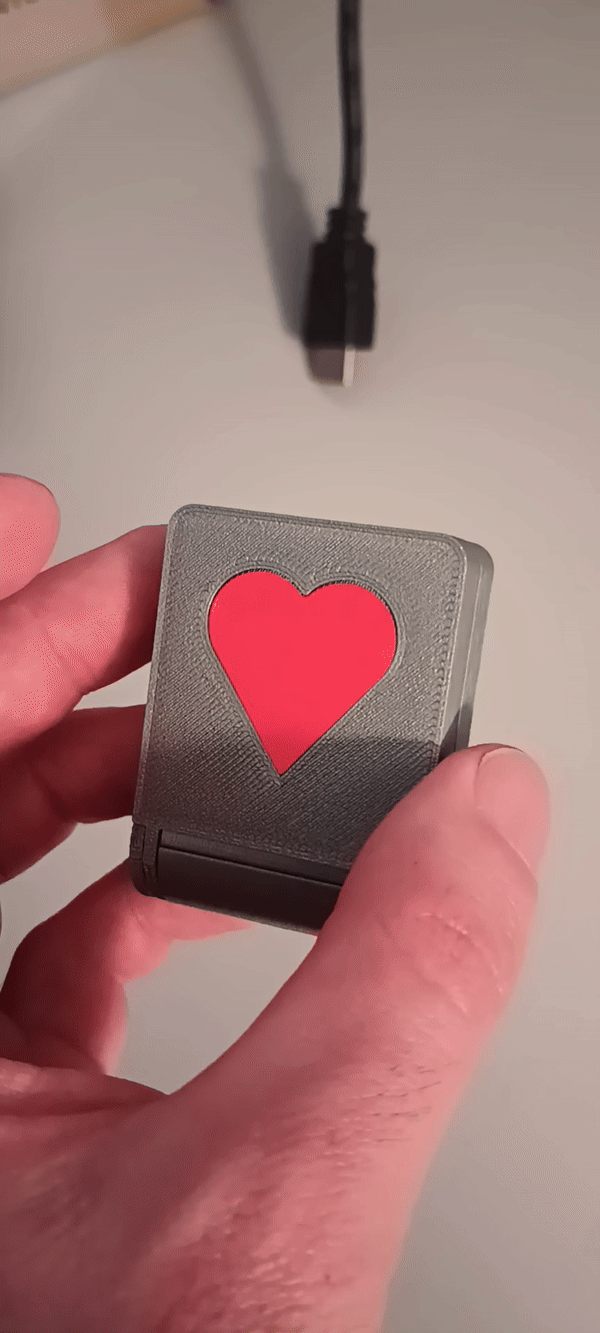

But right cover containe space for heart. But if you don't want to have a heart on the box, you can only use the left model for both cover.

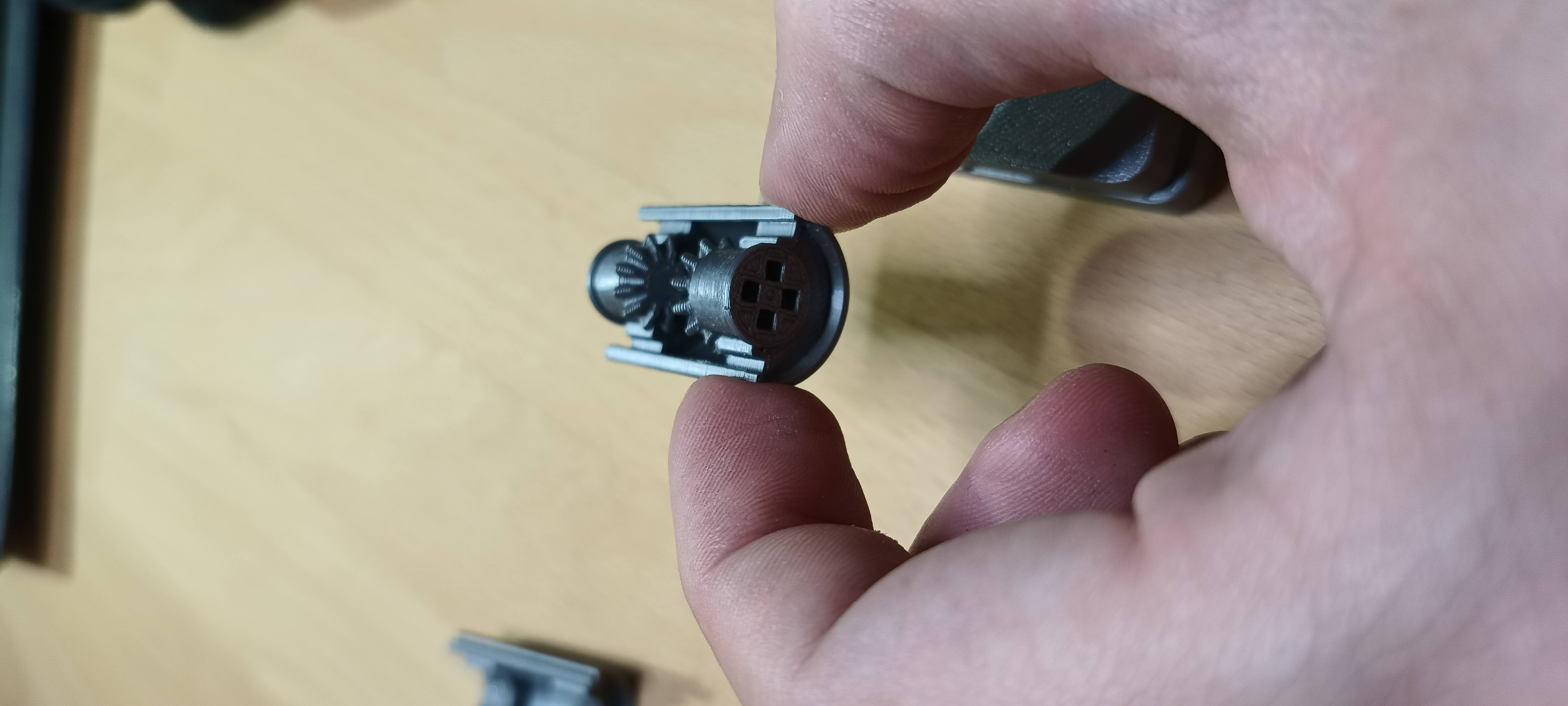

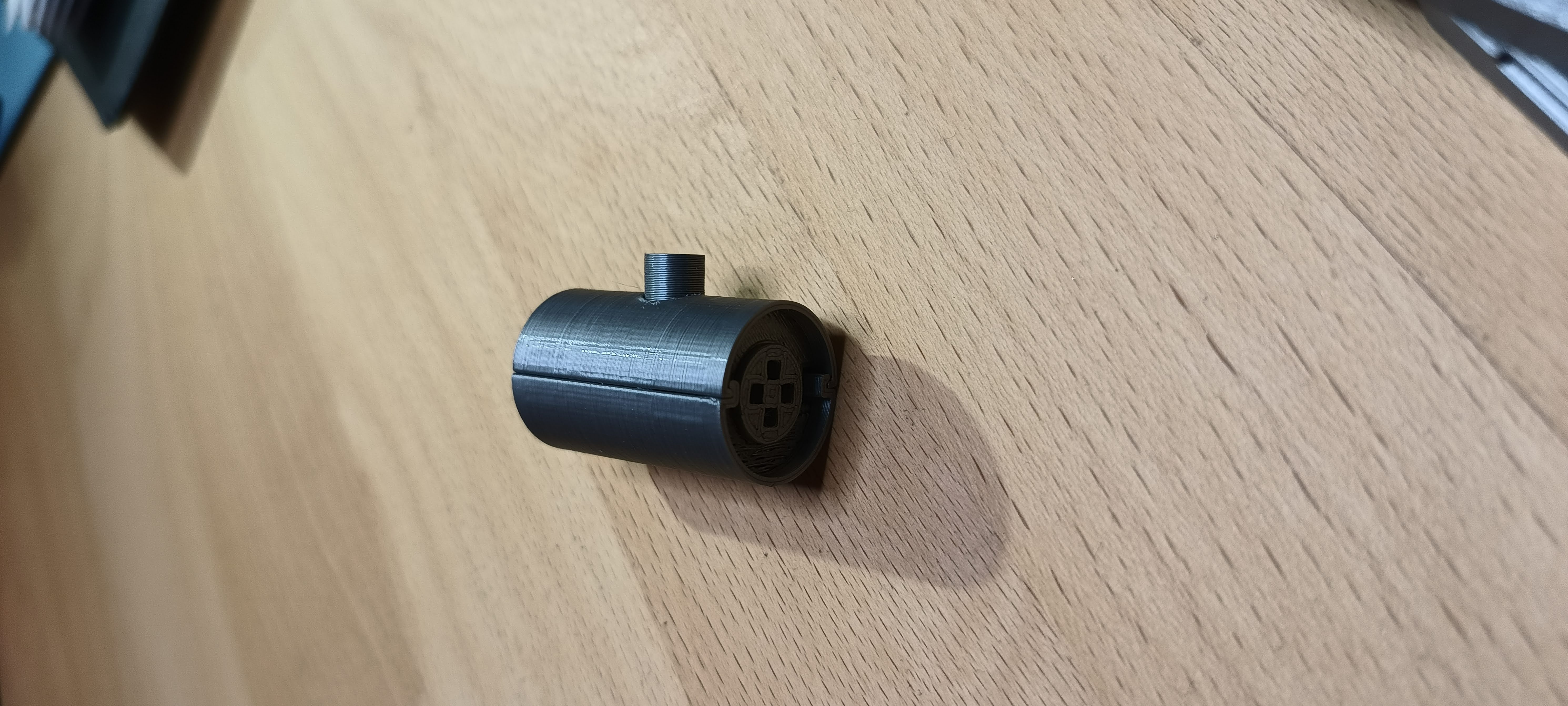

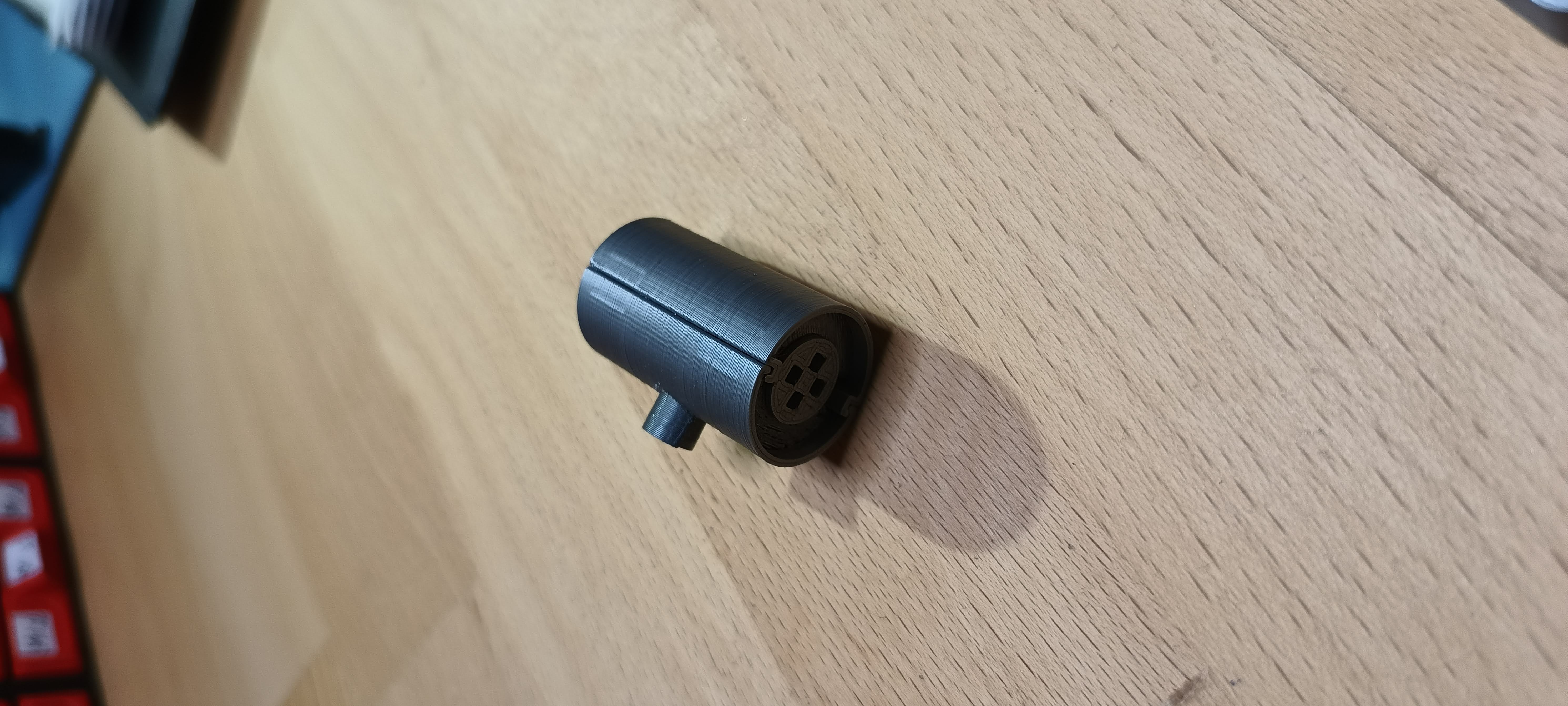

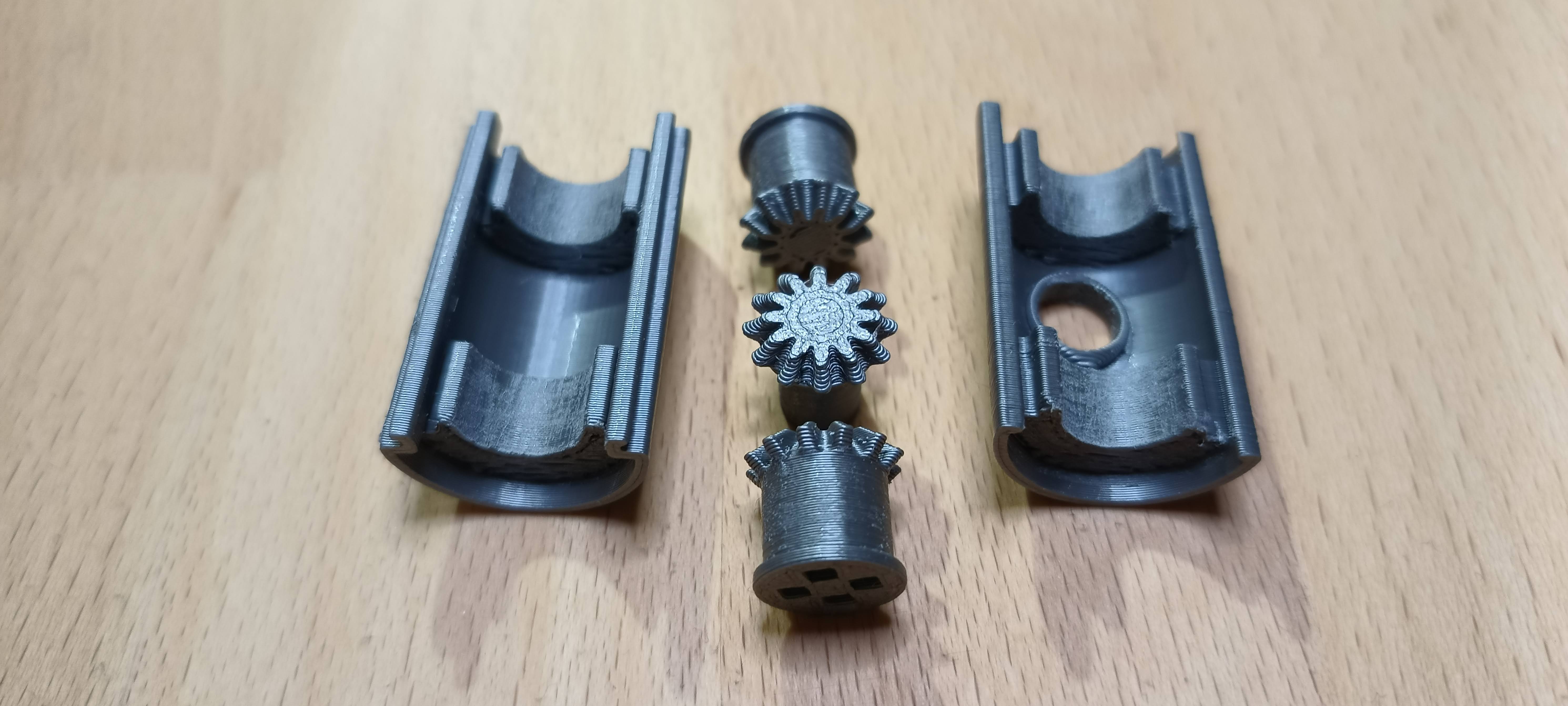

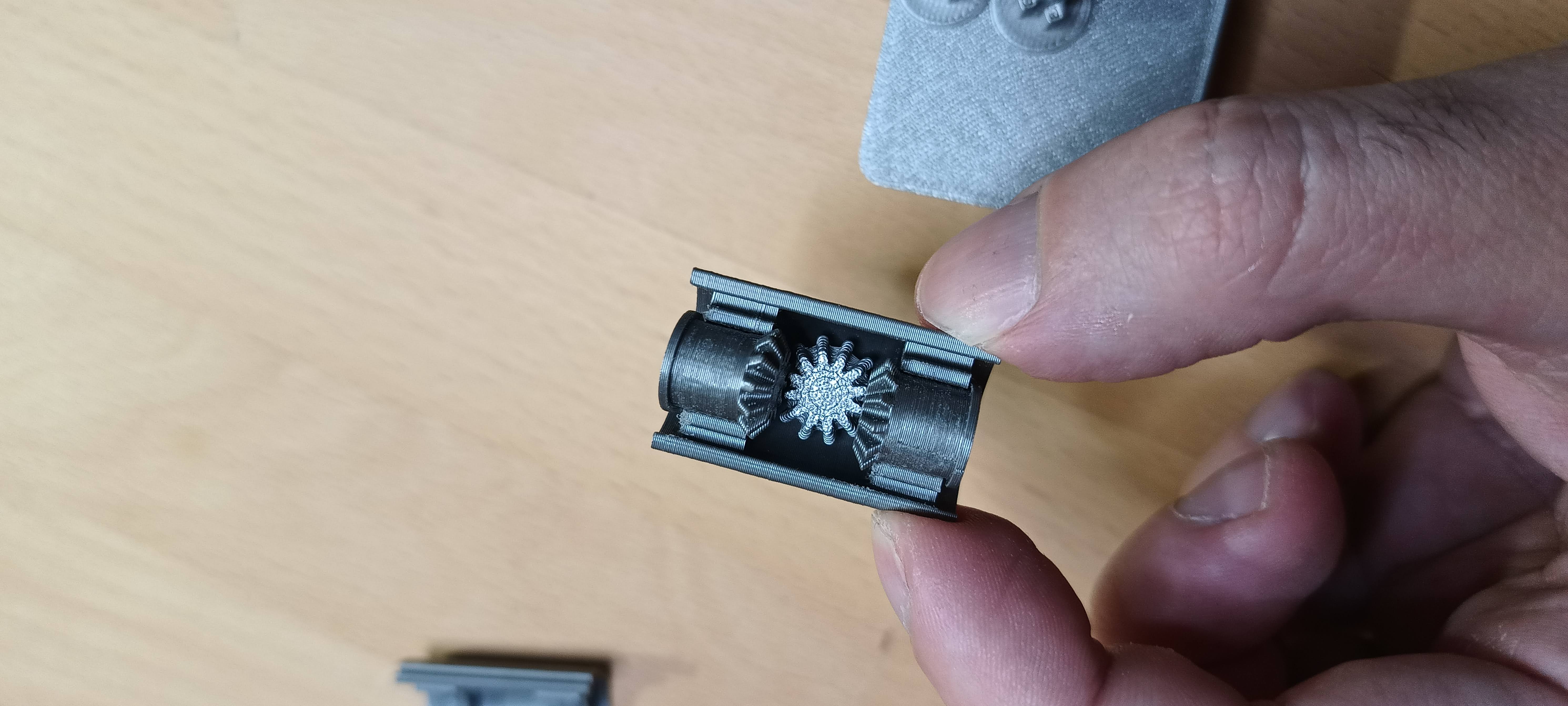

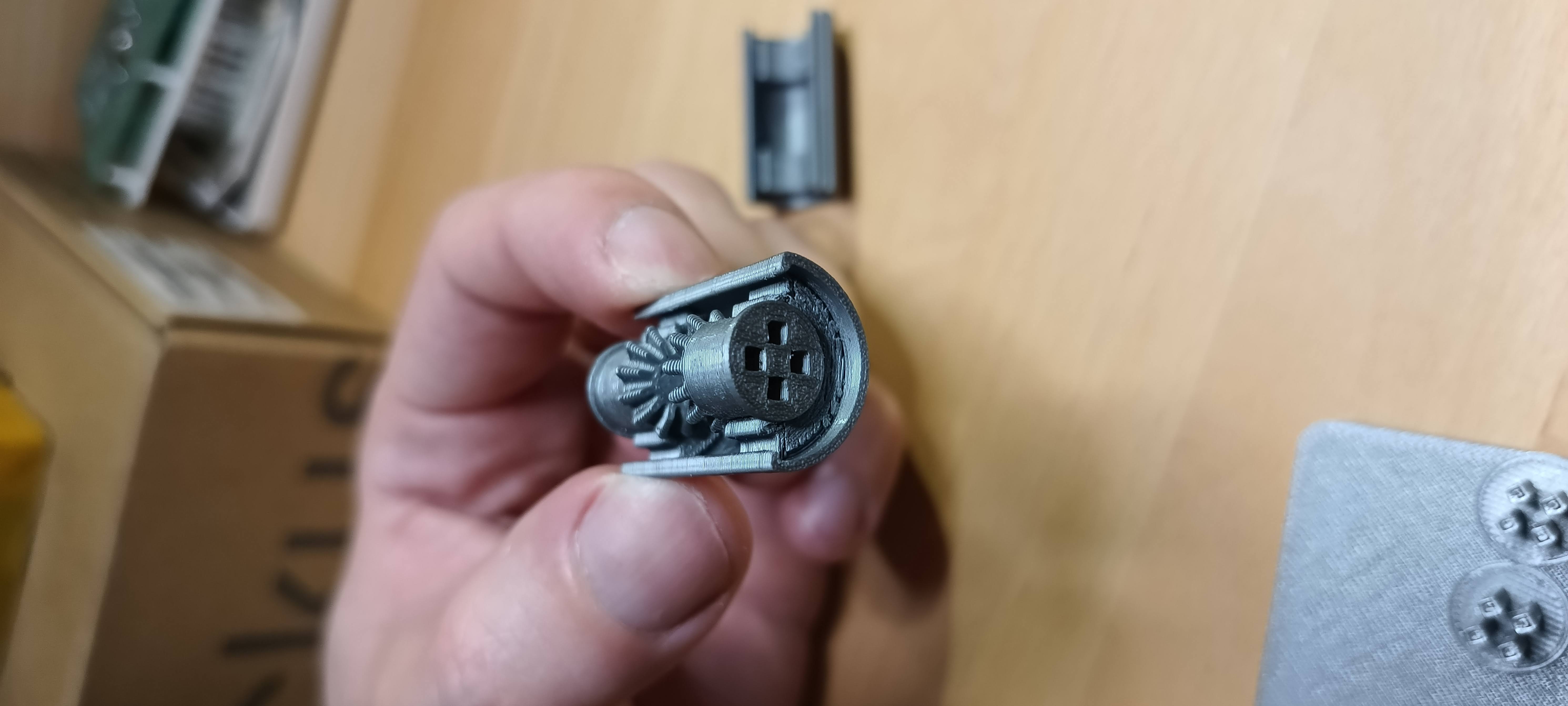

After printing, it is necessary to clean/smooth the plastic gears and the cylinder with a needle file. If the plastic parts are not cleaned with a file, they can get stuck. To make the gears move more easily, we can add some grease to gear_horizontal.

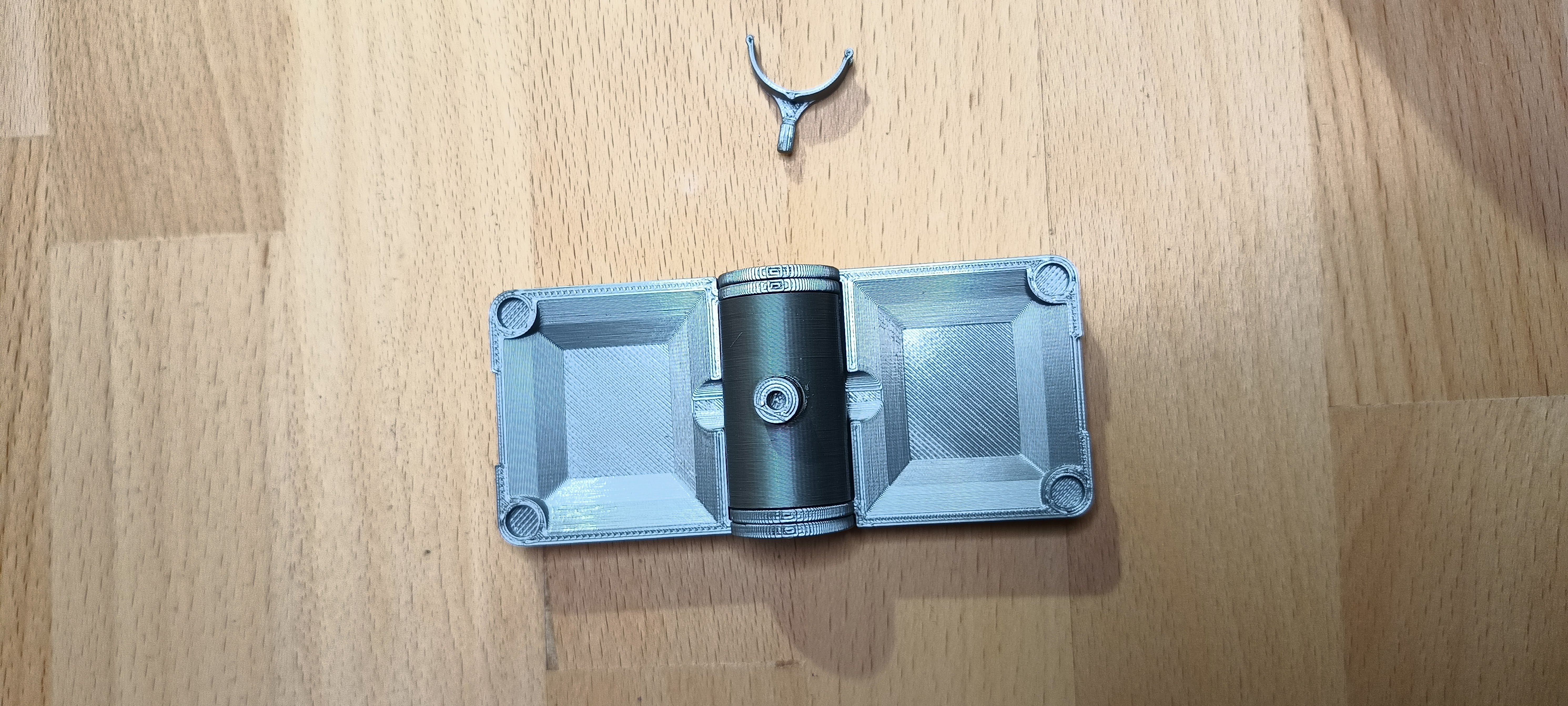

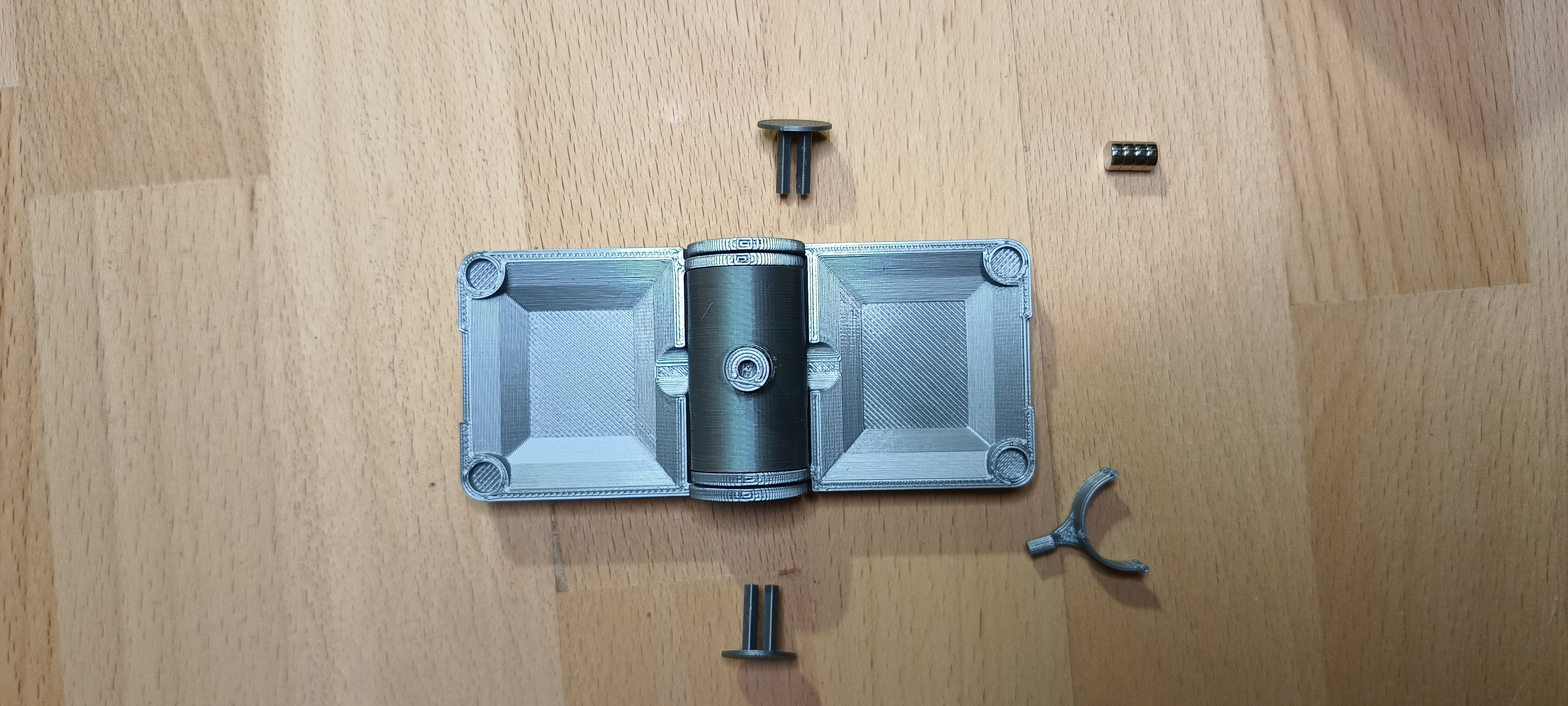

Attached are several models of holders for rings with a diameter of 15, 16, 17, 18, 19 mm
Only magnets and ring holder is they are stuck with glue.
Dimension case: 58x42x20 mm

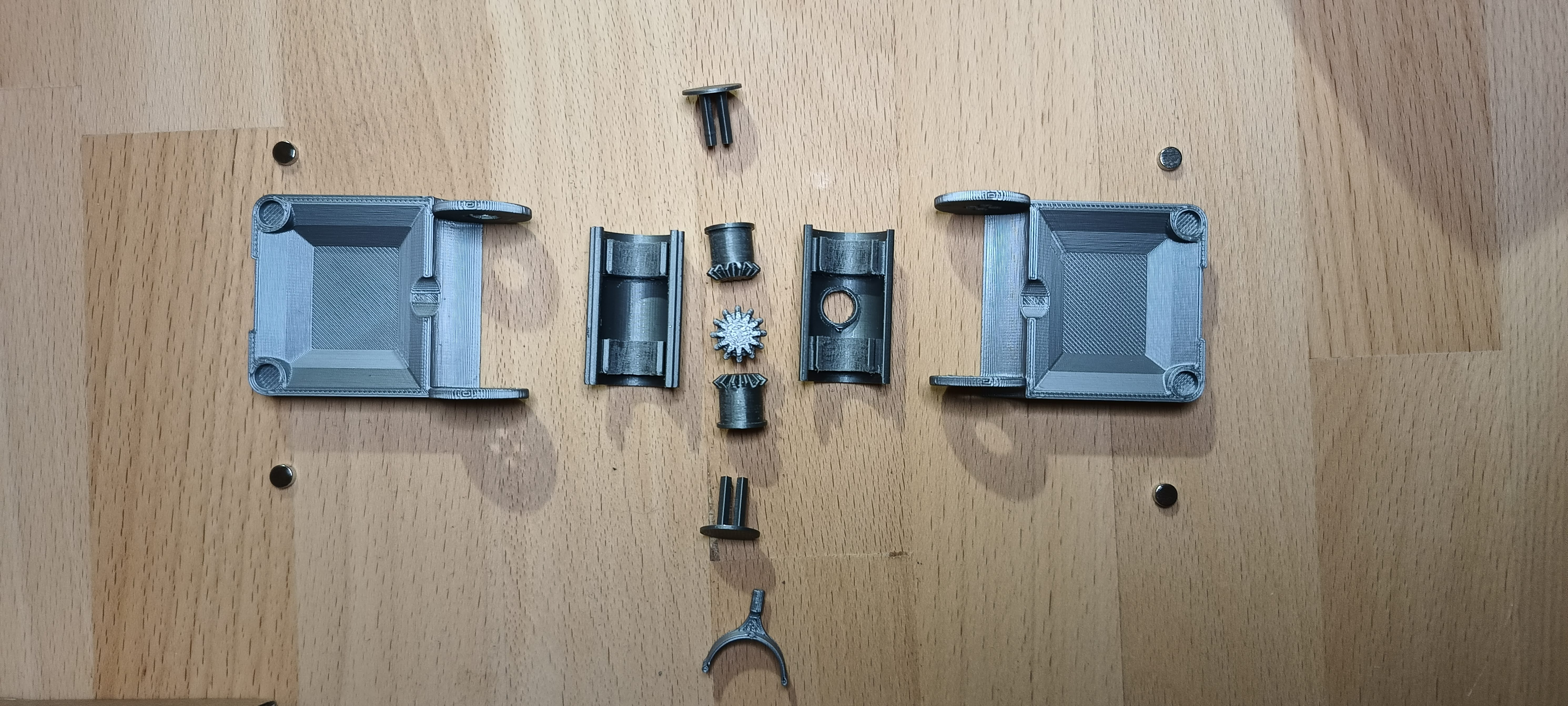

Neccesary parts:
- glue
- 4x cicle magnets 5x2mm

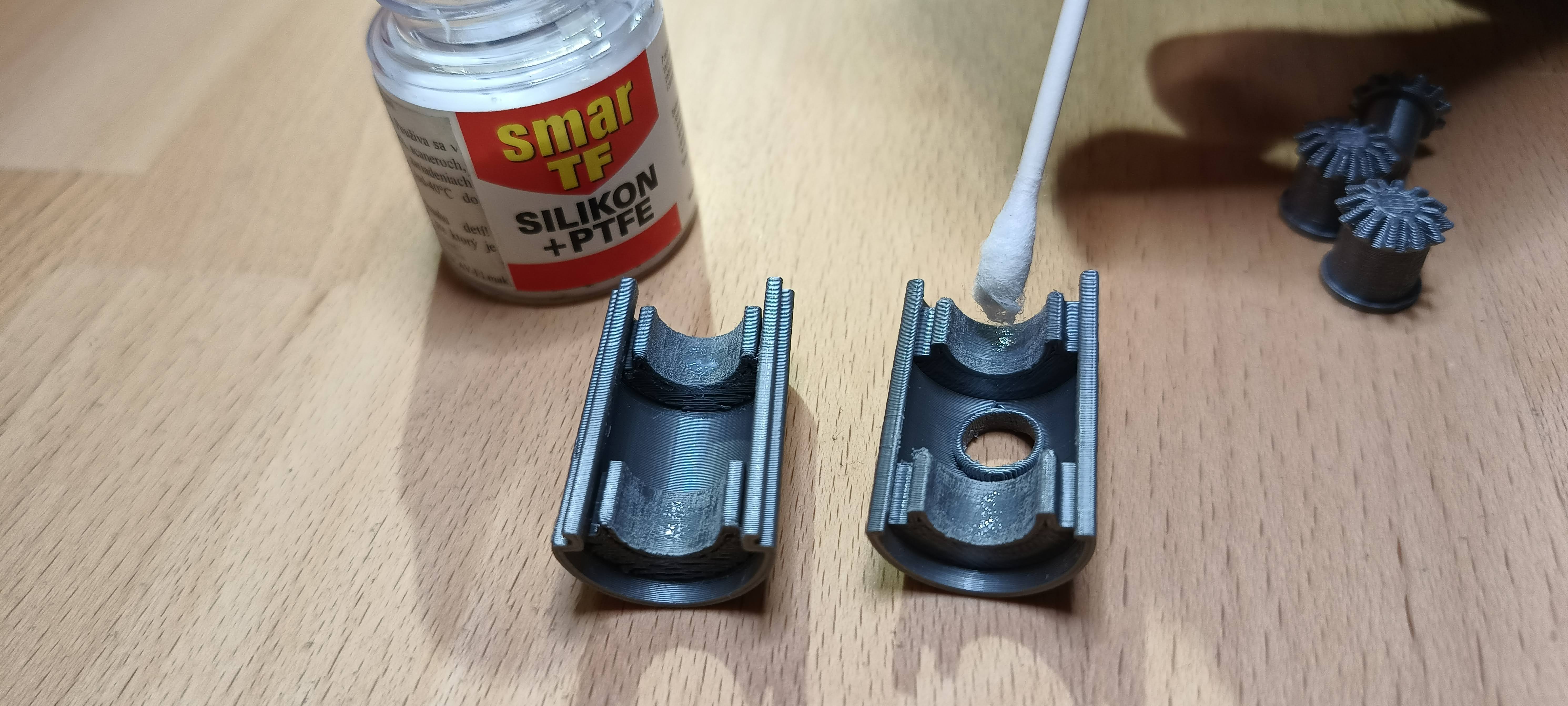

- I recommend a little vaseline for gears
Print settings:
Infill: minimum 5%
Material: PLA
noze: 0.4
Quality: 0,2 or 0,1mm

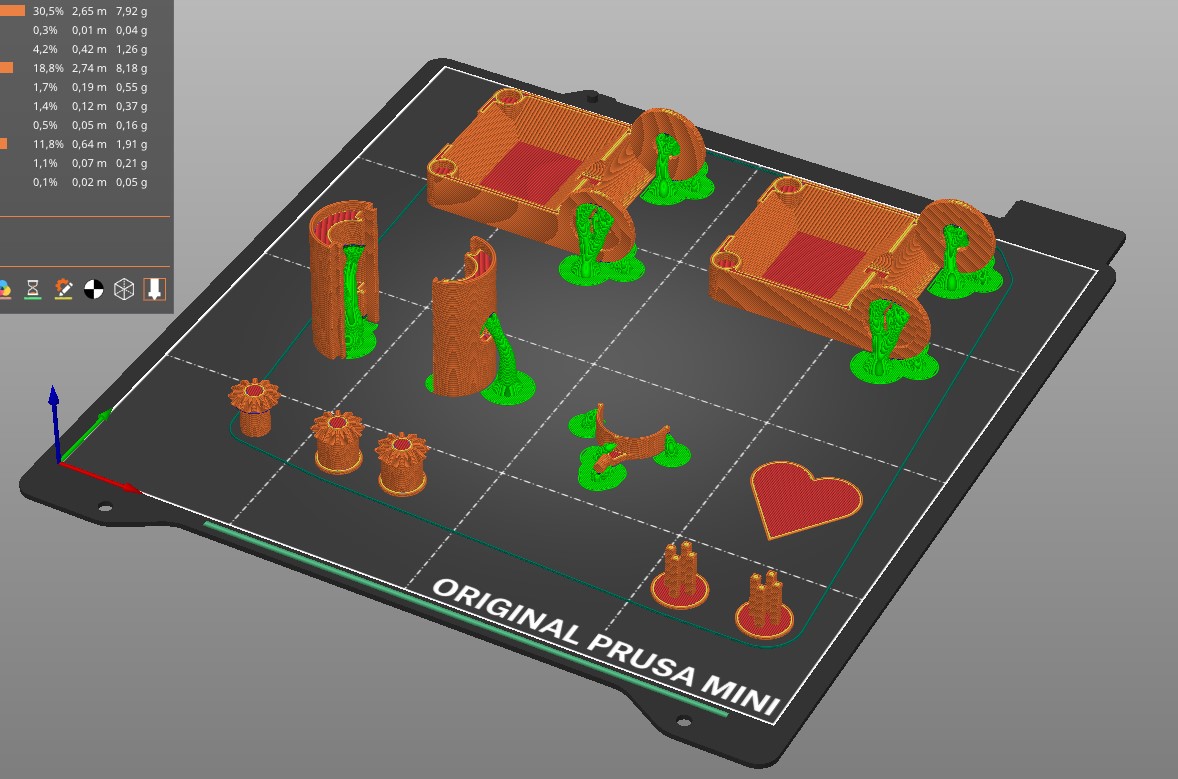

Support required for:
- cover left
- cover right
- cylinder_top
- cylinder_bottom
- holder
