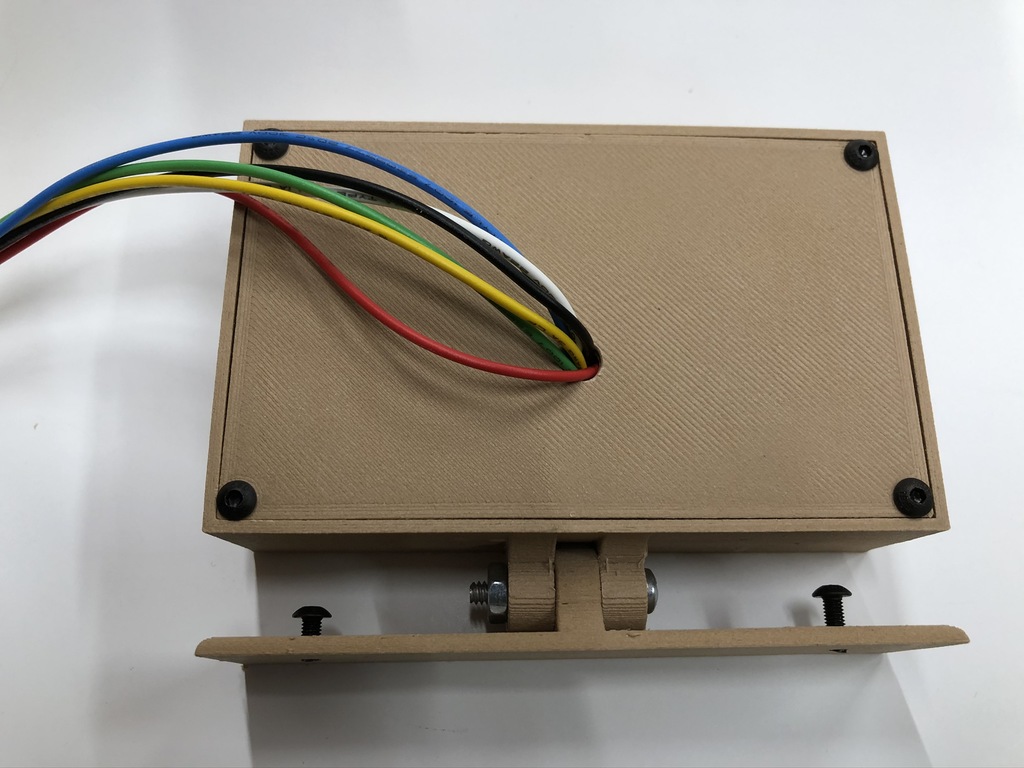

This enclosure is for a standard 20x4 line LCD. It pivots on a small base intended to be mounted, with 2 screws, to another surface. No standoffs are required. The 4 screws (M3x20) in the back hold the LCD in place. The enclosure is mounted to the base, at the pivot, with a #6x1" screw and nut.
The enclosure was designed to fit the following LCD from Amazon: https://www.amazon.com/gp/product/B01DKETWO2/ref=pe_386300_440135490_pd_te_o_rtpb_ti/147-6070022-2985361?_encoding=UTF8&pd_rd_i=B01DKETWO2&pd_rd_r=0TX9ME5EC99DD5S8D344&pd_rd_w=p8Cyc&pd_rd_wg=wqp9N
but may fit others.
