i faced a problem forgetting to lock the storehouse door
that's why i decided to make this project

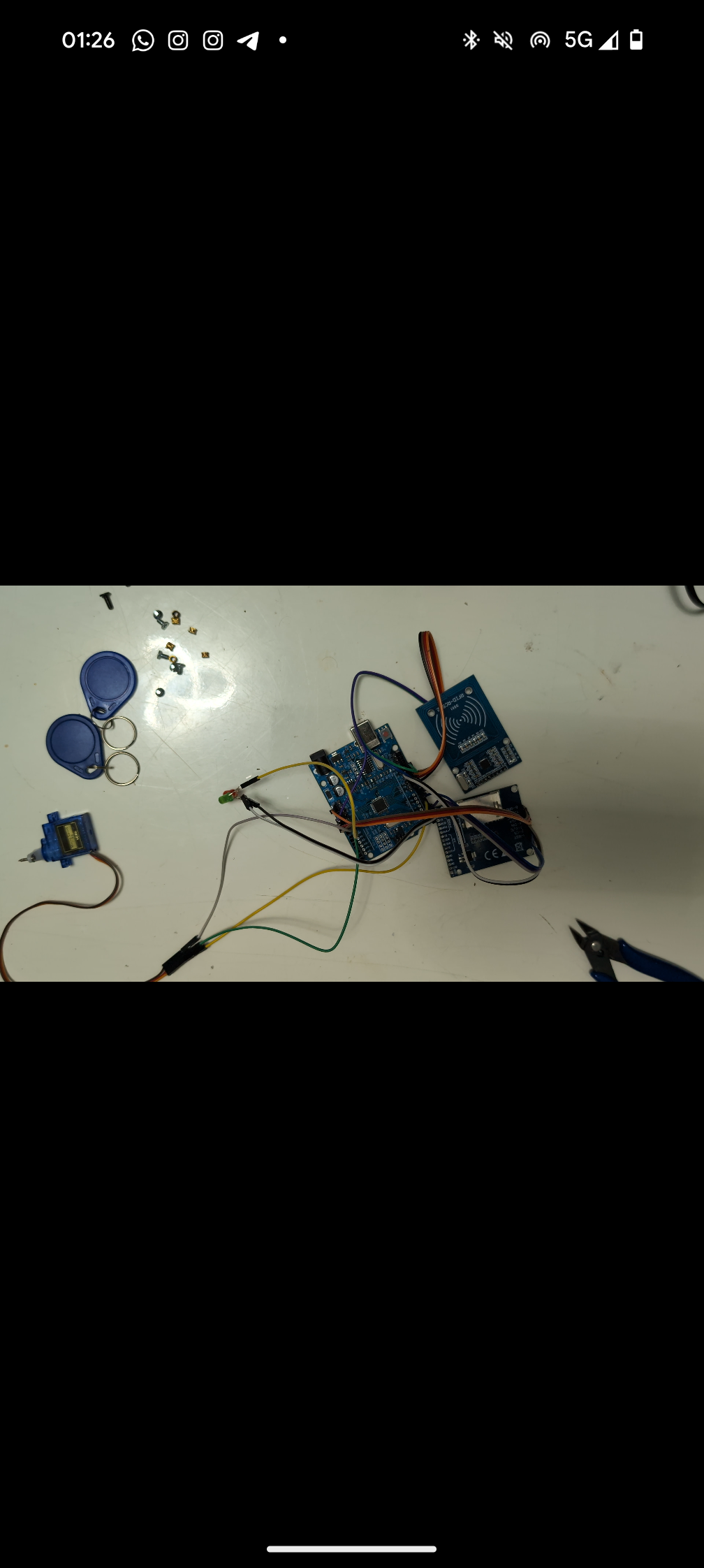

materials needed are:
1 Arduino uno
2 sg90 servo motor
3 RC522 NFC module
4 jumper wires
5 TFT screen module
6 M3 insert nuts 8 pcs
7 M3 screw 8pcs
8 LED lights 2pcs (1 green 1 red)
i will publish a YouTube video soon as possible so you can get the Arduino programing code and wiring diagram and watch the procedures step by step
i have added the circles on the edges to benefit the bed adhesion otherwise it'll snap off the heating bed
i will add a gecode file if you want to print it directly with my settings
