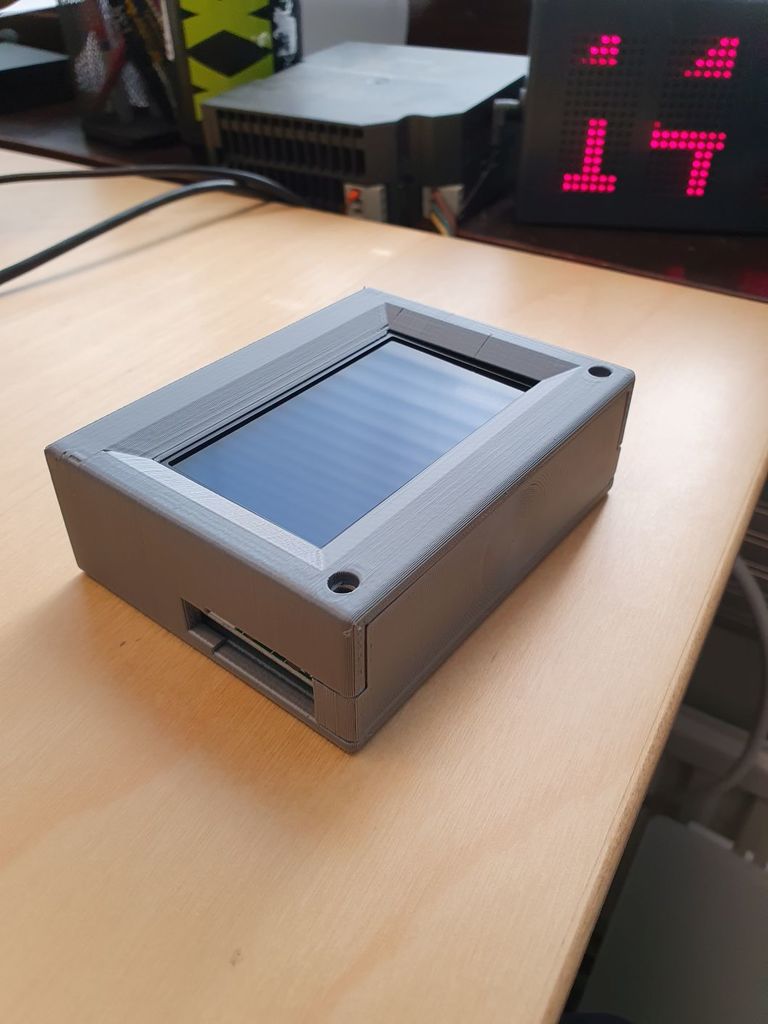

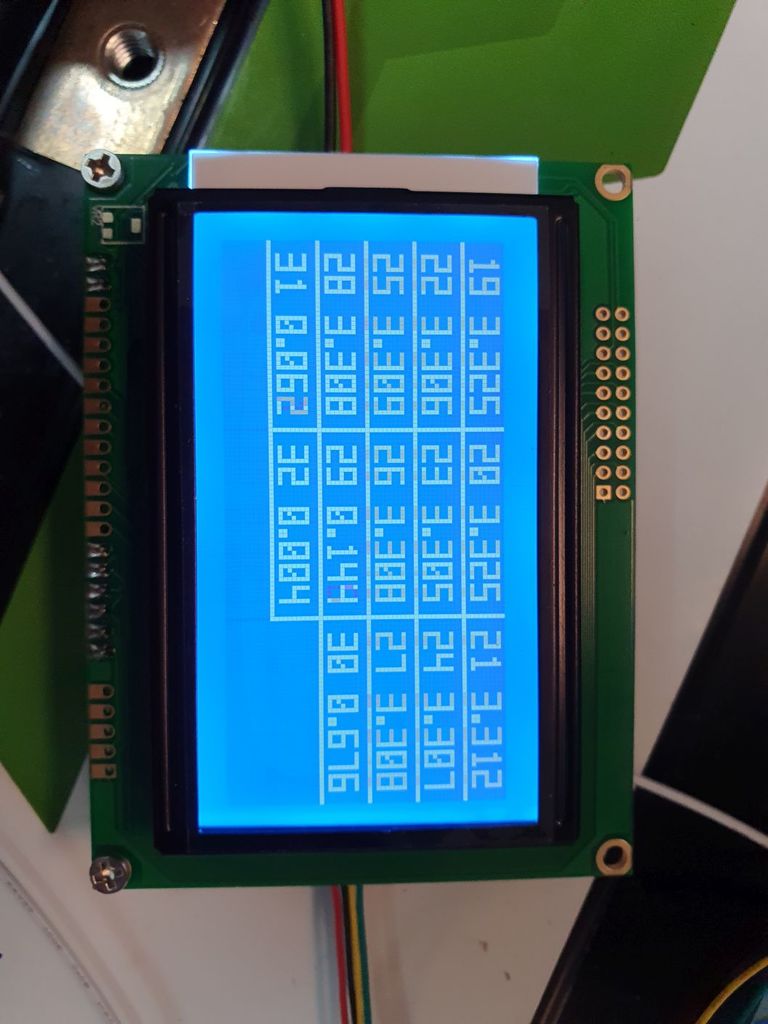

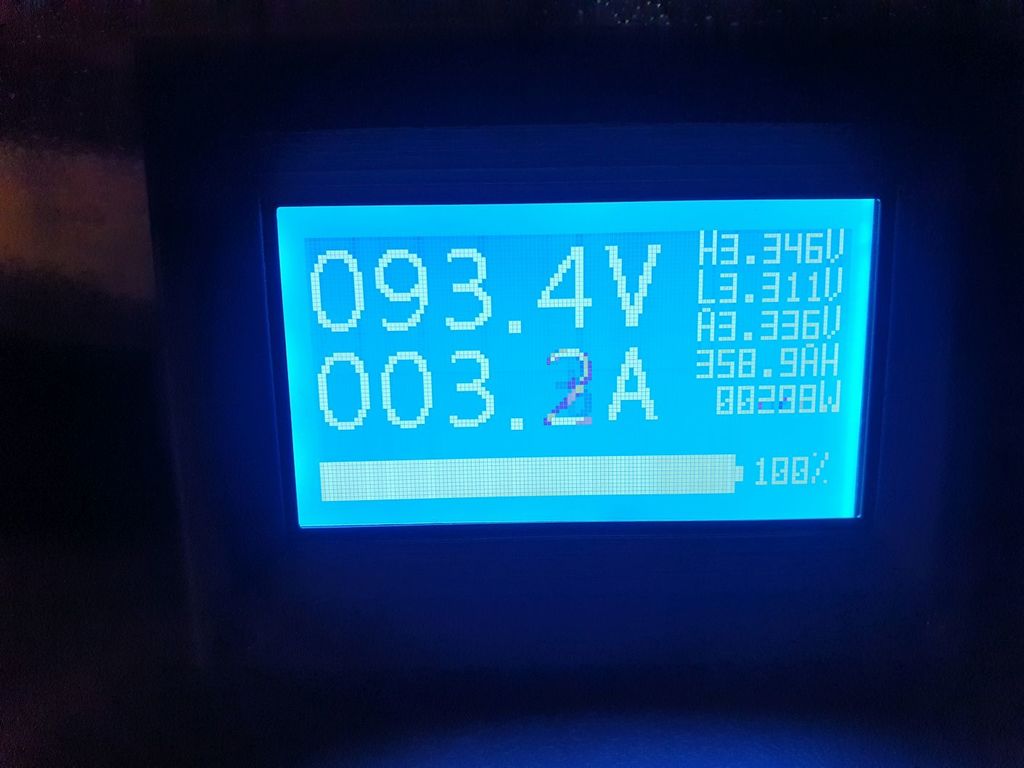

I have a Chinese ANT BMS in my electric car. There is an LCD, which shows information about the battery. The LCD did not have a case so I made one. It is working very well and it is simple to print, even without supports.

There are 4 files:

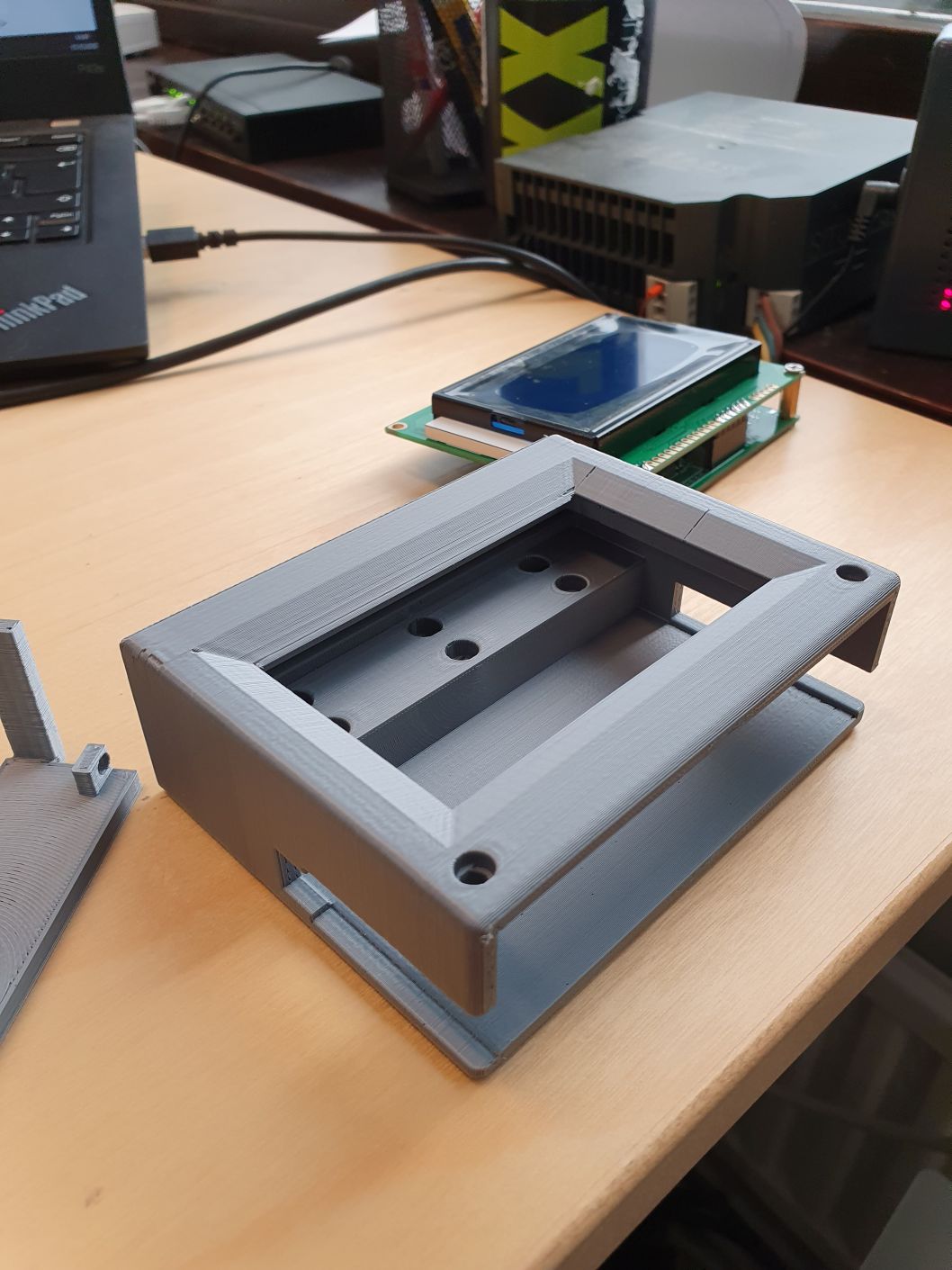

  • Kuori.stl = the case itself
  • Pohja.stl = the bottom lid

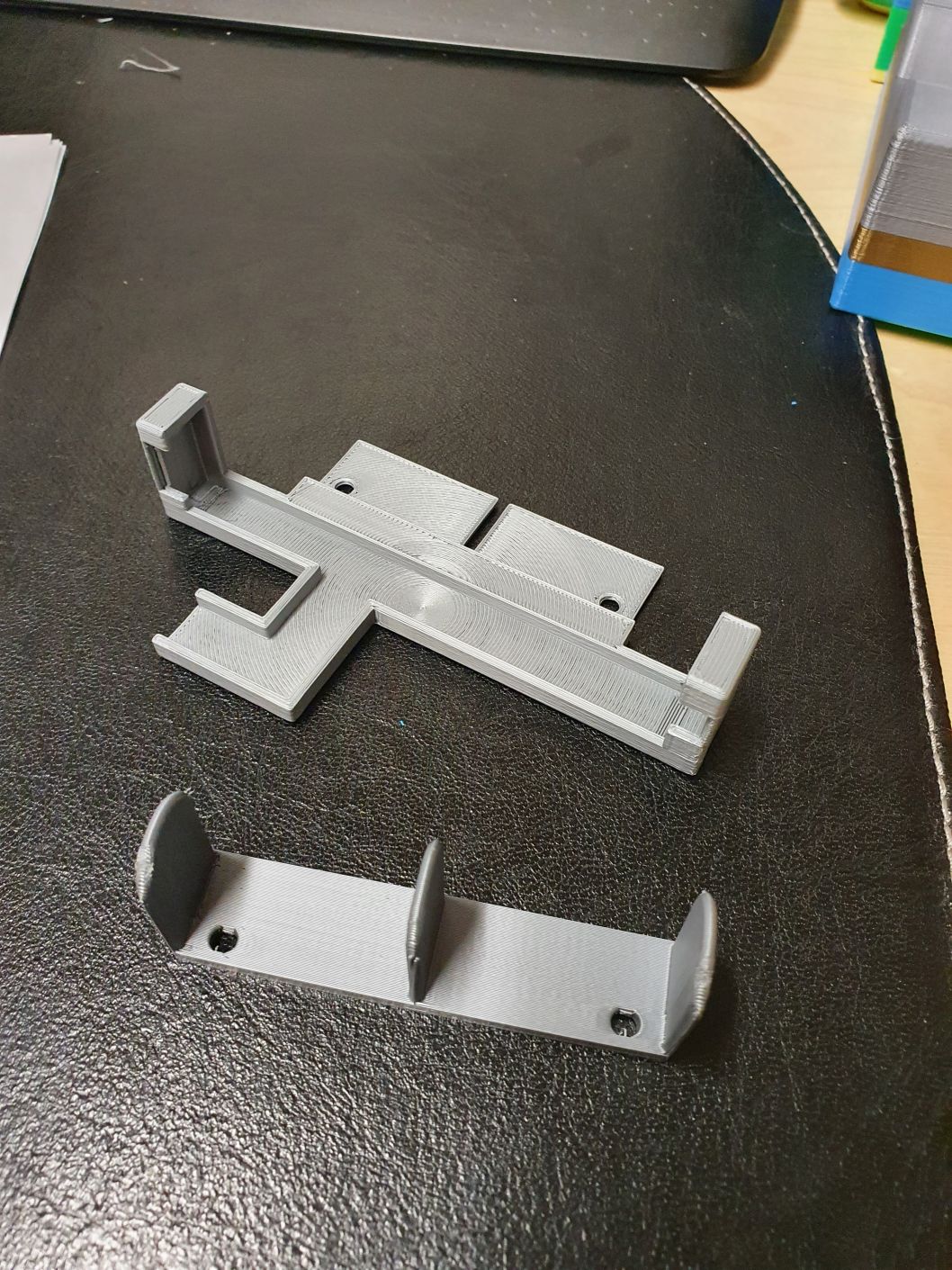

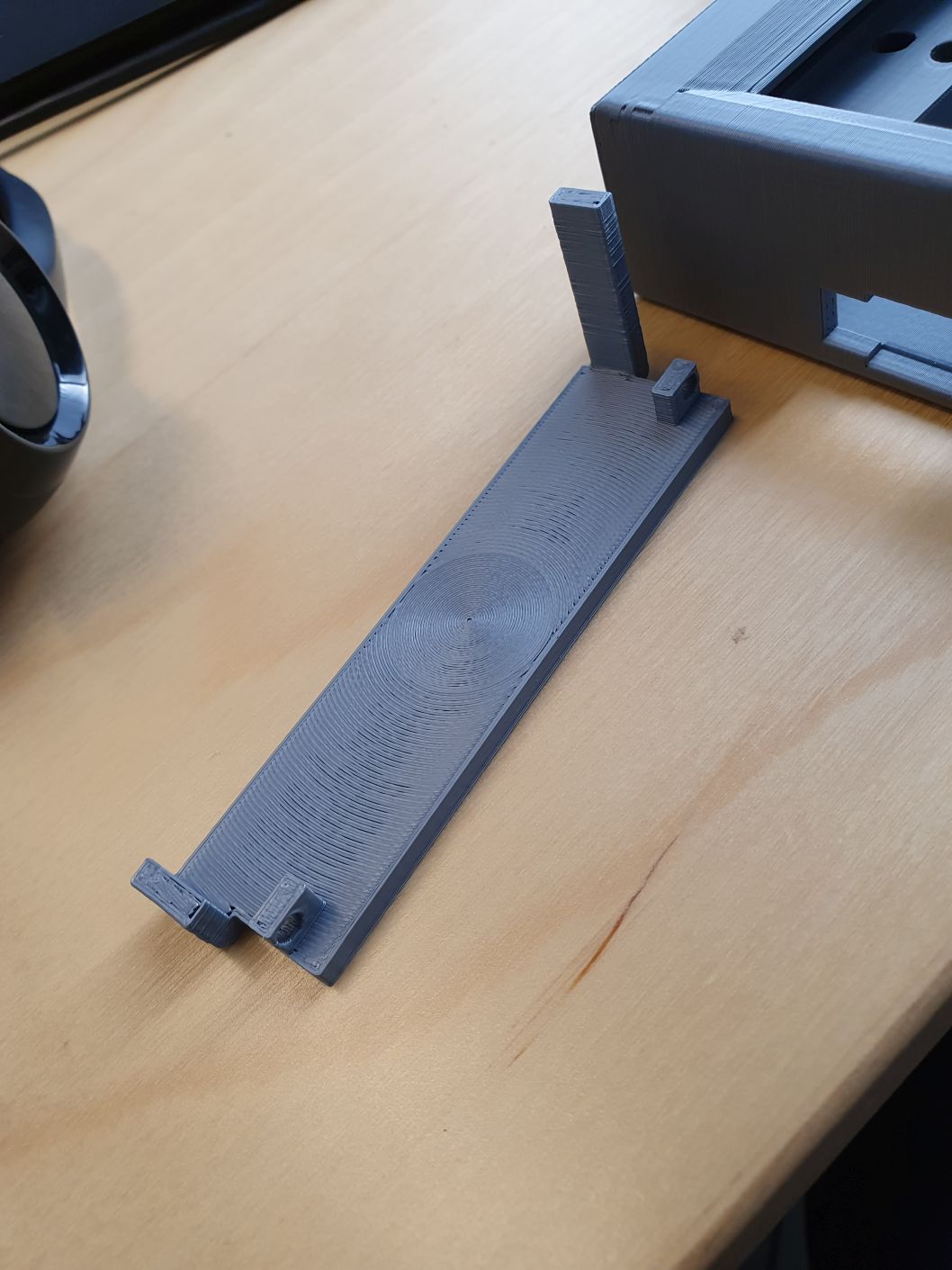

  • kaapelitunneli.stl = cable tray

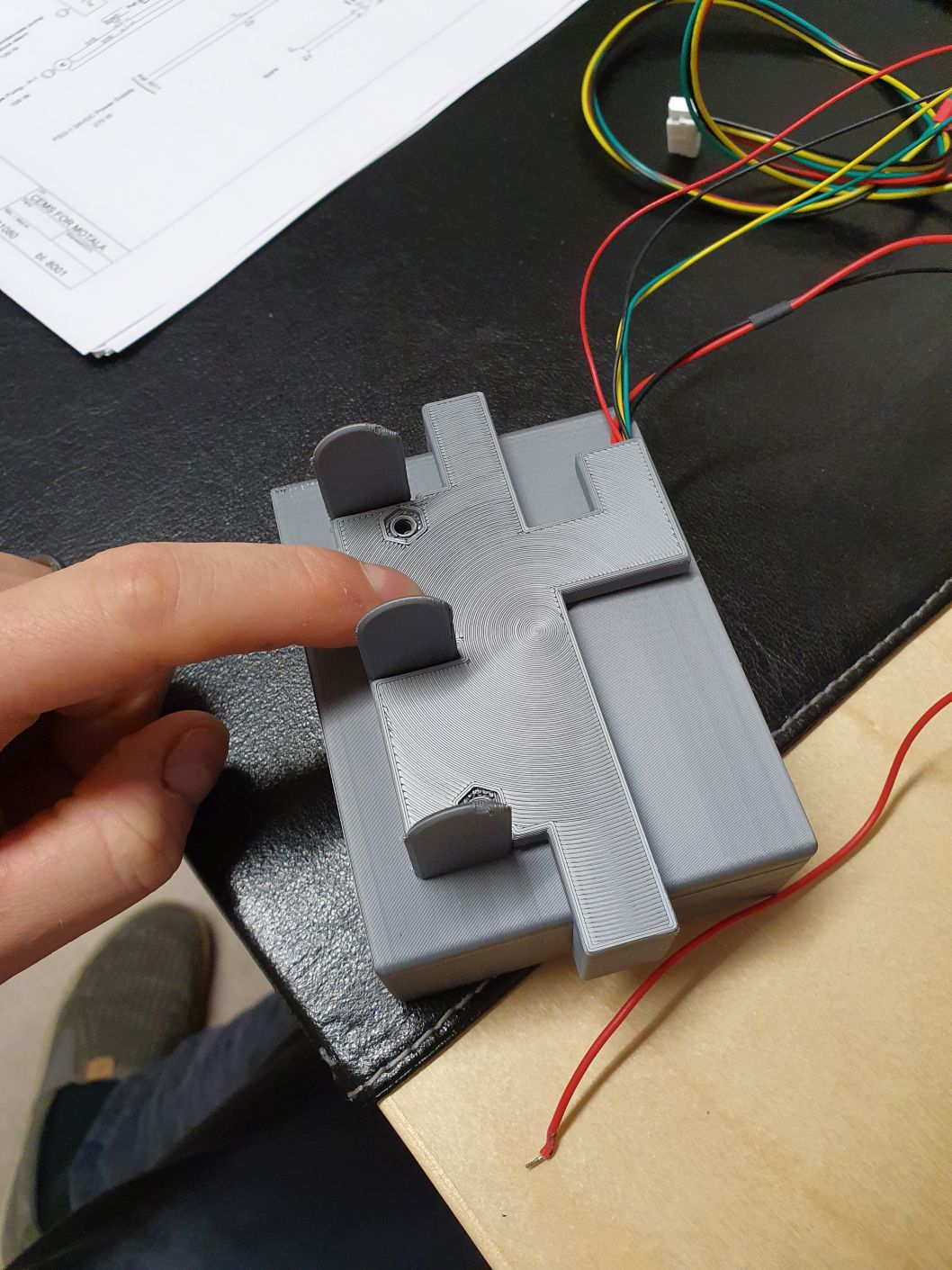

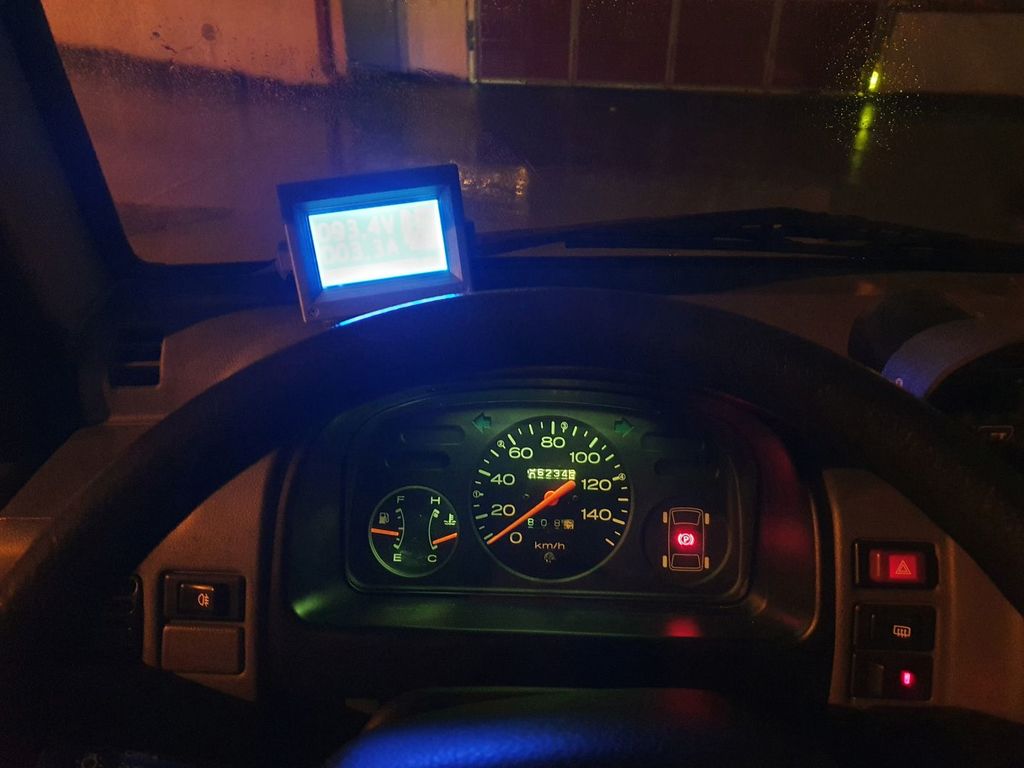

  • ikkunatuki.stl = support so that the case is leaning on the car window. The finns are small so that they do not disrupt the de fogging air flow

    Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

Doesn't Matter

Supports:

Doesn't Matter

Resolution:

0.2

Infill:

25%


Filament:
[

Prusament PLA PLA ](http://www.amazon.com/s?url=search-alias&field-keywords=Prusament+PLA+PLA&tag=thingiverse09-20) Silver

Notes:

I did not use any supports. Print came out perfectly!

Post-Printing

To assemble the case:

  1. Use a M3 screw and nut to secure the backplate and cable tray to the main housing
  2. Insert the LCD to the case
  3. Insert the bottom of the case
  4. Use short M3 screws to secure the bottom plate. The nut is the spacer on the LCD, so remove first the original two screws from the LCD
  5. Connect the cables and put them int the cable tray. This is a bit tricky but is plausible with some effort.

  1. Enjoy the case!

    How I Designed This

    Designed in Fusion360, sliced in Prusa slicer
