Eldricht Horror Box Organizer tunings (https://www.thingiverse.com/thing:3655672)

Some tunings to dc222's models.
I've made 3 different category changes to some of the parts:

• Visual - just generic stuff that have only visual impact
• Technical - changes related to printing the parts

• Functional -changes related to the actual part use Visual:

• P_460x690_XX Back bottom aligned to similar ones

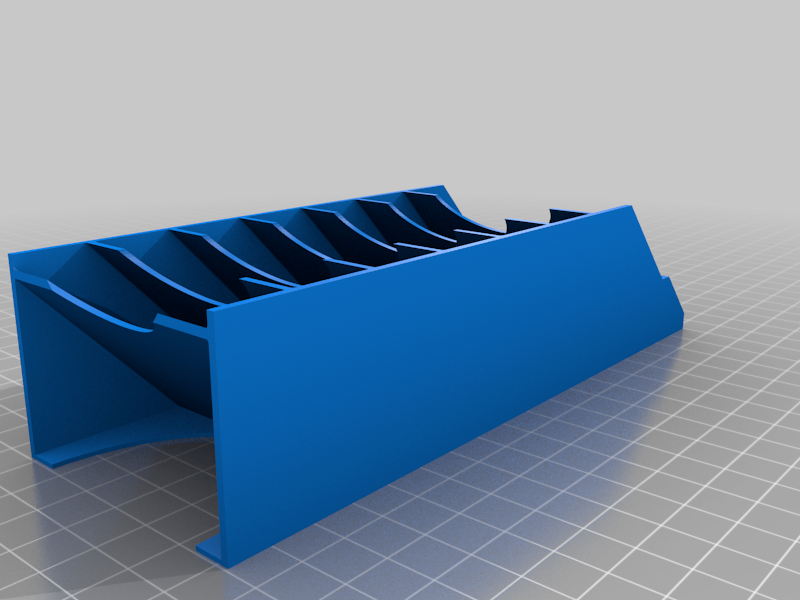

• P_610_XX Back bottom aligned to similar ones

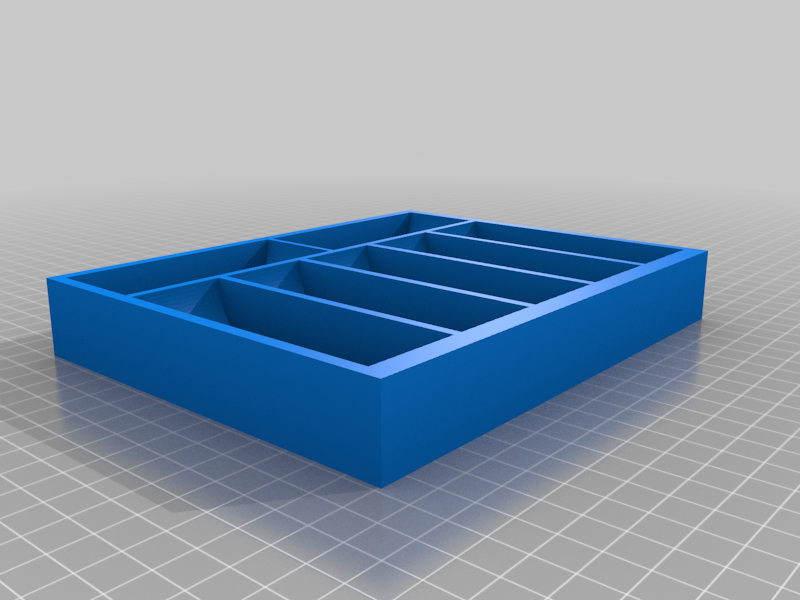

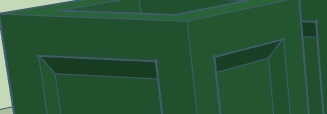

• P_box_TrayTokens_v1.stl Tray counters Added an angle to top part overhangs

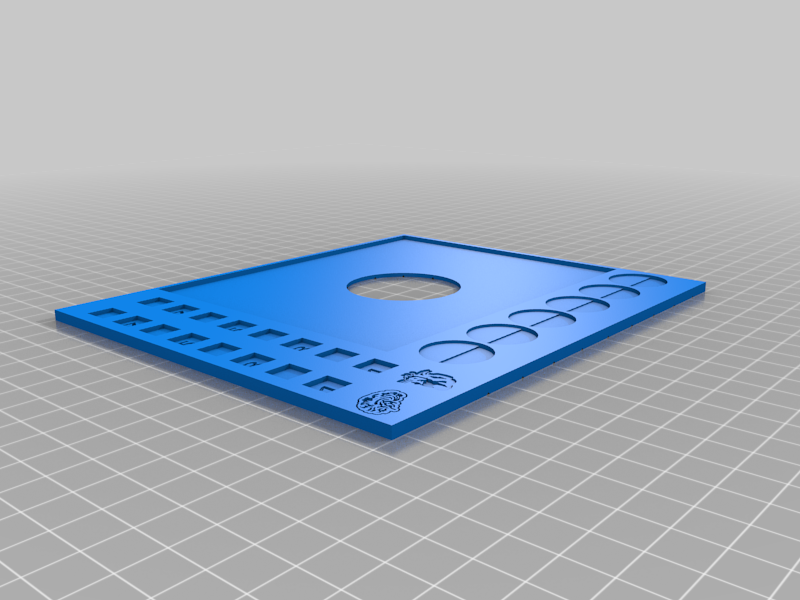

• P_340_Tray_XX Added grooves to the bottom, smoothed rounded areas

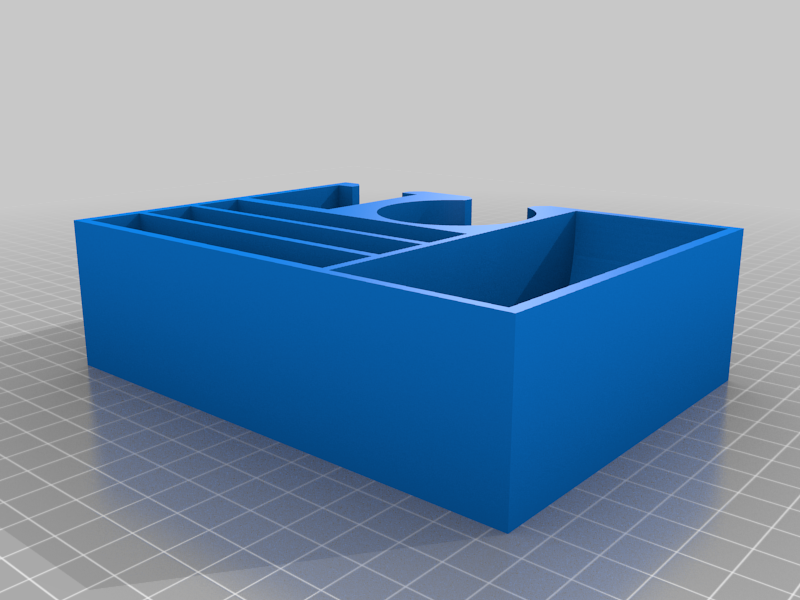

• P_Box_TrayGates Smoothed rounded areas

• P_box_TrayTokens_v1 Smoothed rounded areas Technical:

• P_340_Tray Shaved the part height to 3.4 mm for 0.20 mm layer height printing

• P_460x690_XX Reduced side wall thickness to 1.2 mm for 0.40 mm nozzle printing, roundings to the divider connection area
• P_610_XX Reduced side wall thickness to 1.6 mm for 0.40 mm nozzle printing, roundings to the divider connection area

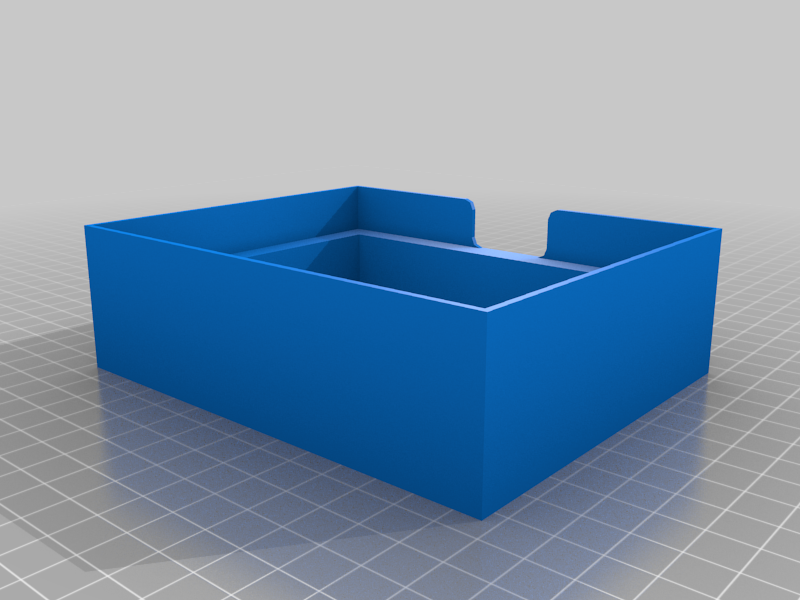

• P_Box_Tray_PlayerCards.stl. Shaved off the bottom to 2 mm height, reduced side wall thickness to 1.6 mm for 0.40 mm nozzle printing.
  Functional:
• P_460x690_XX For sleeved cards with 46mm*69mm sleeves with 1 mm width tolerance
• P_610_XX For sleeved cards with 60mm*91mm sleeves with 1 mm width tolerance

  Print Settings

Printer Brand:

Prusa

Printer:

Rafts:

No

Supports:

Resolution:

0.2

Infill:

Filament:

n/a PLA various
