Auer Packaging Foldable Handle Drill Template
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

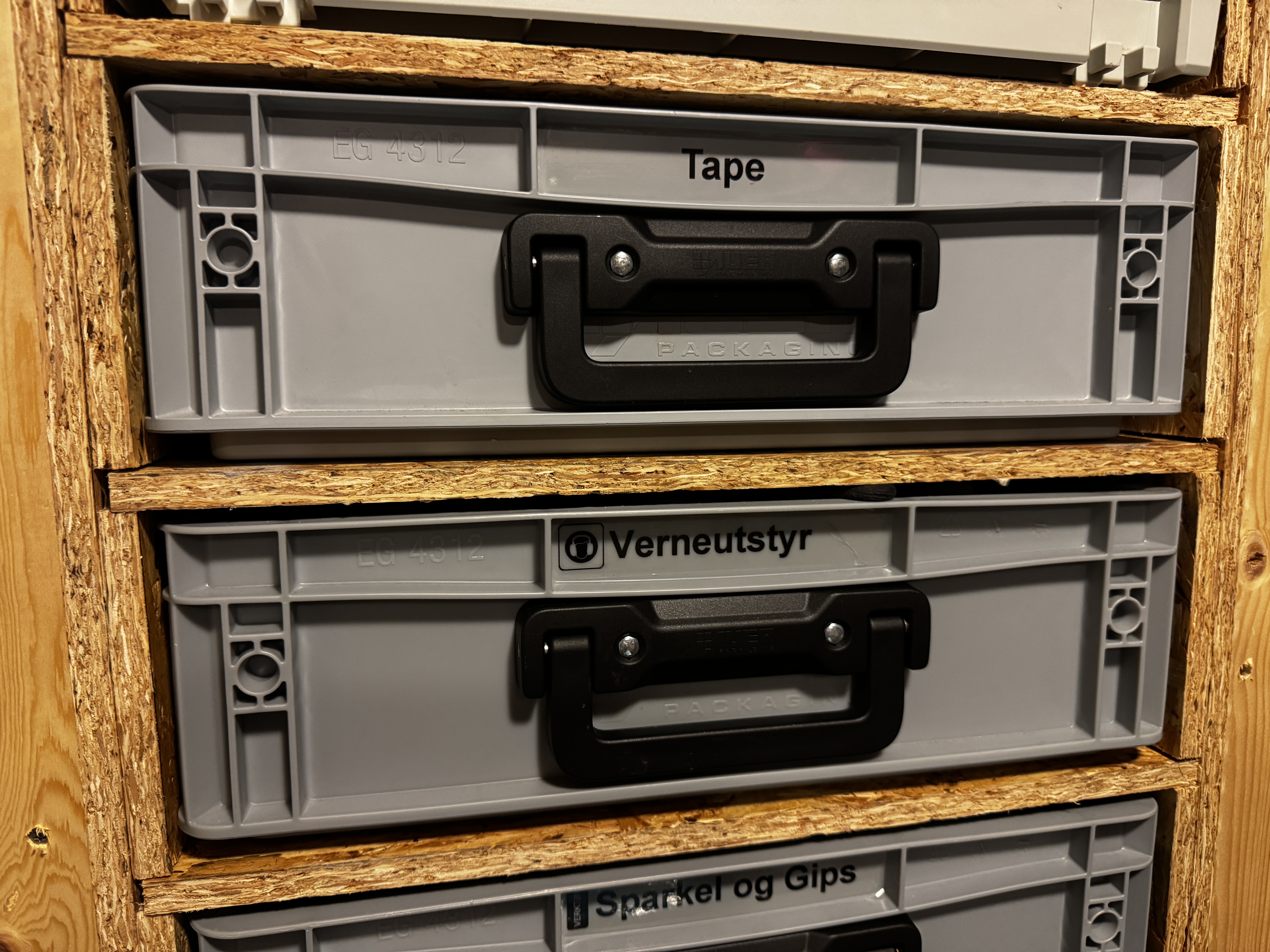

Drill template for the foldable handle from Auer Packaging: https://www.auer-packaging.com/de/en/Foldable-handle/E-KG-G.html
This can be used to easily drill holes giving a centered position on the longer side of a 30 x 40 case. This was especially made for the 12cm height eurobox: https://www.auer-packaging.com/de/en/Euro-containers-solid/EG-4312.html
Instructions for the handle: https://www.auer-packaging.com/pdf/Instruction-Foldable-handle-Euro-Container-Cases.pdf
Releases
| 2024.10.02 | v1.4 | Moved drilling holes 2mm downwards due to tolerances on eurobox. |
| 2024.09.29 | v1.3 | Initial Release |
Printing notes
Printed in PLA without supports.
