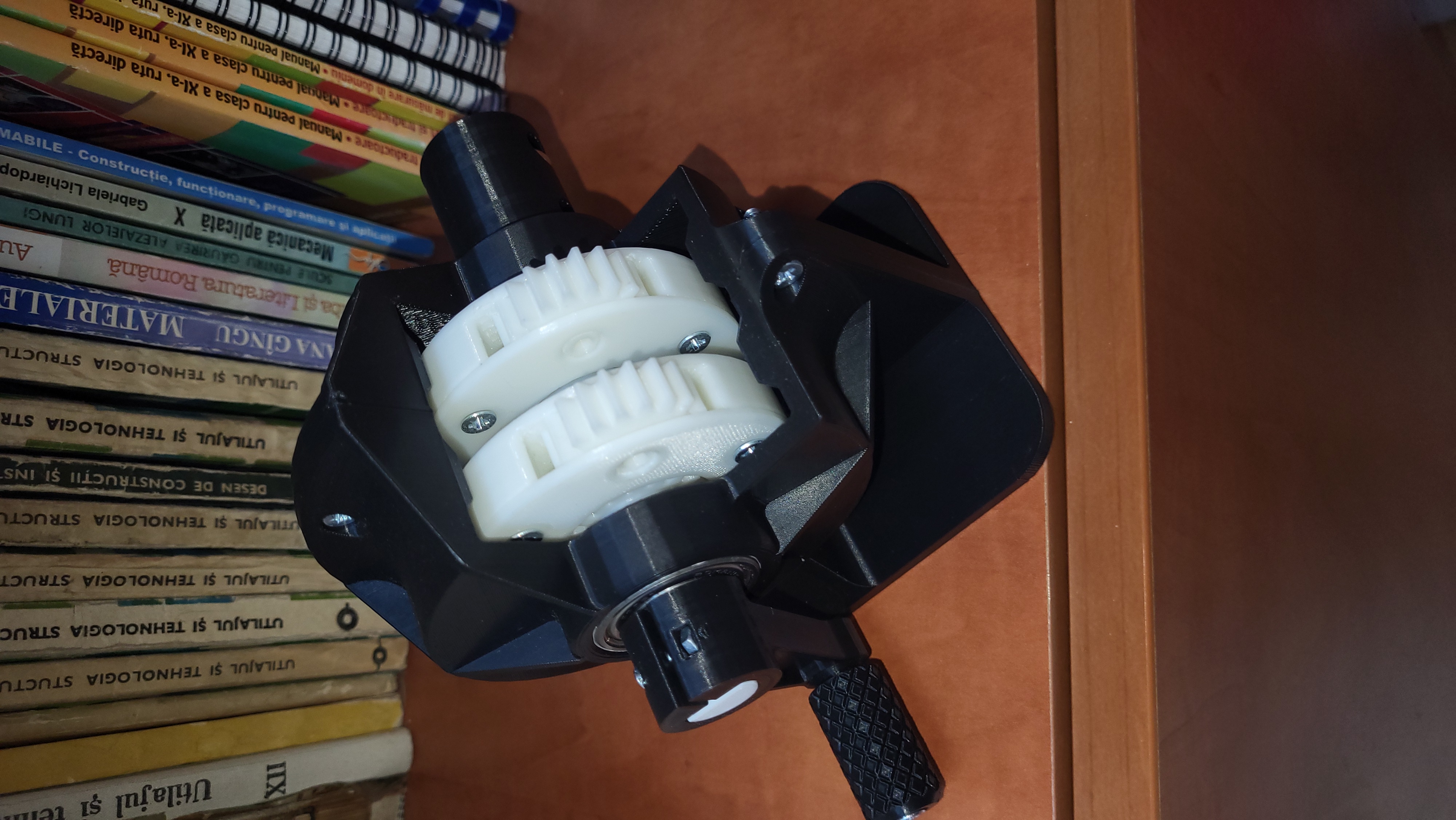

A Educational Gearbox setup for kids or students passionate of mechanics and engineering. Its a good demonstration of a 2 stage planetary gearbox used for high torque applications with a 16:1 reduction gear ration.
The model takes some skill to make and is not a very easy one but the result is worth it and you will increase your printing skills and mechanical understandings. The design can work without lubrification but I highly suggest putting some if its possible.
In conclusion if you want a educational project to understand mechanics better or just something fun to have on your desk, this is the one.
Parts:

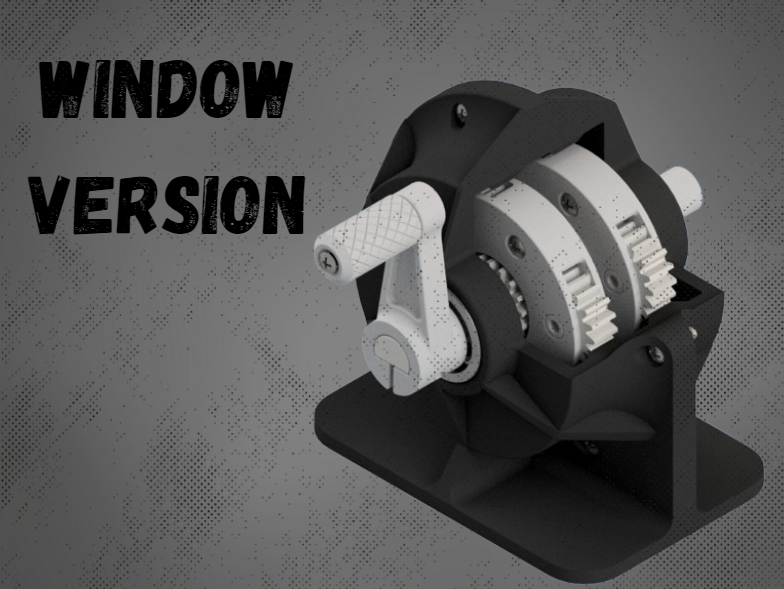

Windowed version:
Printed Parts:
| Part Name | Quantity | Material |
|---|---|---|
| Back window case | 1x | any |
| Front window case | 1x | any |
| First front carrier | 1x | PLA, ABS, PETG |
| Second front carrier | 1x | PLA, ABS, PETG |
| Back carrier | 2x | PLA, ABS, PETG |
| Sun gear | 1x | PLA, PETG |
| Planet gear | 6x | PLA, PETG |
Bearings:
| Part Name | Quantity | Inside diameter | Outside diameter | Thickness |
|---|---|---|---|---|
| Outside bearing | 2x | Φ 15 mm | Φ 35 mm | 11 mm |
| Inside bearing | 2x | Φ 8 mm | Φ 24 mm | 5 mm |
Other:
| Part Name | Quantity |
|---|---|
| M4 x 15 mm Screw | 12x |
| M4 Bolt | 6x |

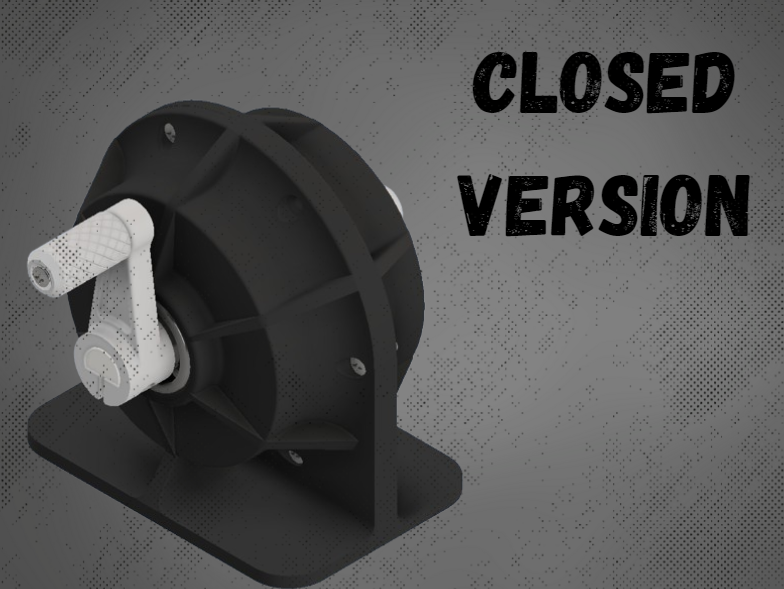

Closed version:
Printed Parts:
| Part Name | Quantity | Material |
|---|---|---|
| Back window case | 1x | any |
| Front window case | 1x | any |
| First front carrier | 1x | PLA, ABS, PETG |
| Second front carrier | 1x | PLA, ABS, PETG |
| Back carrier | 2x | PLA, ABS, PETG |
| Sun gear | 1x | PLA, PETG |
| Planet gear | 6x | PLA, PETG |
Bearings:
| Part Name | Quantity | Inside diameter | Outside diameter | Thickness |
|---|---|---|---|---|
| Outside bearing | 2x | Φ 15 mm | Φ 35 mm | 11 mm |
| Inside bearing | 2x | Φ 8 mm | Φ 24 mm | 5 mm |
Other:
| Part Name | Quantity |
|---|---|
| M4 x 15 mm Screw | 12x |
| M4 Bolt | 6x |
Assembly:
--in work--
