Filament Dry Box (Peli Case)

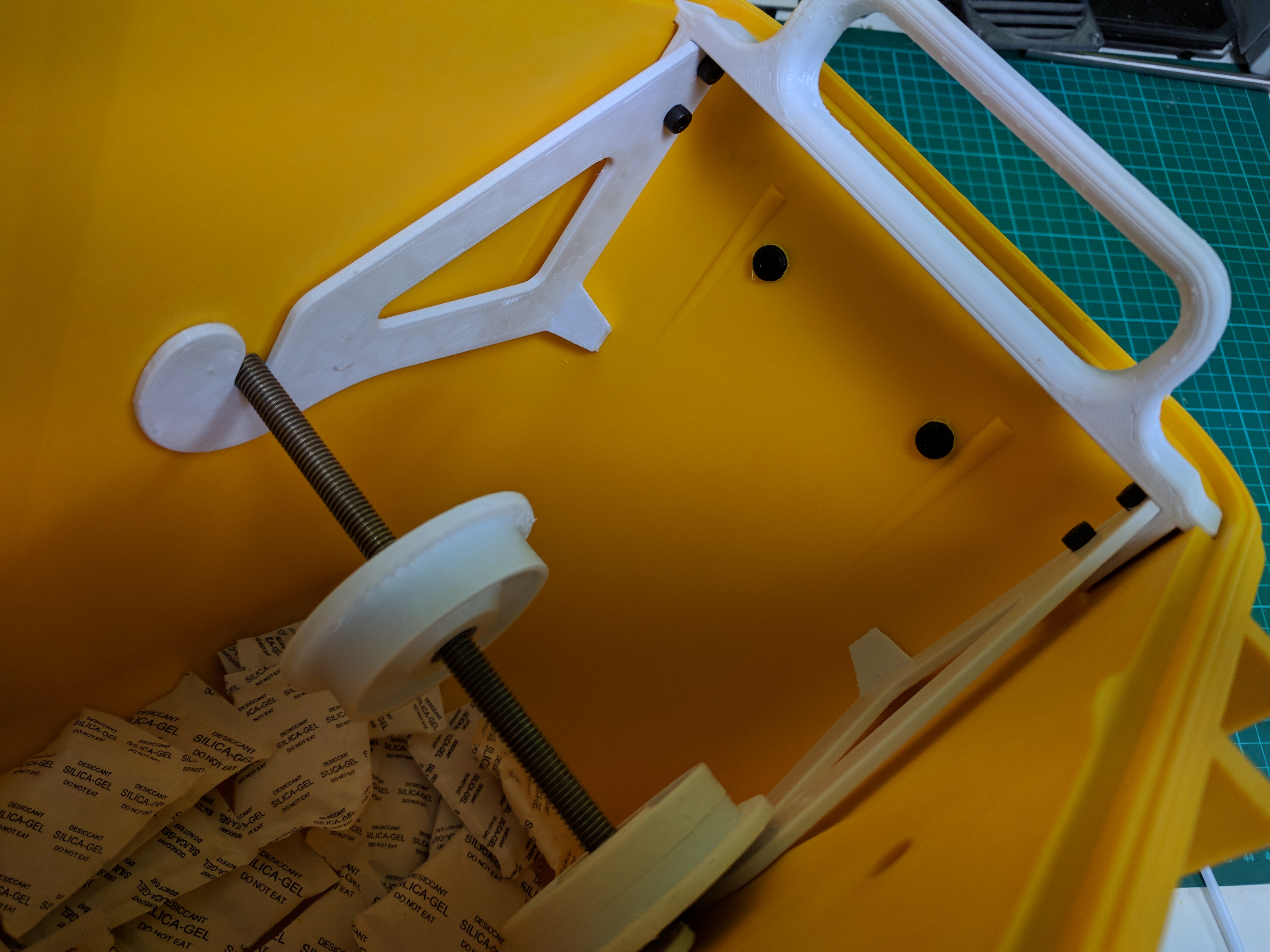

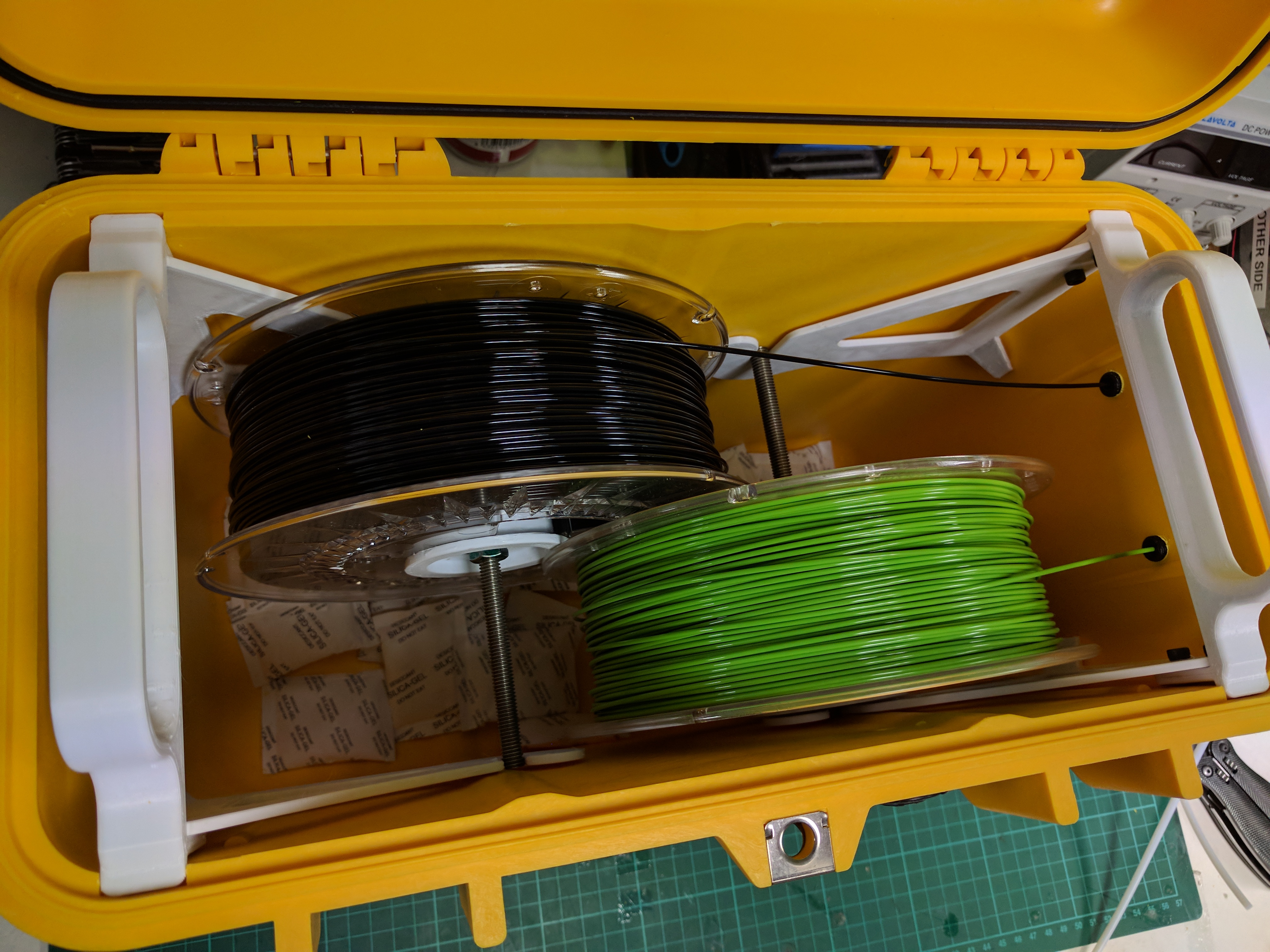

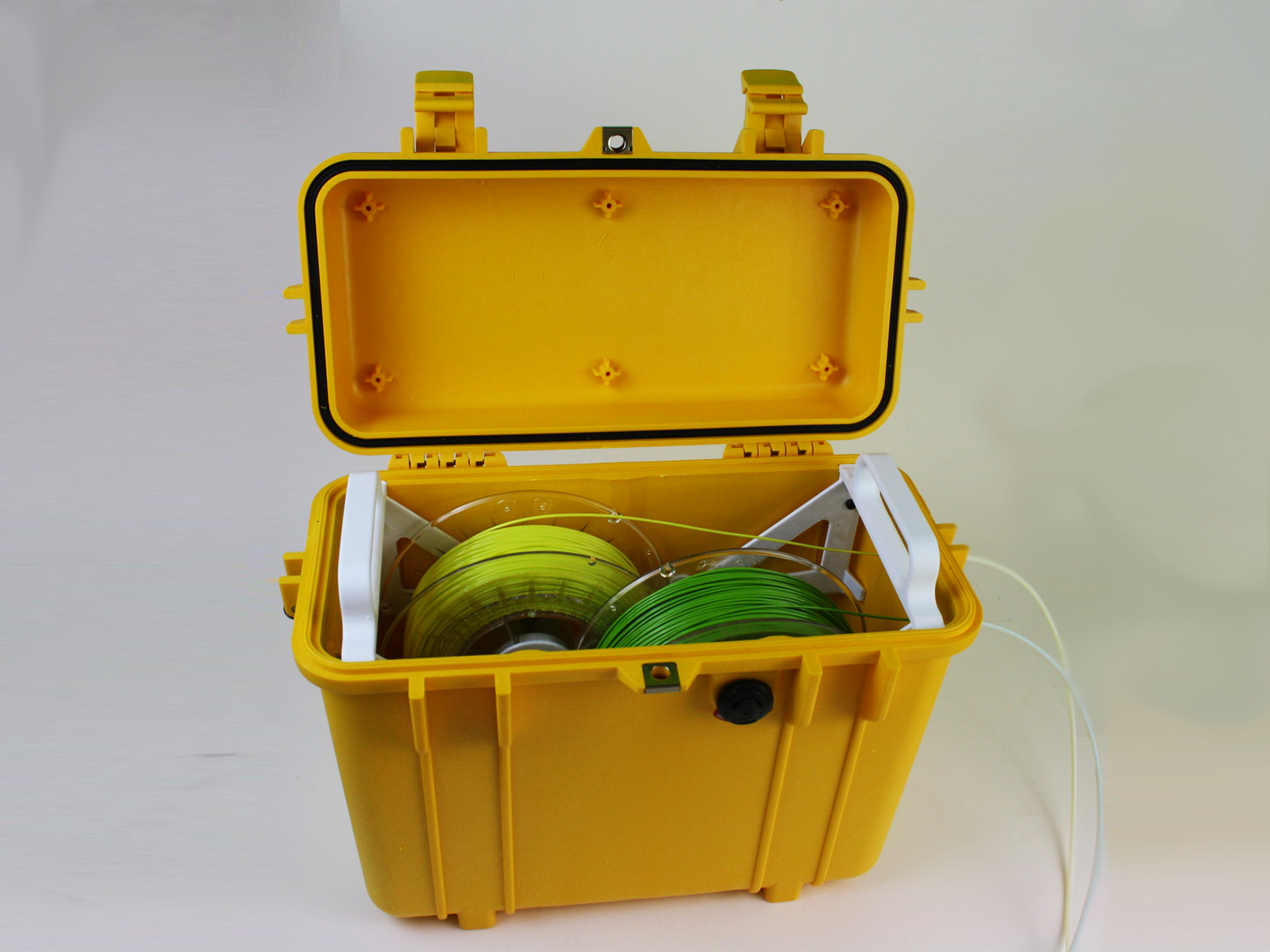

Storetwo standard 200mm filament spools in an air-tight Peli Case.

Perfecting for storing your hygroscopic filaments after drying.

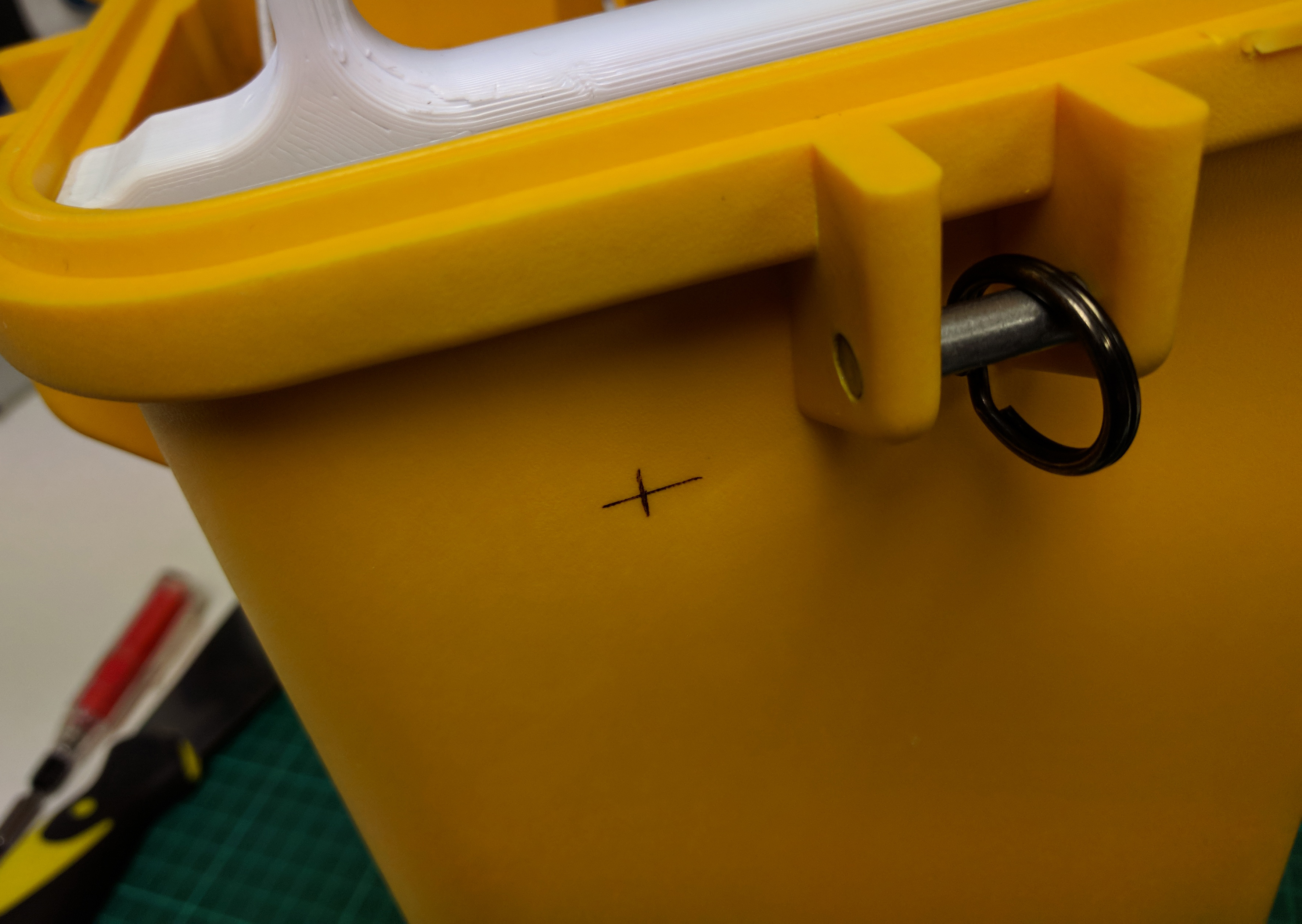

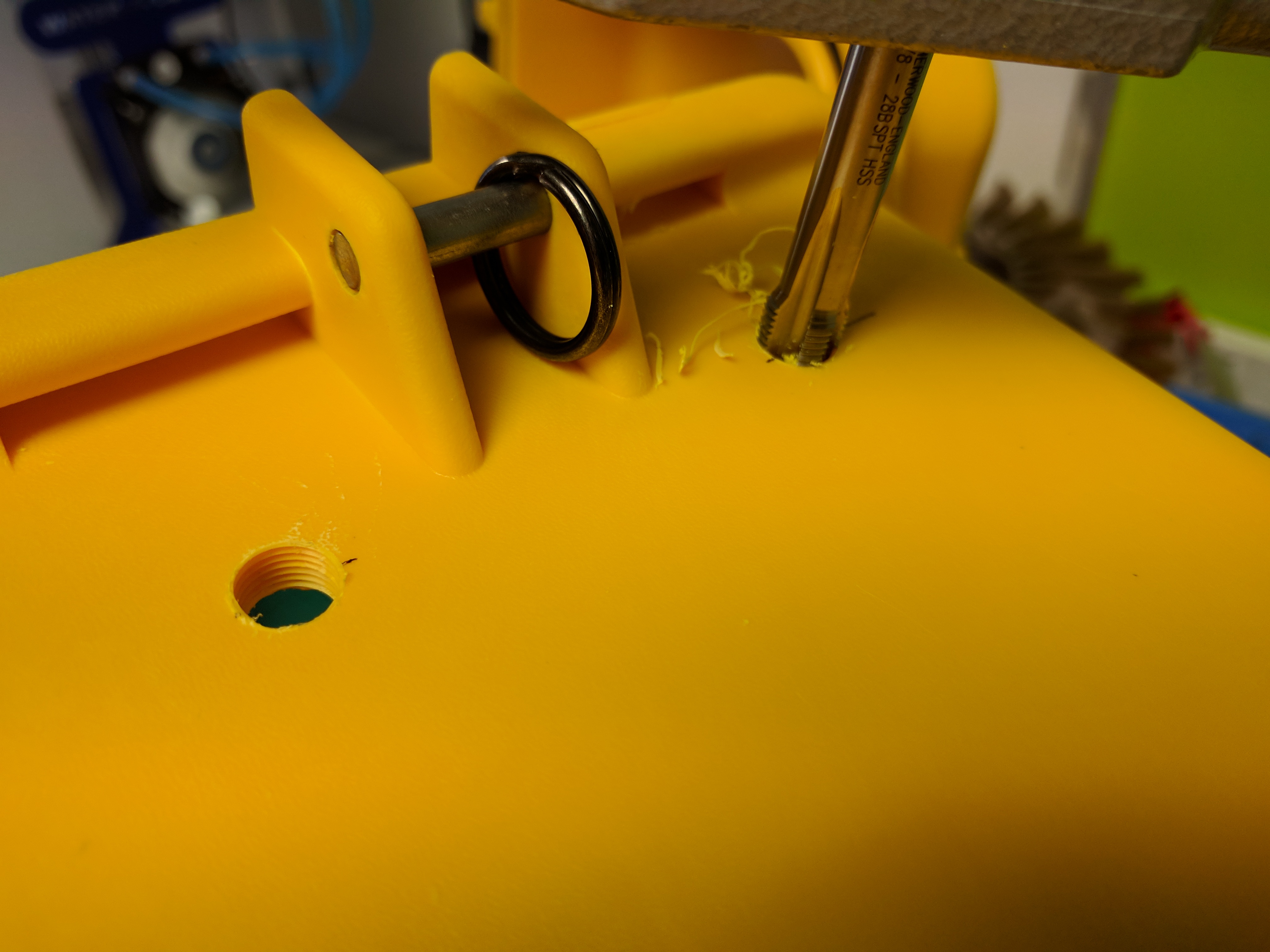

The Dry box can be configured to simply store the filament, or by drilling and tapping 4 x 1/8 BSP holes into the case it is possible to supply dry filament to a single printer, to two printers or two filaments to a single dual printer.

Refer topeli_case_assembly.zip for photographic construction guide.

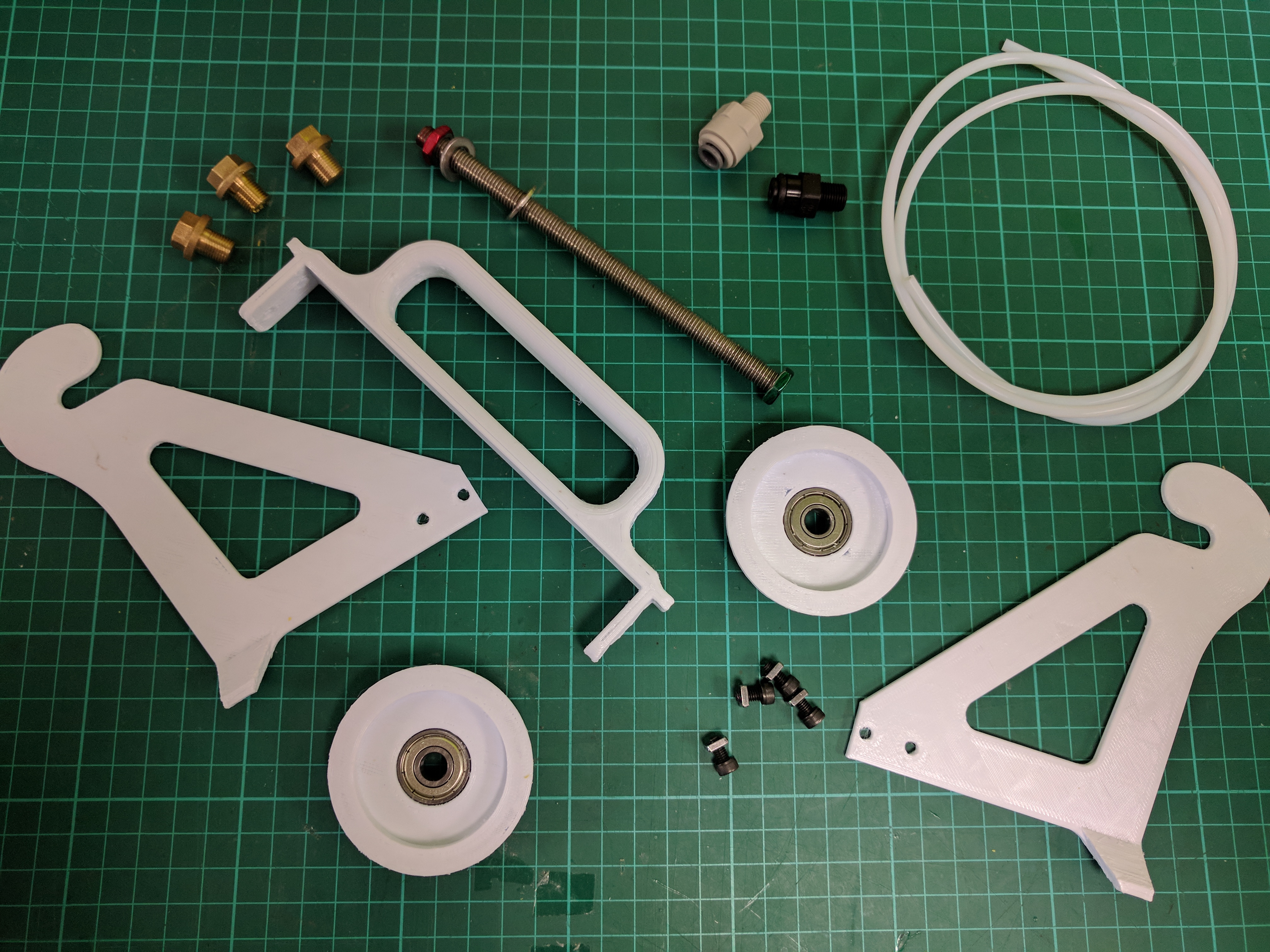

E3D Shopping List.

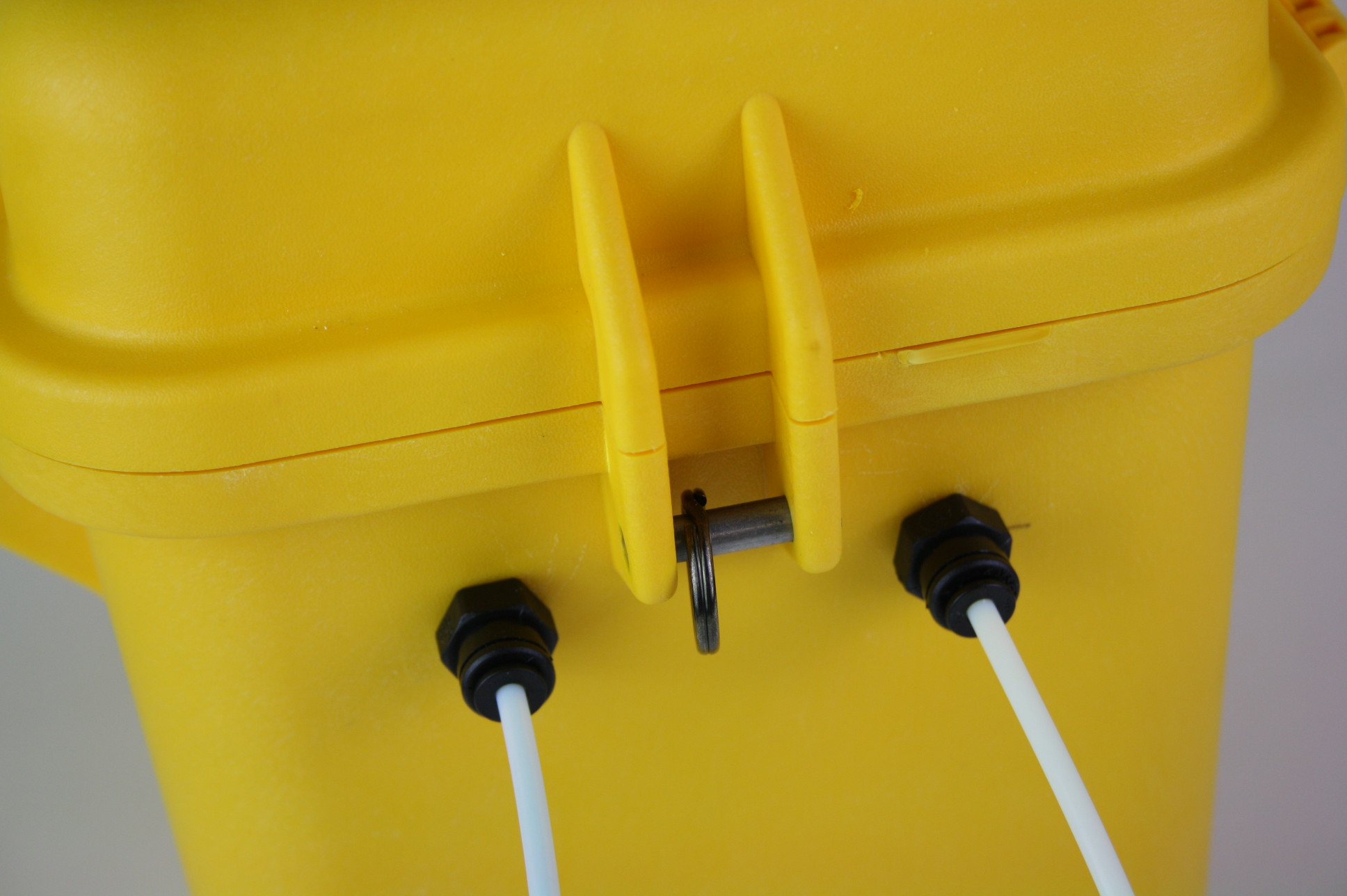

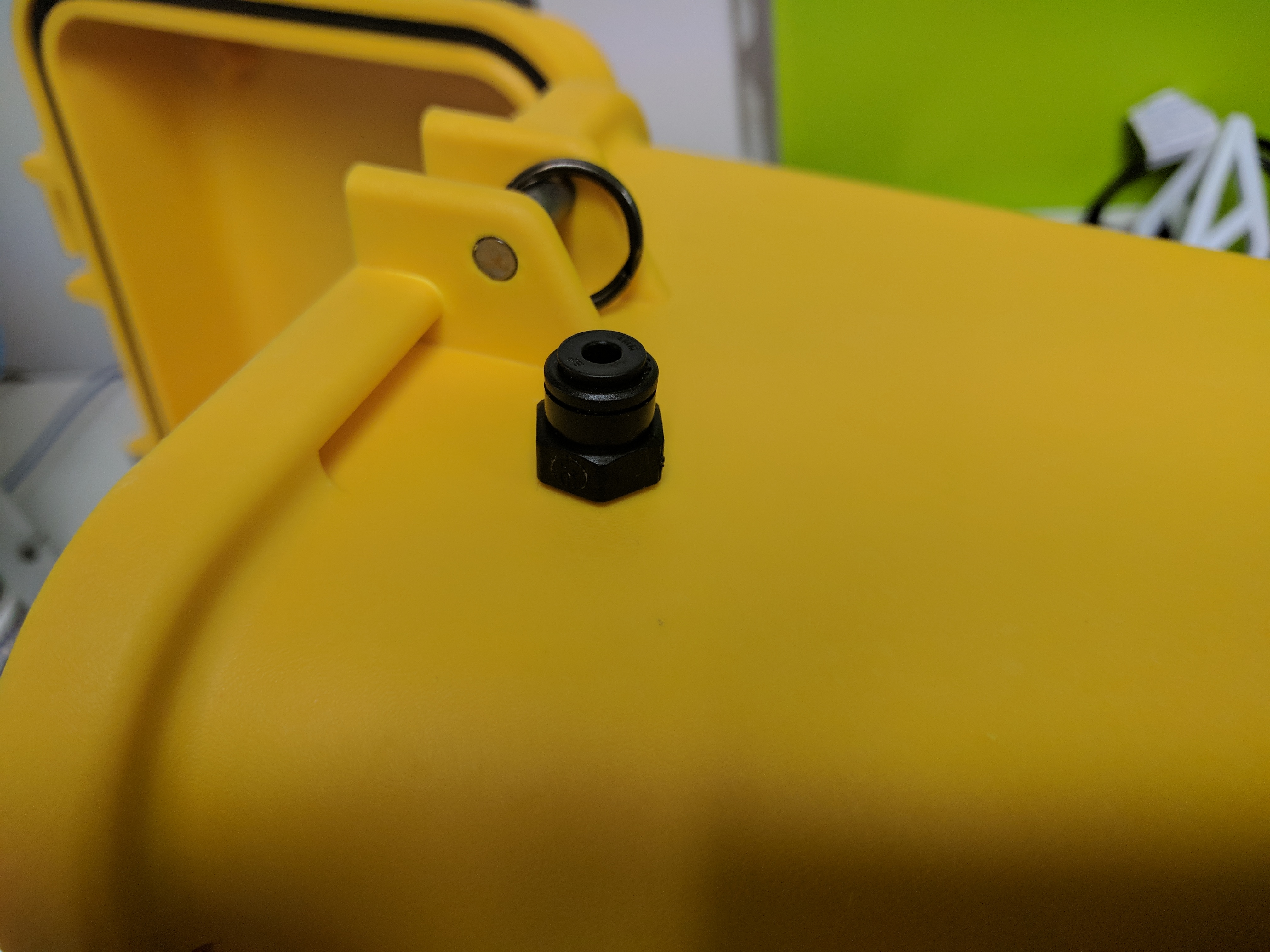

2 x Threraded Bowden Couplings (3mm / 1.75mm).
2 x Metre PTFE Tubing (3mm / 1.75mm).

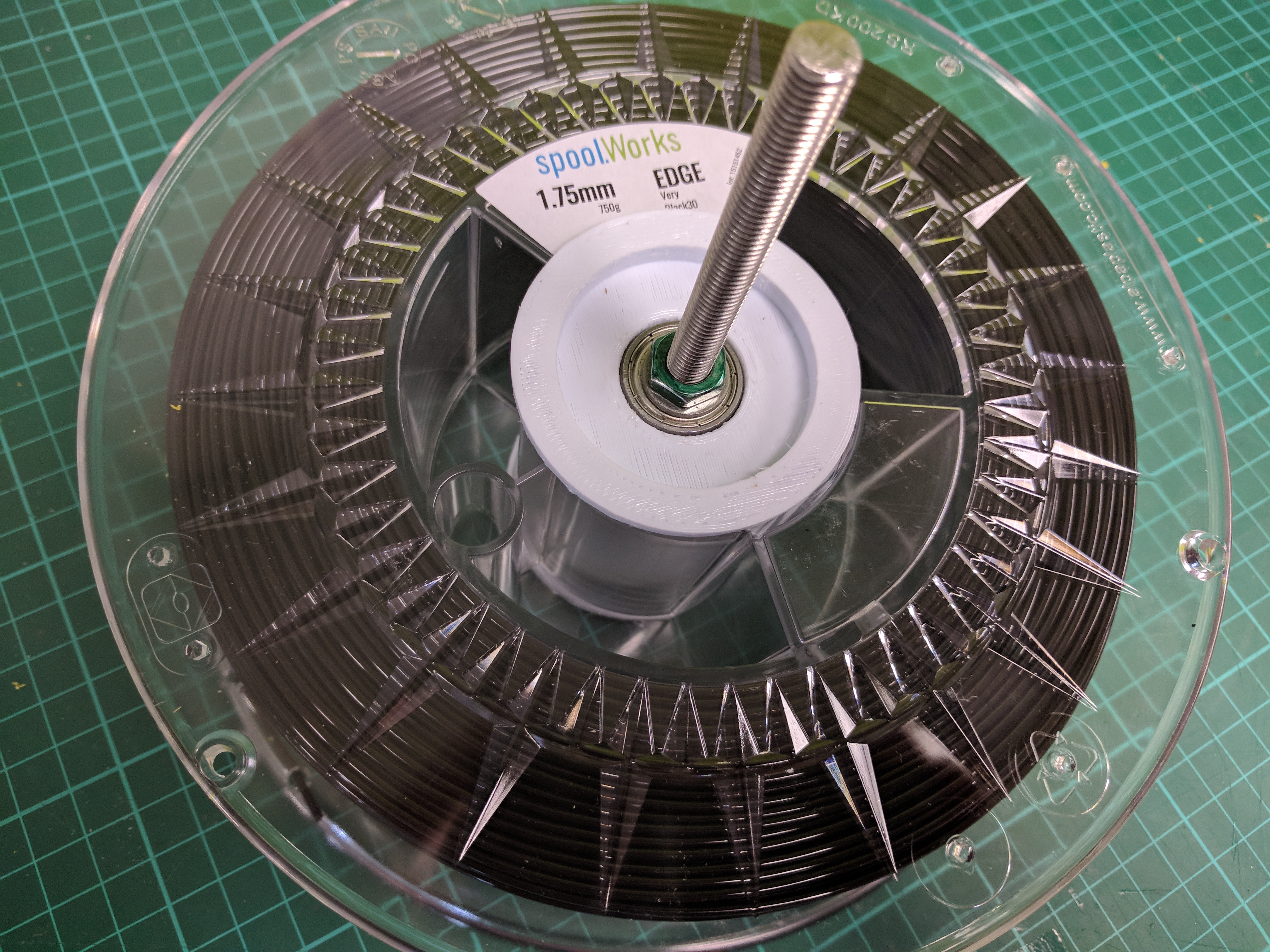

4 x 608ZZ Bearings.

Print with your favourite thermoplastic | http://e3d-online.com/All-Filament

Additional Parts Shopping List

(eBay Affiliate Links)

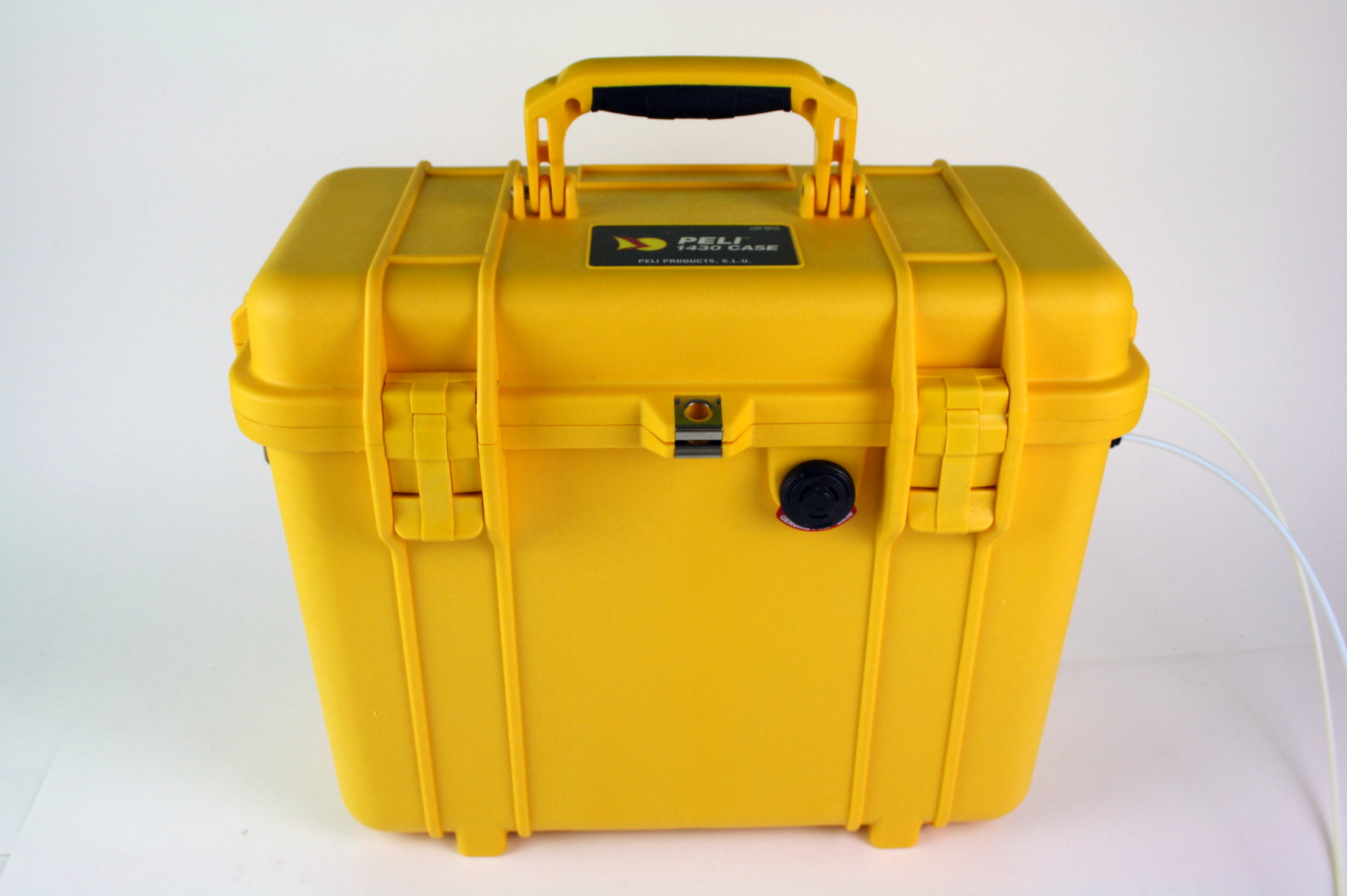

1 x Peli Case Model 1430 (without foam).

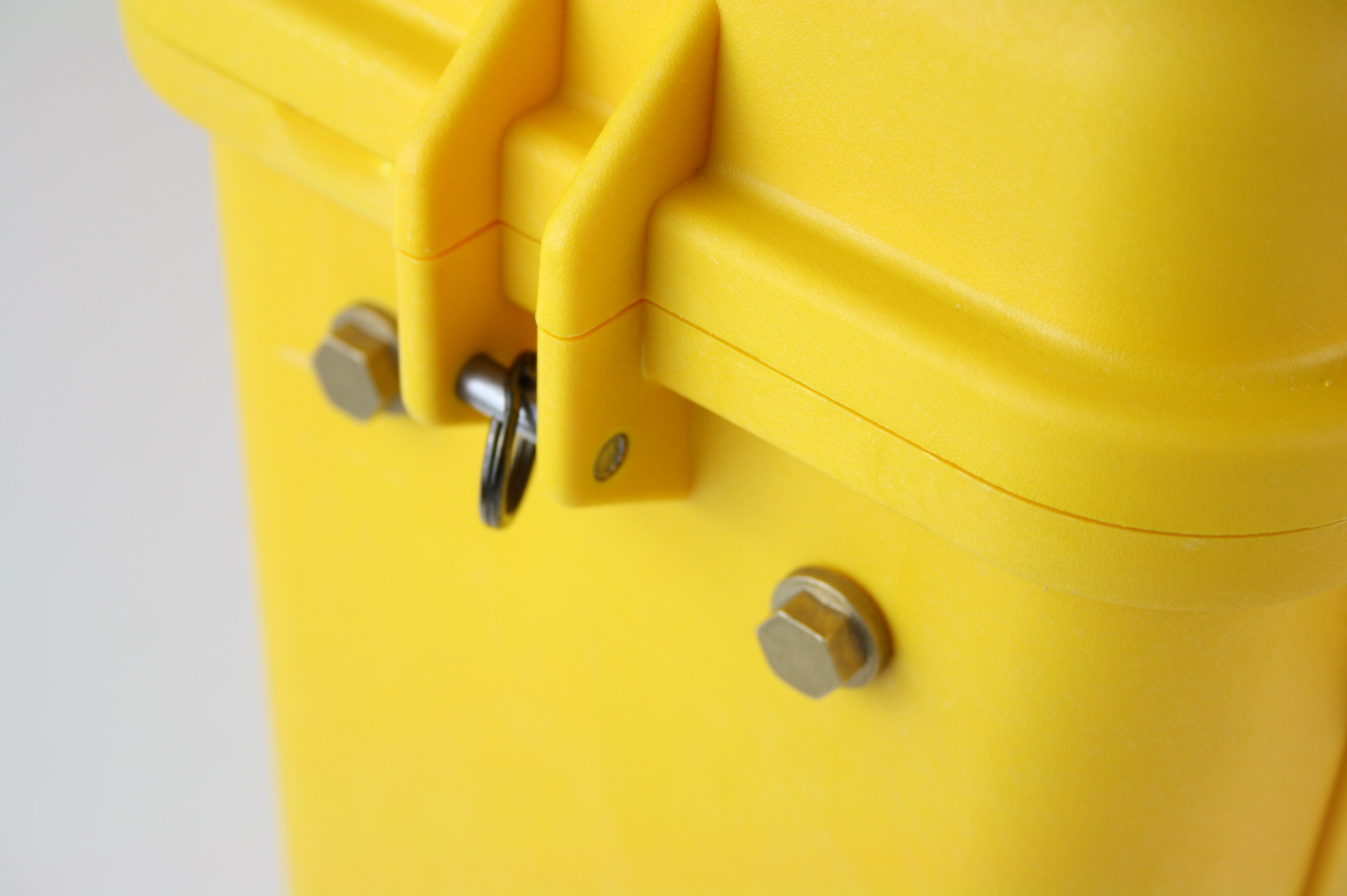

4 x 1/8 BSP Plugs.

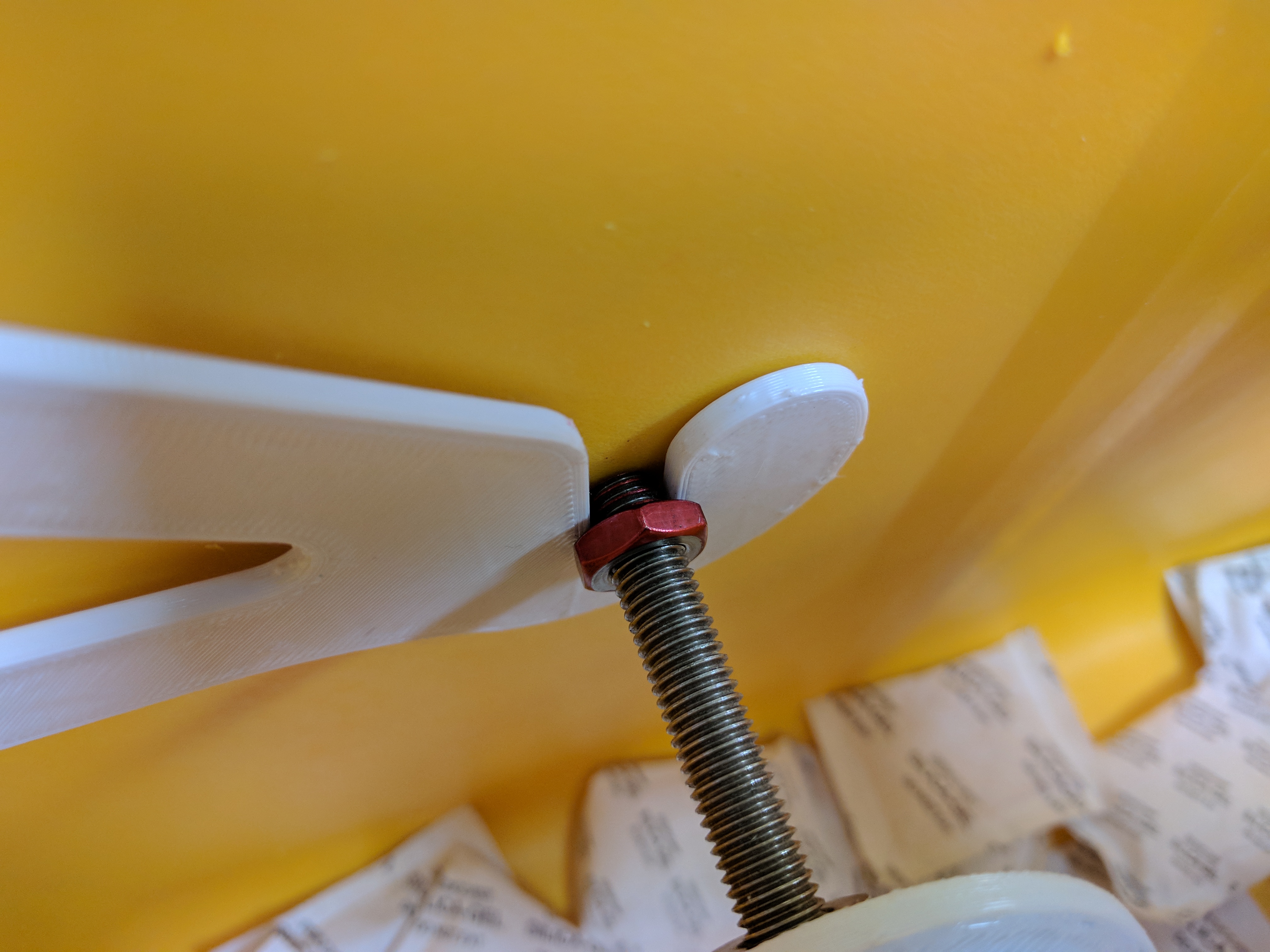

2 x 150mm Length of M8 Threaded Rod.

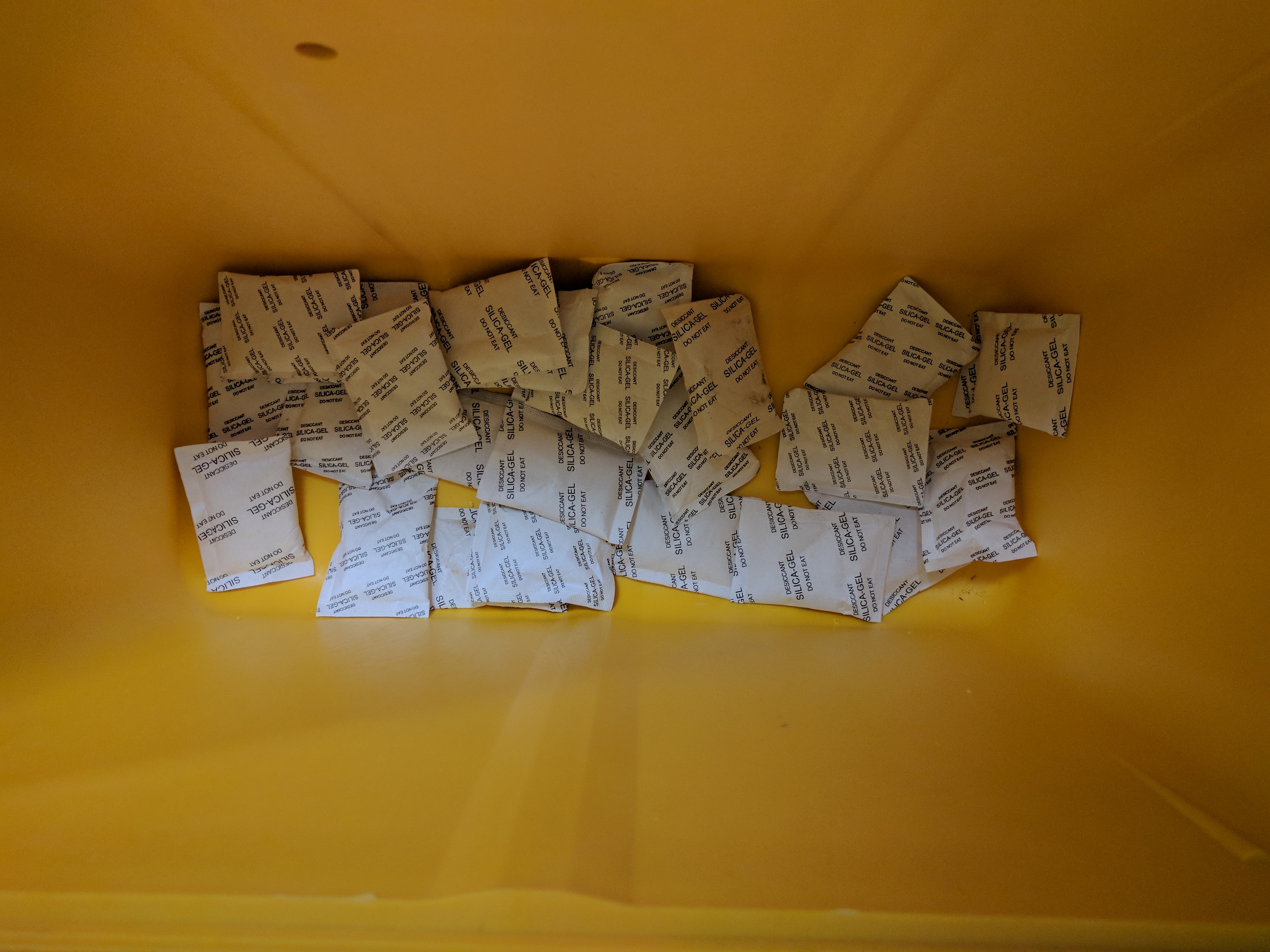

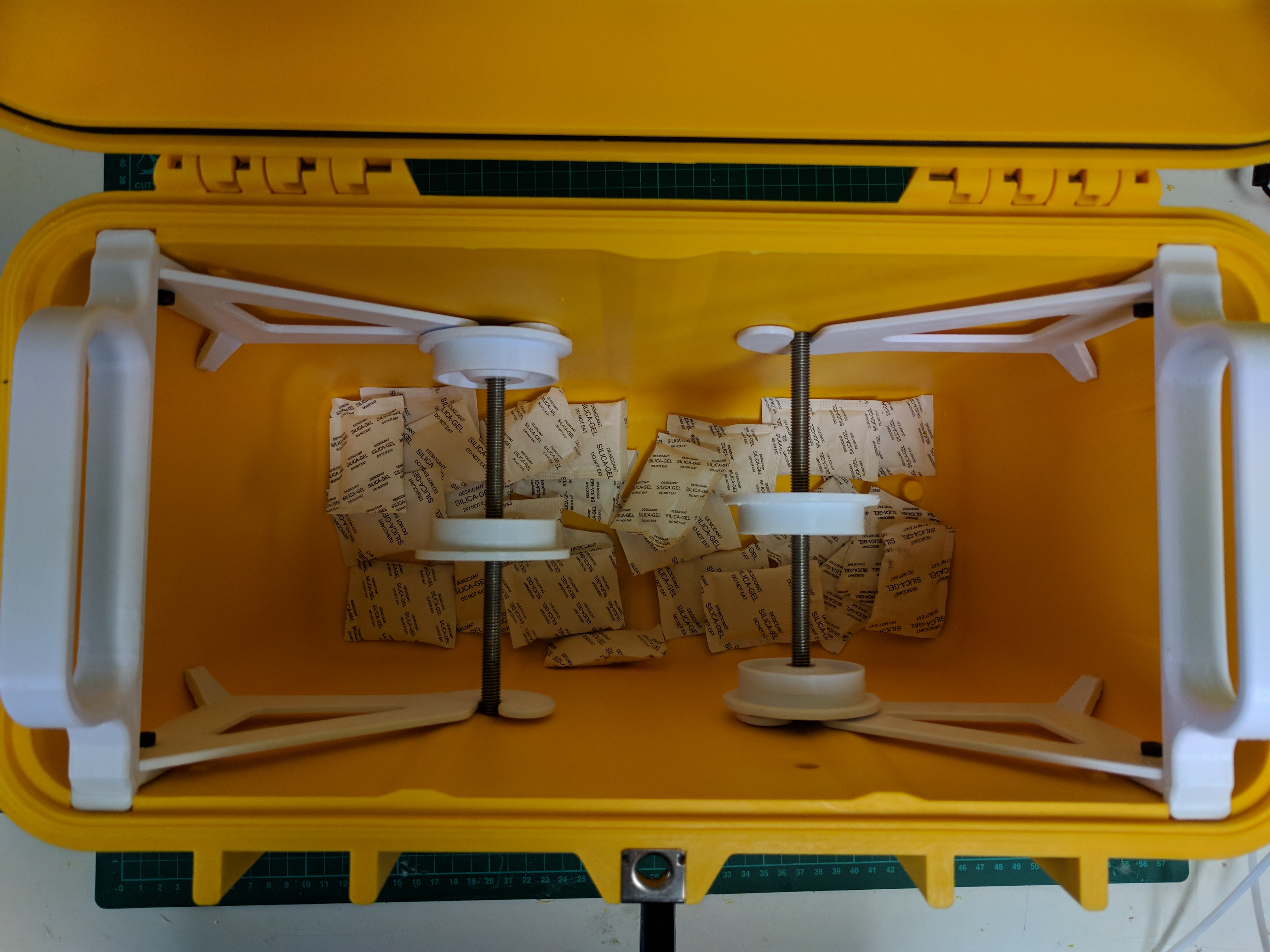

1 x Silica Gel (optional).

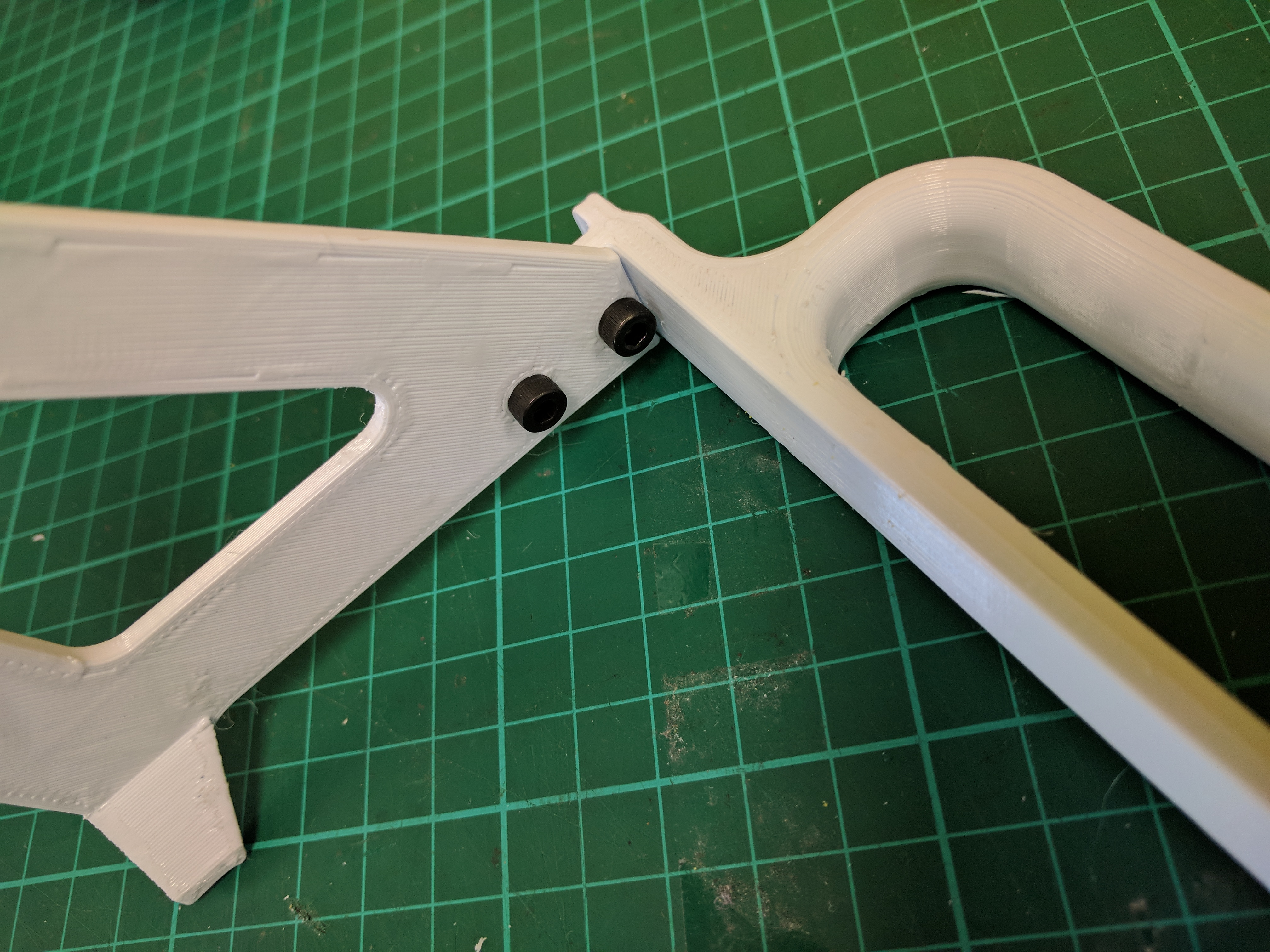

A Selection of assorted Metric Socket Cap Screws (8 x M4 8mm).
A Selection of assorted Metric Square Nuts (8 x M4).
A selection of assorted Metric Hex Half Nuts (4 x M8).
A Selection of assorted Metric Washers (4 x M8).

Tools Shopping List

(eBay Affiliate Links)

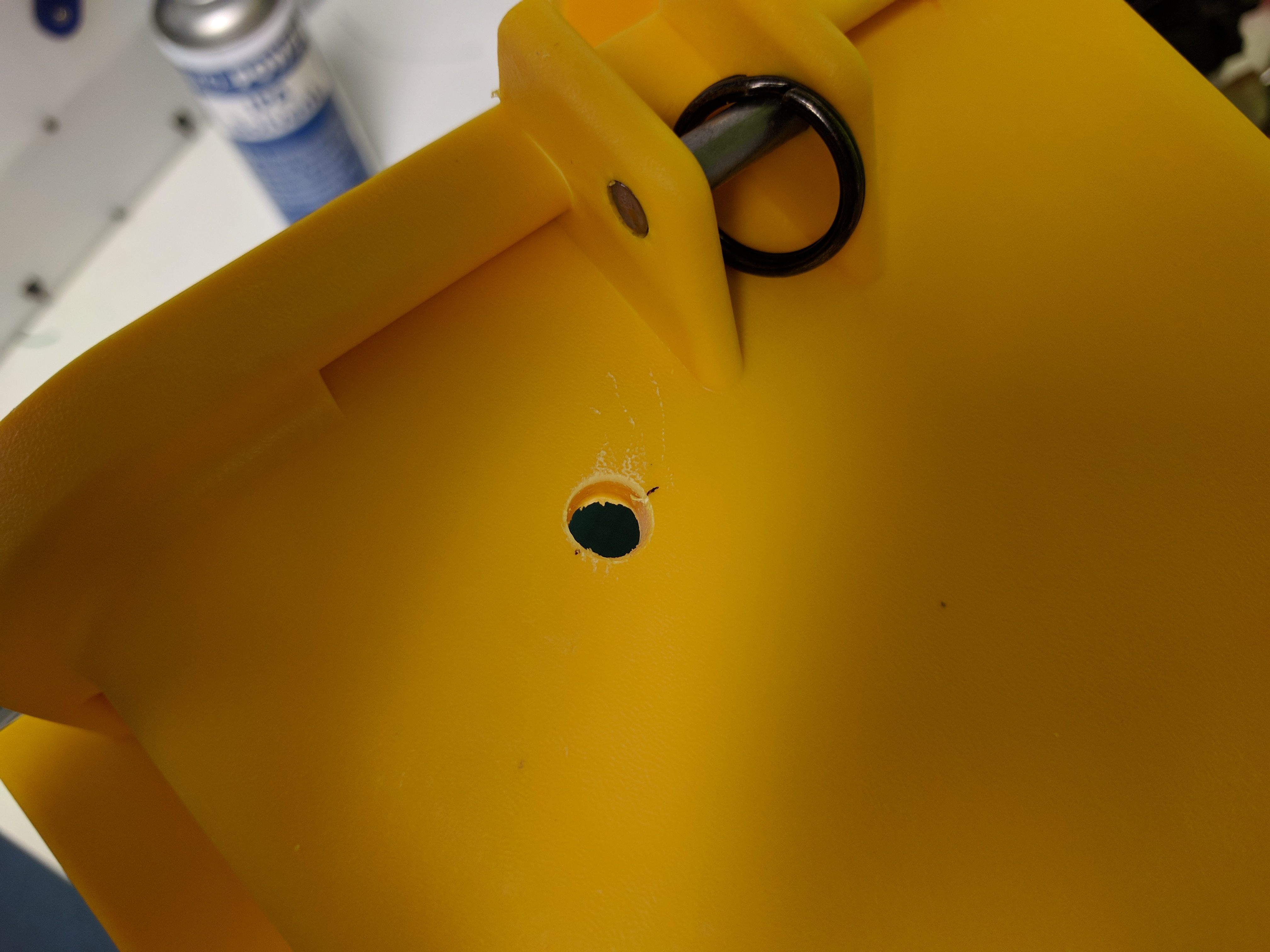

1 x 8mm Brad-Point Drill.

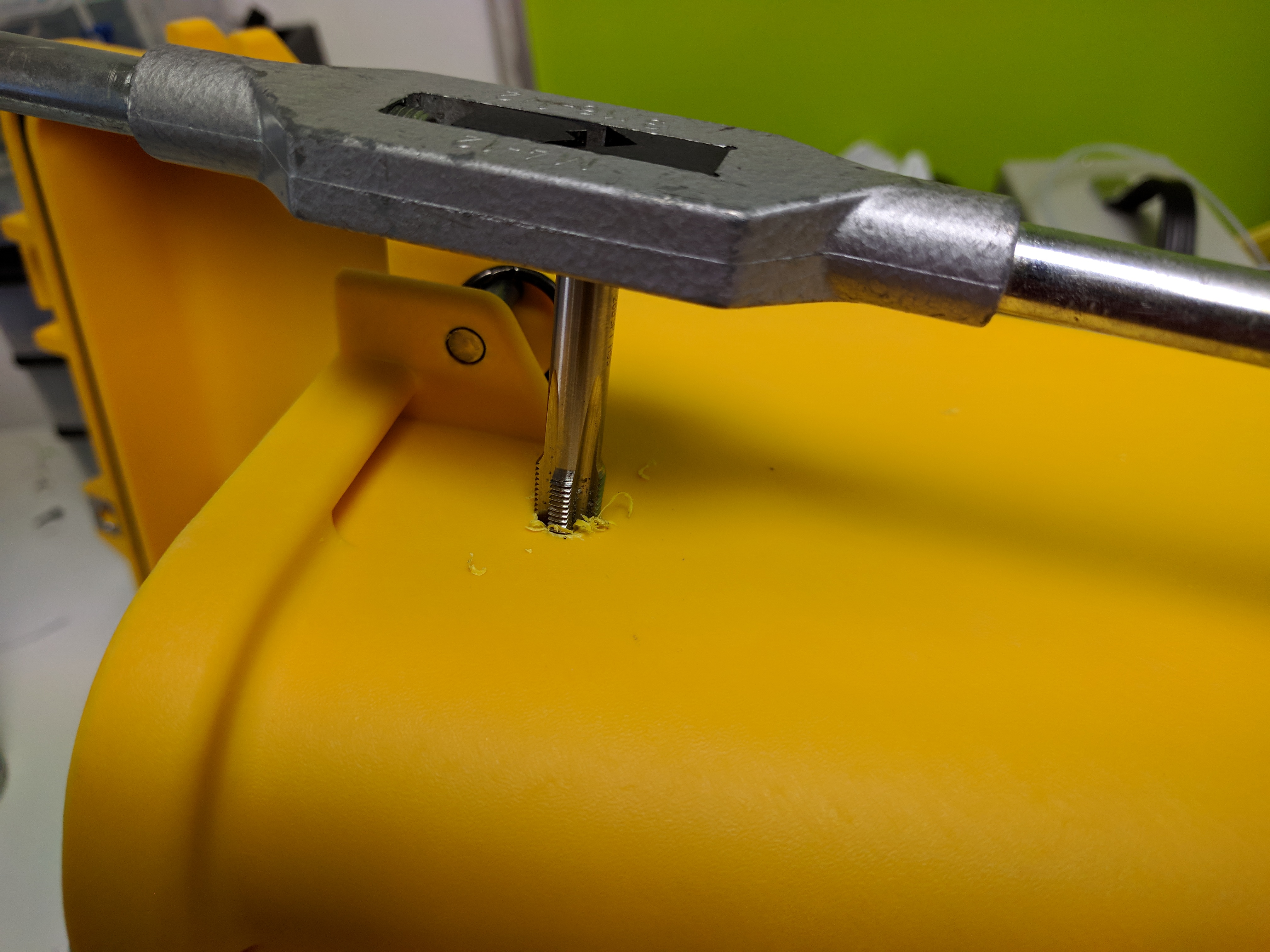

1 x 1/8 BSP Tap.
1 x Tap Wrench.

Love 3D printing? Love T-Shirts?

Then you need to check out steps-per-mm.xyz!

It is loaded with a huge range of wearable Parts & Components.

Please help support my work here on Thingiverse and on Instructables by using the affiliate links when making purchases. It doesn't cost you anything extra. Thanks :)

eBay.com | eBay.co.uk | eBay.fr | Amazon.co.uk

Print instructions

Category: 3D Printer Accessories Print Settings

Printer: E3D's BigBox

Rafts: No

Supports: Yes

Resolution: 0.3mm

Infill: 12%

How I Designed This

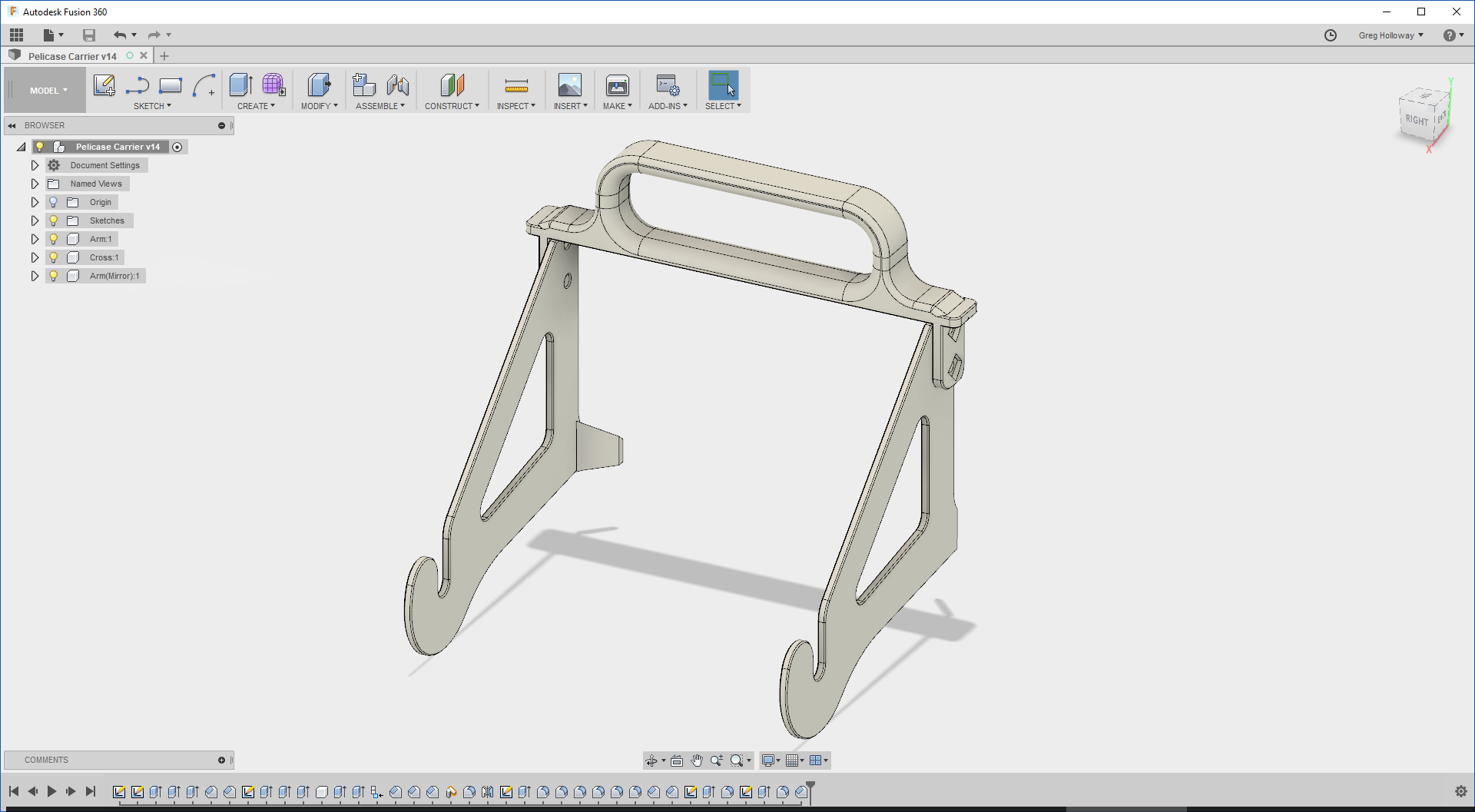

Fusion 360
