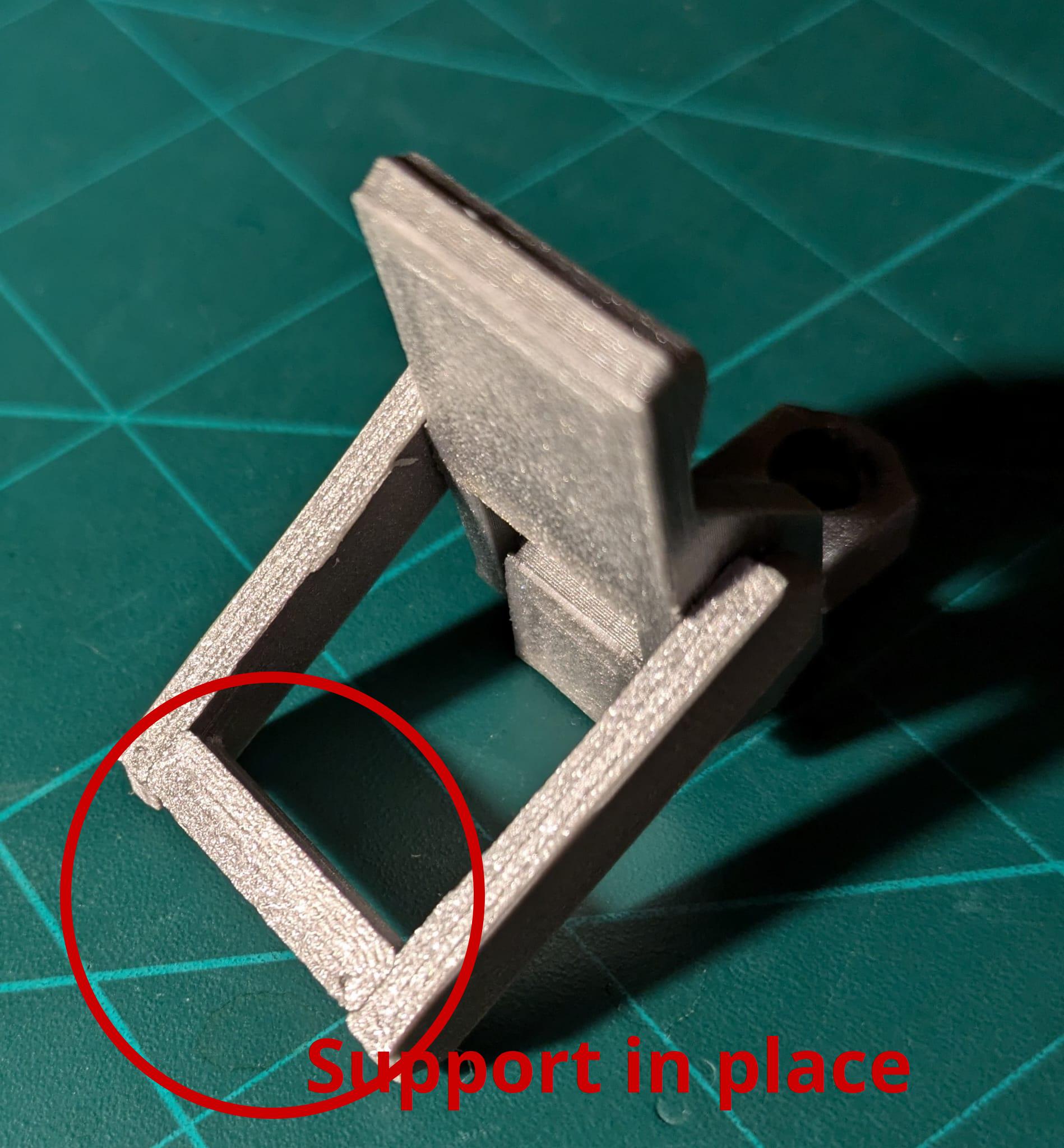

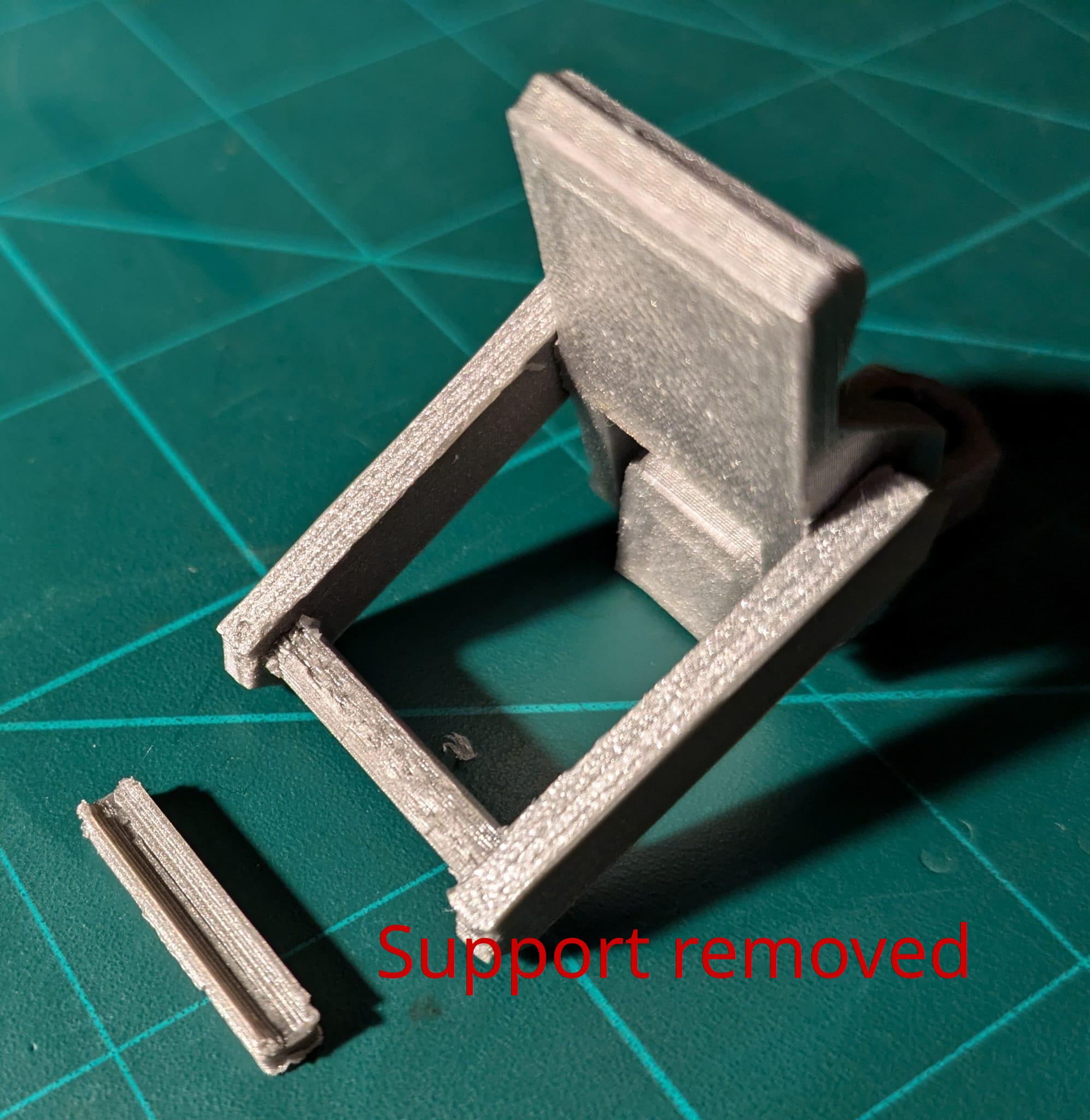

When I finally had found a really functional toggle latch on printables, fiddling with the support was disappointing and the clamp looked really ugly afterwards. Therefore, I changed it, so that the bracket needs no support anymore. The only support for the free connecting rod of the clamp is already included in the model. Just remove when print is finished.

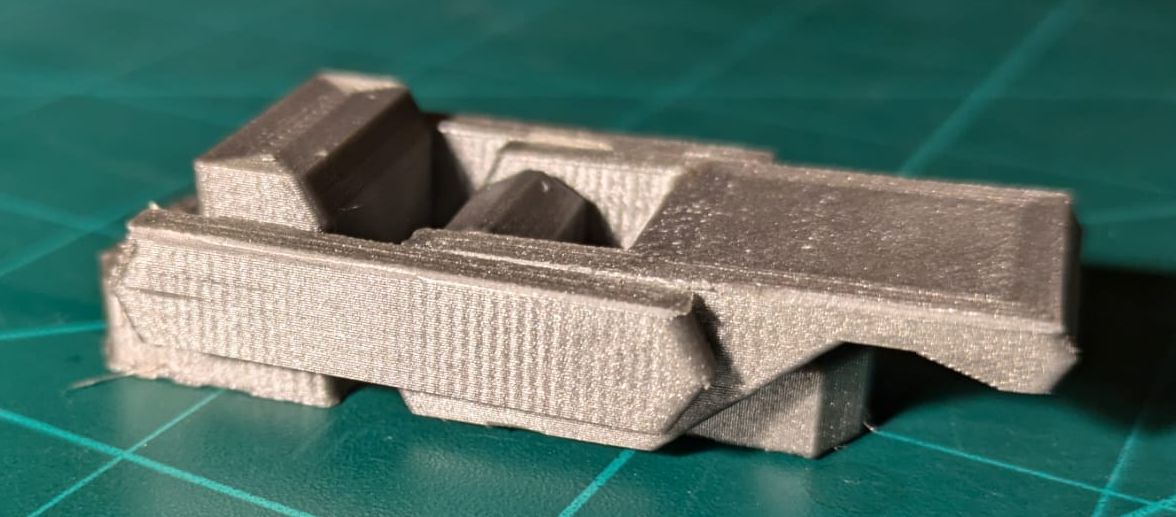

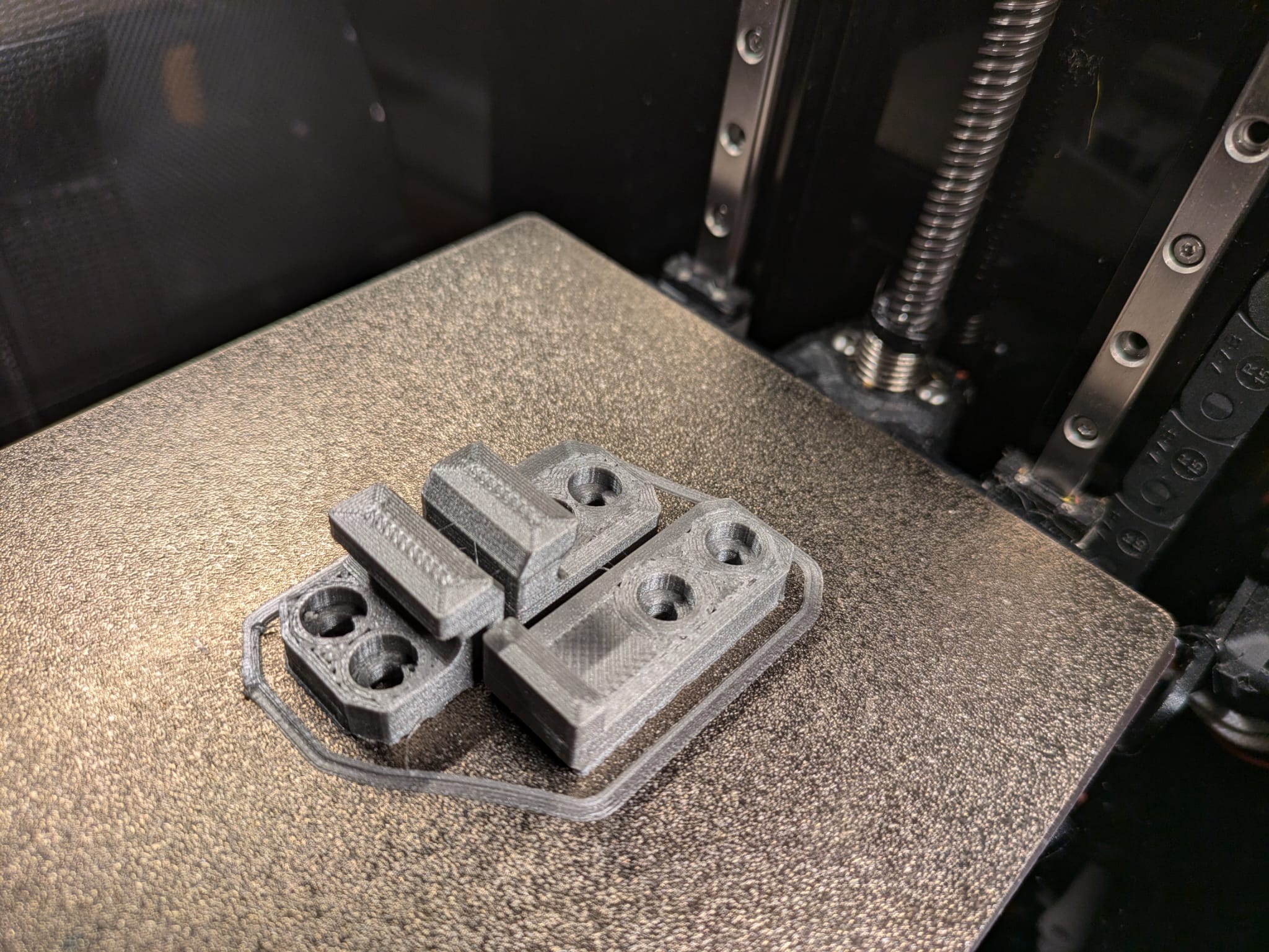

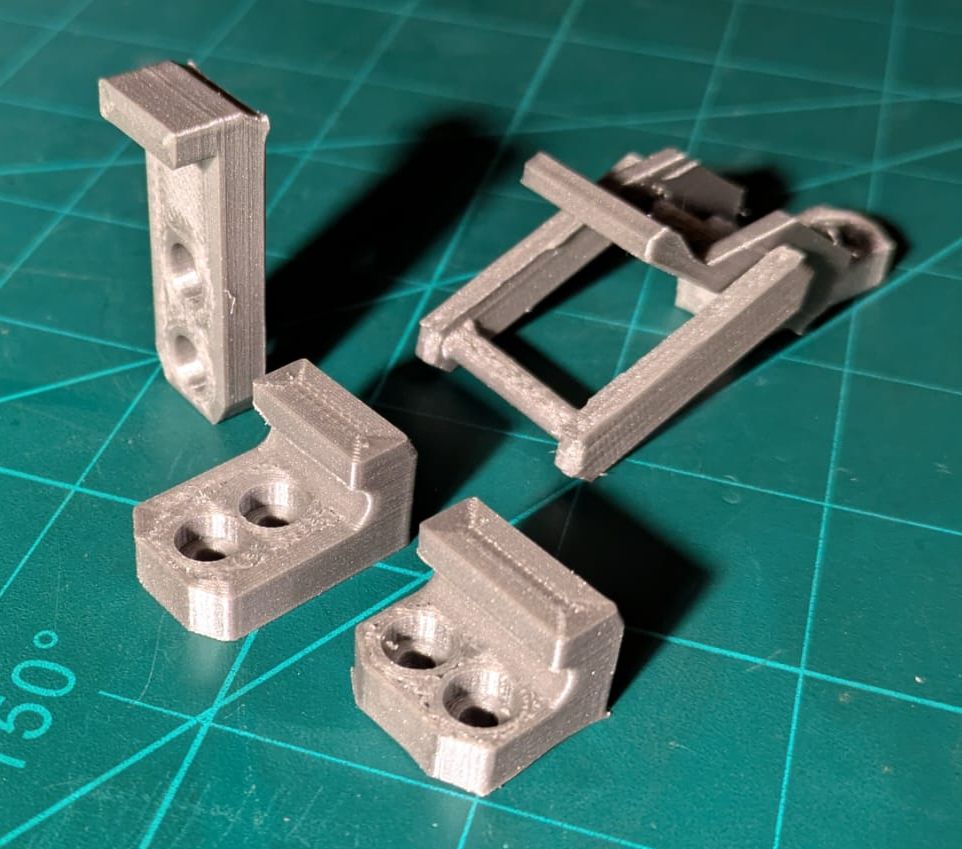

The new height of the clamp required a redesigned hook. See two variants with screws across and along. For my application I need a corner hook. So I added this too.

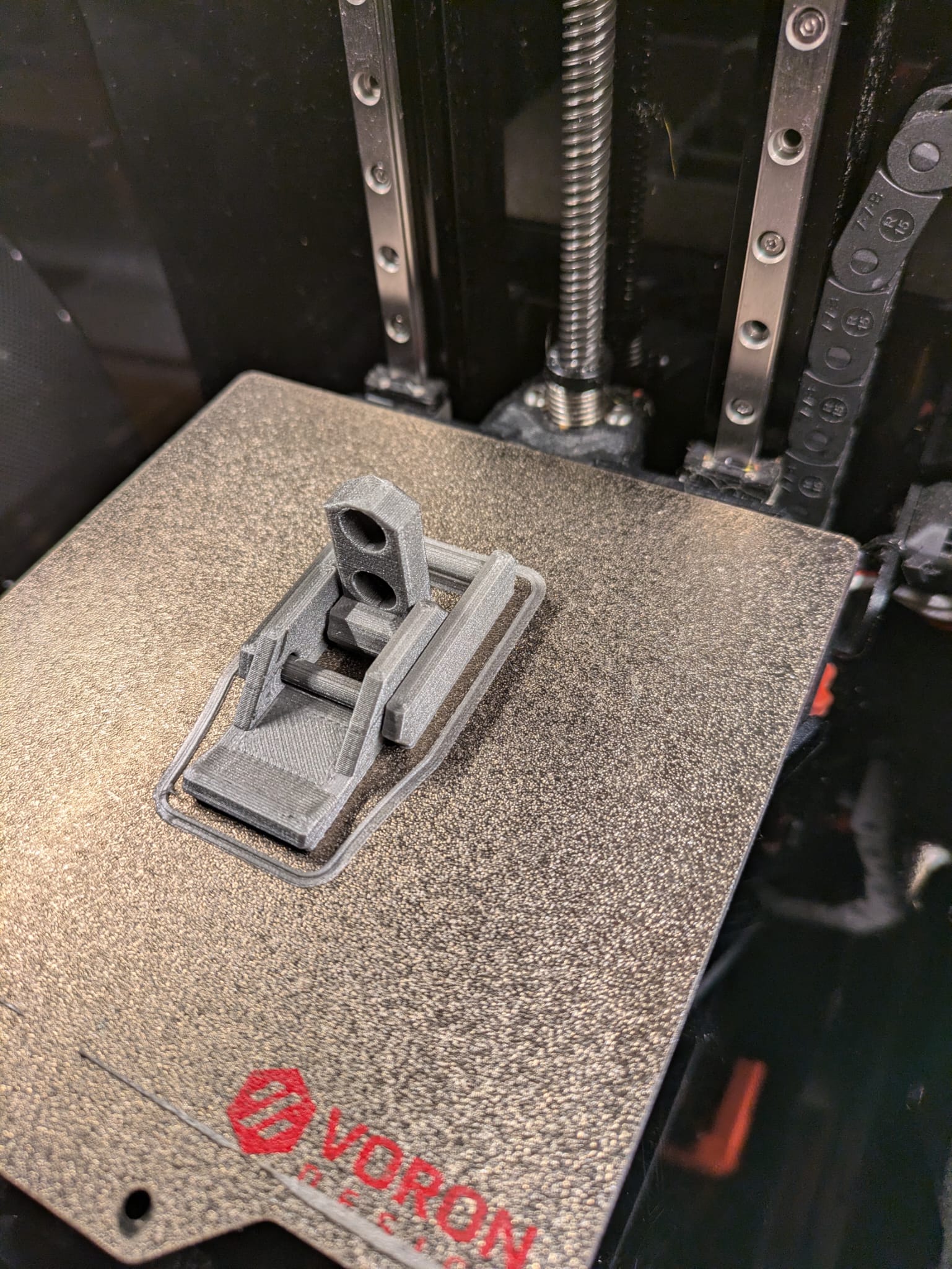

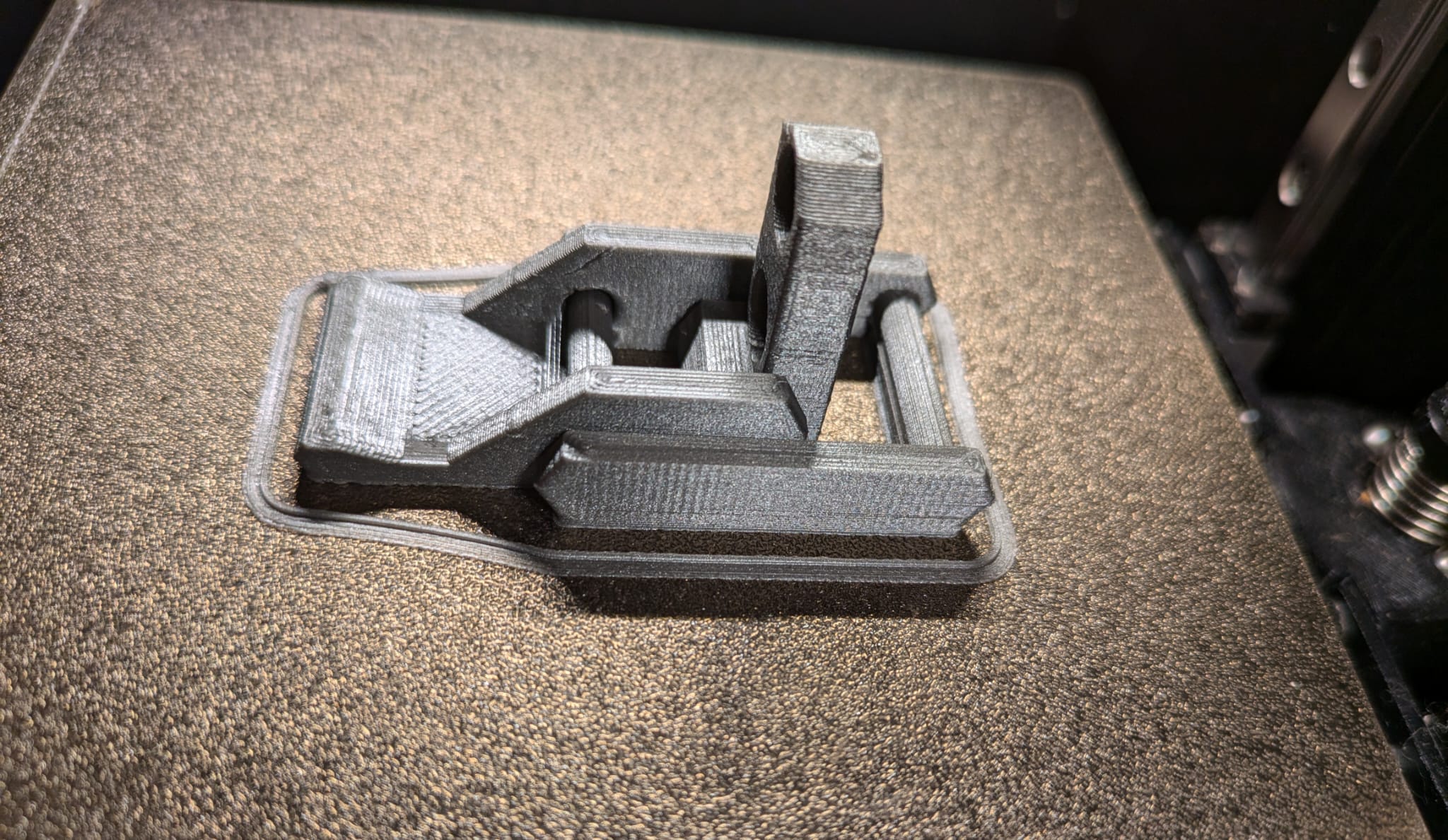

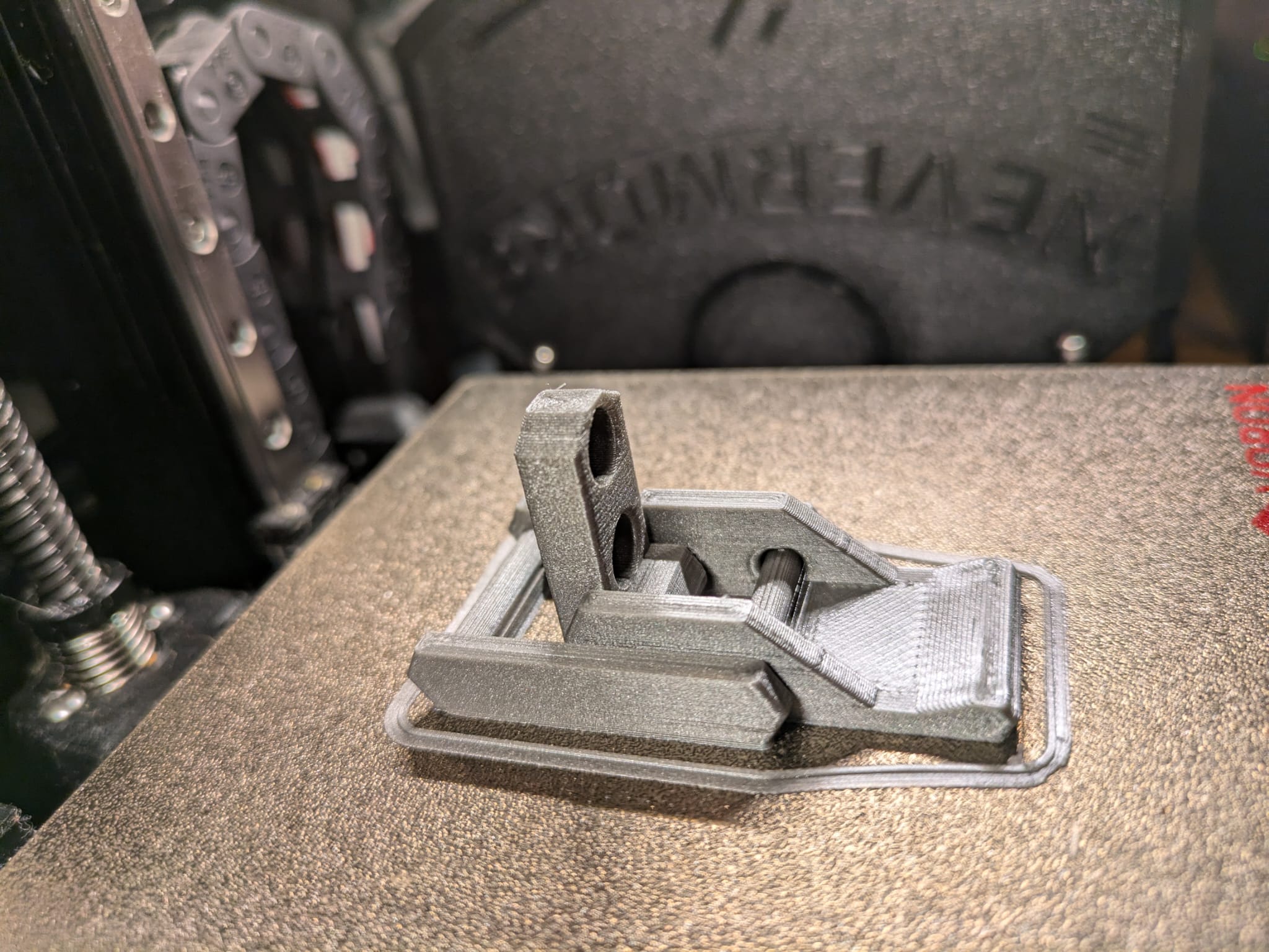

Print the latch and the hooks in the given position. I printed in PEGT and it came out great.
Redrawn in SCAD with parametric dimensions and beveled or round edges.
