-Learning aid for people without or with low vision. I believe it will be useful to someone :)
-If you print out more sets of letters you can start making words and sentences
-The cubes are 2x3cm in size and the thickness is 3mm including the protruding parts.

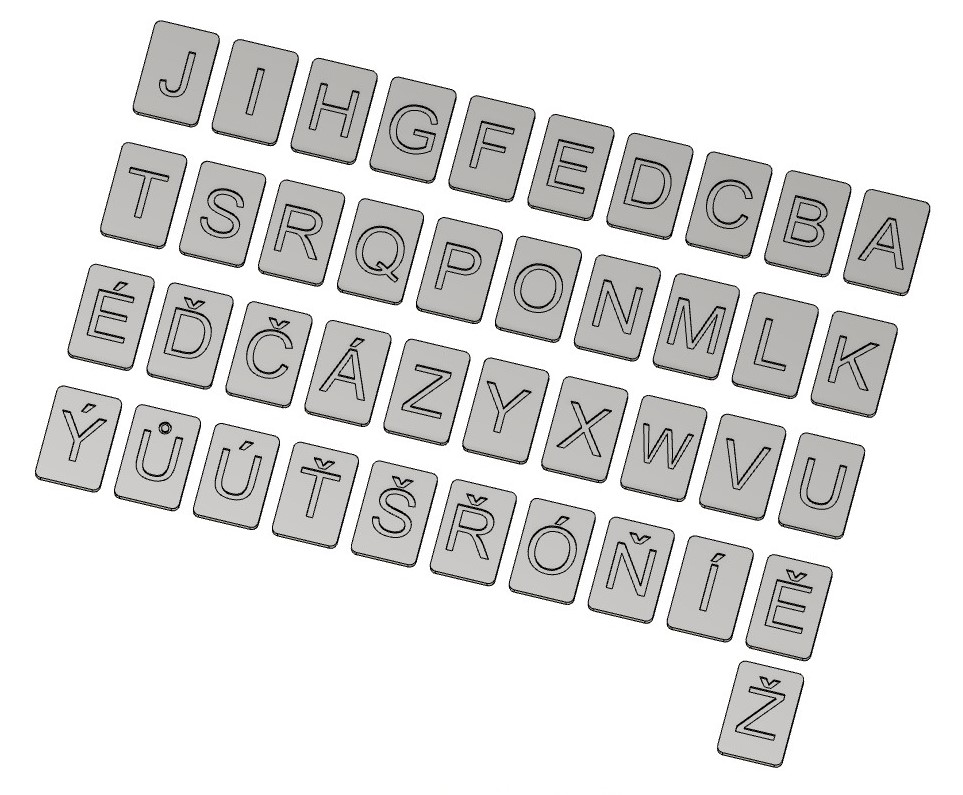

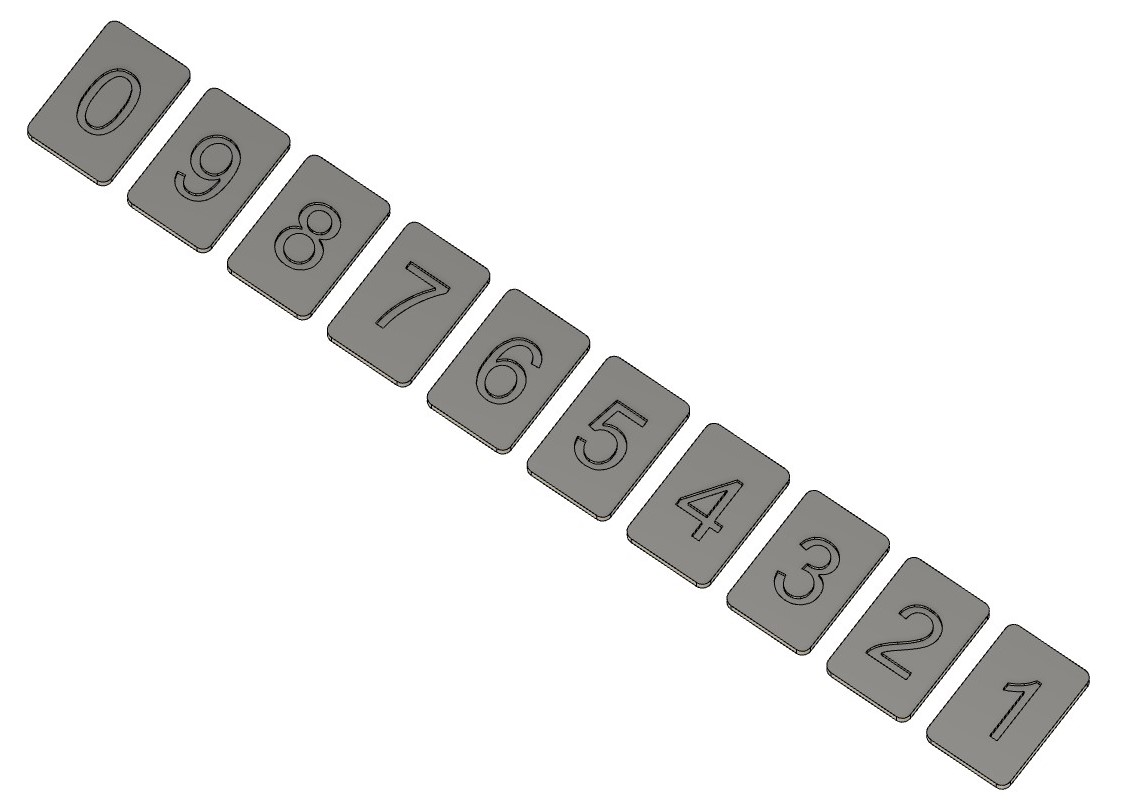

-For now, the alphabet including Czech diacritics and numbers 0-9 is available

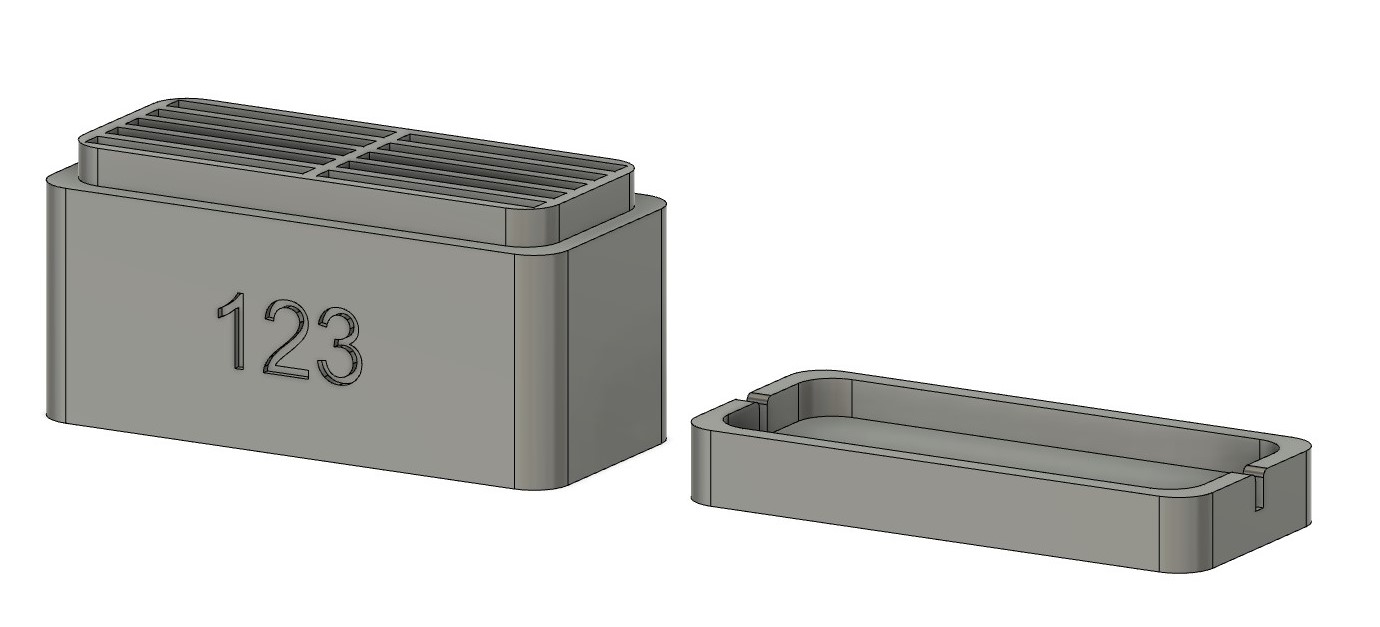

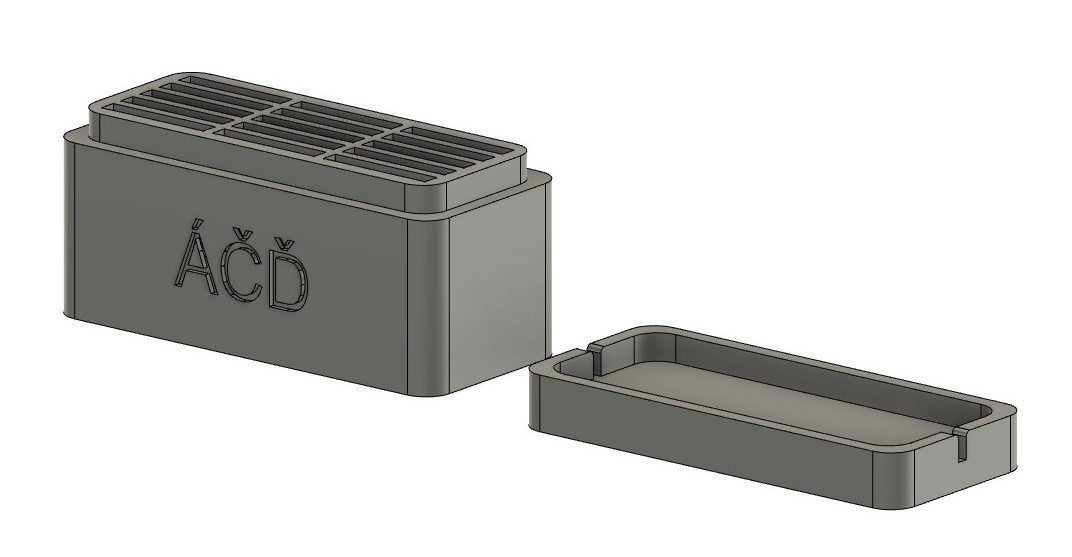

-The cubes fit into prepared boxes that are simply named for a better overview
-The prepared table has 6 rows above each other and each row has space for 10 tiles from the alphabet. The dimensions of the table are in the original size 216x224x7mm. It is possible to reduce the percentage in the slicer, but at the same time you NEED TO CALCULATE THE REDUCTION OF THE PLATES so that they fit as they should. Each row in the table has a reserve for a plate of 1 mm in width and height in the row.
- In the future, more diacritics plus various characters and the like will probably be added
