Kenmore 158 Sewing Machine Hook Drive Gear
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Mechanical Parts
- License
- Creative Commons — Attribution — Noncommercial

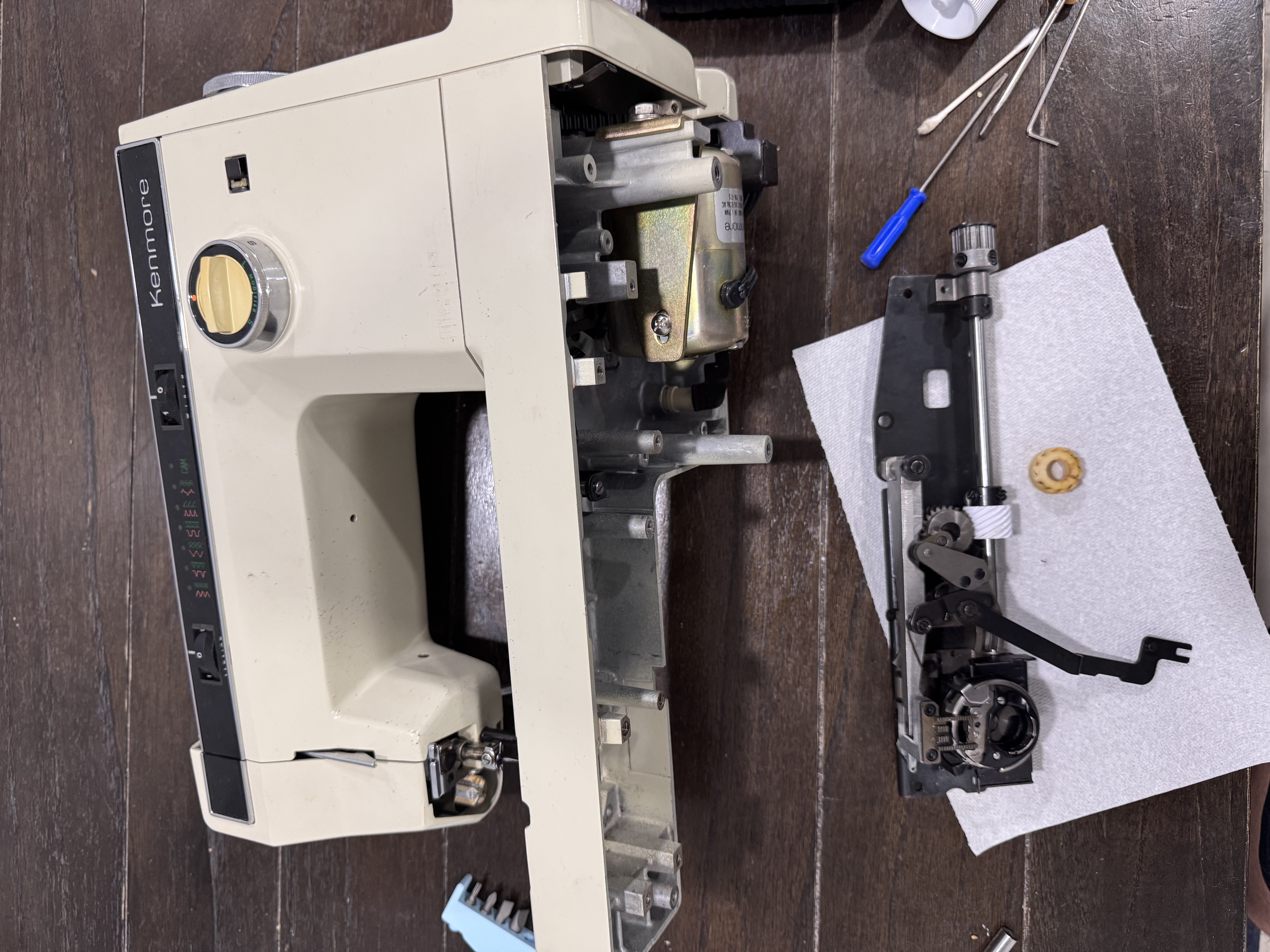

Replacement gear for a Kenmore 158 series Hook Drive Gear. Traditionally made with nylon they can crack over time. My sew machine is model 158.18800.
Make sure the mark the orientation of the needle and the bobbin holder. I had to “retime” mine because I didn't know any better.

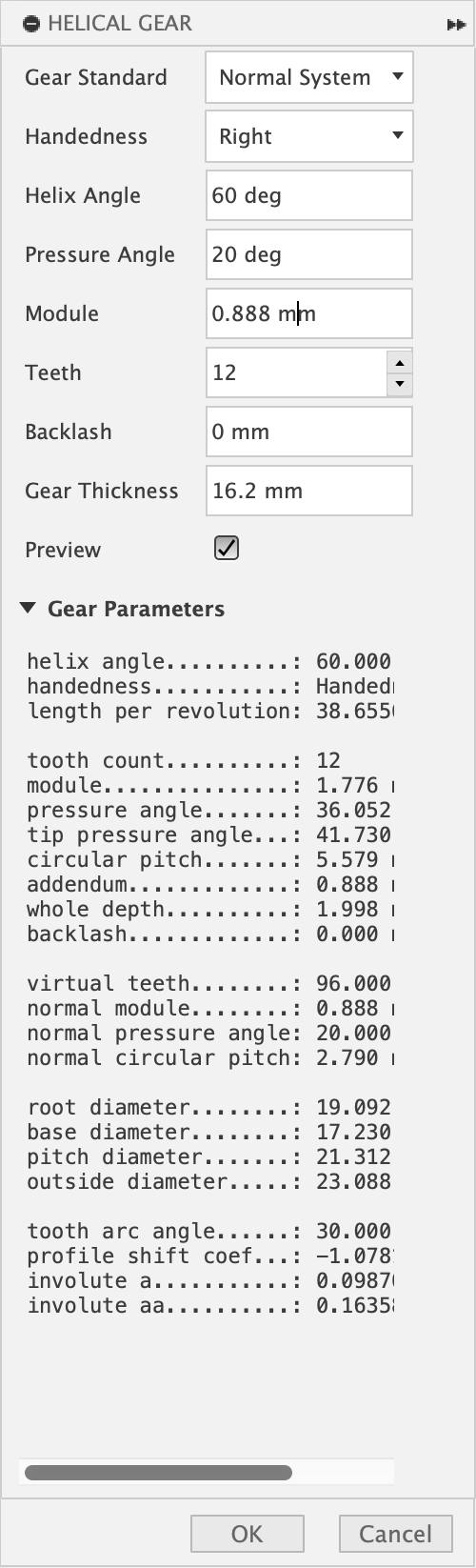

Gear Specifications:
12 Teeth
60 Degree Angle
23 mm Diameter
16.2 mm Height
Printed with white Inland PLA+ at 0.16 layer height. (0.2 came out a little rough.)
