Split Wheel (for drying rack)
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Mechanical Parts
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
To protect the floor or to prevent the robot vacuum cleaner from getting stuck. The laundry hangs higher. To prevent the wheels from shifting axially, you can simply use cable ties.To protect the floor or to prevent the robot vacuum cleaner from getting stuck. The laundry hangs higher. To prevent the wheels from shifting axially, you can simply use cable ties.

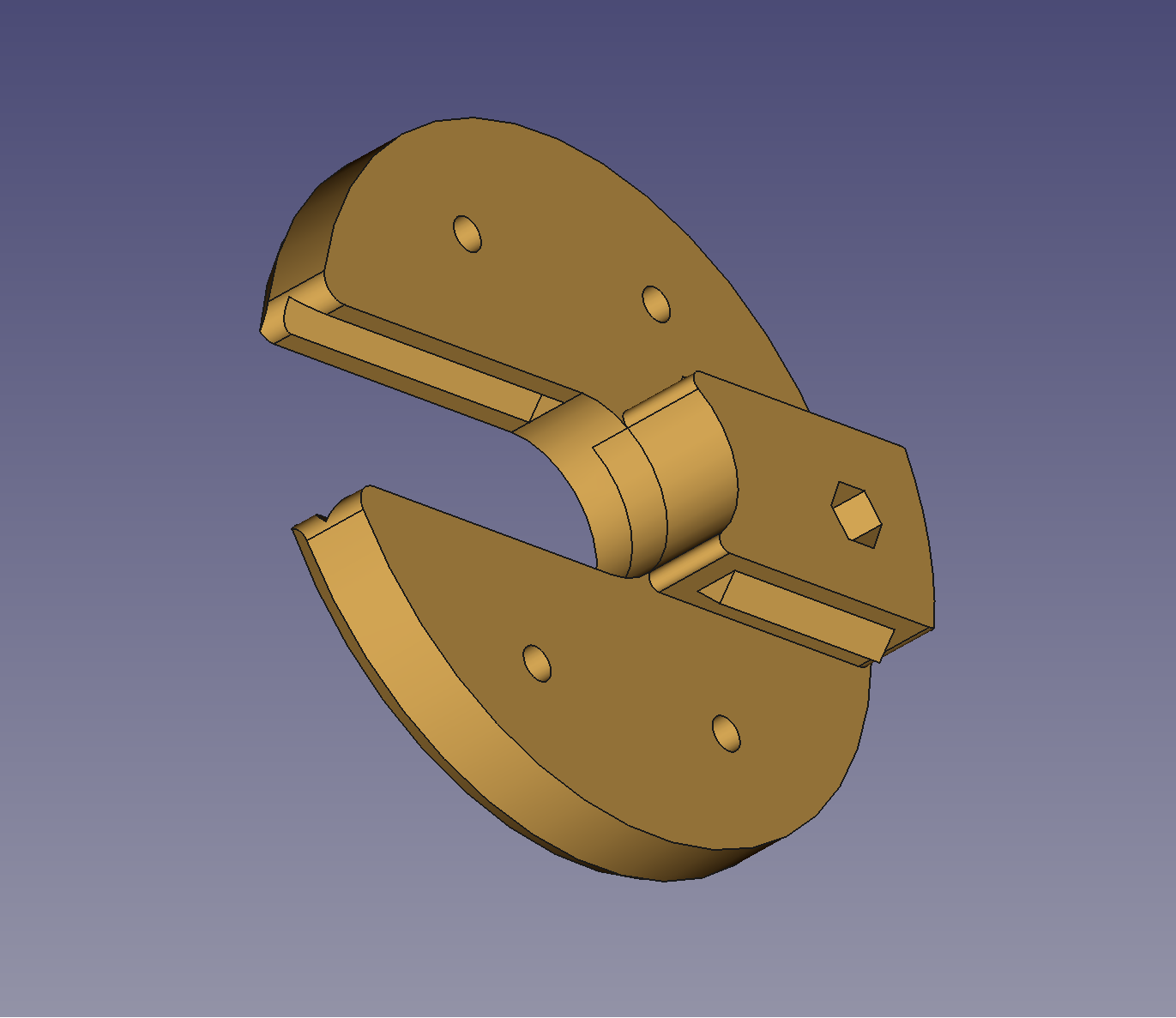

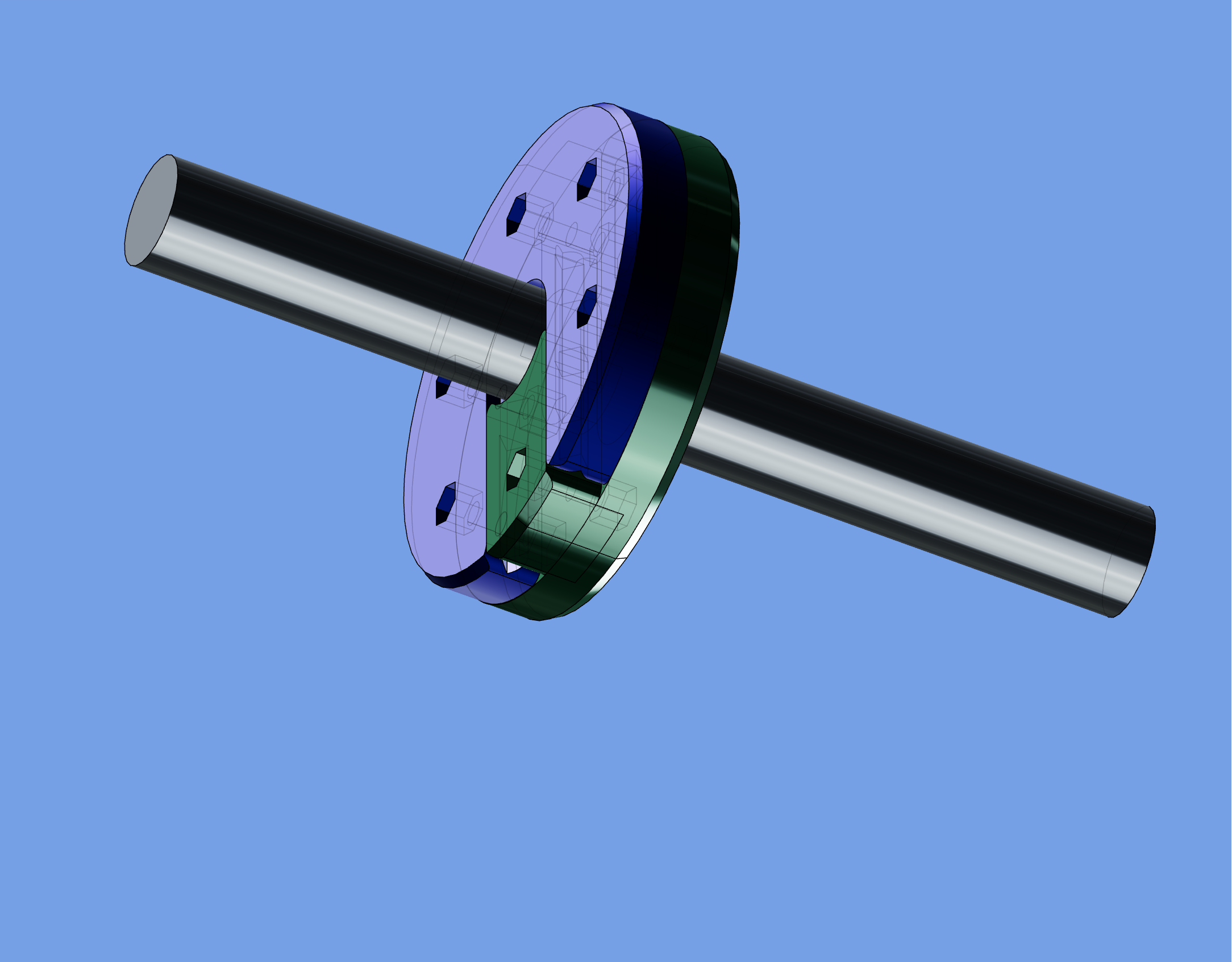

Print (with TPU/Flex) 2 identically parts for one wheel. Slide them radially on the axis.
Use M3x12mm + nuts or 3 cable ties to connect them.
Dimensions
- wheel width 16mm
- wheel diameter 66mm
- wheel axis diameter 17mm
(You can alter the dimensions by using the included FreeCAD-Spreadsheet.)
