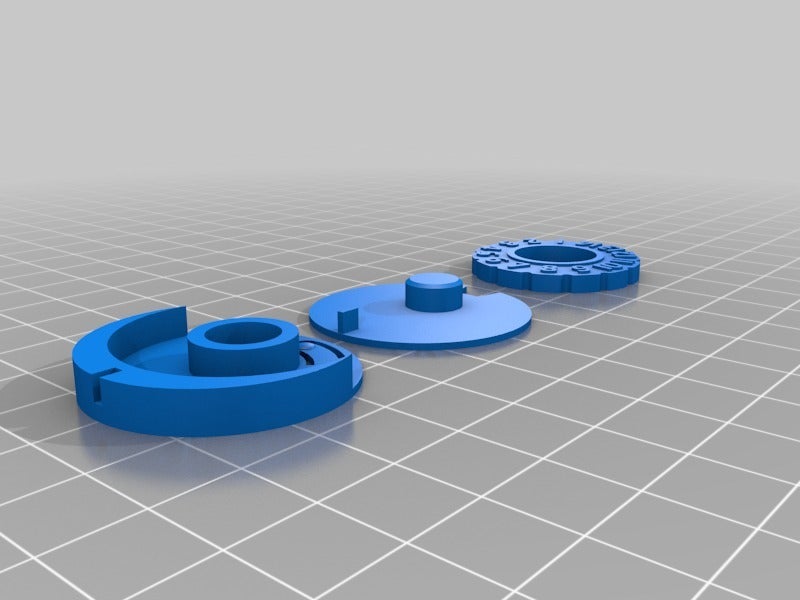

I took the click tracker and addressed the two most common issues from the previous makes: the click wheel is too difficult to adjust the tracker numbers and alignment isn't as exact as it could be. I added alignment tab/slot to ensure top and bottom are put together accurately without too much fiddling. I also decreased the size of the "click" retention bump on the bottom piece, making it easier to adjust the displayed number.
NOTE: using filament swap, can use a contrasting color to print the tracker so that you don't have to paint the raised numbers.
Print instructions
Category: Games Print Settings
Printer Brand: Prusa
Printer: i3 MK3
Rafts: No
Supports: No
Resolution: 200 micron
Infill: none
Filament: Prusa PLA Black How I Designed This
Added alignment tab/slot
Added a 1mm post on the rear of the top and a 1.5mm slot on the rear of the bottom to ensure that the non-centered disks were aligned.
Shortened the tab on the bottom
I made the round convex "clicker" on the bottom much smaller. I removed the previous hemisphere and replaced with only a 2mm bump. This makes it much easier to adjust the level, but still keeps it from moving when bumped or wiggled.
